Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

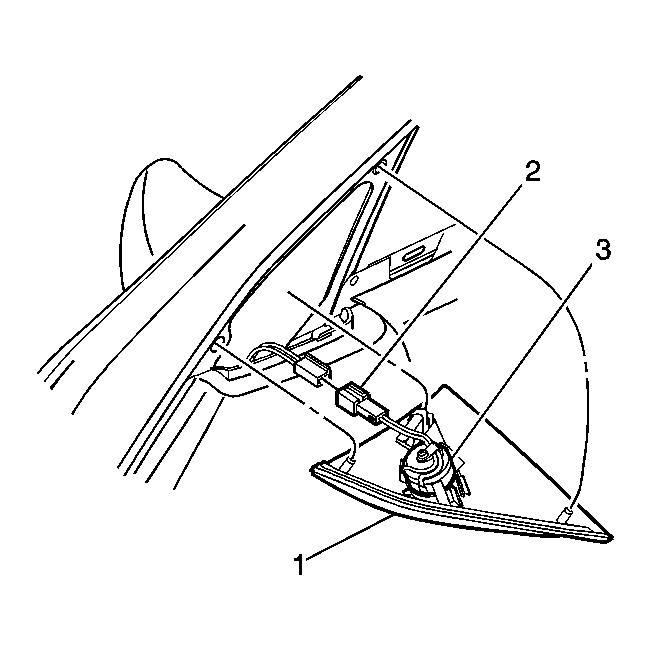

    Fig 1: View of Front Upper Speaker & Electrical Connector
    GM331650Courtesy of GENERAL MOTORS CORP.
  1. Position the speaker (3) on the trim panel insert (1).
  2. Install the speaker (3) pressing into the retainers until fully seated.
  3. Connect the electrical connector (2) to the speaker (3).
  4. Install the trim panel insert (1). Refer to Trim Panel Insert Replacement - Front Door in Doors.
