DTC B2708: Notes

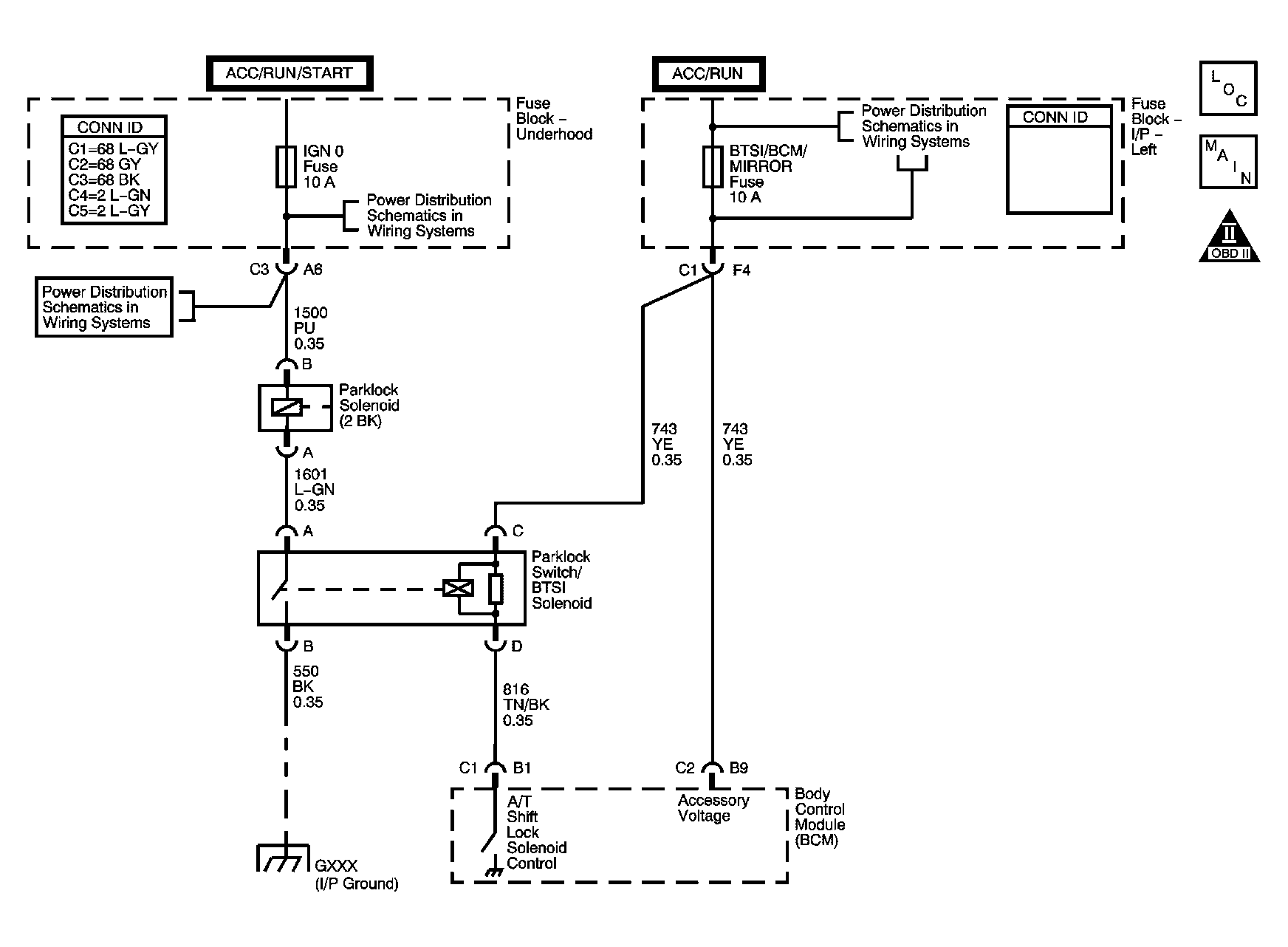

Fig 1: Automatic Transmission Shift Lock Control Circuit Wiring Schematic

GM1222400

Courtesy of GENERAL MOTORS CORP.
