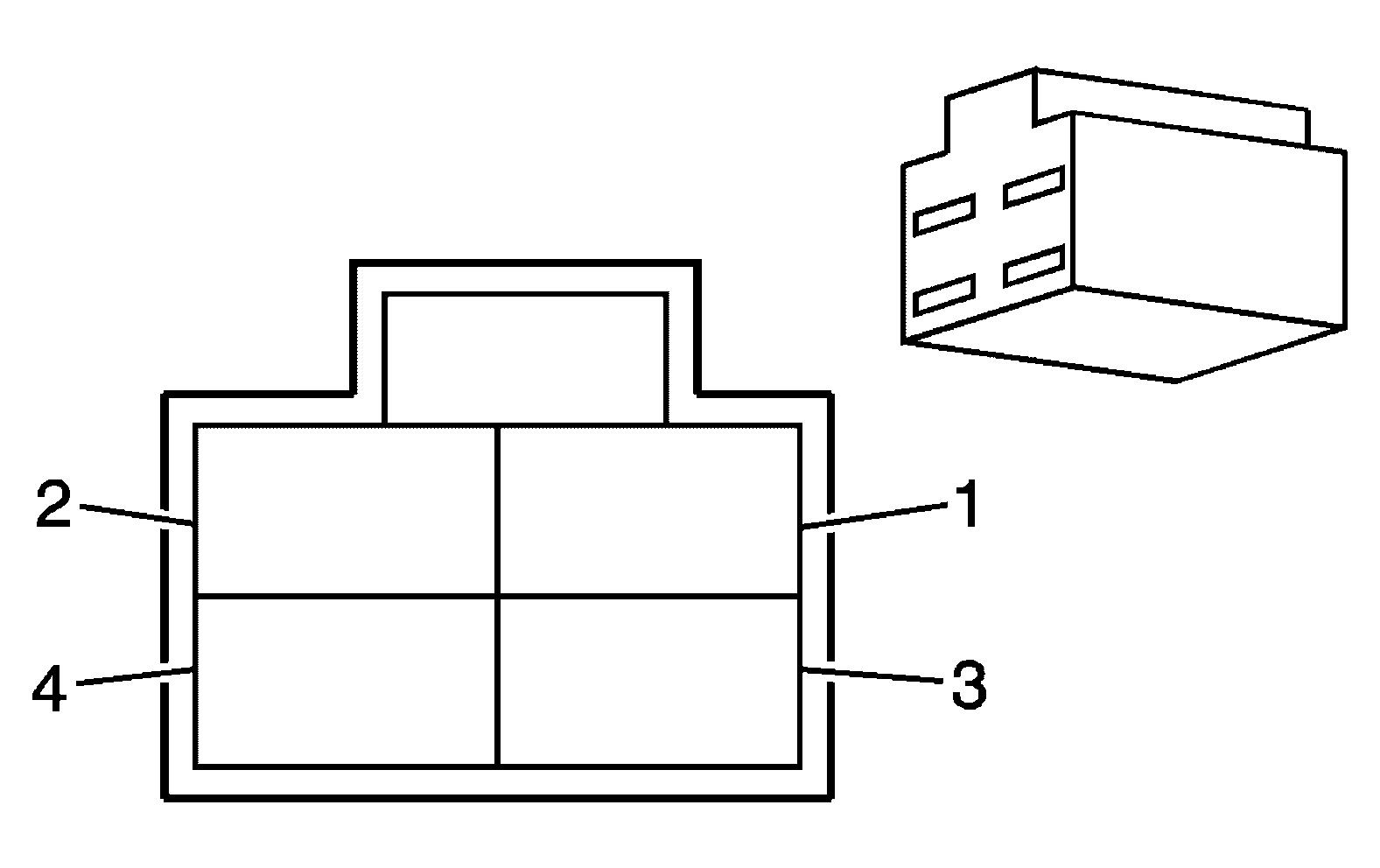

Blower Motor Speed Control Module Connector End View
Blower Motor Speed Control Module Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
|
| Pin |
Wire Color |
Circuit Number |
Function |
| 1 |
BU/WH |
761 |
Blower Motor Speed Control |
| 2 |
PU |
54 |
Blower Motor Speed Request Signal |
| 3 |
BK/RD |
550 |
Ground |
| 4 |
- |
- |
Not Used |
