Engine Controls Schematics

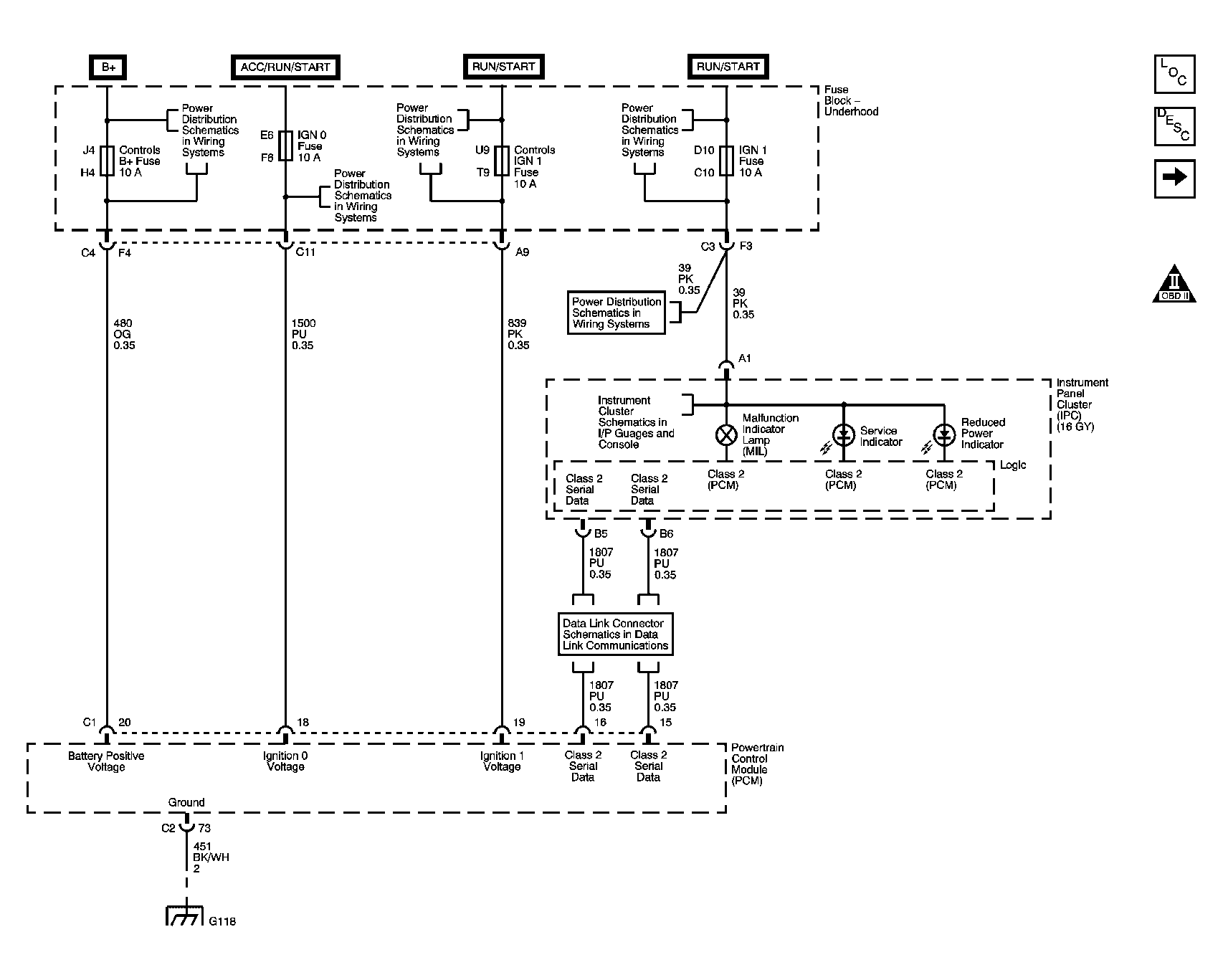

Fig 1: PCM Power, Ground, Serial Data & MIL Circuits Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

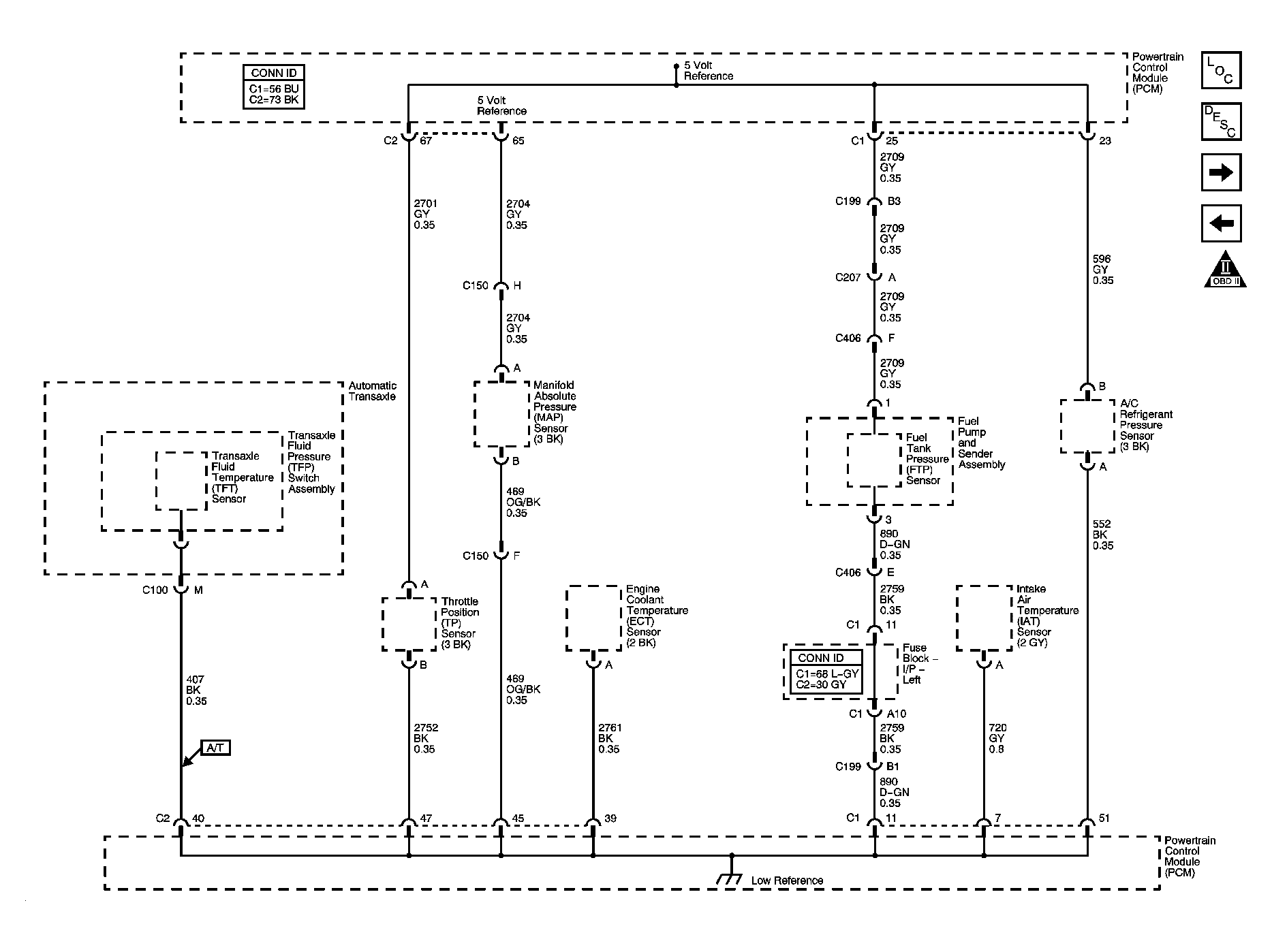

Fig 2: Engine Data Sensors - 5-Volt & Low Reference Circuits Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

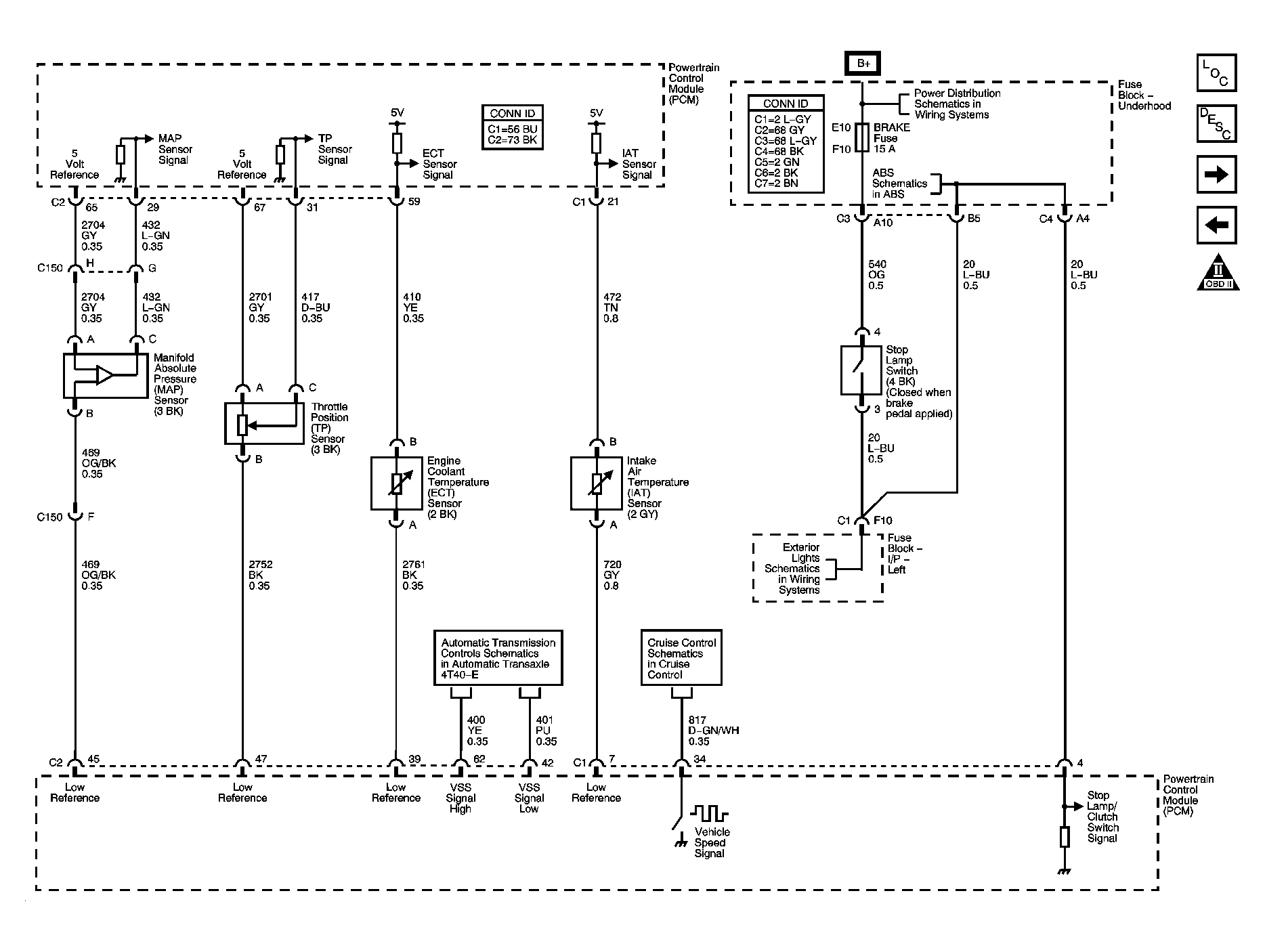

Fig 3: Engine Data Sensors - Sensors & Switches Circuits Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

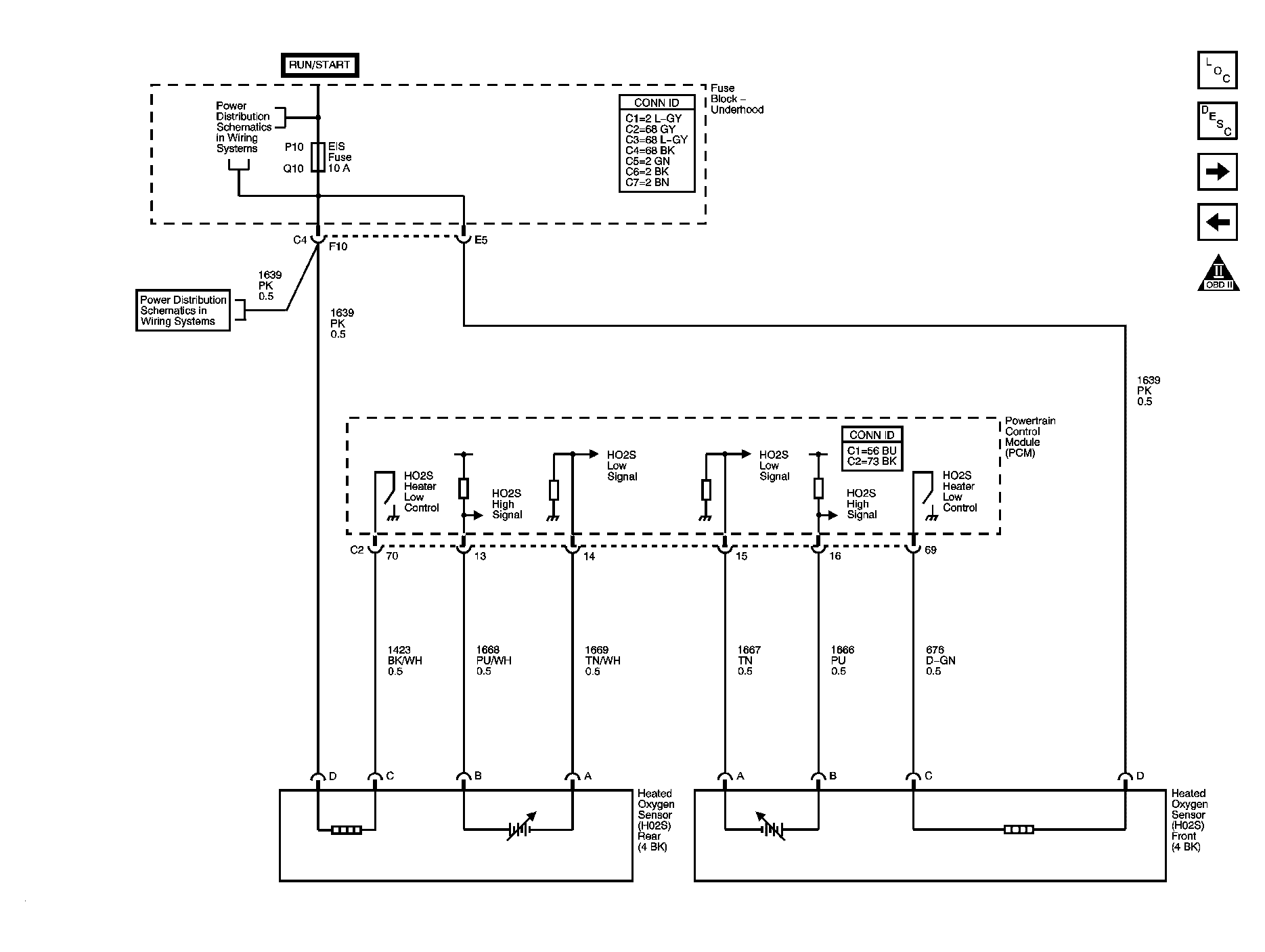

Fig 4: HO2 Sensors Circuit Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

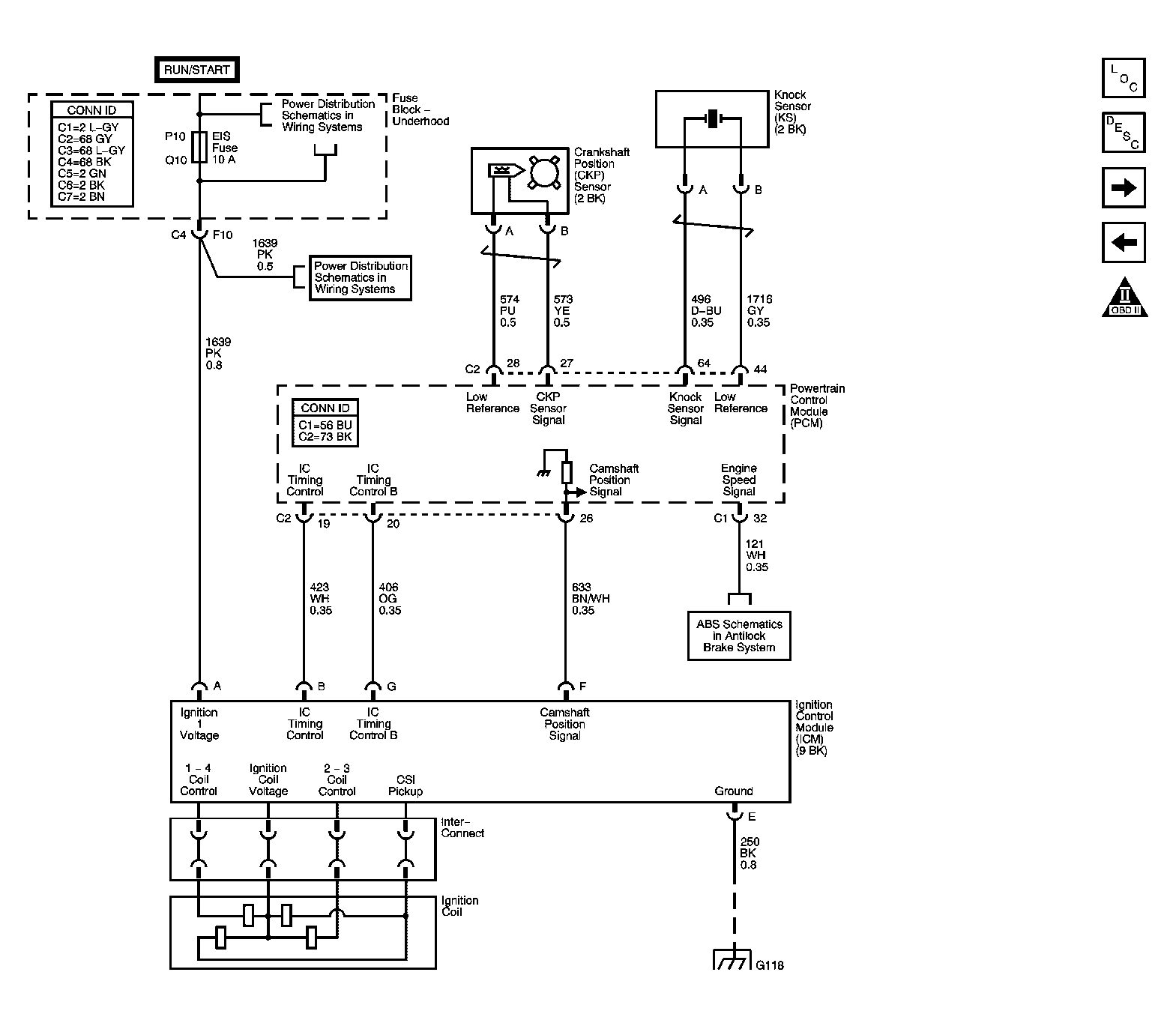

Fig 5: Ignition Controls Circuit Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

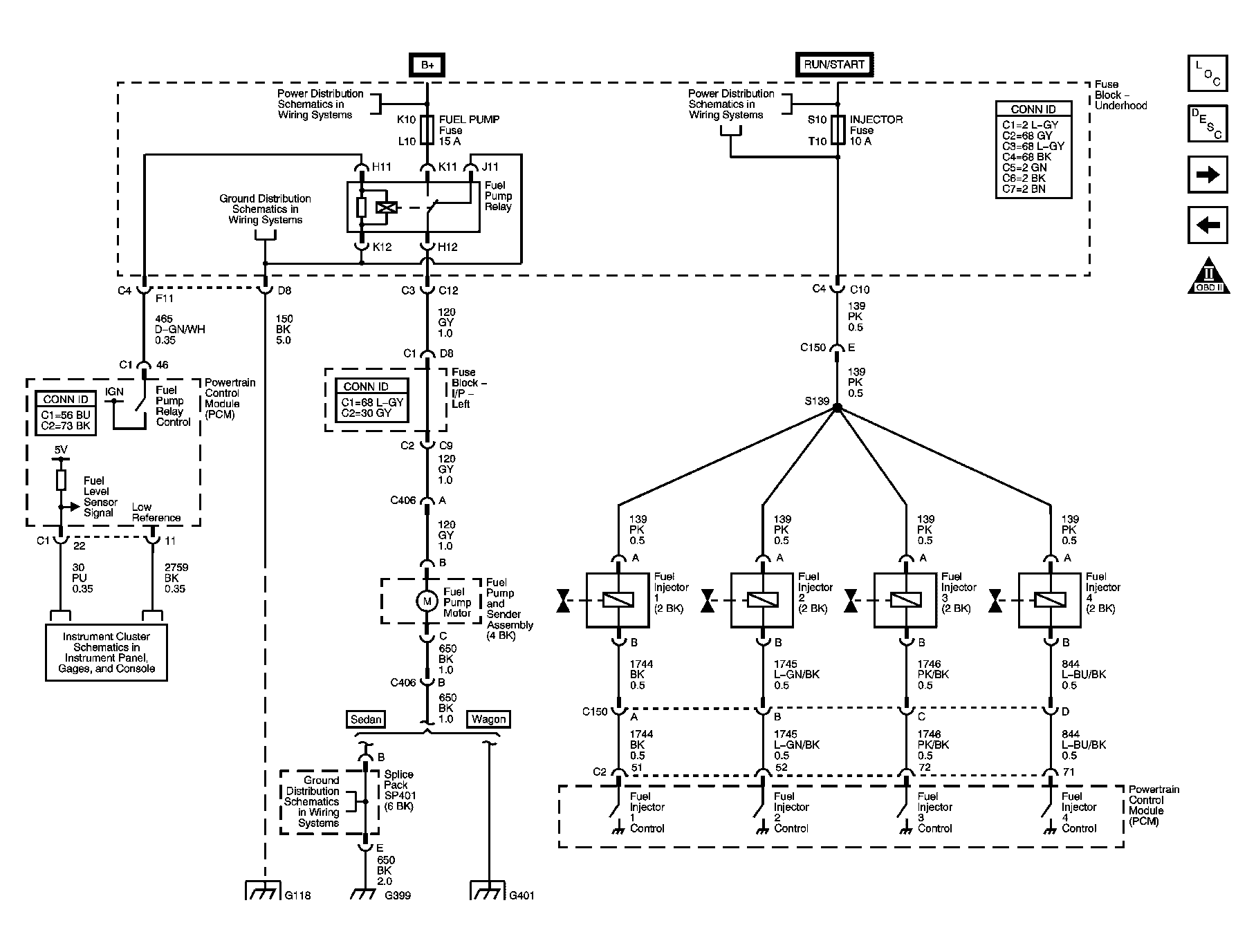

Fig 6: Fuel Controls Circuit Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

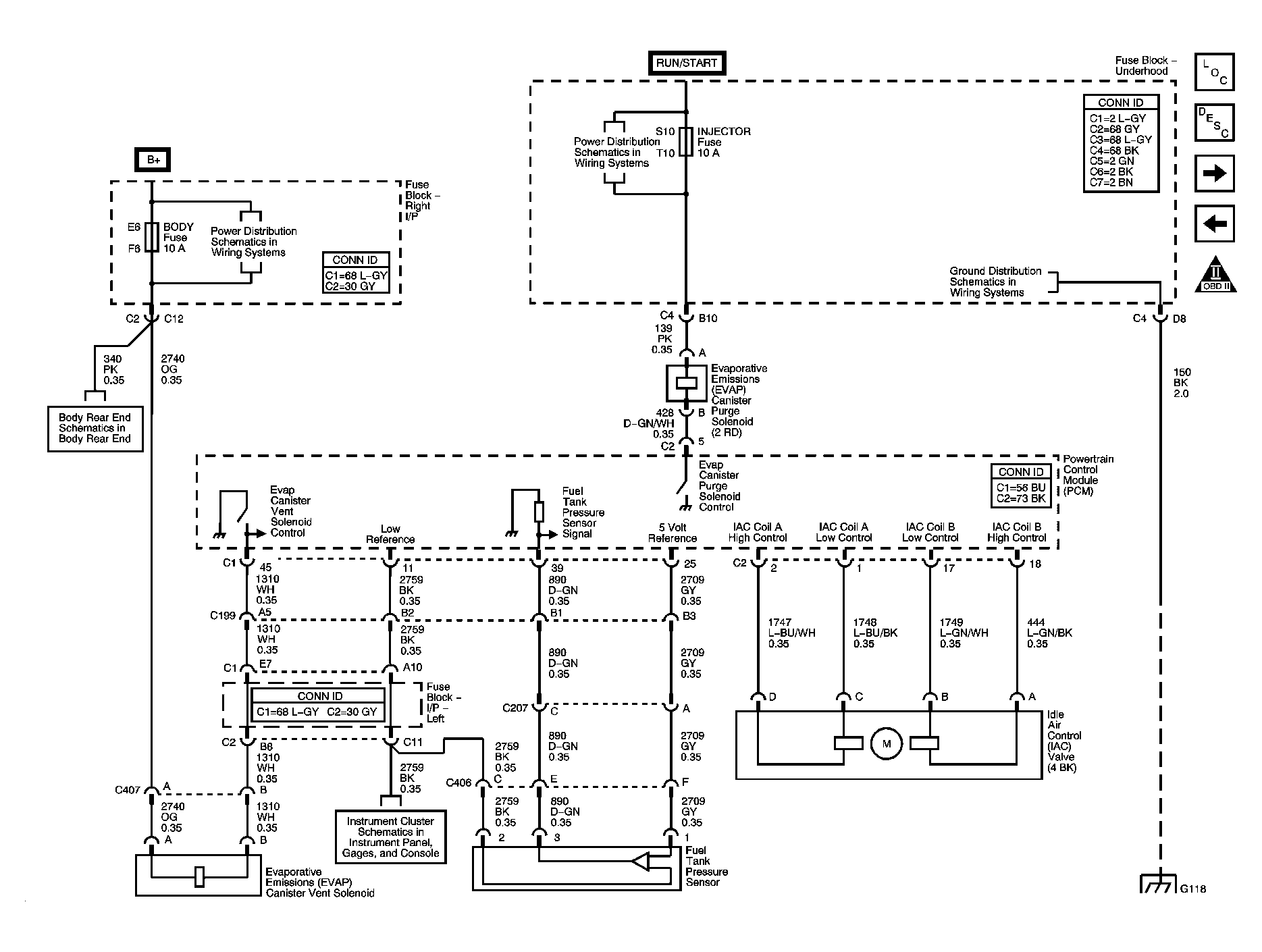

Fig 7: EVAP Controls Circuit Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

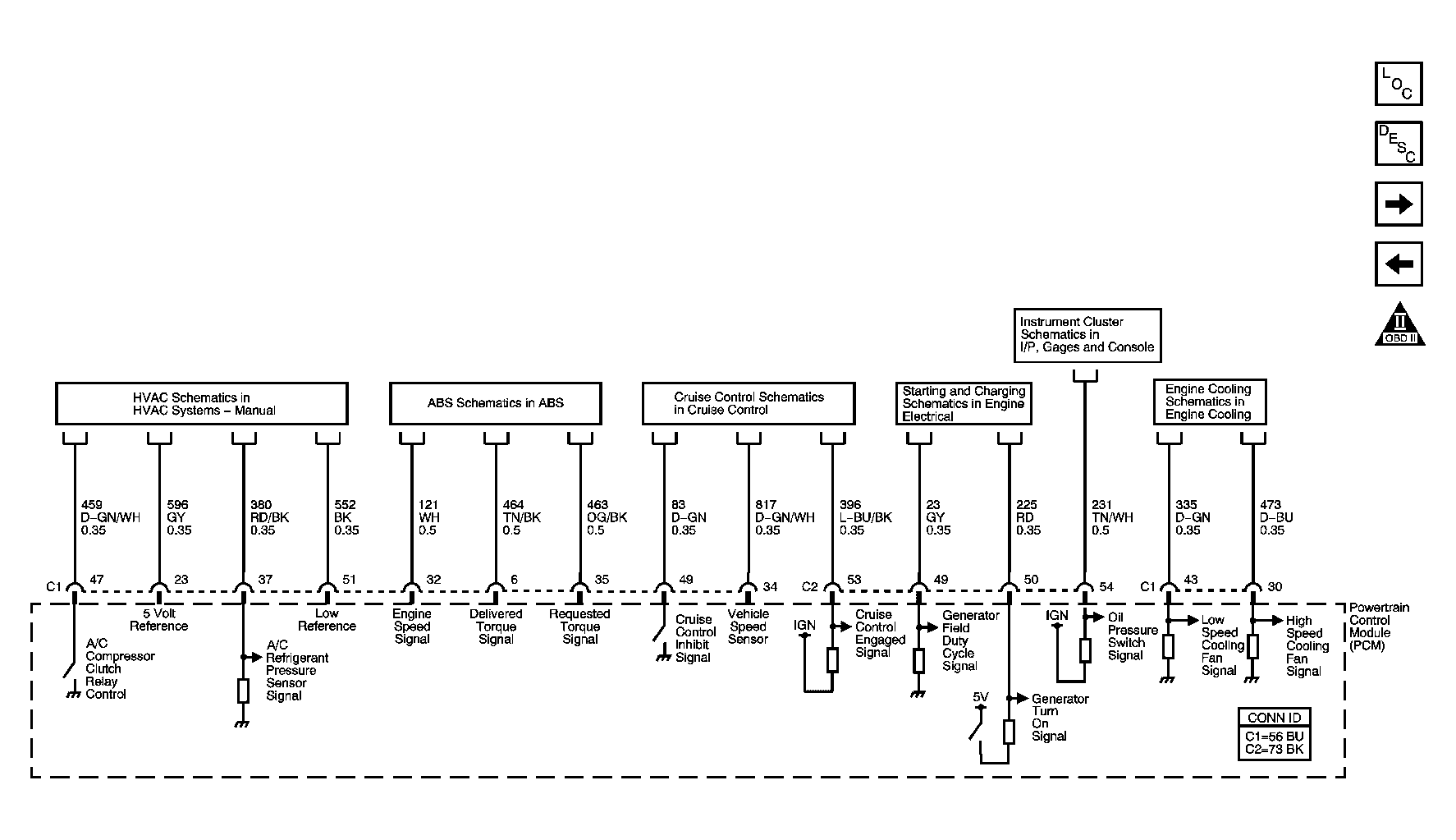

Fig 8: Controlled/Monitored Subsystem References Circuit Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

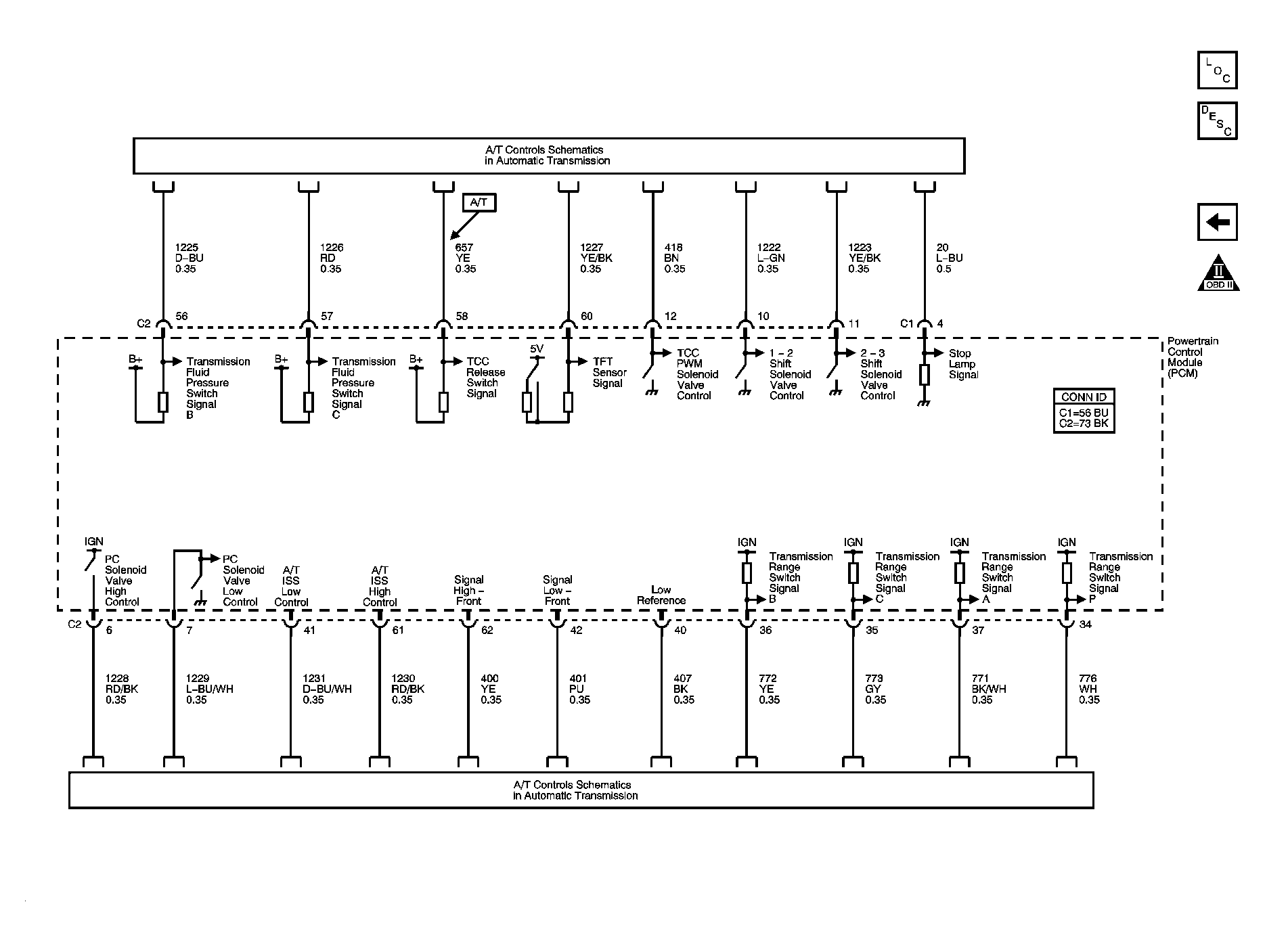

Fig 9: Transmission Control References Circuit Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
