Installation Procedure

    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the accelerator pedal into the vehicle and tighten the fasteners. Tighten:  Tighten the accelerator pedal-to-front of dash to 10 N.m (89 lb in).

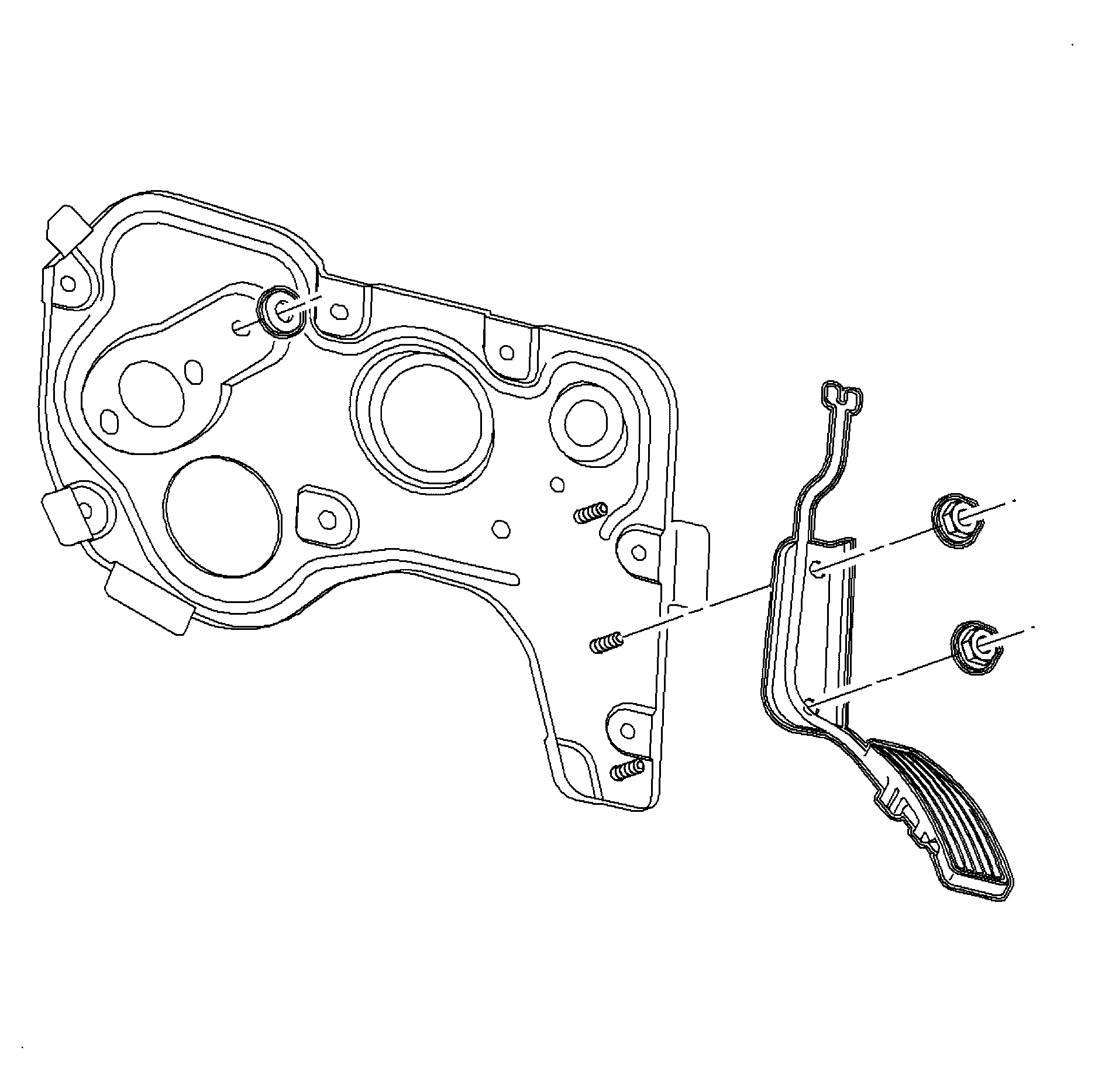

    2. Fig 1: Removing & Installing Accelerator Pedal
    GM892917Courtesy of GENERAL MOTORS CORP.
  2. Install the accelerator pedal cable.

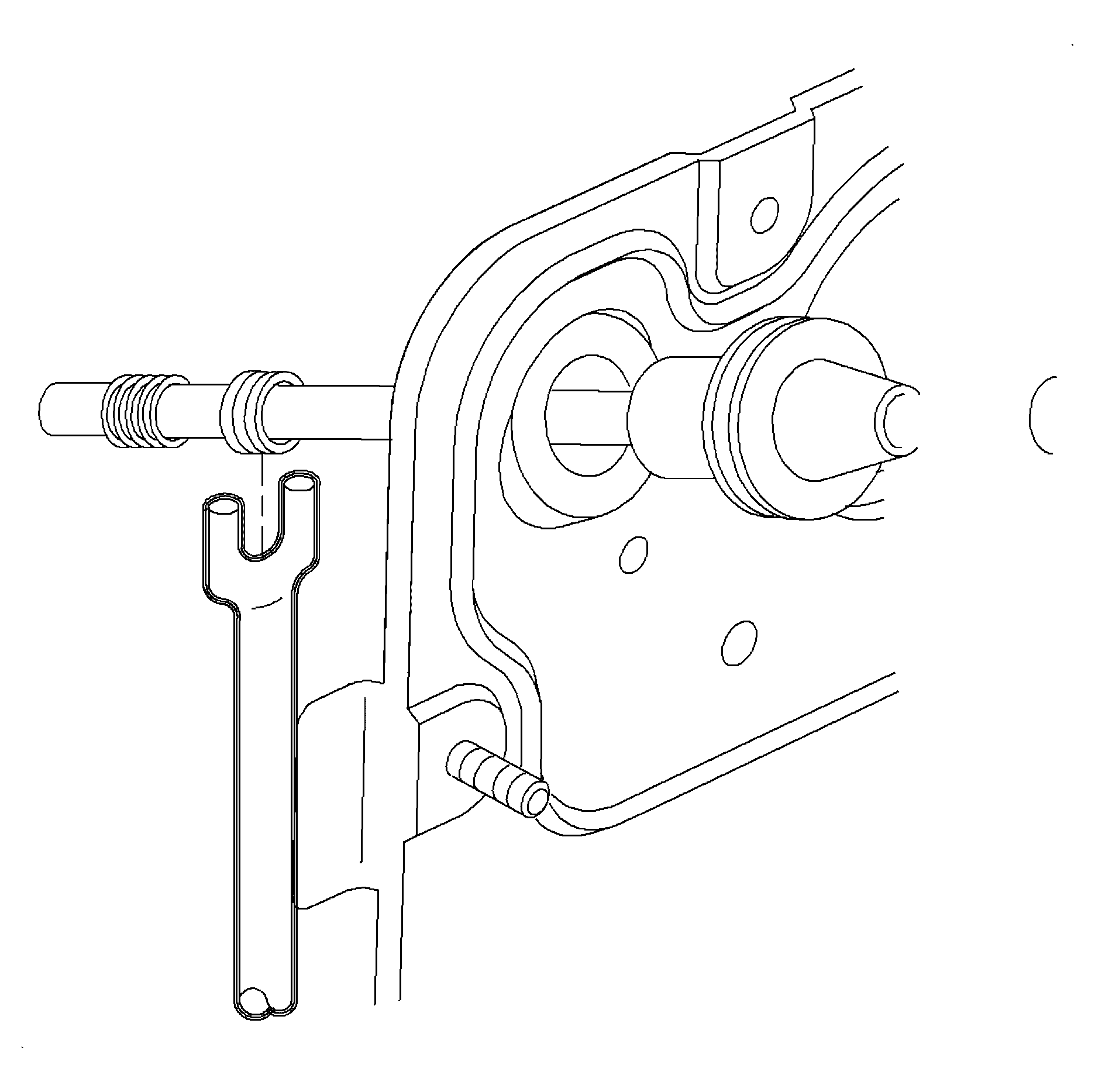

    3. Fig 2: Connecting Accelerator Cable To Accelerator Pedal
    GM892954Courtesy of GENERAL MOTORS CORP.
  3. Install the lower I/P hush panel.
    4. Fig 3: Removing & Installing Lower Instrument Panel Hush Panel
    GM896490Courtesy of GENERAL MOTORS CORP.
