Installation Procedure

  1. Route the cable through the front of the dash from the outside in, over the camshaft cover, and over to the throttle body bracket.
  2. Push the cable through the front of the dash to engage the rubber grommet.
  3. Connect the accelerator control cable to the accelerator pedal assembly.
  4. Install the accelerator cable to the throttle body support bracket assuring that the locking tangs engage.
  5. Connect the accelerator cable to the throttle lever.
  6. Check the accelerator control assembly for binding.

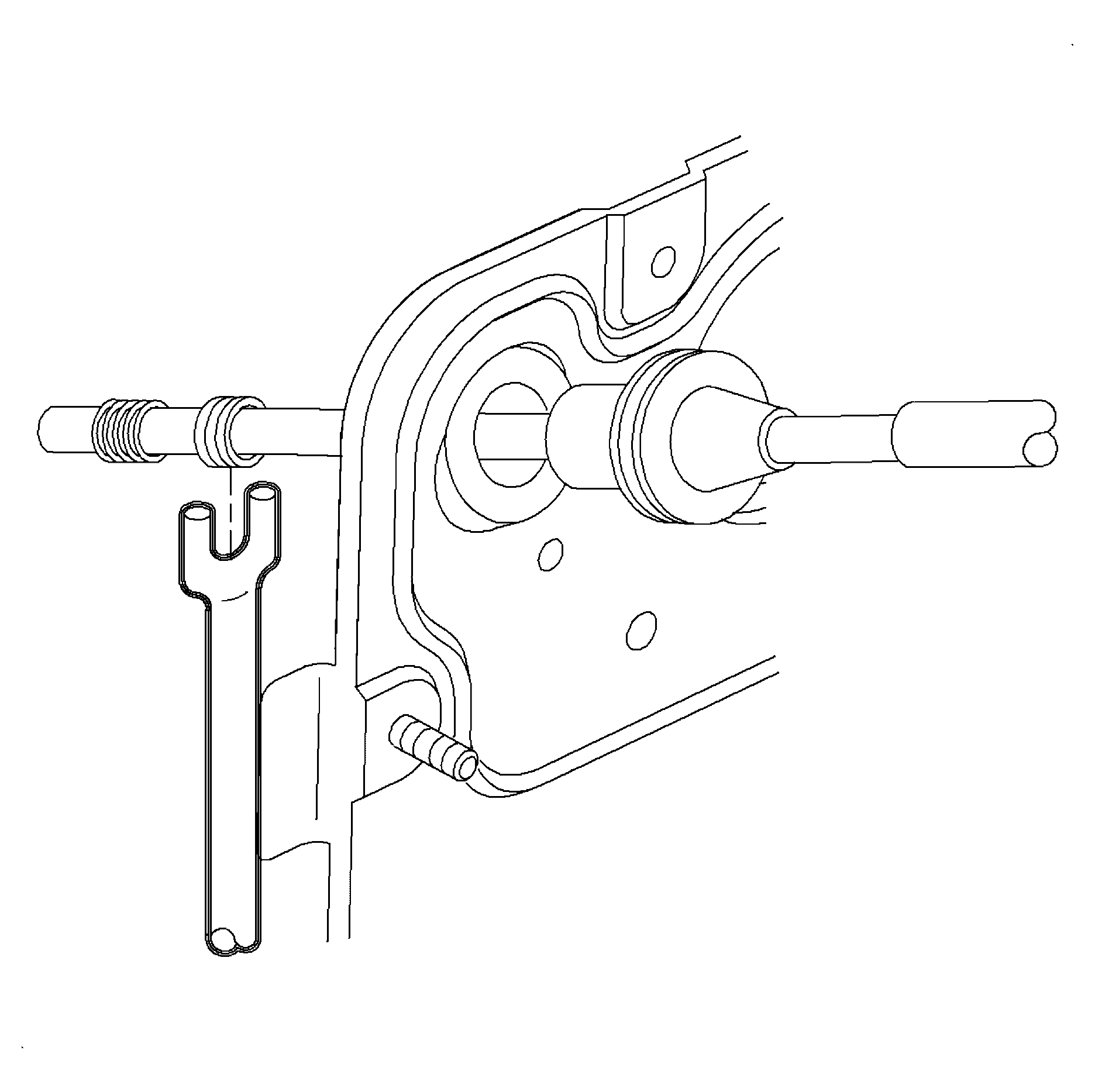

    7. Fig 1: Connecting Accelerator Cable To Accelerator Pedal
    GM896386Courtesy of GENERAL MOTORS CORP.

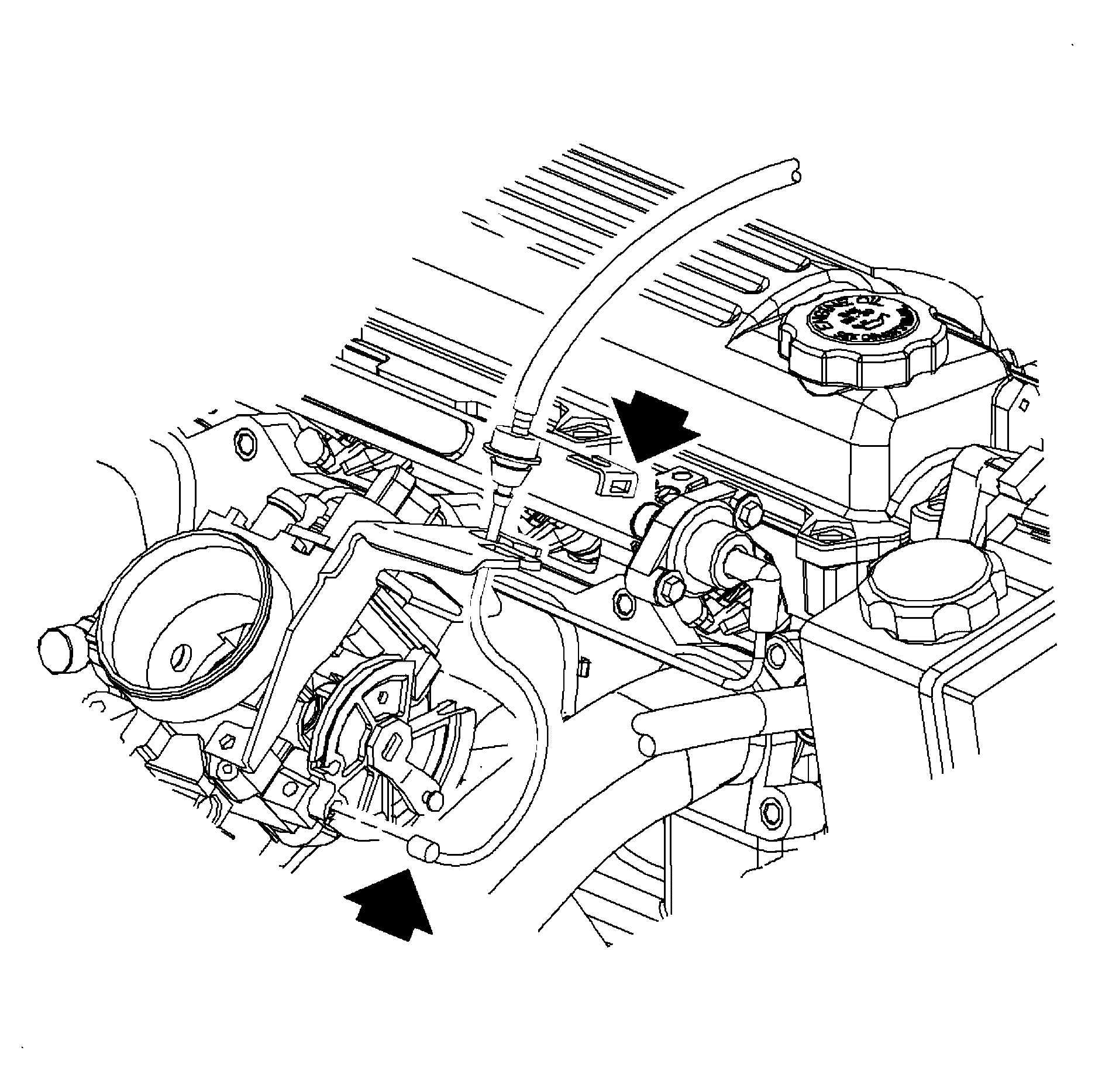

    Fig 2: Locating Accelerator Control Cable Attachment At Throttle Lever
    GM896387Courtesy of GENERAL MOTORS CORP.
