Engine Controls Component Views

Fig 1: 2.2L Engine Front Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Spark Plugs
2	Ignition Control Module (ICM)
3	Fuel Injectors
4	Manifold Absolute Pressure (MAP) Sensor
5	Idle Air Control (IAC) Valve
6	Throttle Position (TP) Sensor
7	Knock Sensor (KS)
8	Crankshaft Position (CKP) Sensor
9	Engine Oil Pressure (EOP) Switch
10	Starter
11	Generator
12	A/C Refrigerant Pressure Sensor
13	A/C Compressor Clutch
14	Evaporative Emissions (EVAP) Canister Purge Solenoid

Fig 2: 2.2L Engine Rear Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Oxygen Sensor (HO2S) - Front
2	Engine Coolant Temperature (ECT) Sensor

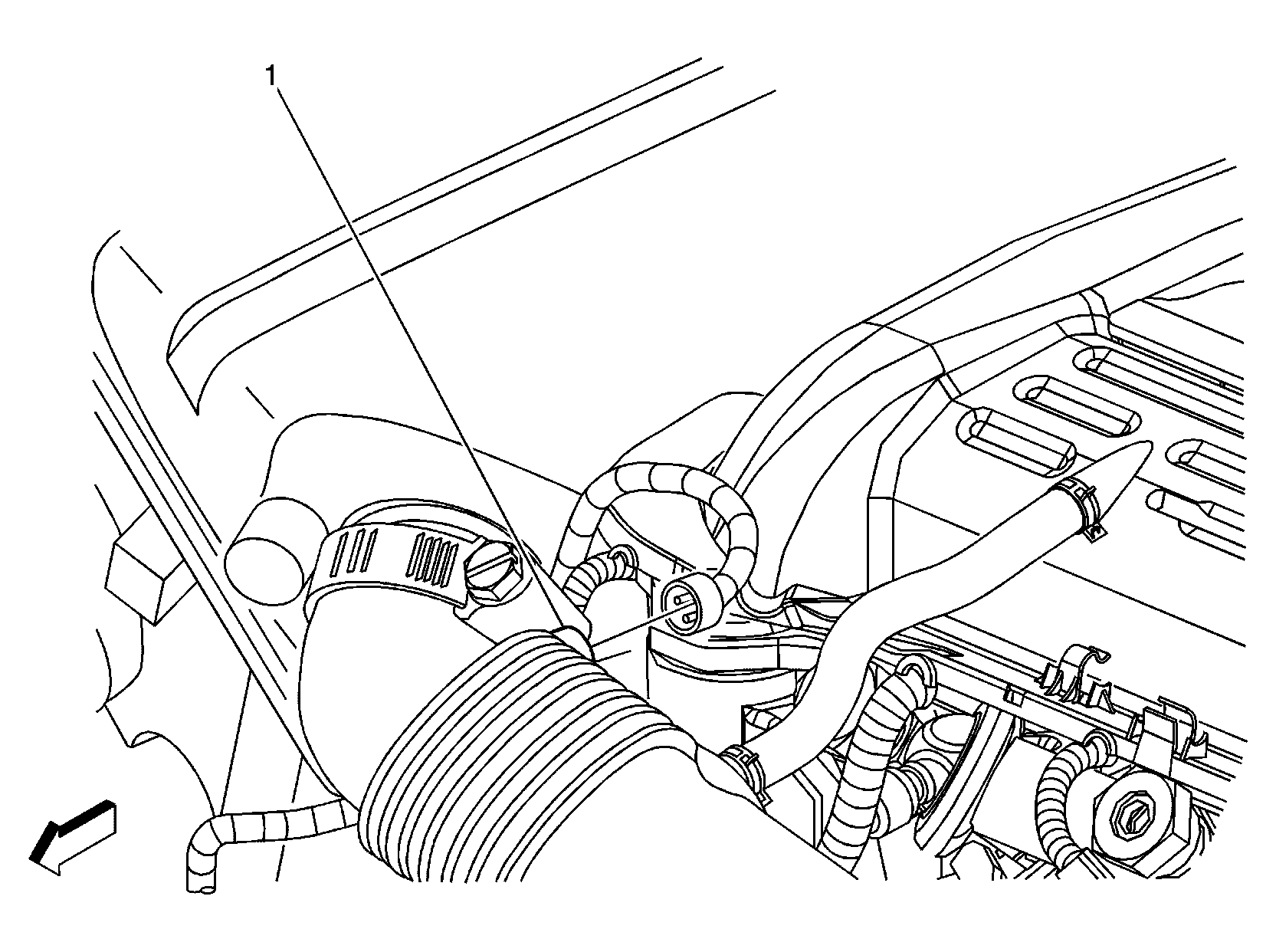

Fig 3: Right Side of the Engine Components (2.2L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Intake Air Temperature (IAT) Sensor

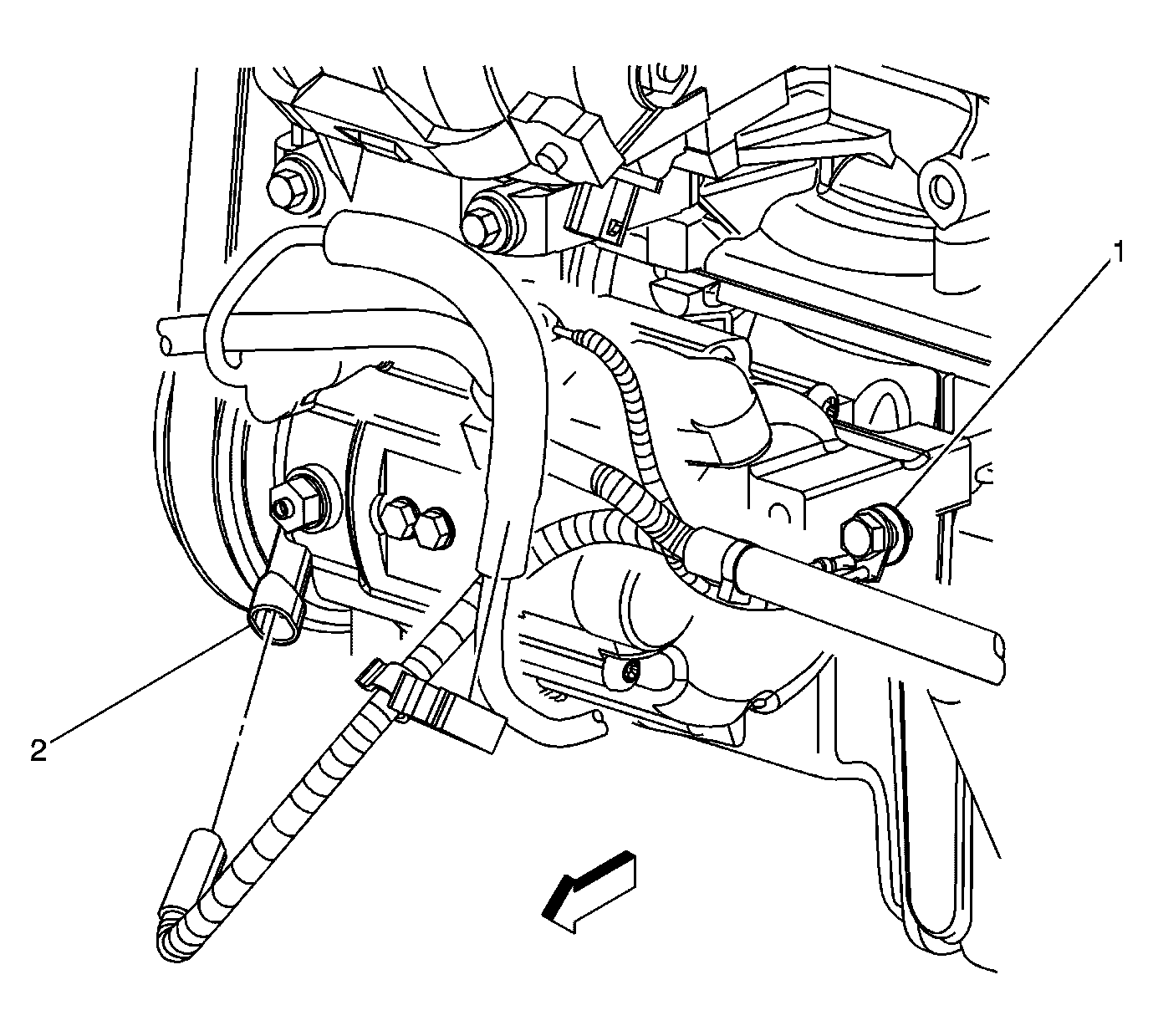

Fig 4: Lower Right Side of the Engine Components (2.2L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G118
2	A/C Compressor Clutch Coil

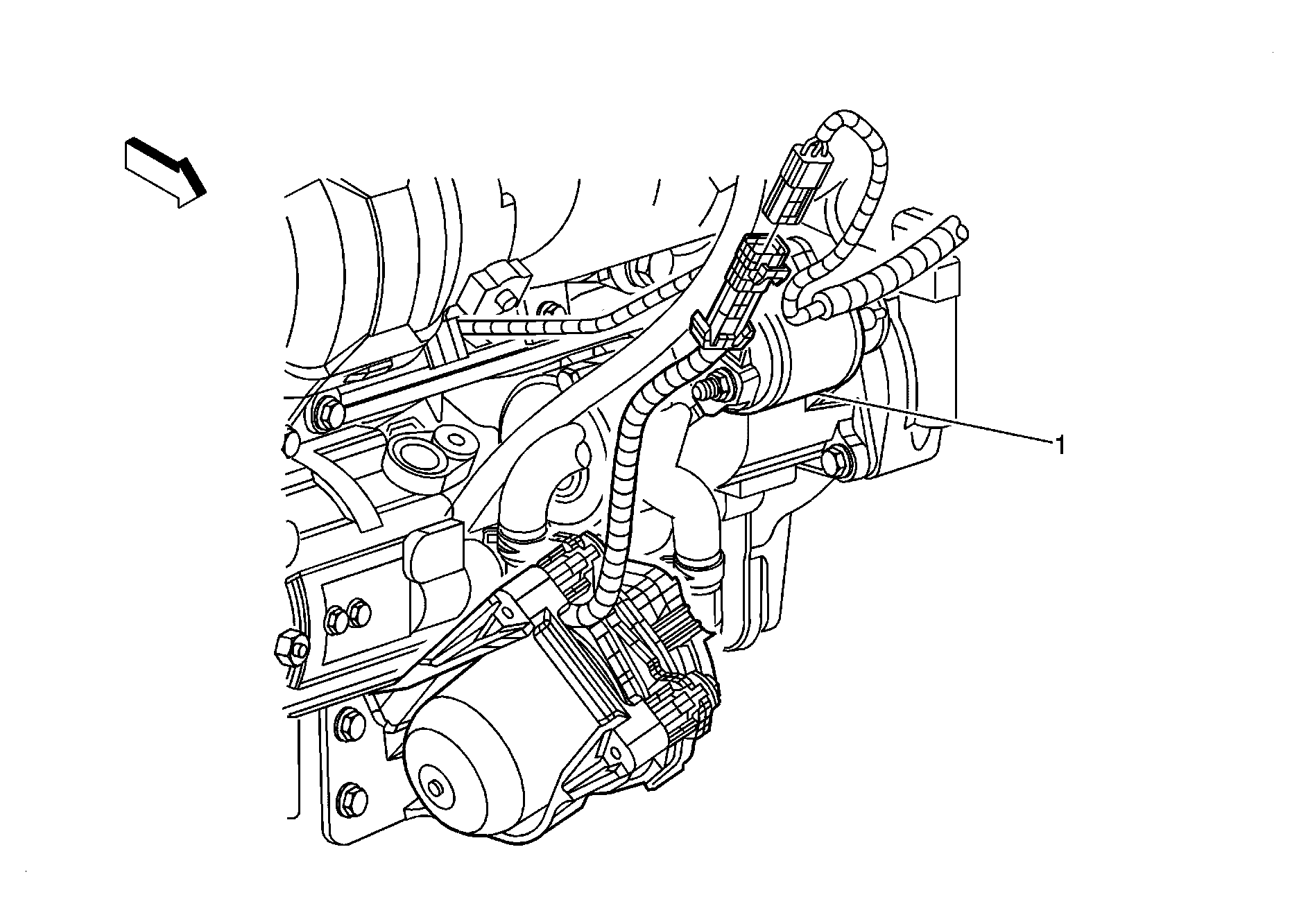

Fig 5: Lower Left Side of the Engine Components (2.2L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Starter Solenoid

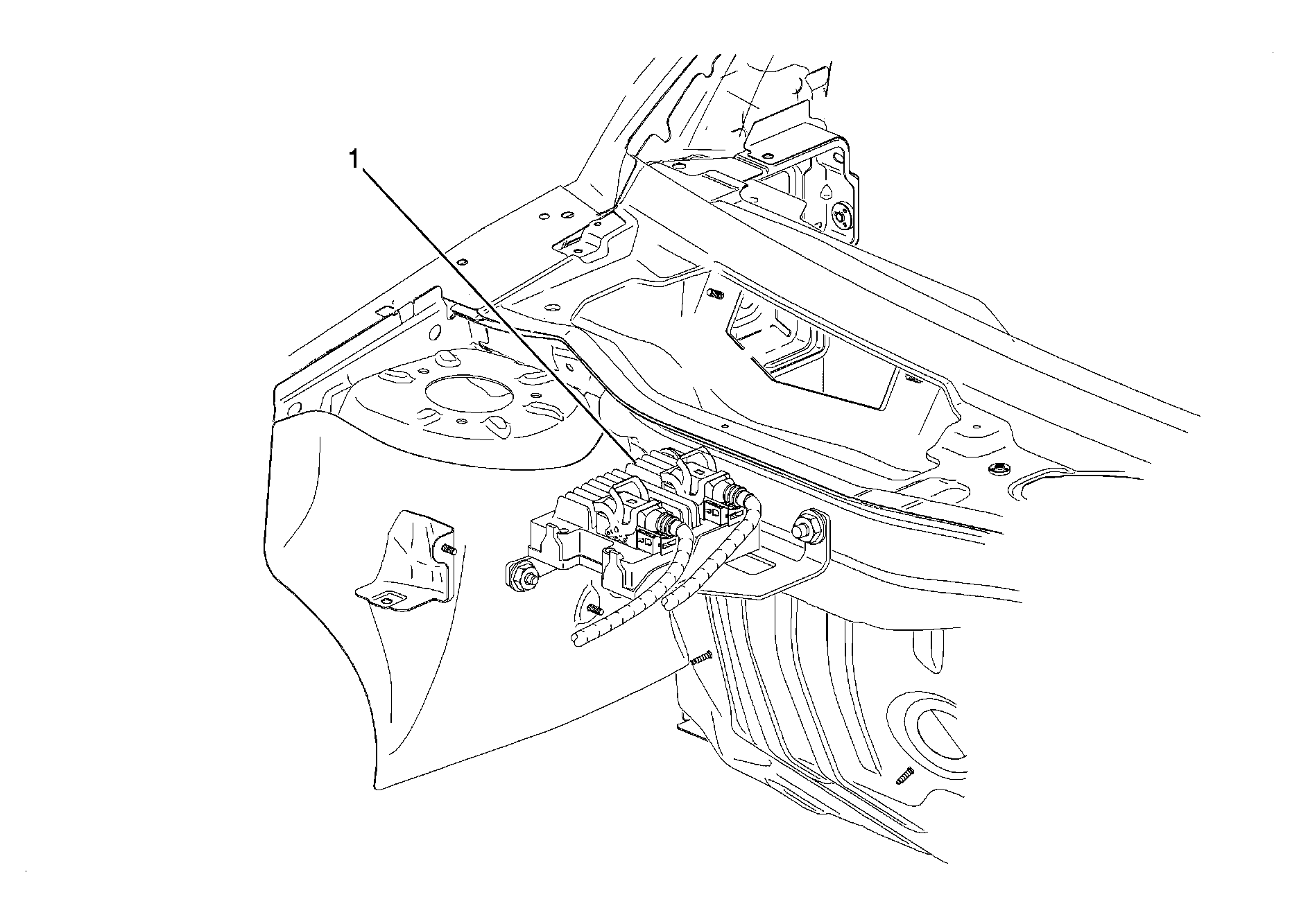

Fig 6: LR Corner of the Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Powertrain Control Module (PCM) (2.2L)
