Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

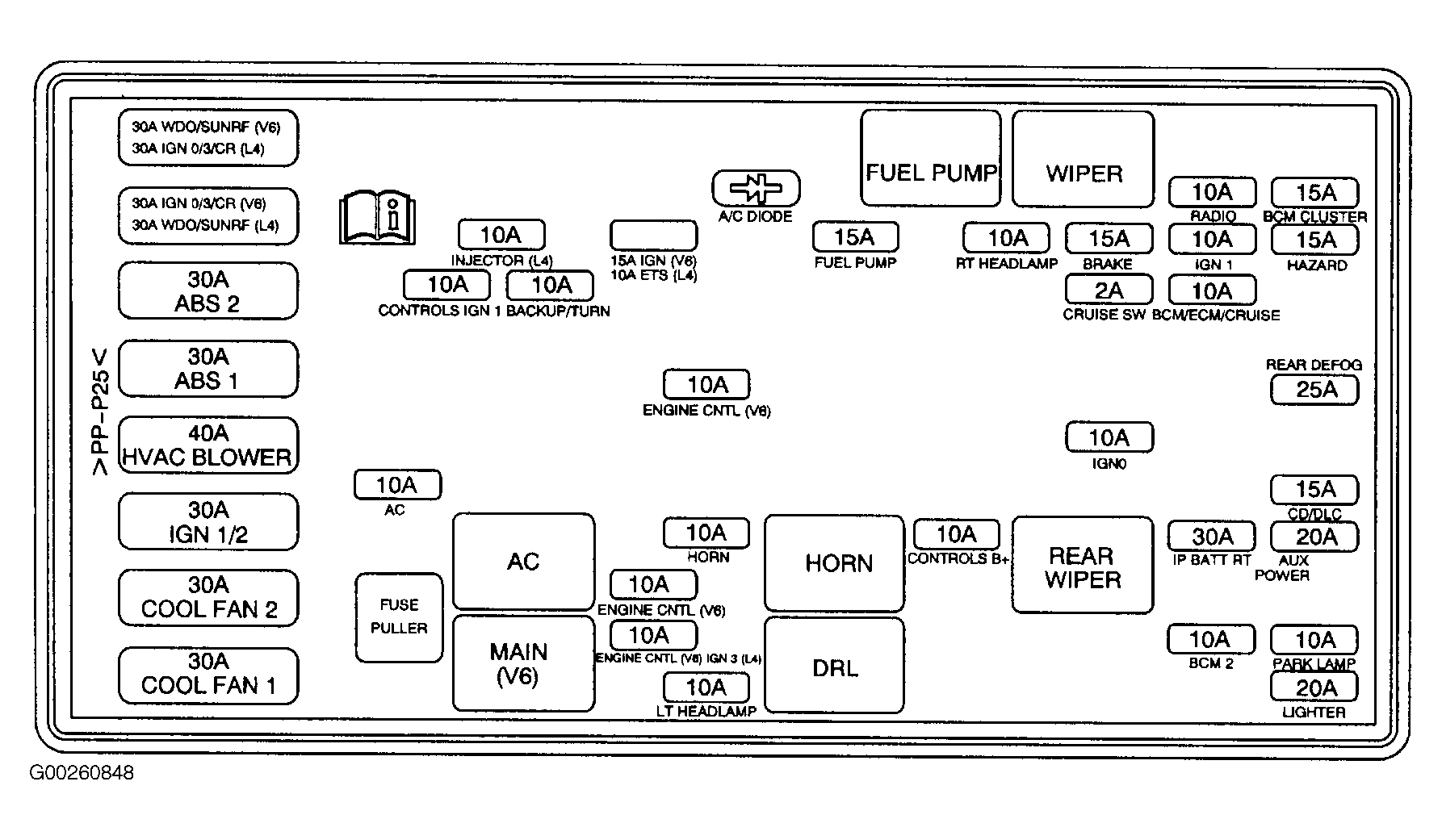

Fig 1: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

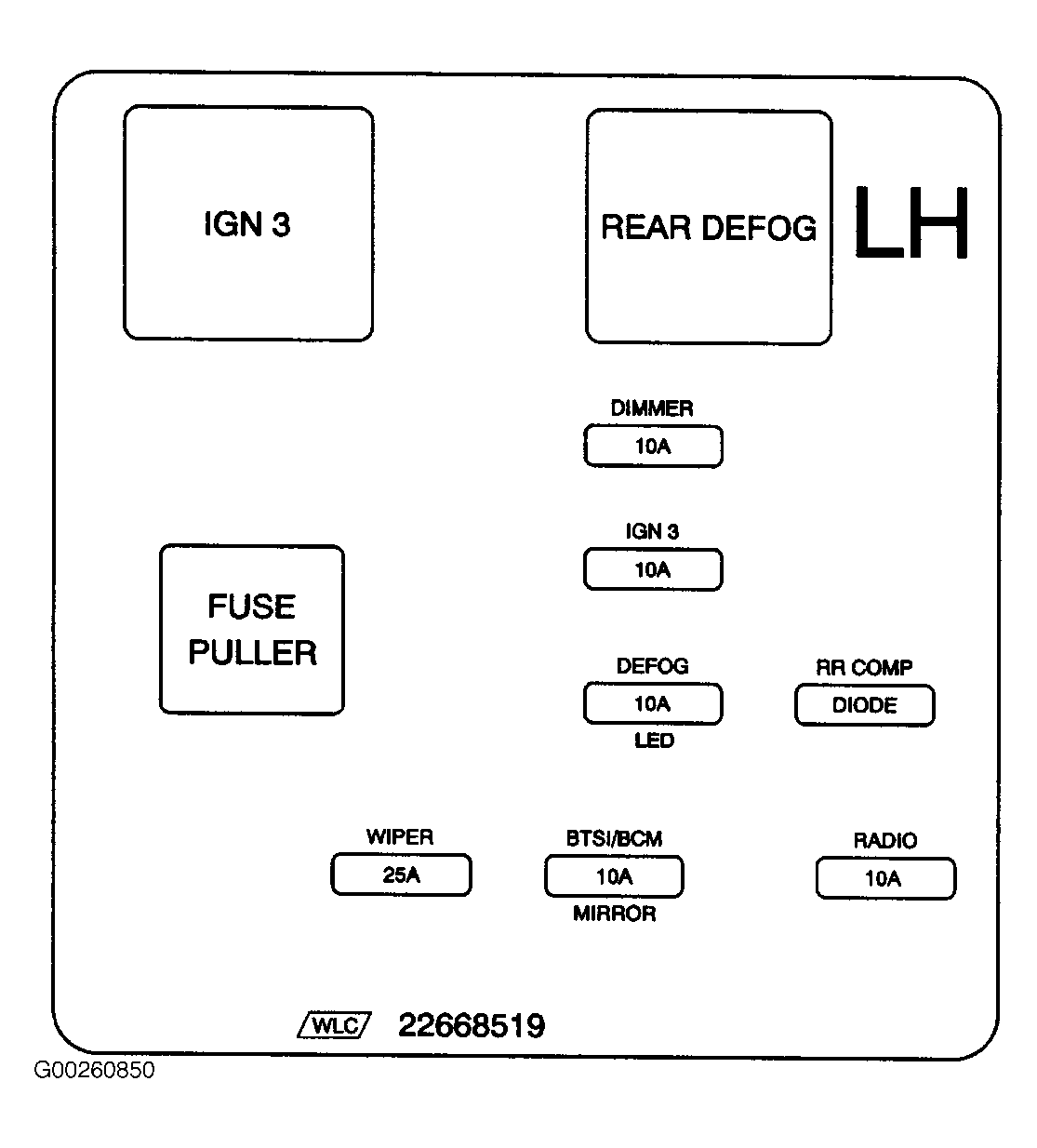

Fig 2: Left Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.

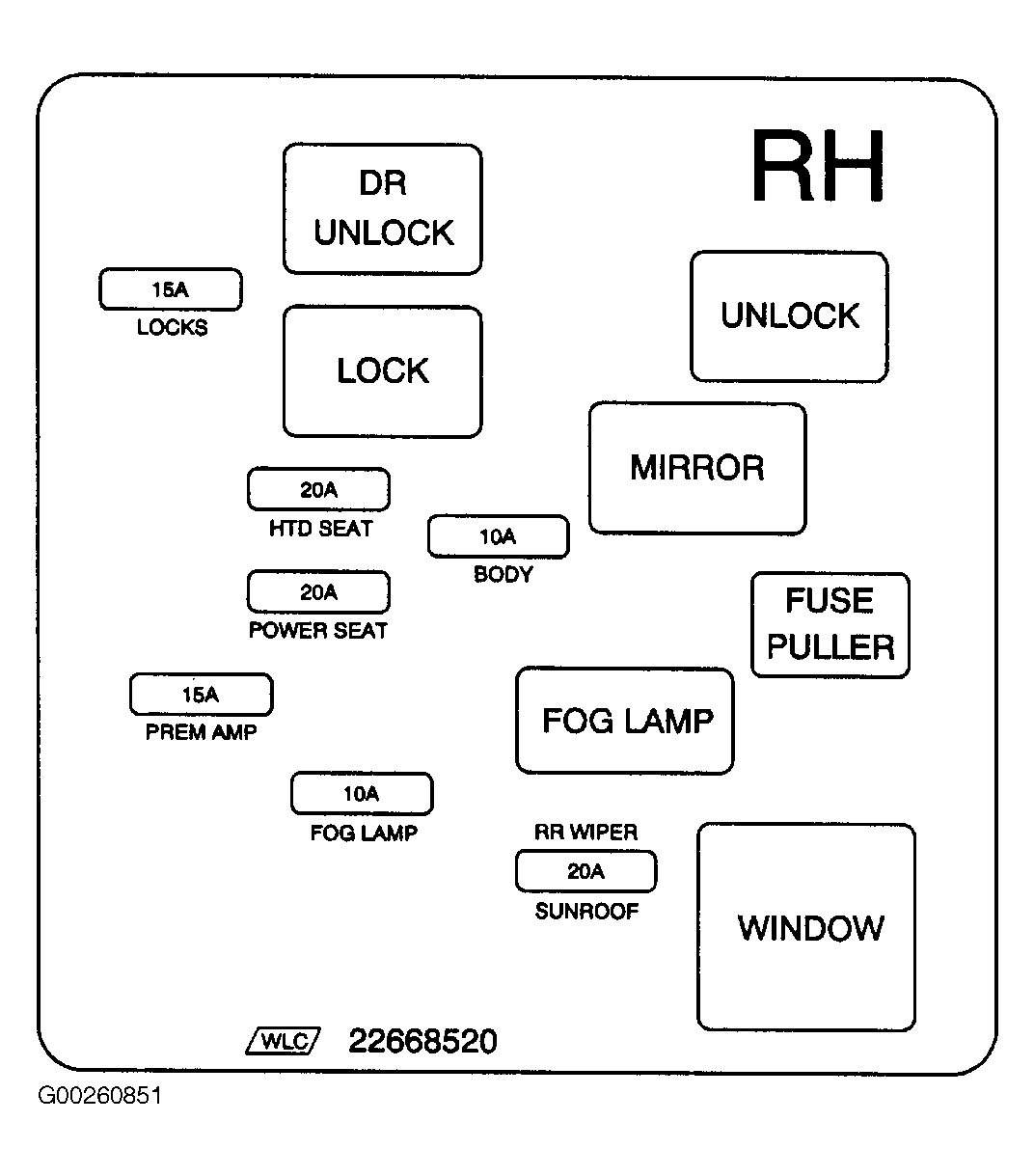

Fig 3: Right Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.

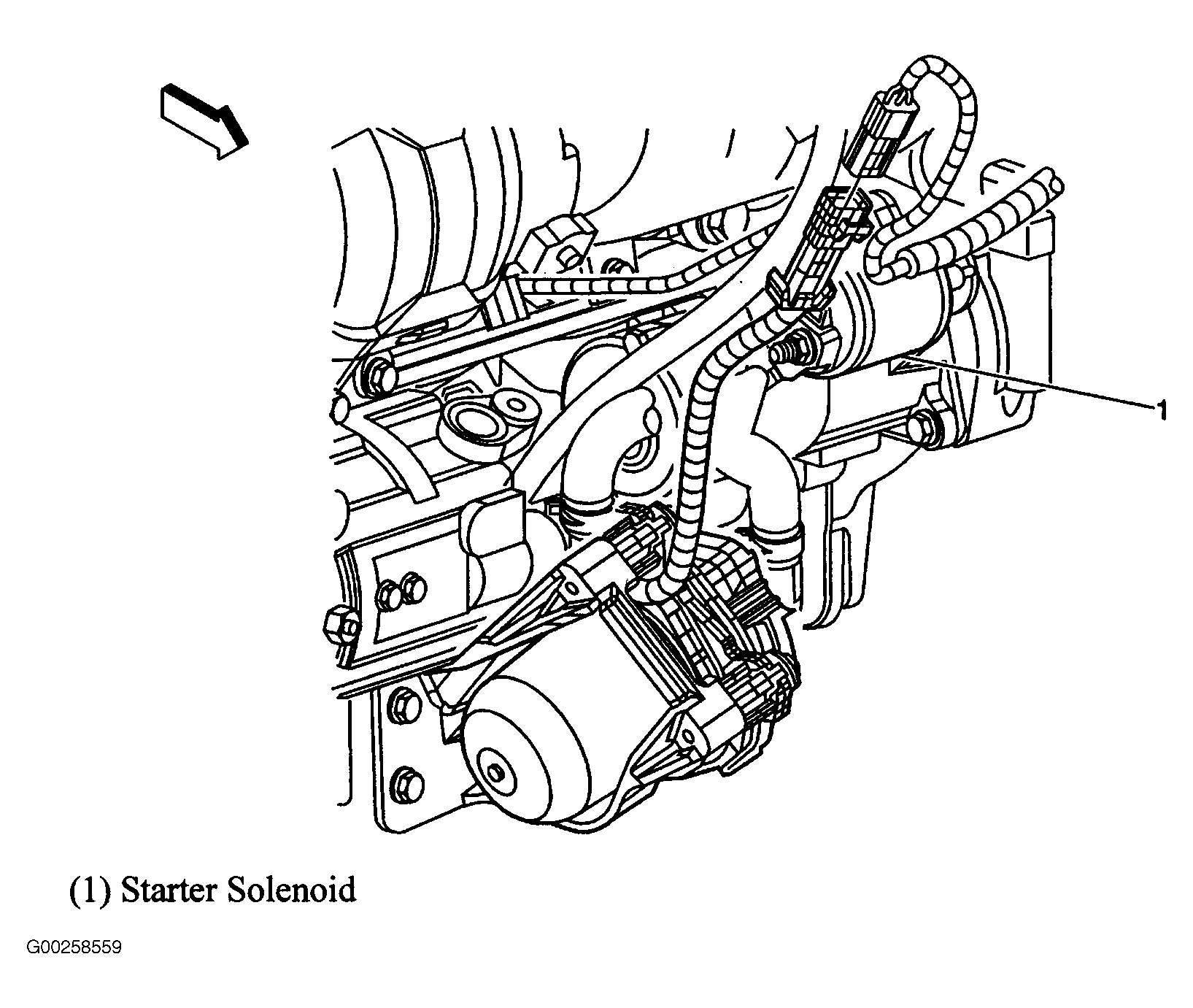

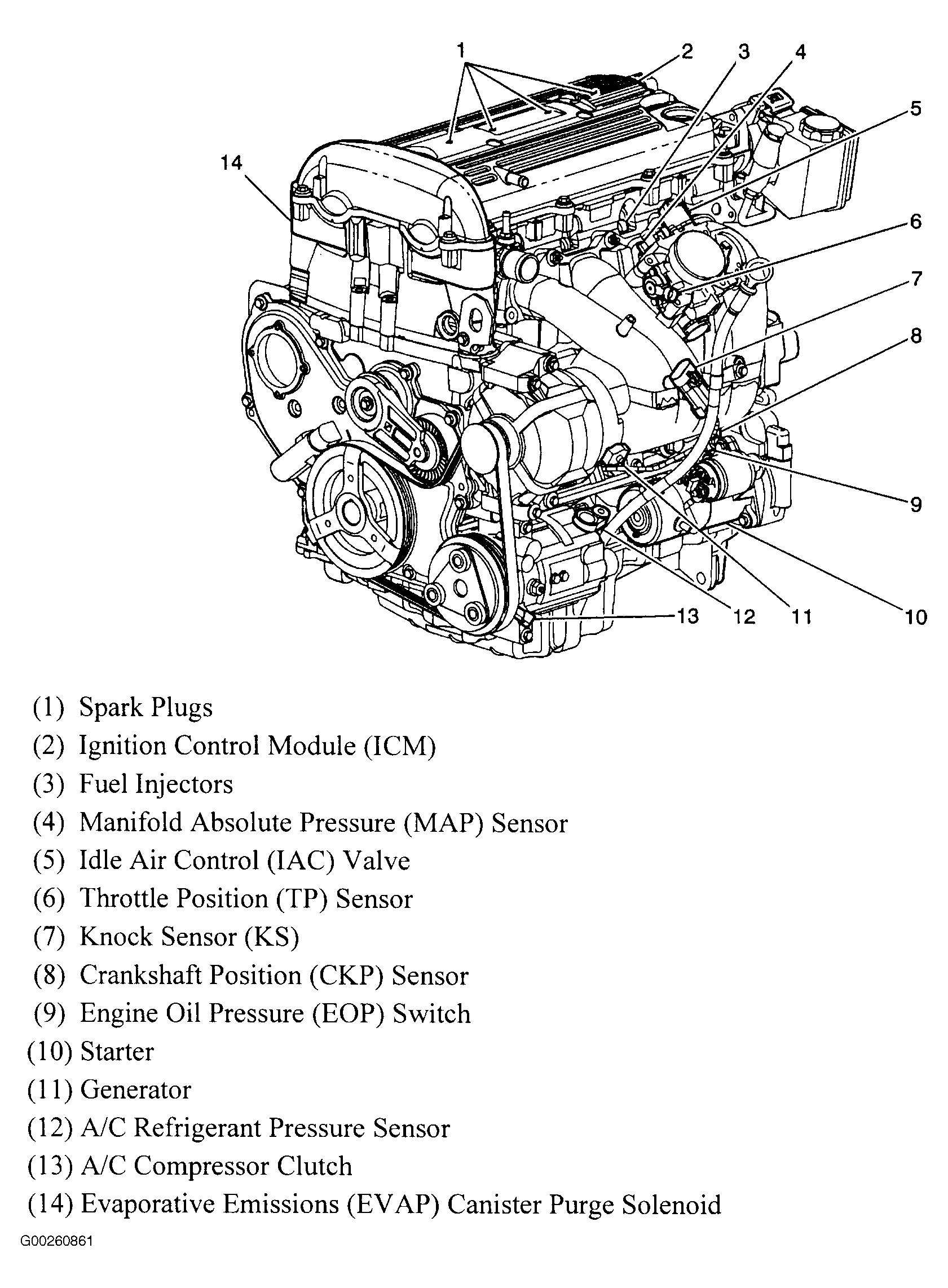

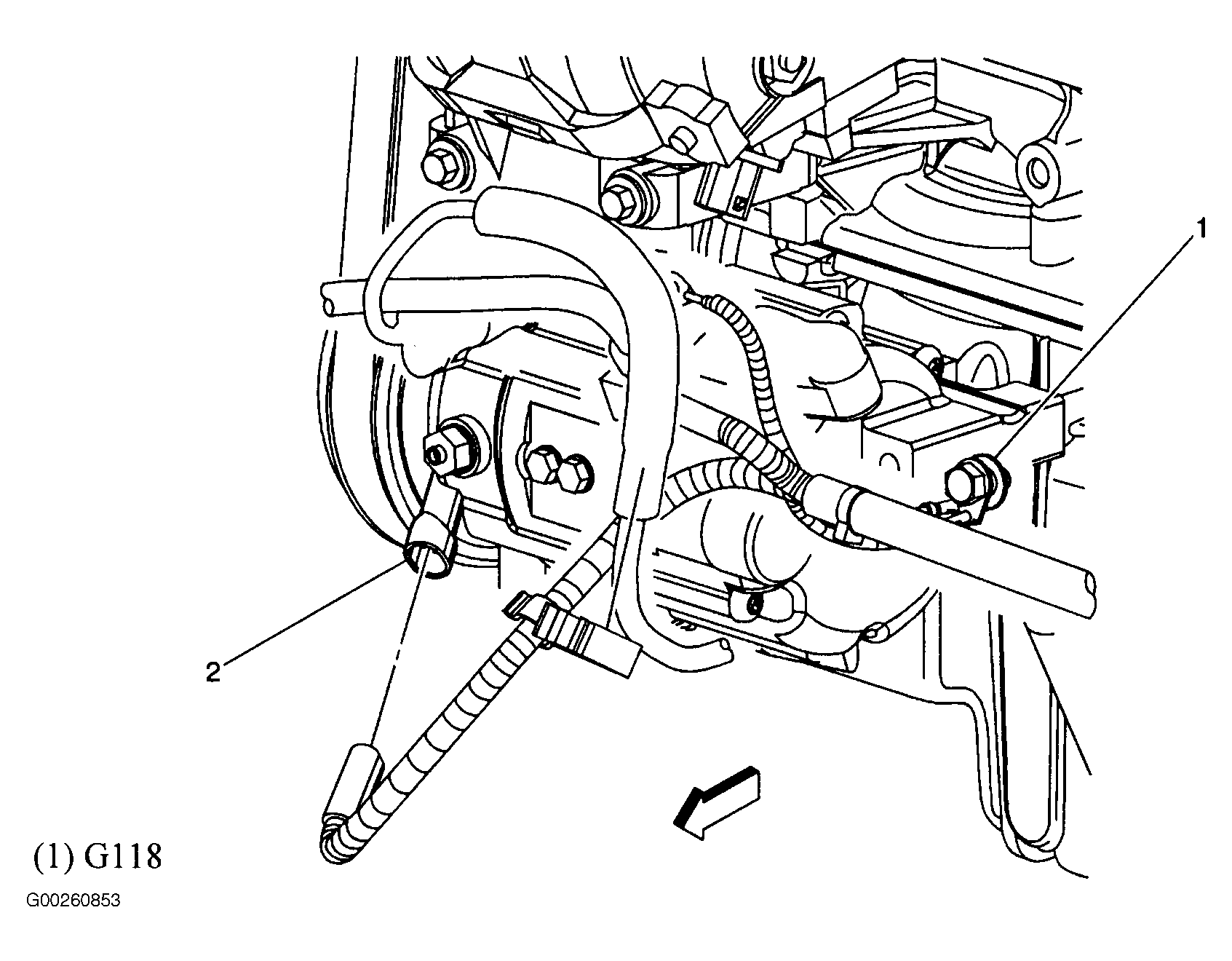

Fig 4: Lower Left Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.

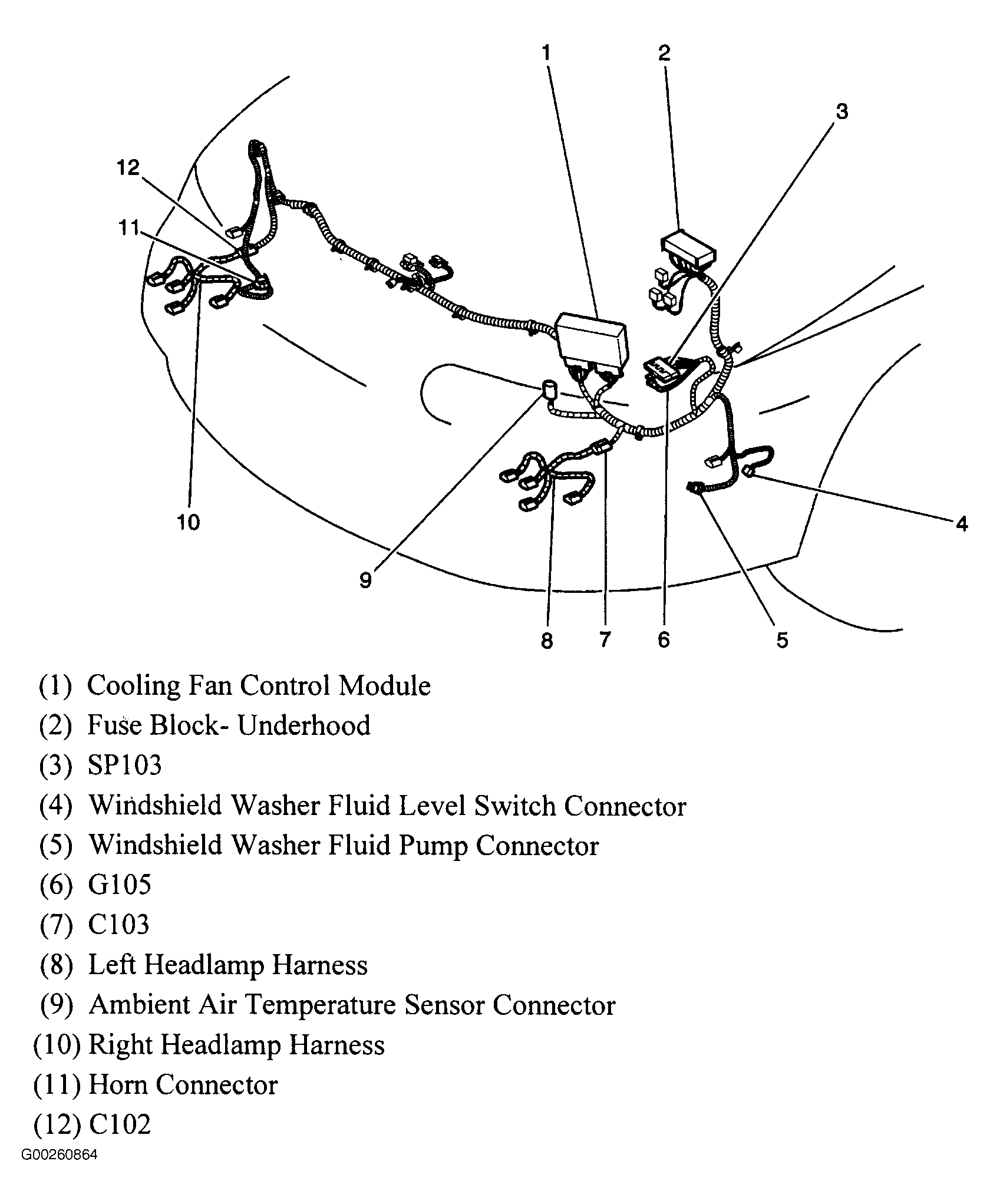

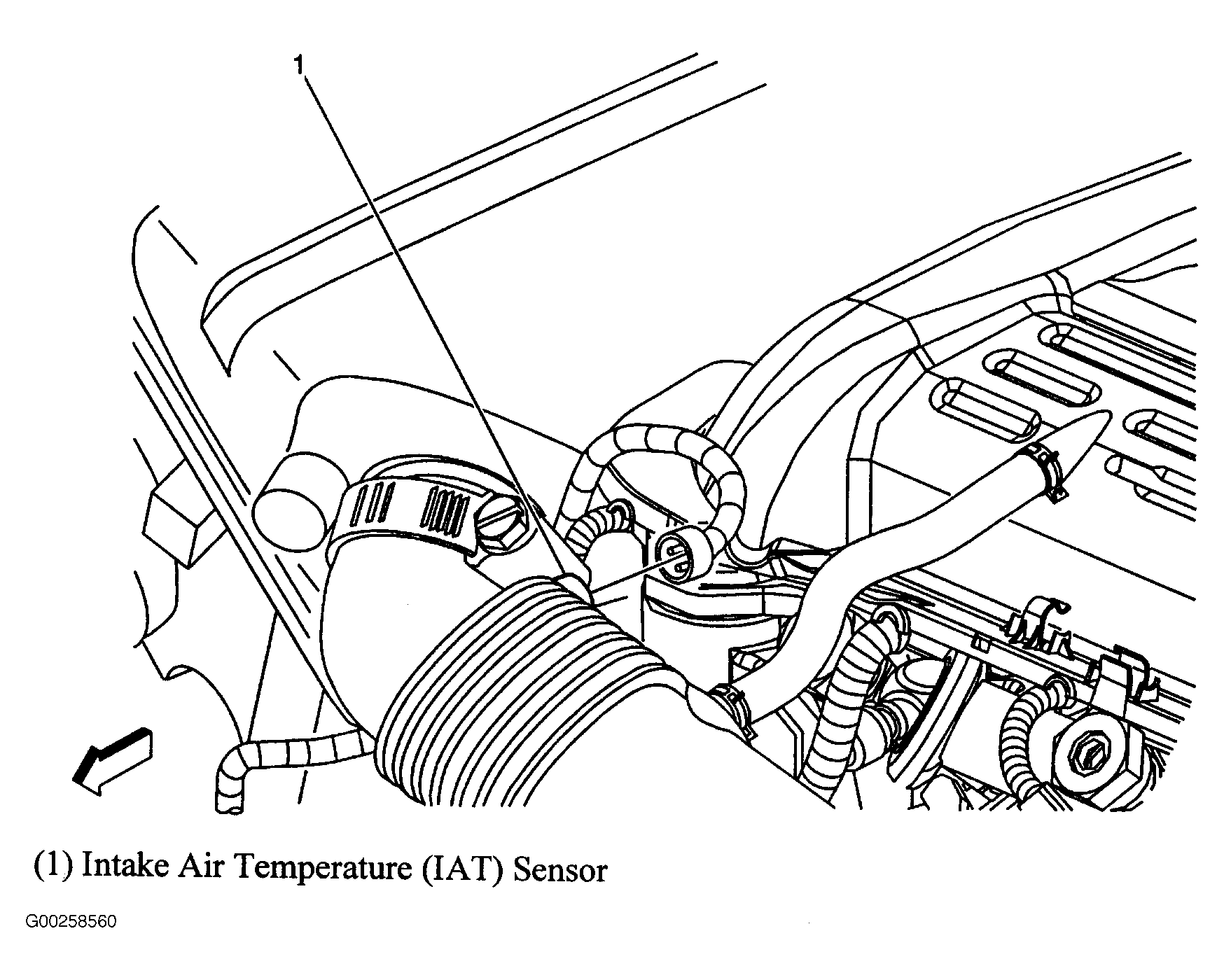

Fig 5: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

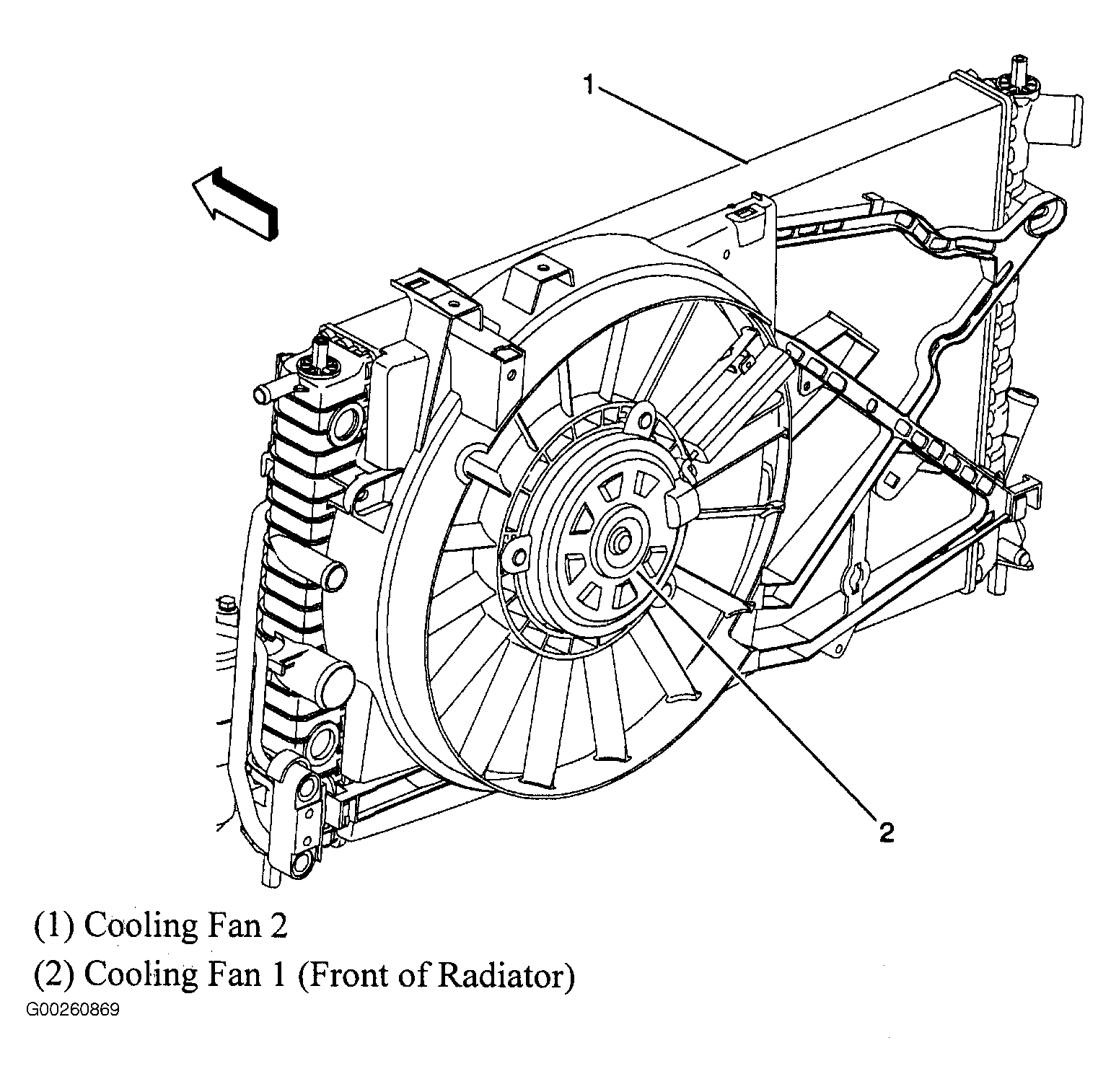

Fig 6: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

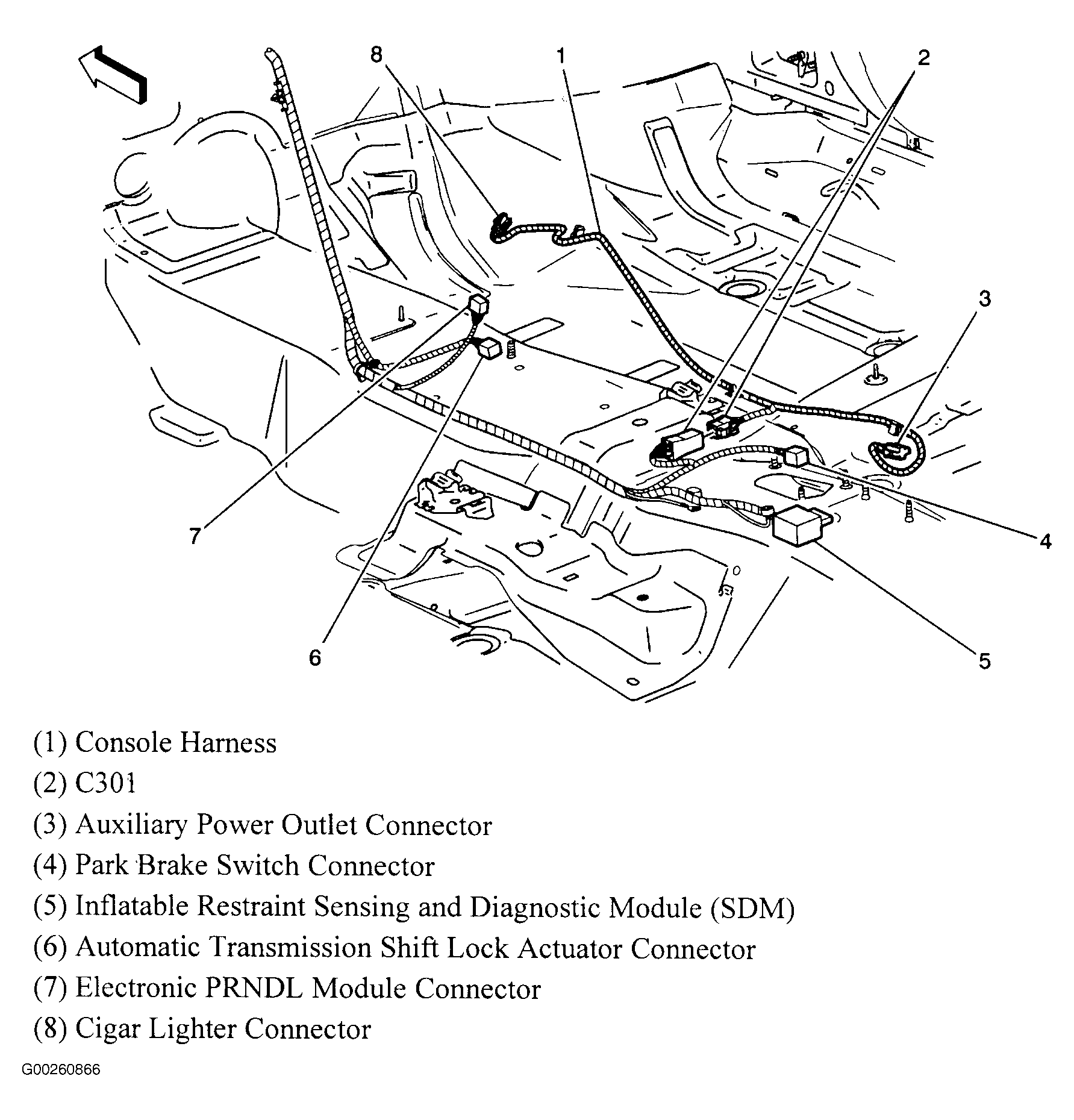

Fig 7: Center Passenger Compartment Floor
Courtesy of GENERAL MOTORS CORP.

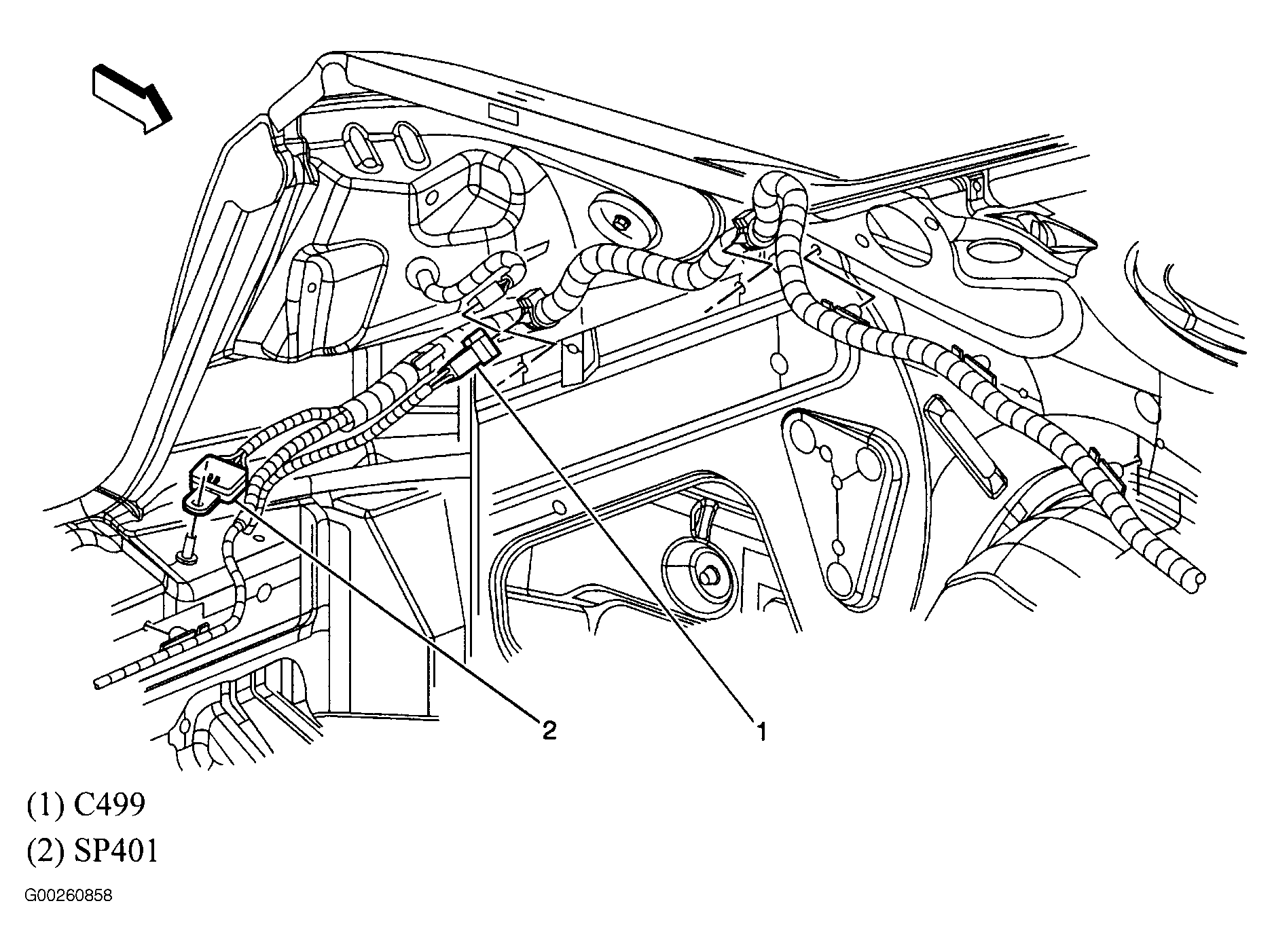

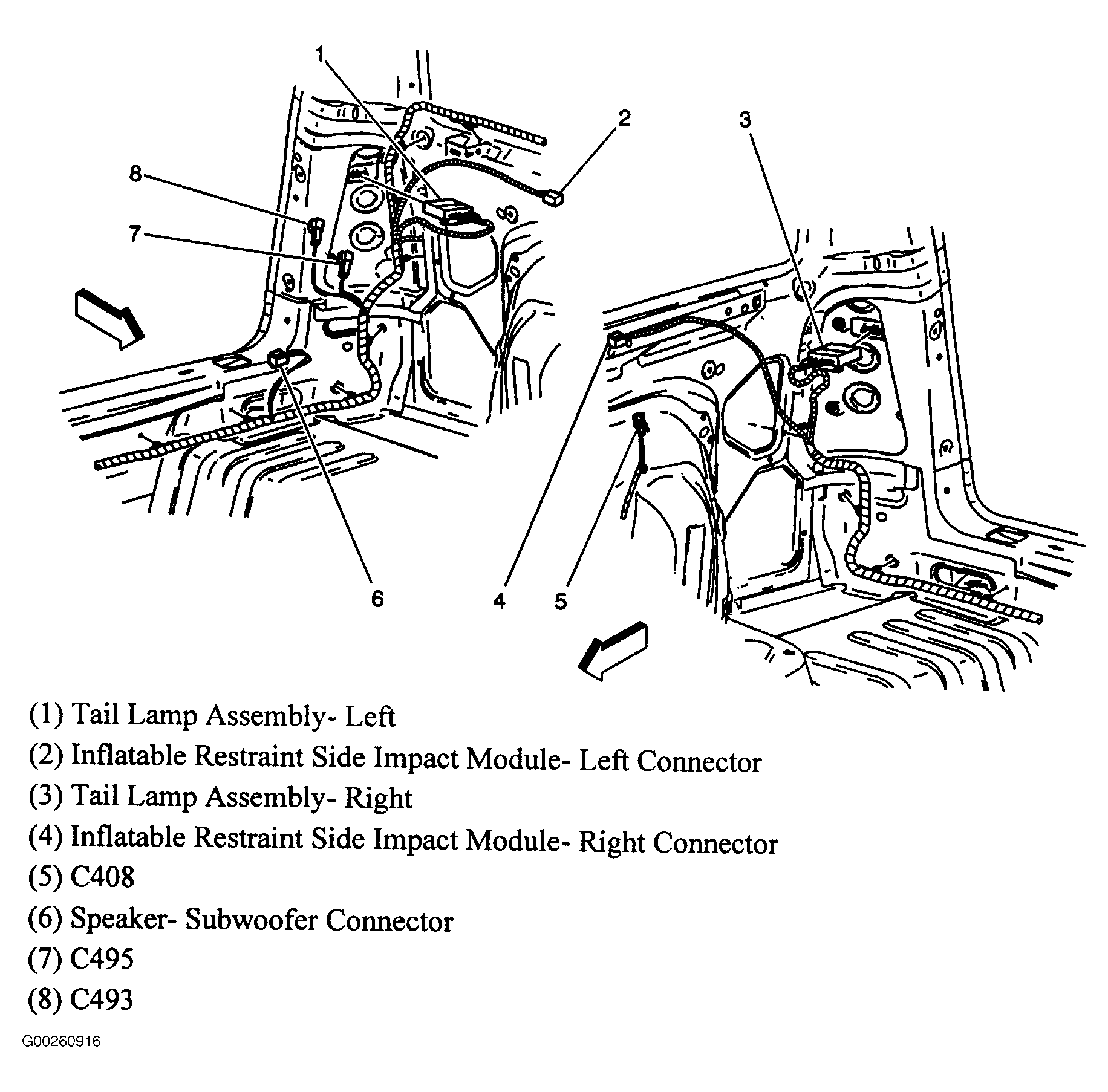

Fig 8: Rear Of Passenger Compartment (Sedan)
Courtesy of GENERAL MOTORS CORP.

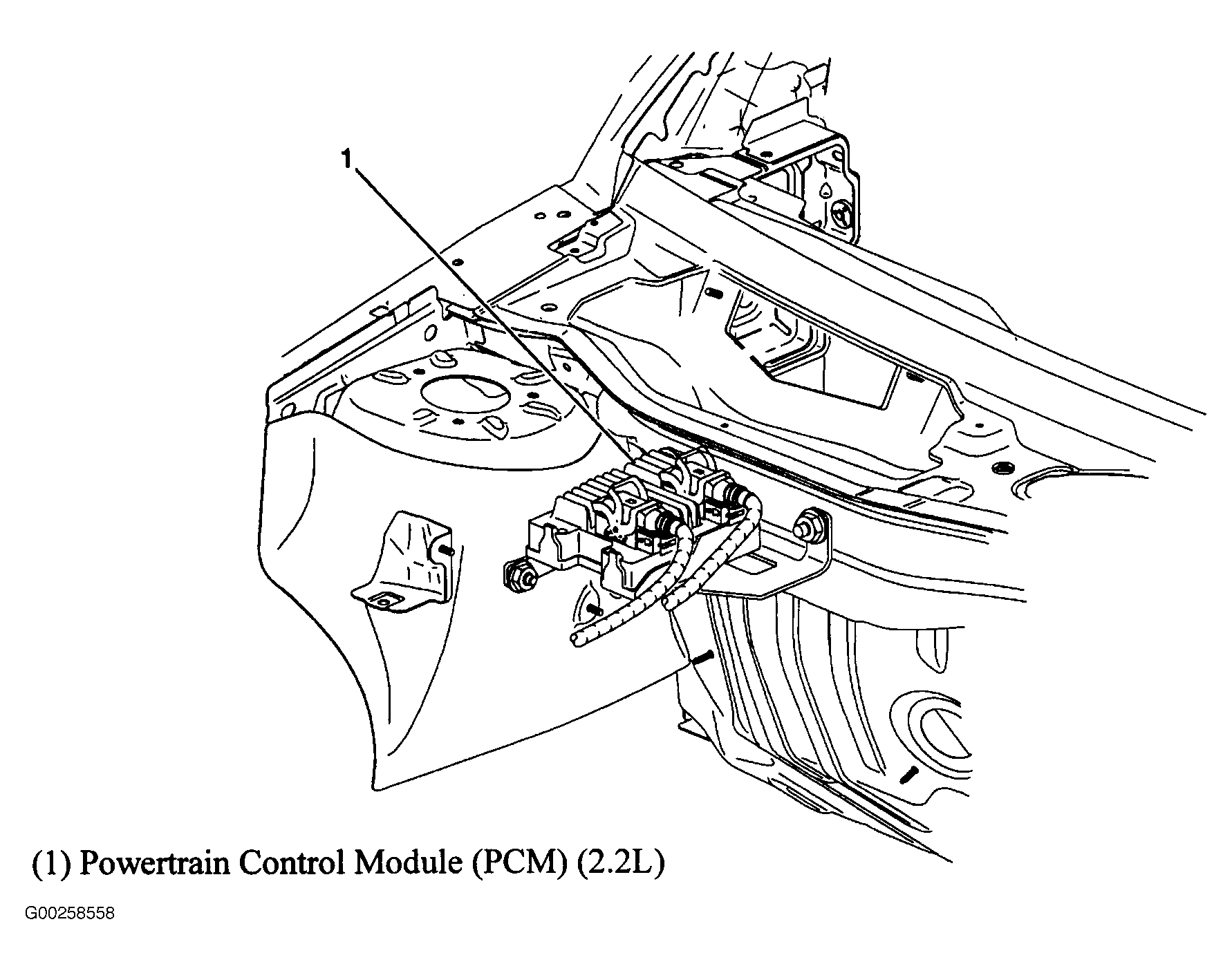

Fig 9: Left Rear Of Engine Compartment (Sedan)
Courtesy of GENERAL MOTORS CORP.

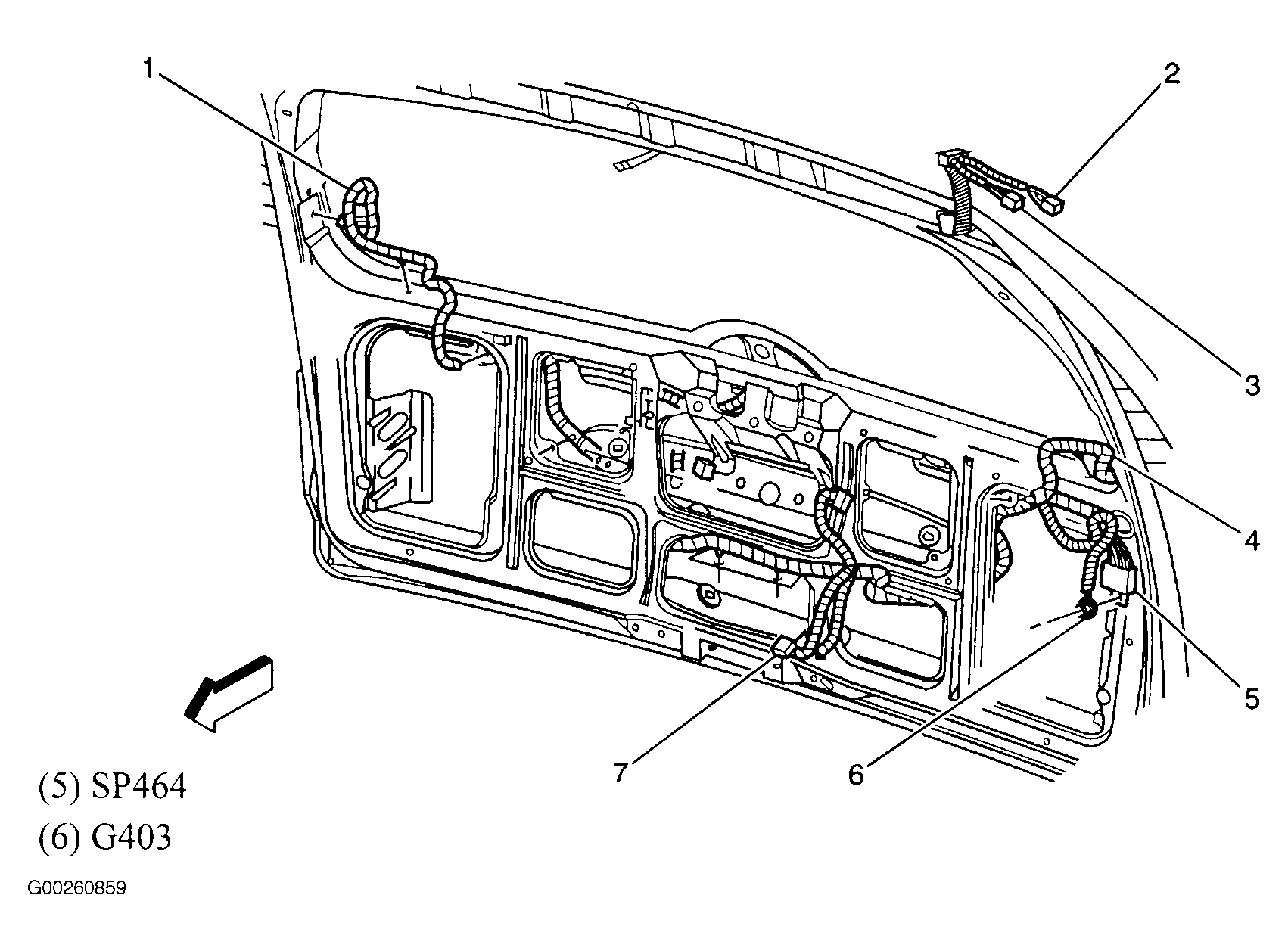

Fig 10: Liftgate
Courtesy of GENERAL MOTORS CORP.

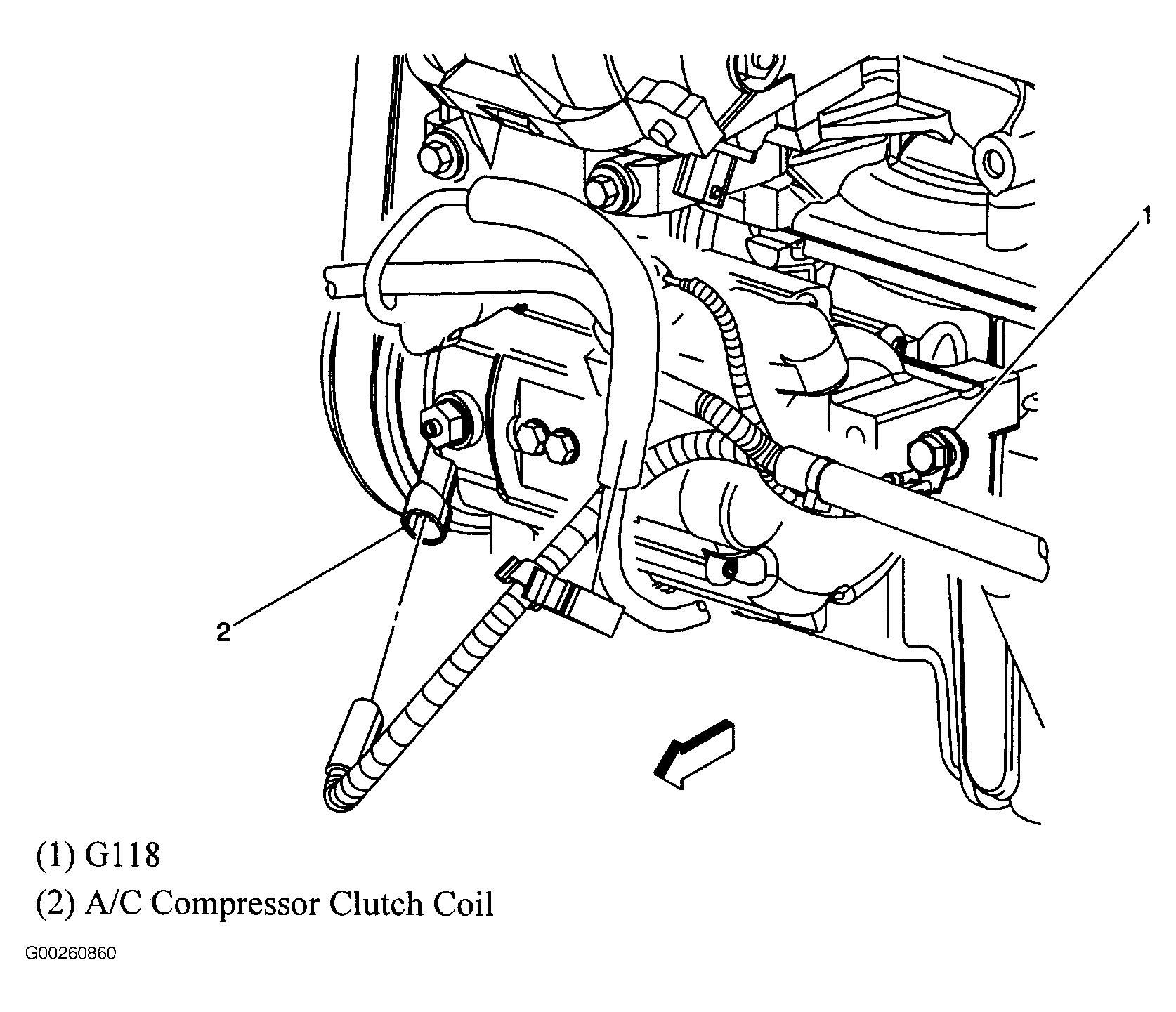

Fig 11: Lower Left Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.

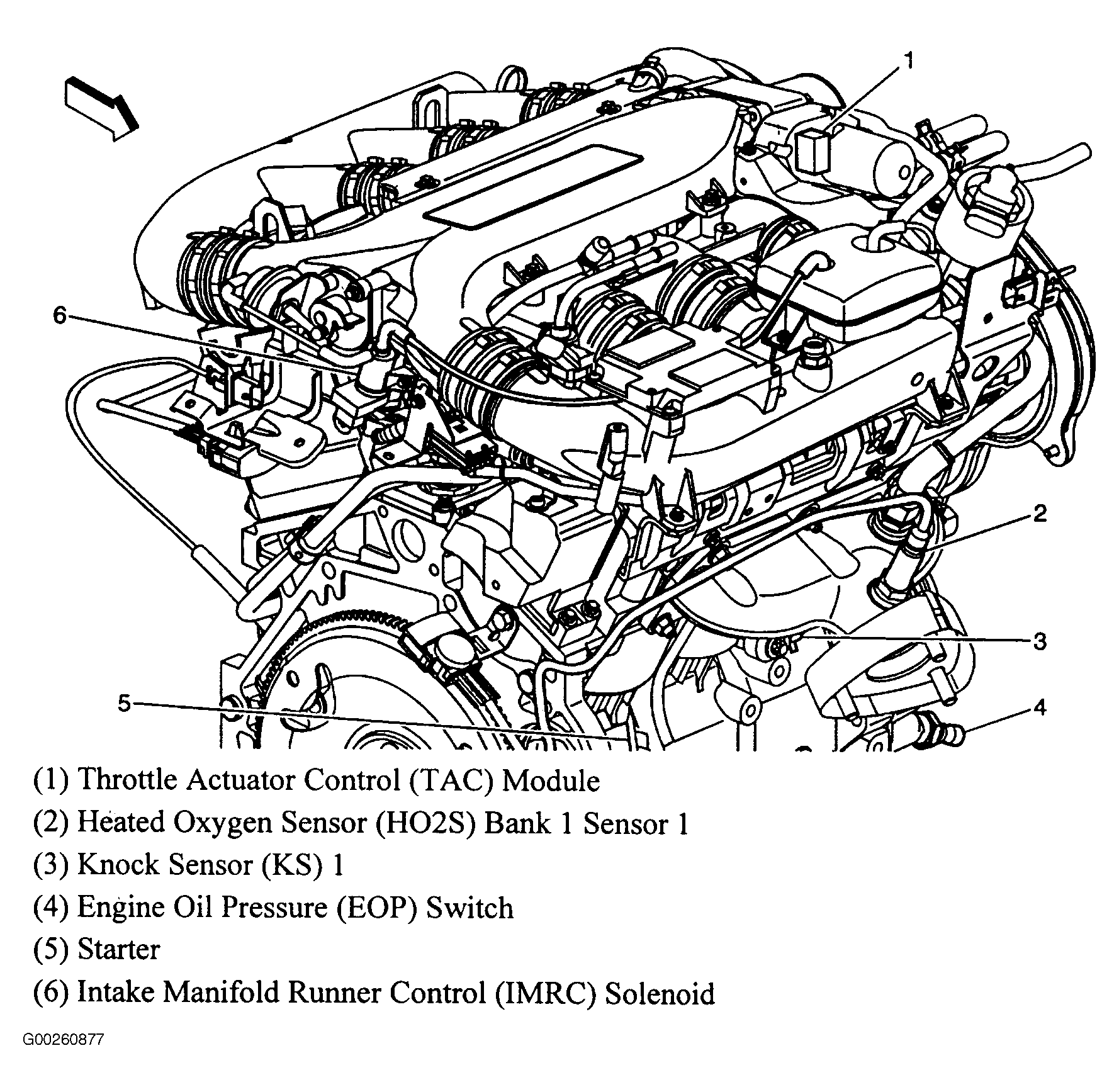

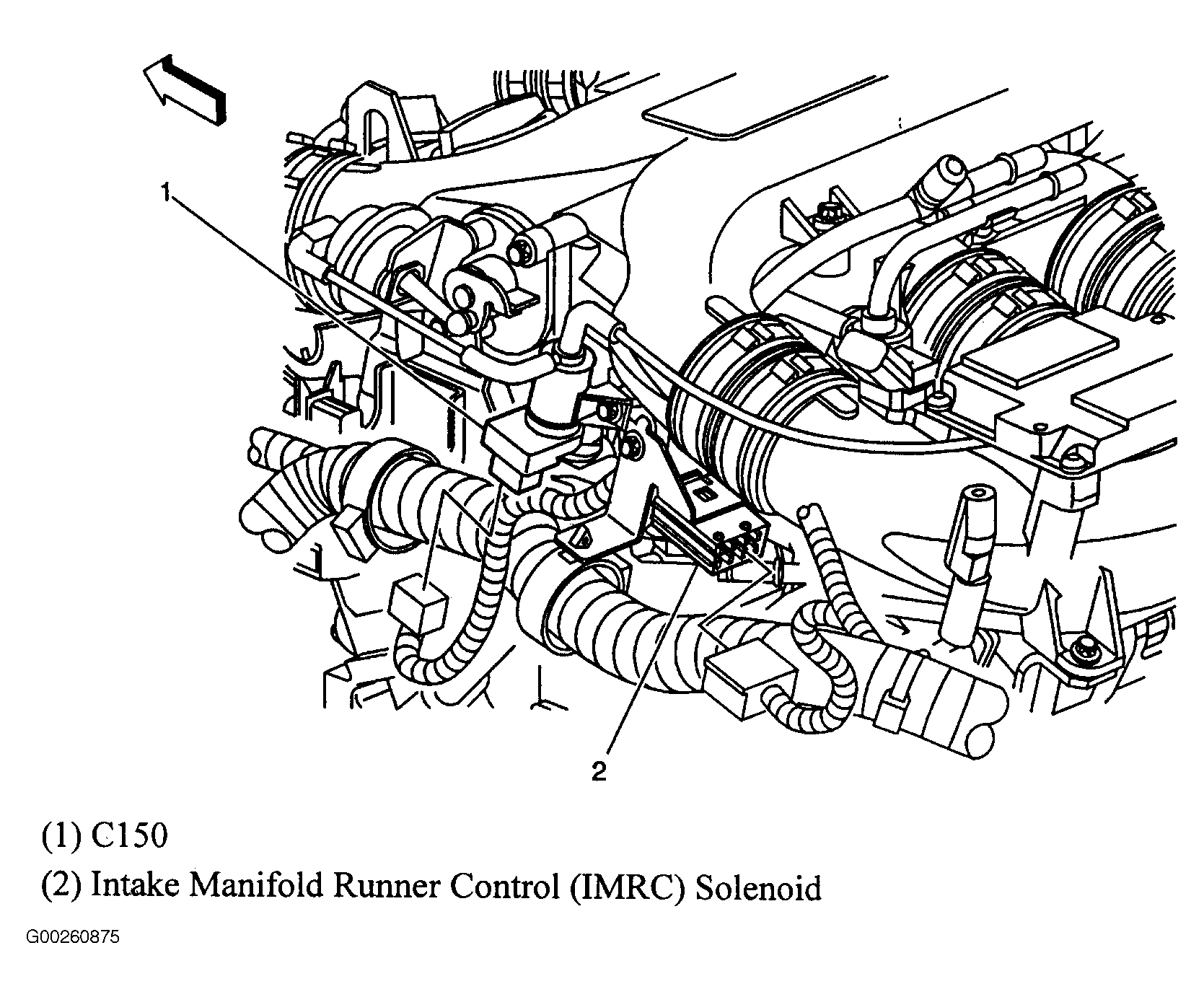

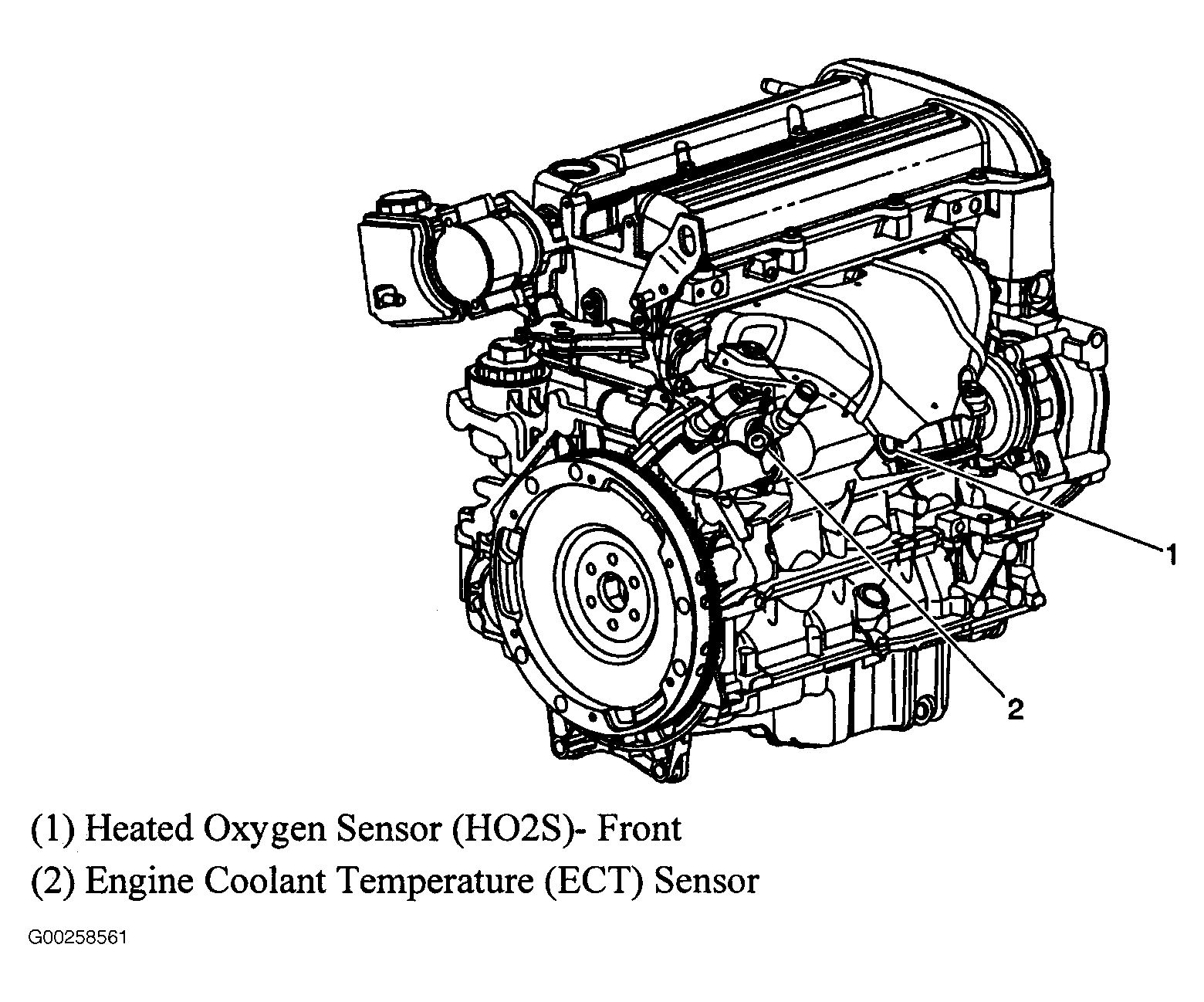

Fig 12: Left Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.

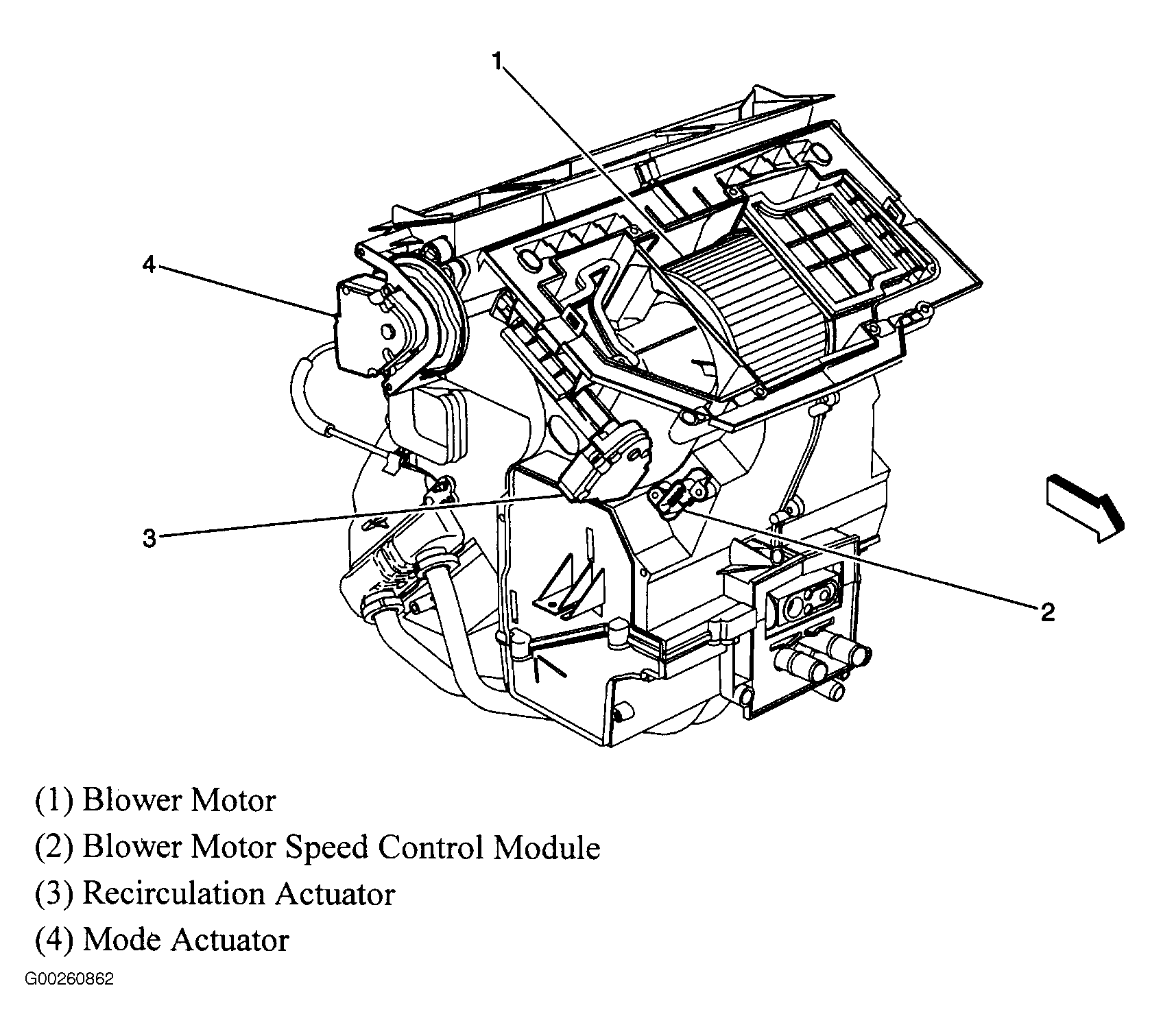

Fig 13: HVAC Module
Courtesy of GENERAL MOTORS CORP.

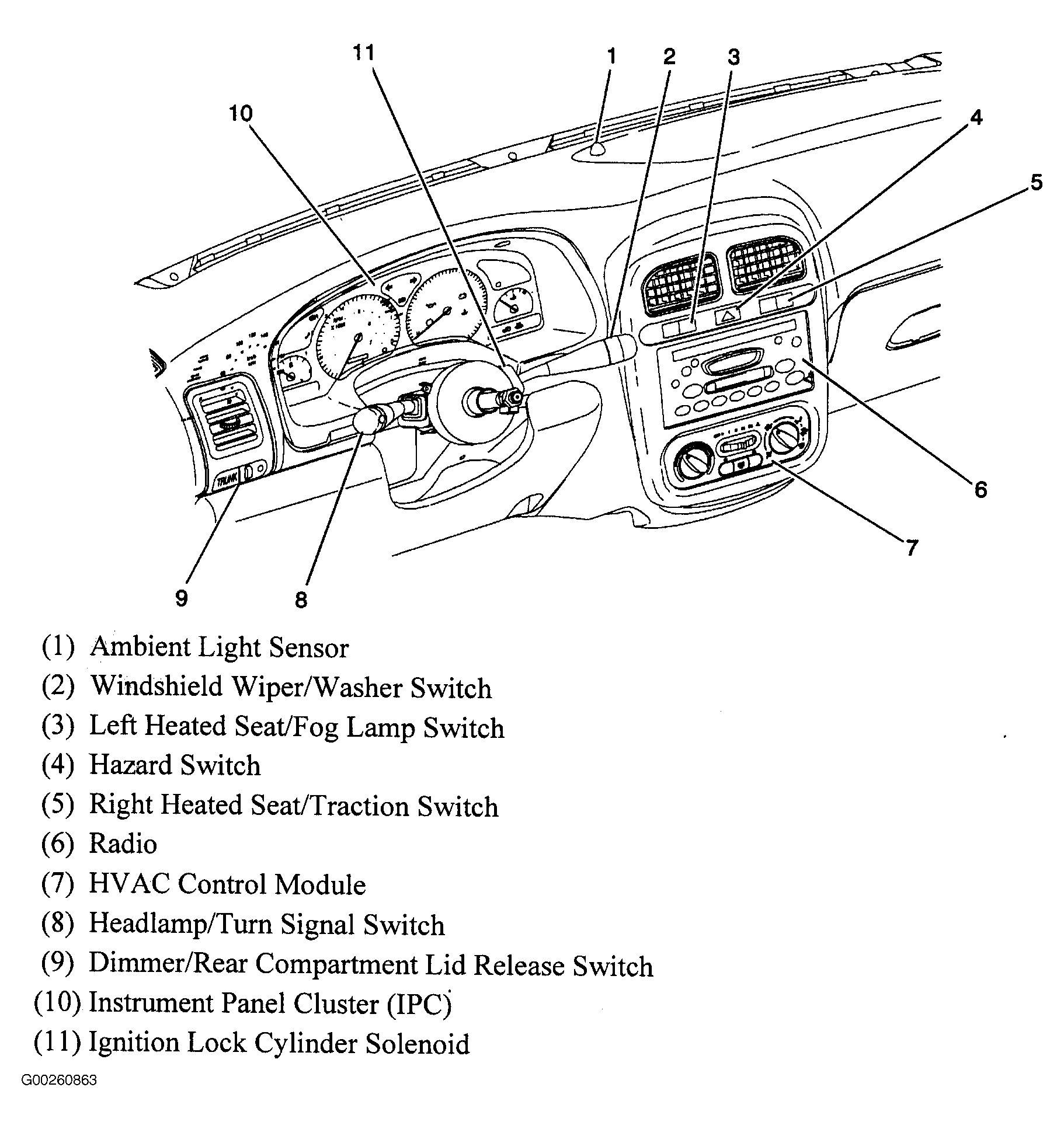

Fig 14: Center & Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

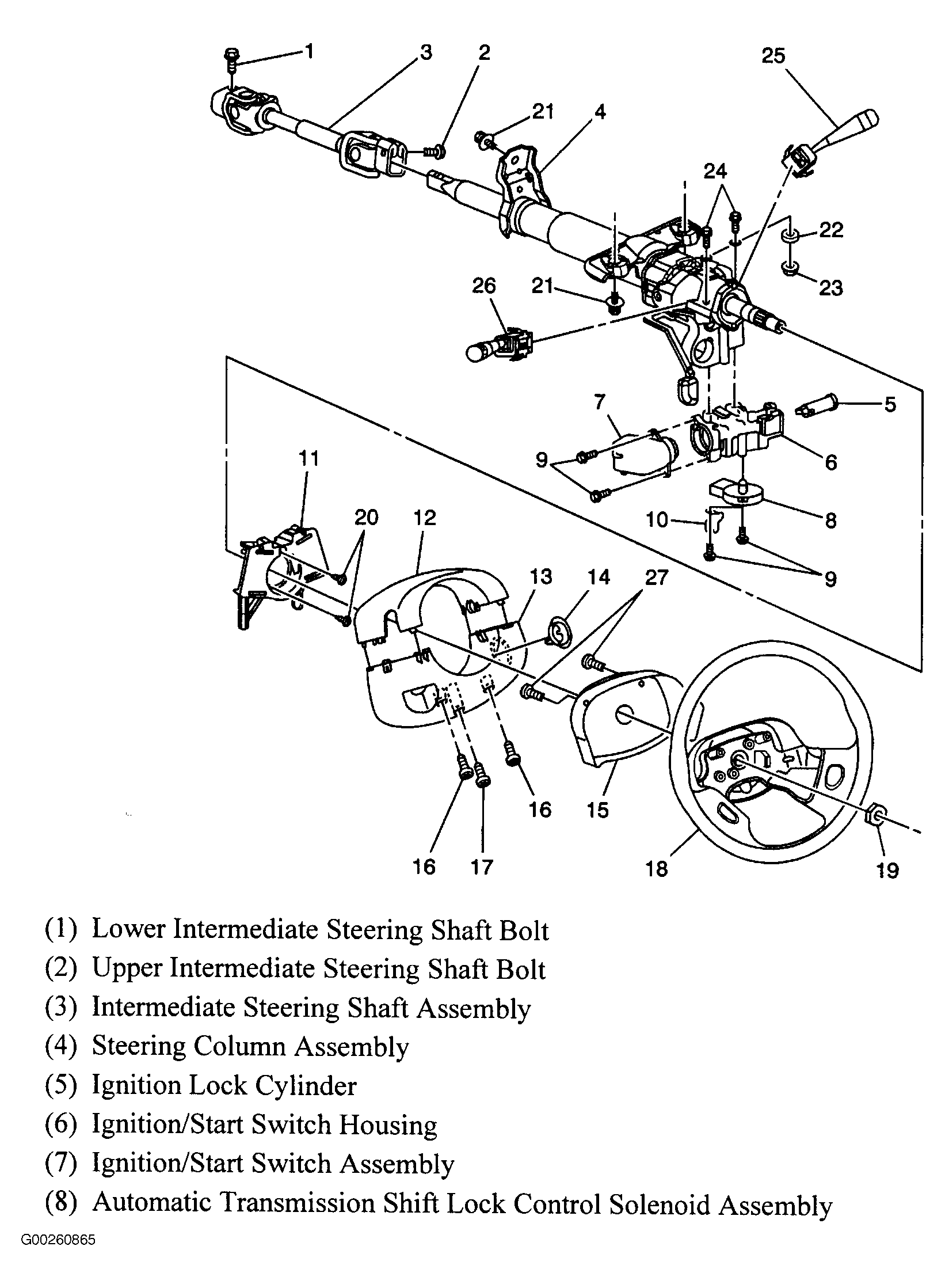

Fig 15: Steering Column Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 16: Center Console
Courtesy of GENERAL MOTORS CORP.

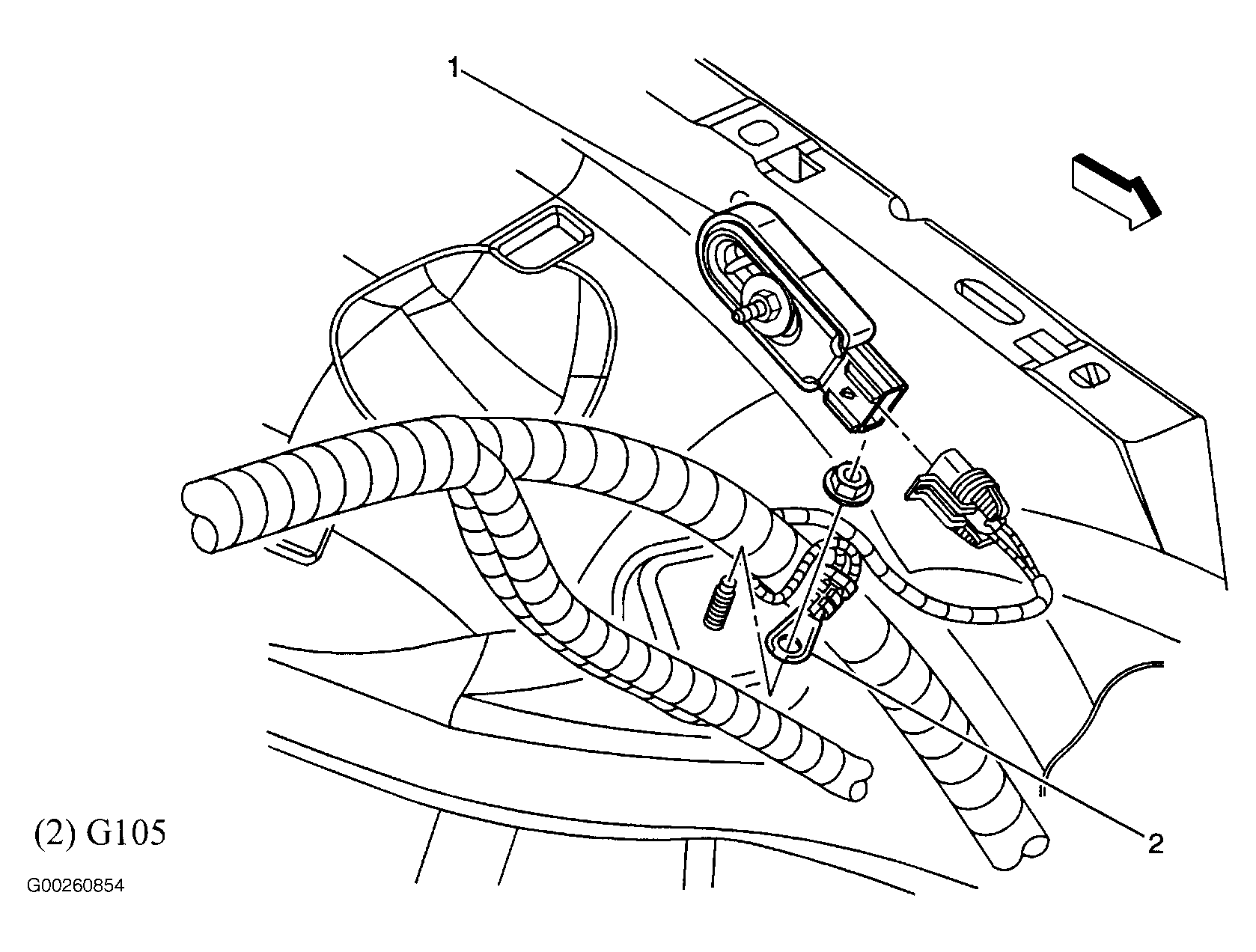

Fig 17: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

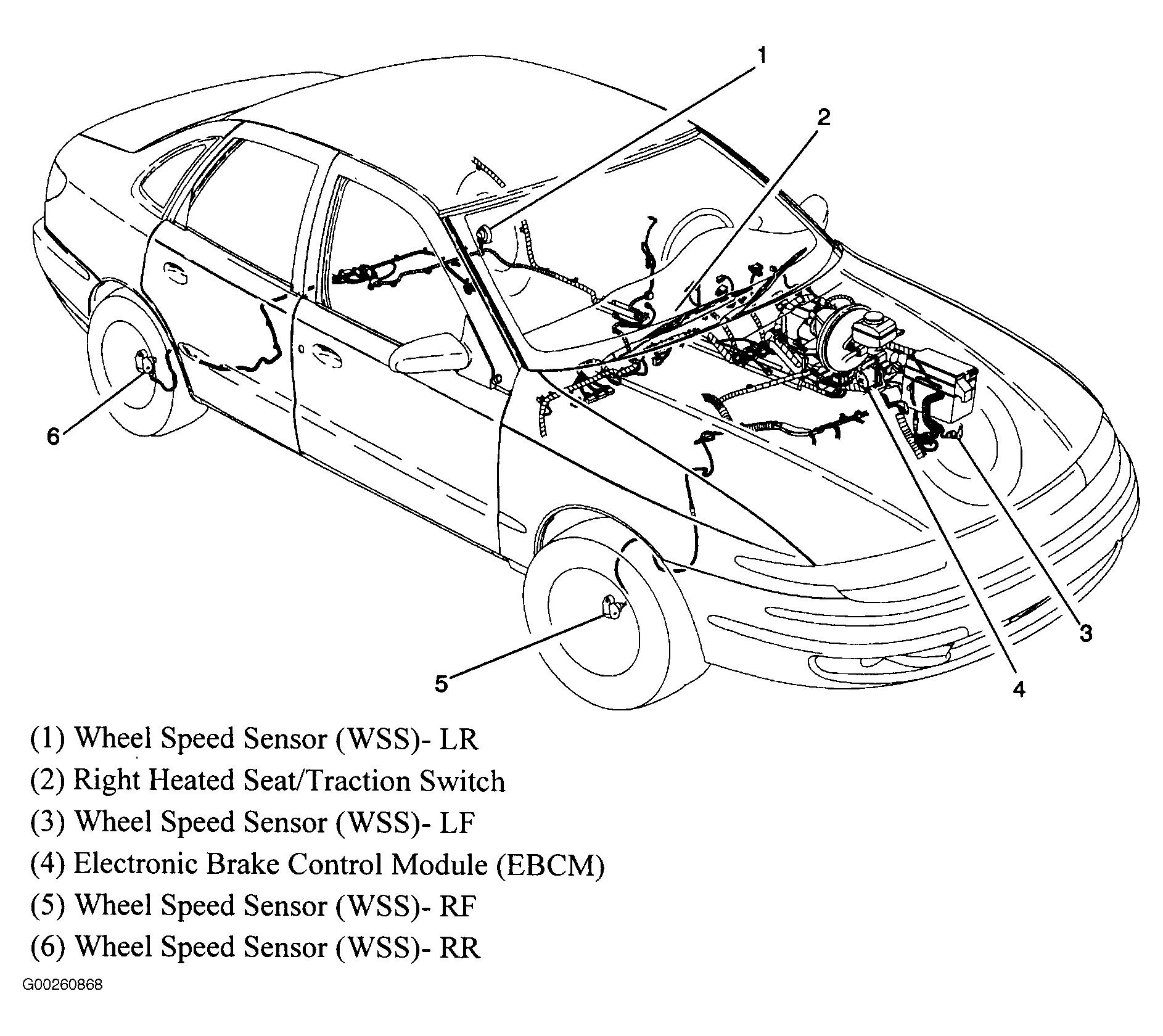

Fig 18: ABS Components
Courtesy of GENERAL MOTORS CORP.
Fig 19: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

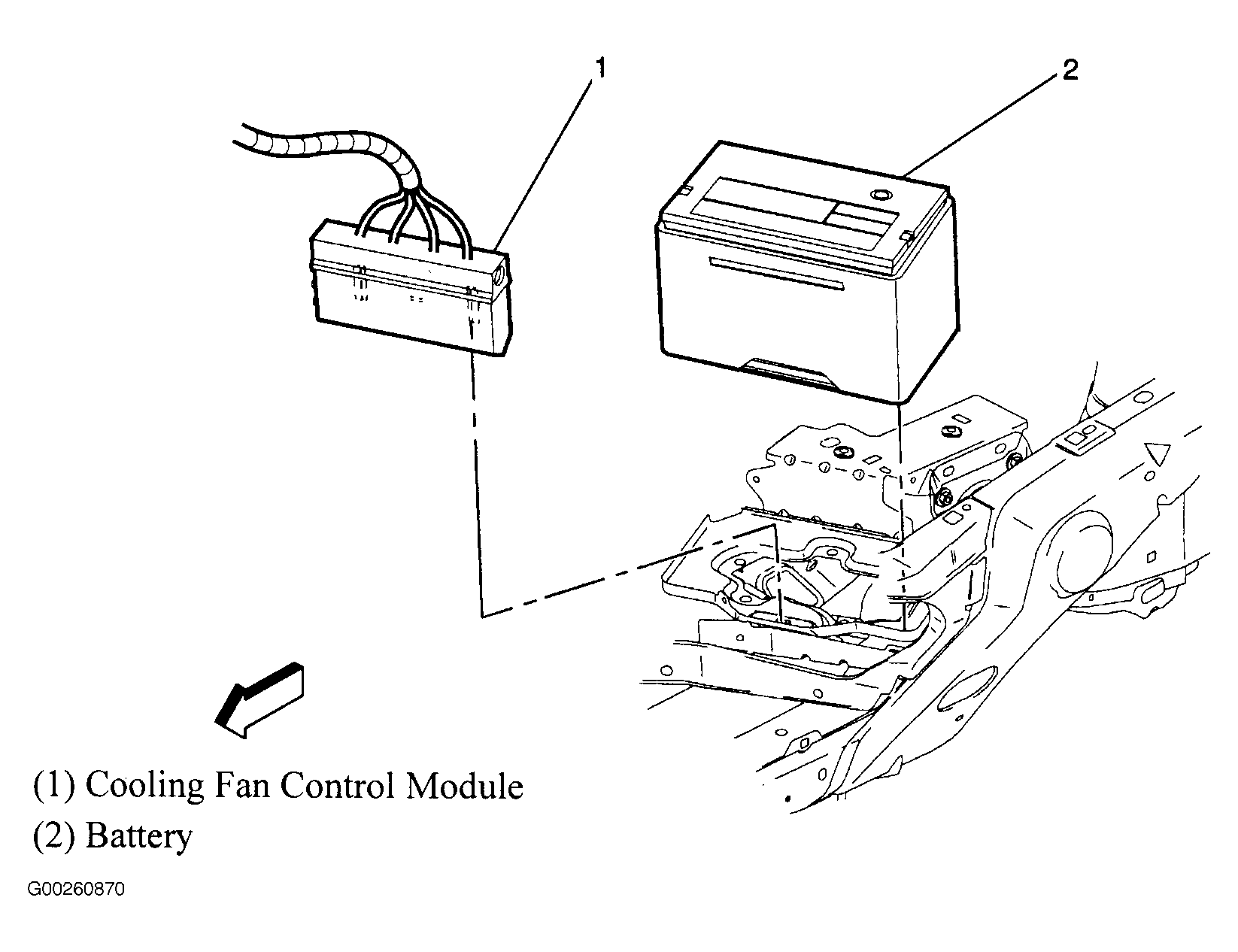

Fig 20: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

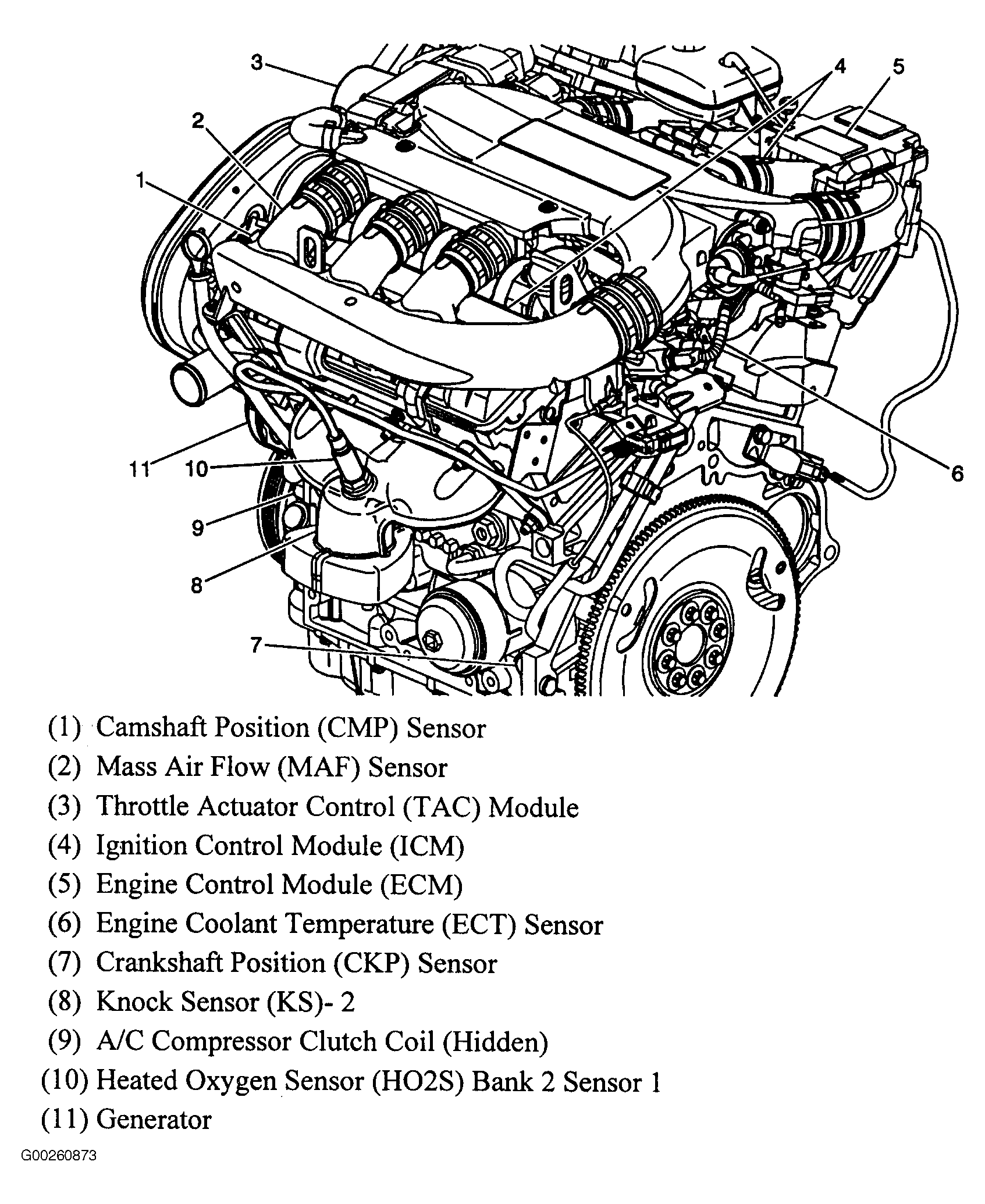

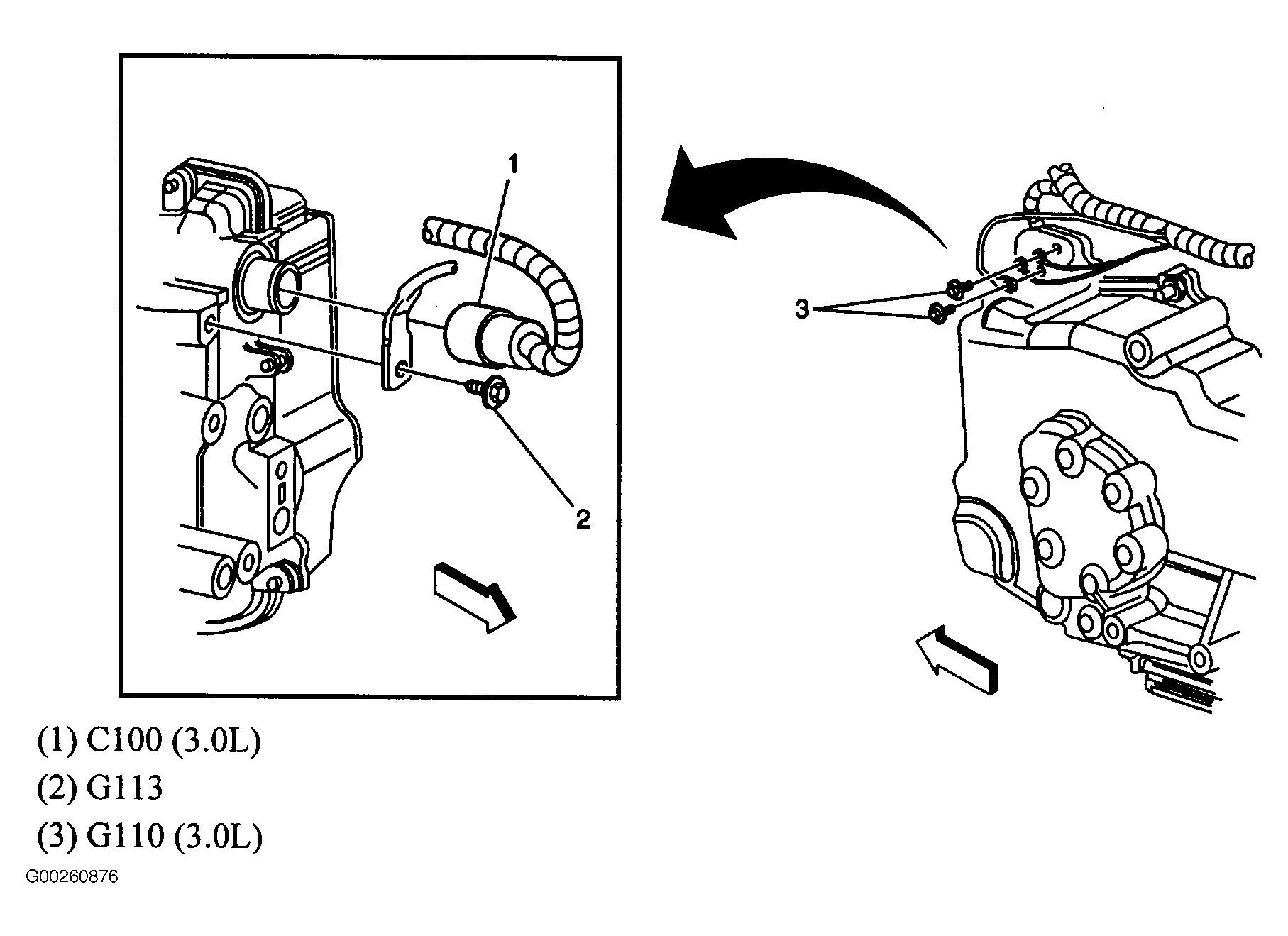

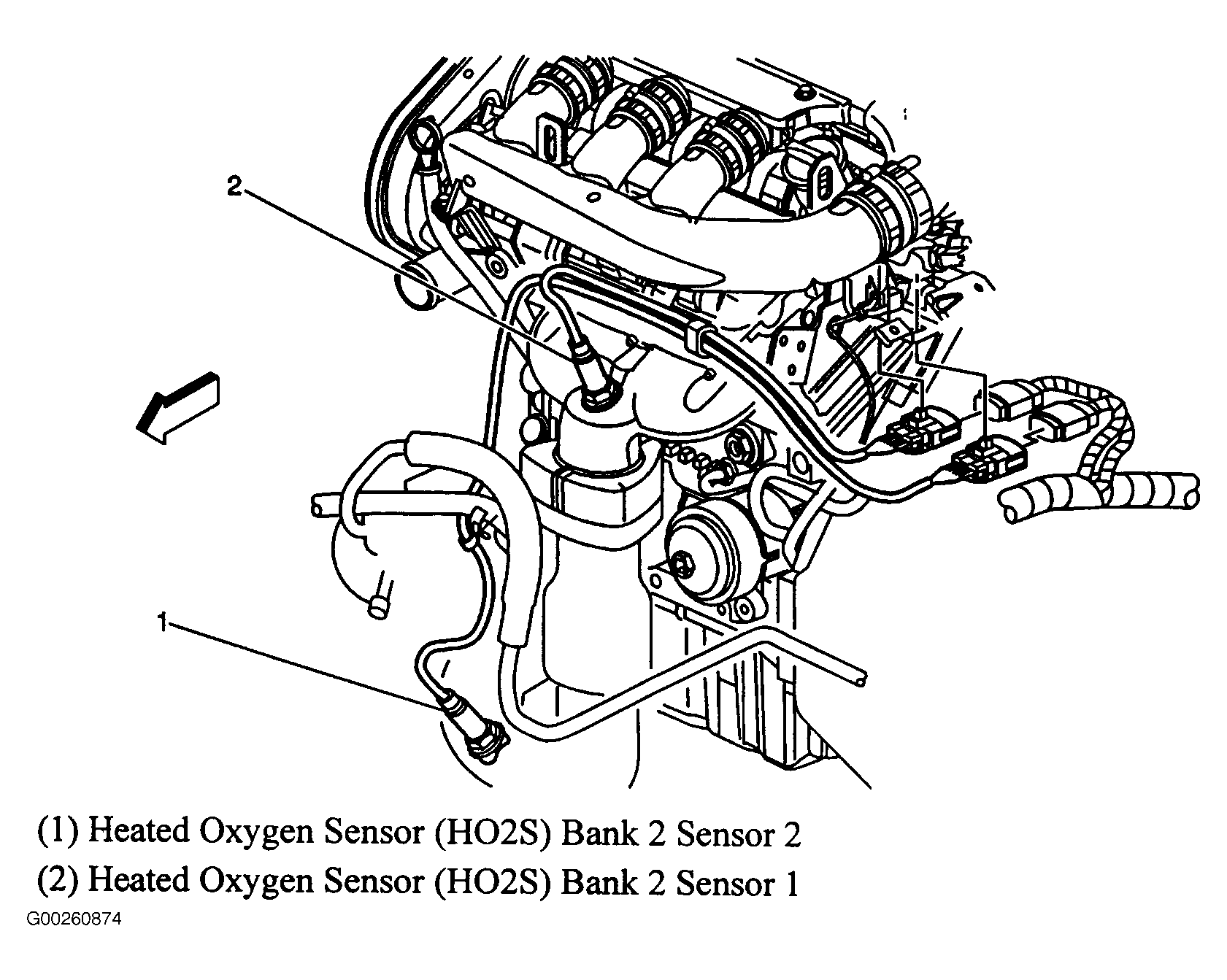

Fig 21: Left Side Of Engine (3.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 22: Left Side Of Engine (3.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 23: Right Rear Of Engine (3.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 24: Right Side Of Engine (3.0L)
Courtesy of GENERAL MOTORS CORP.

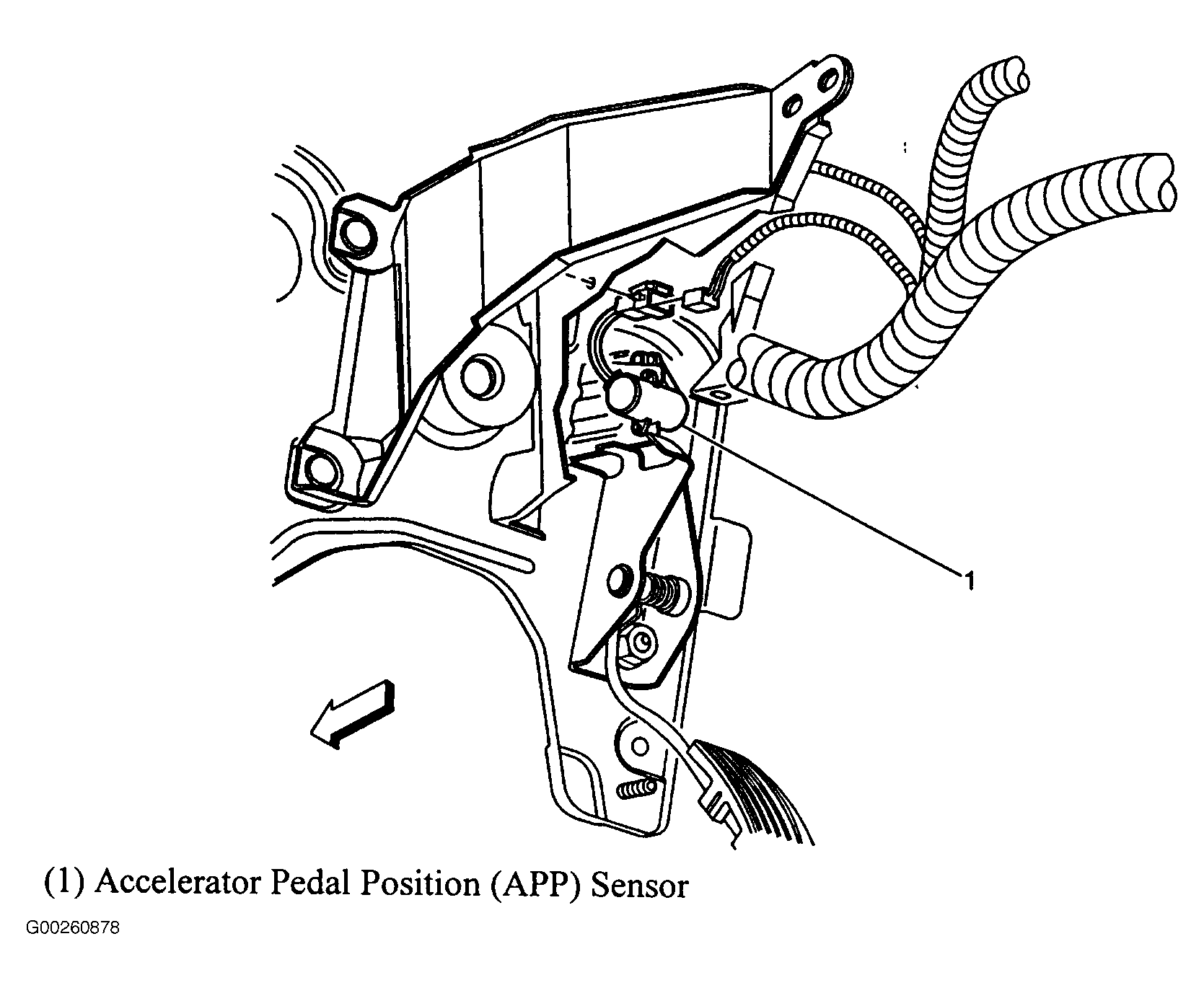

Fig 25: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

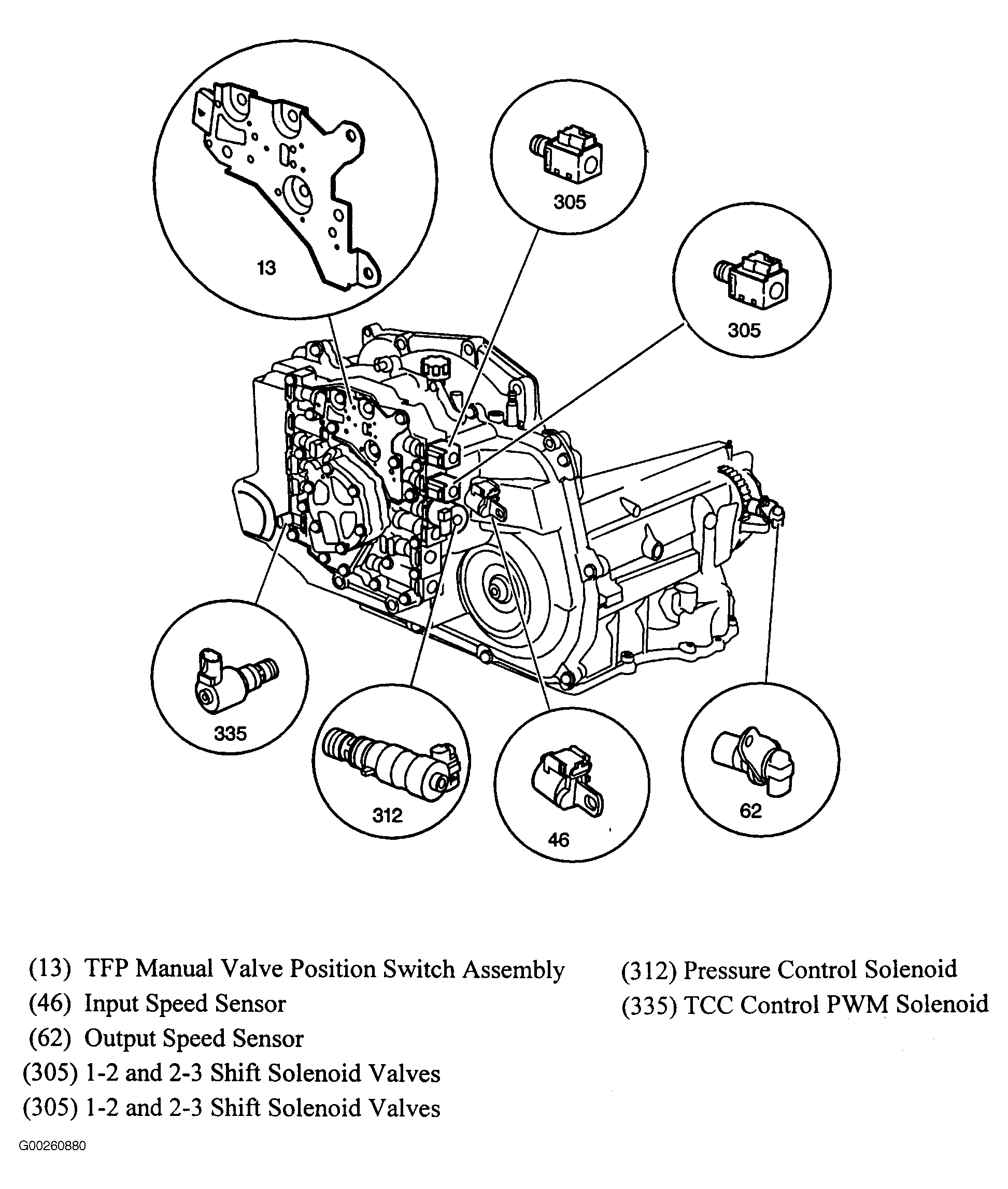

Fig 26: Top Of Transmission
Courtesy of GENERAL MOTORS CORP.

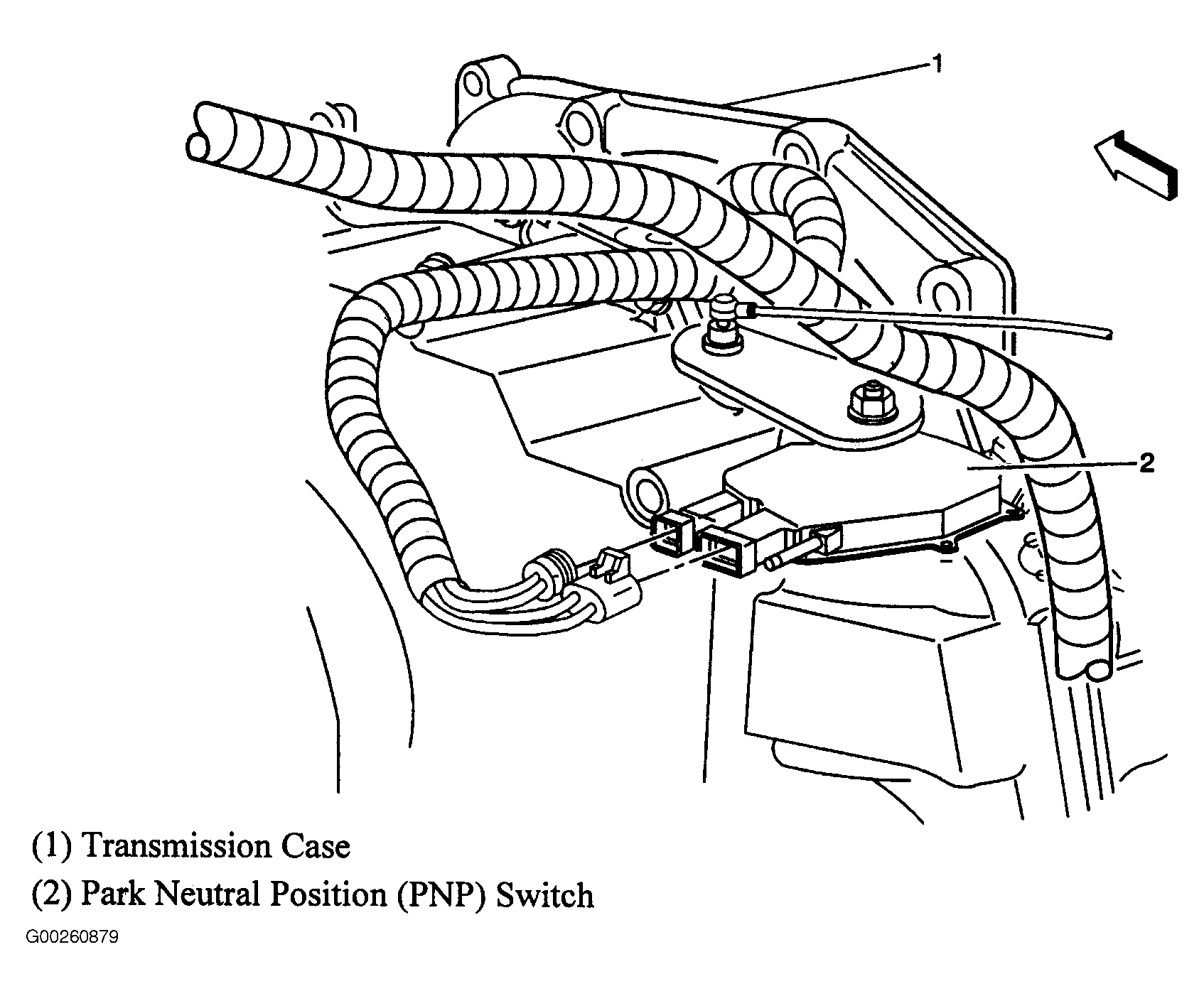

Fig 27: Left Side Of Transmission
Courtesy of GENERAL MOTORS CORP.

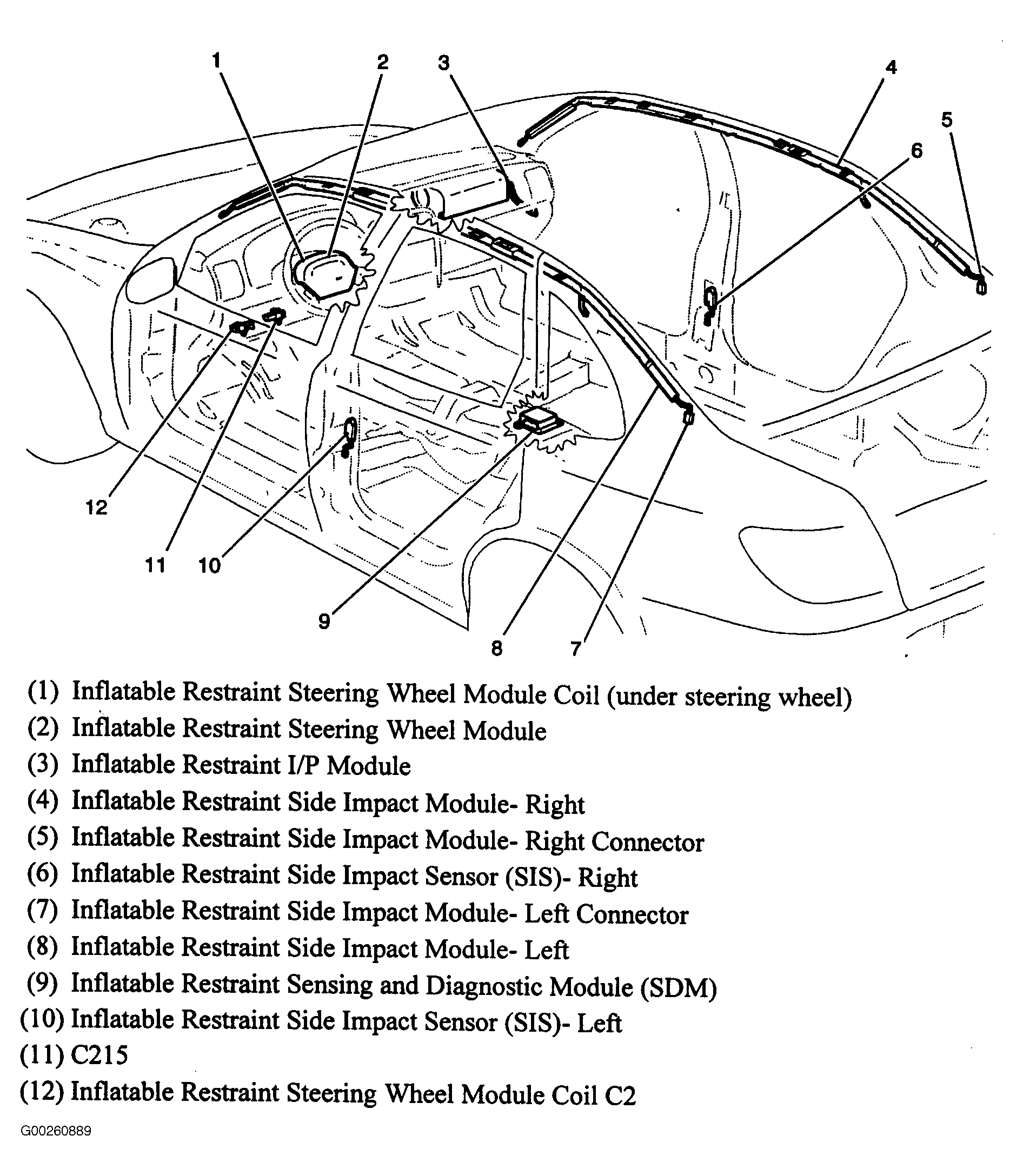

Fig 28: SIR Components
Courtesy of GENERAL MOTORS CORP.

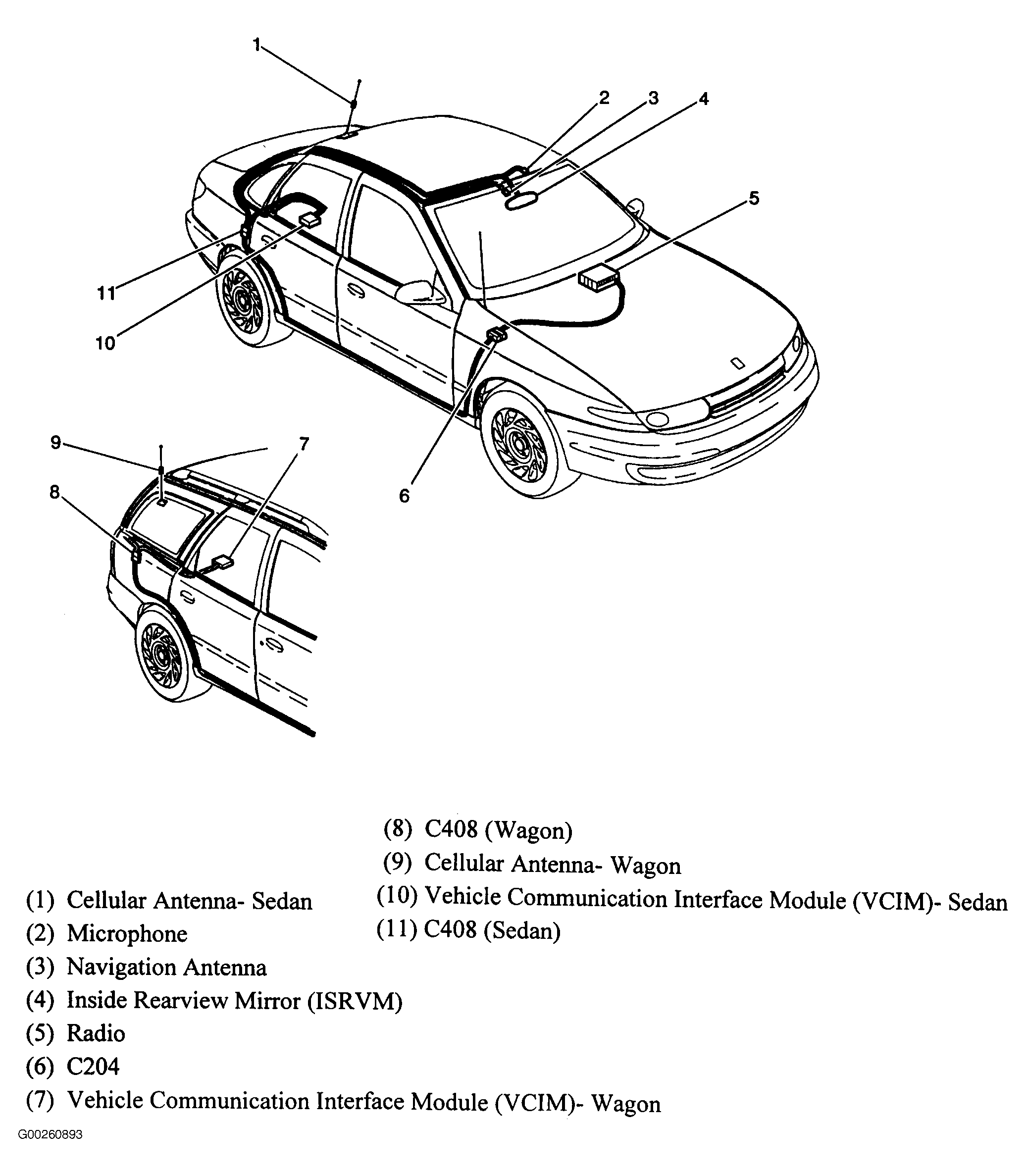

Fig 29: Cellular Communication Components
Courtesy of GENERAL MOTORS CORP.

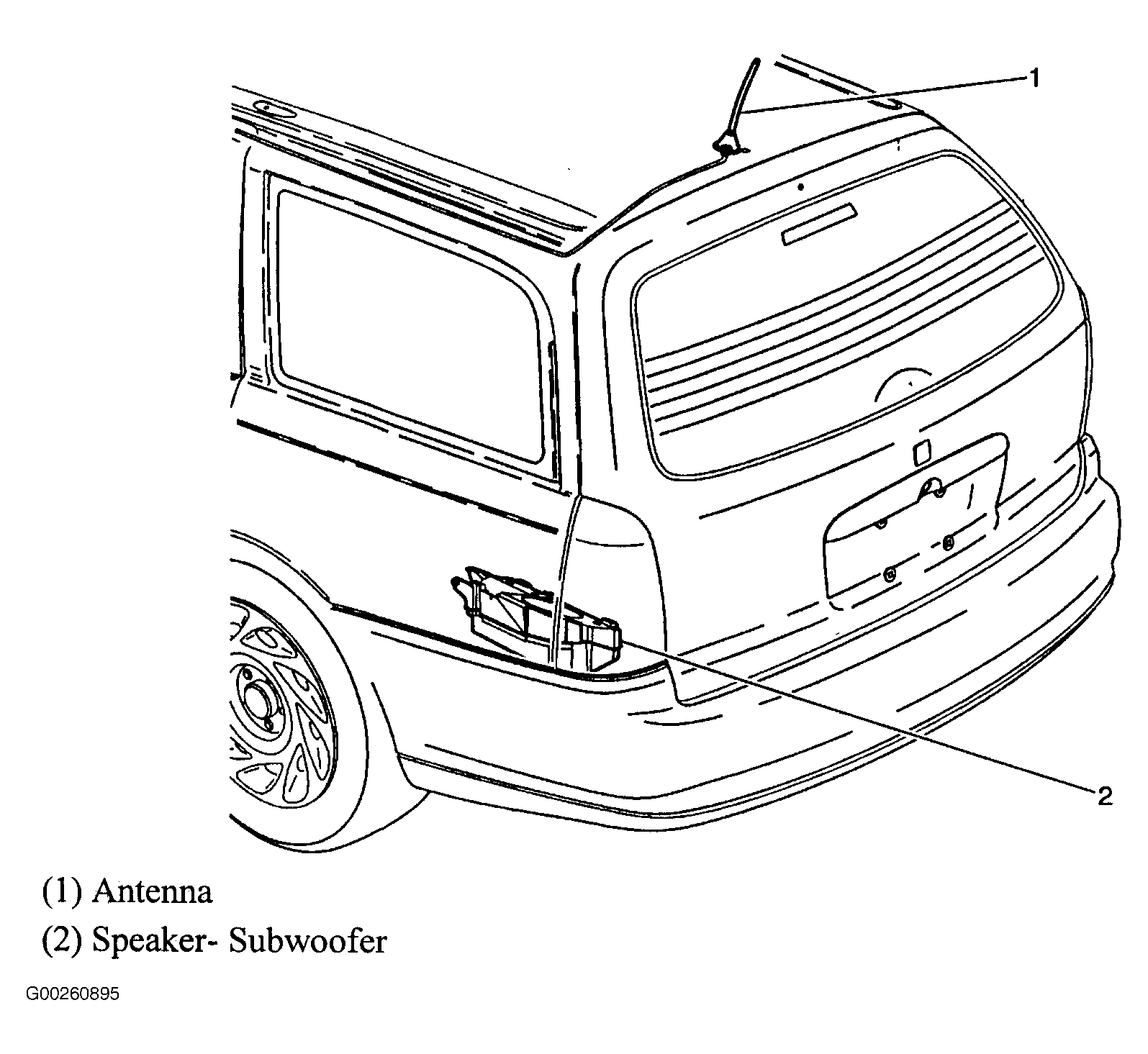

Fig 30: Rear Of Vehicle (Wagon)
Courtesy of GENERAL MOTORS CORP.

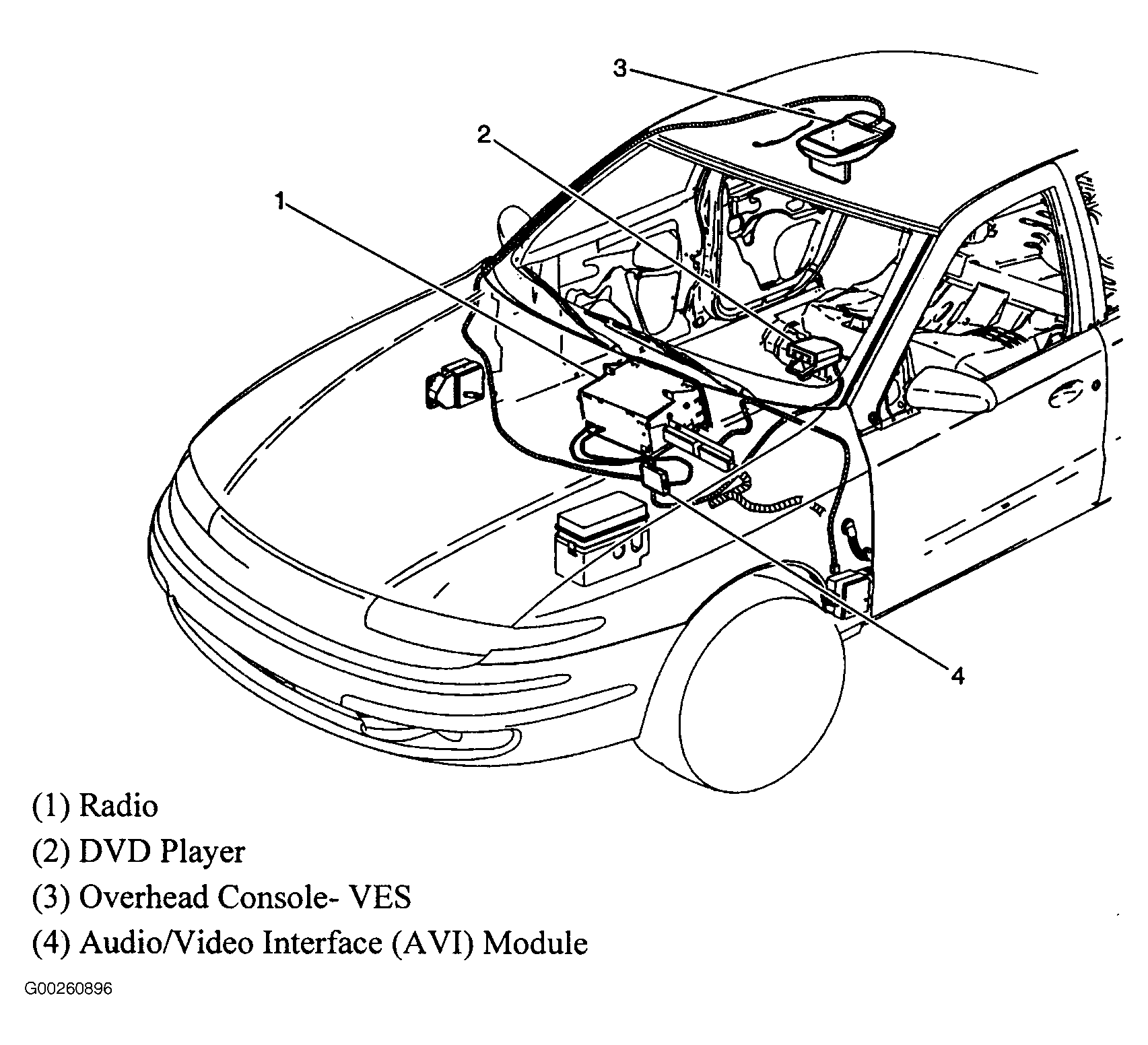

Fig 31: Video System Components
Courtesy of GENERAL MOTORS CORP.

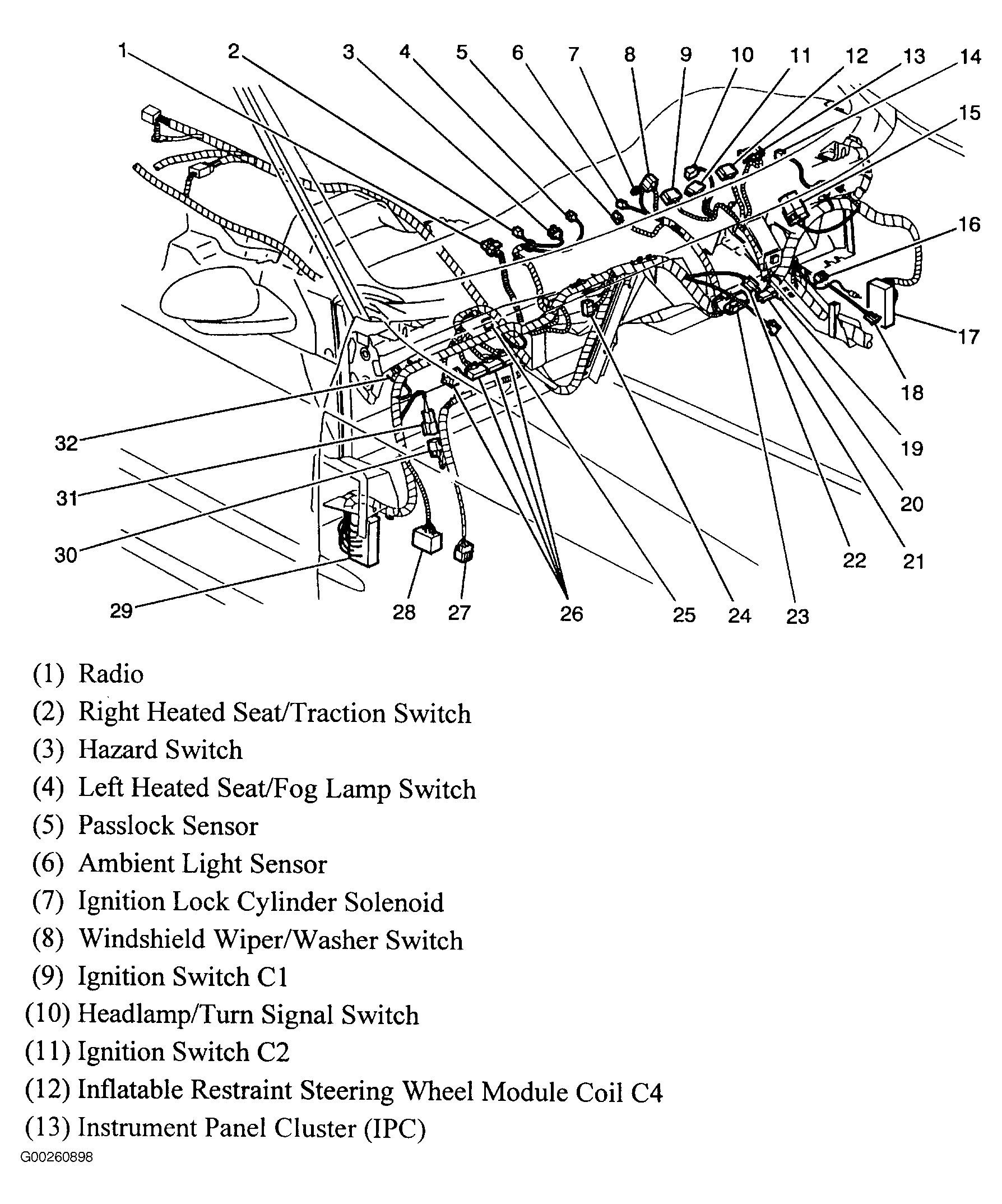

Fig 32: Behind Dash (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Behind Dash (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

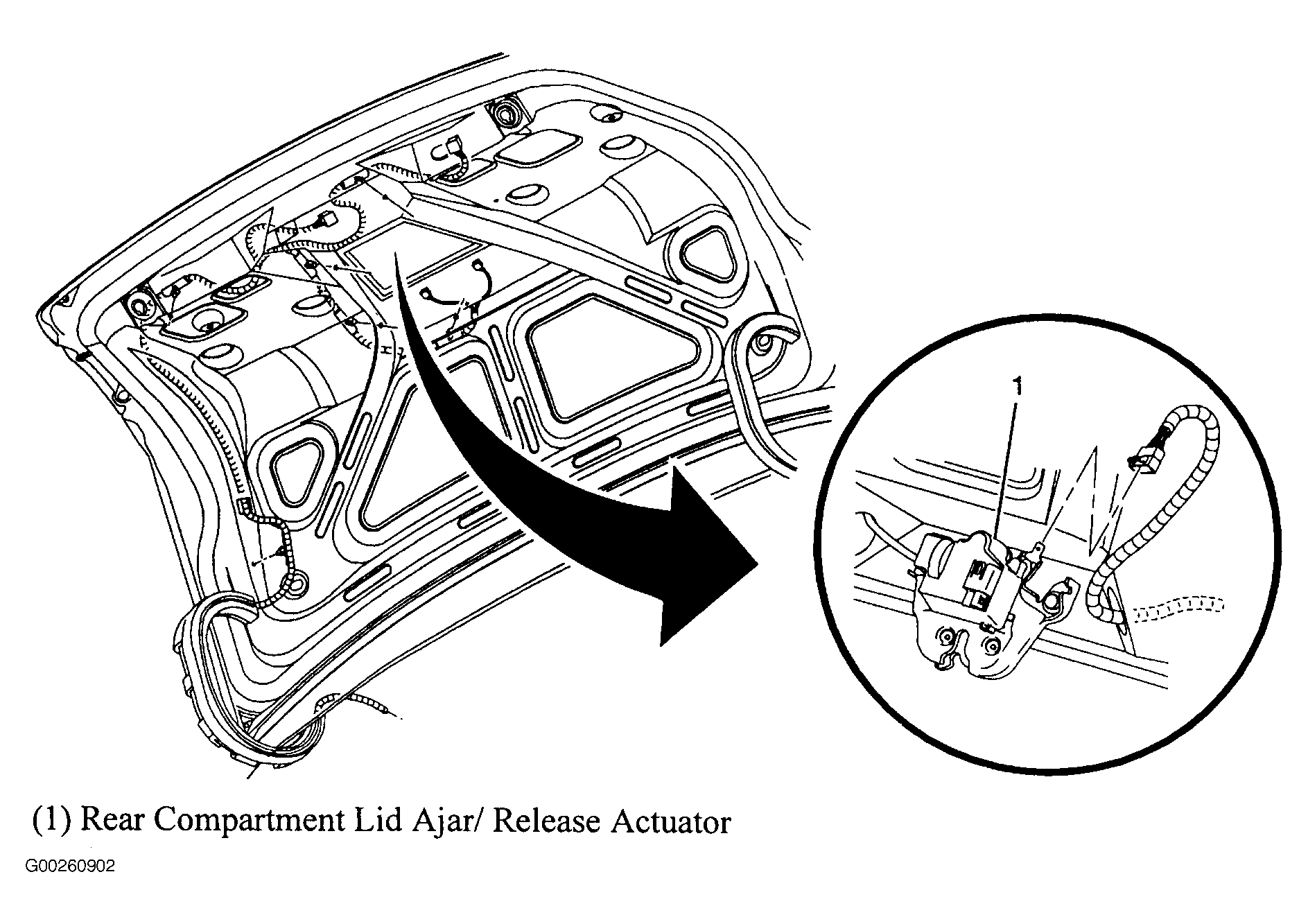

Fig 34: Rear Compartment Lid
Courtesy of GENERAL MOTORS CORP.

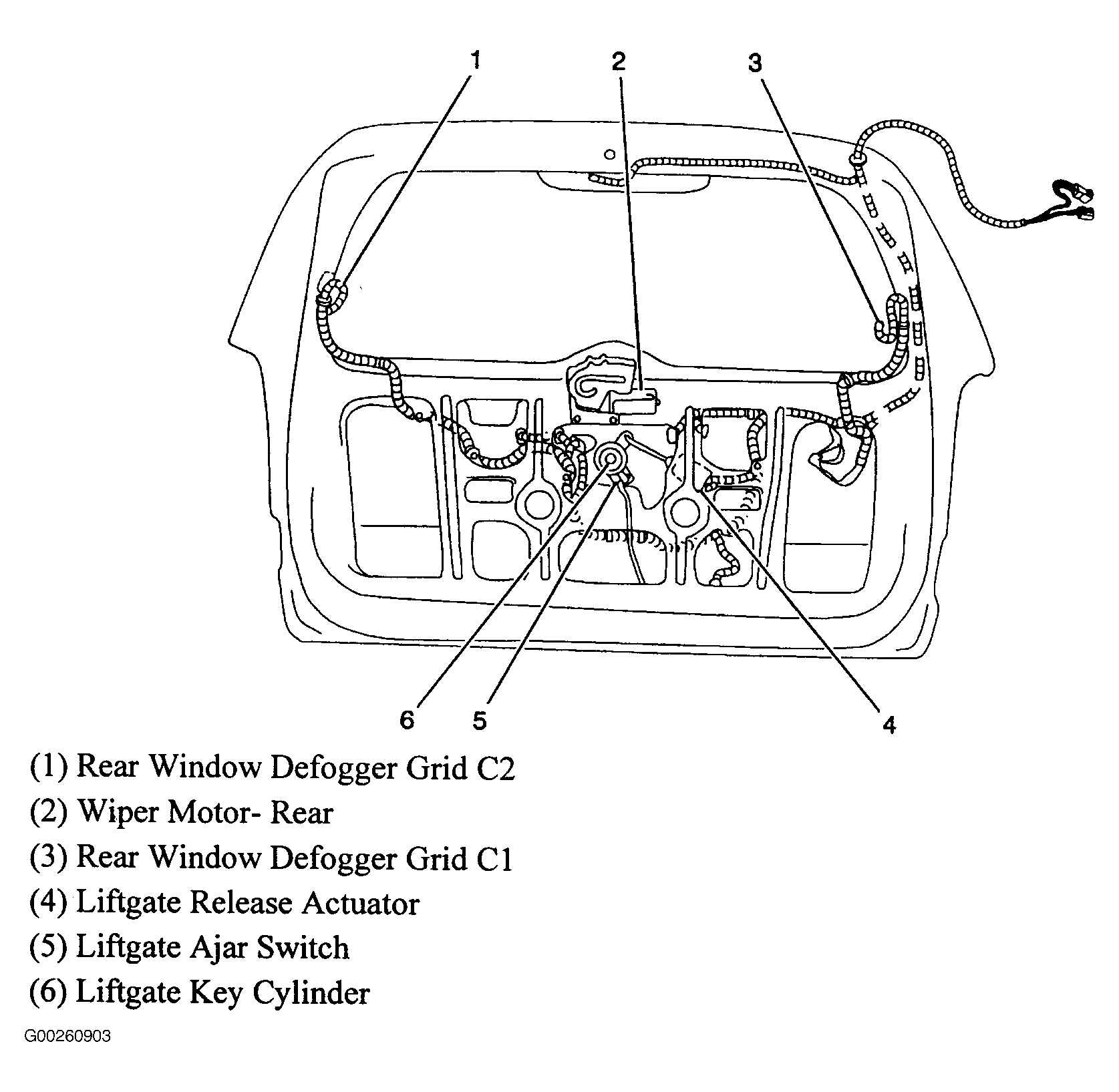

Fig 35: Liftgate
Courtesy of GENERAL MOTORS CORP.

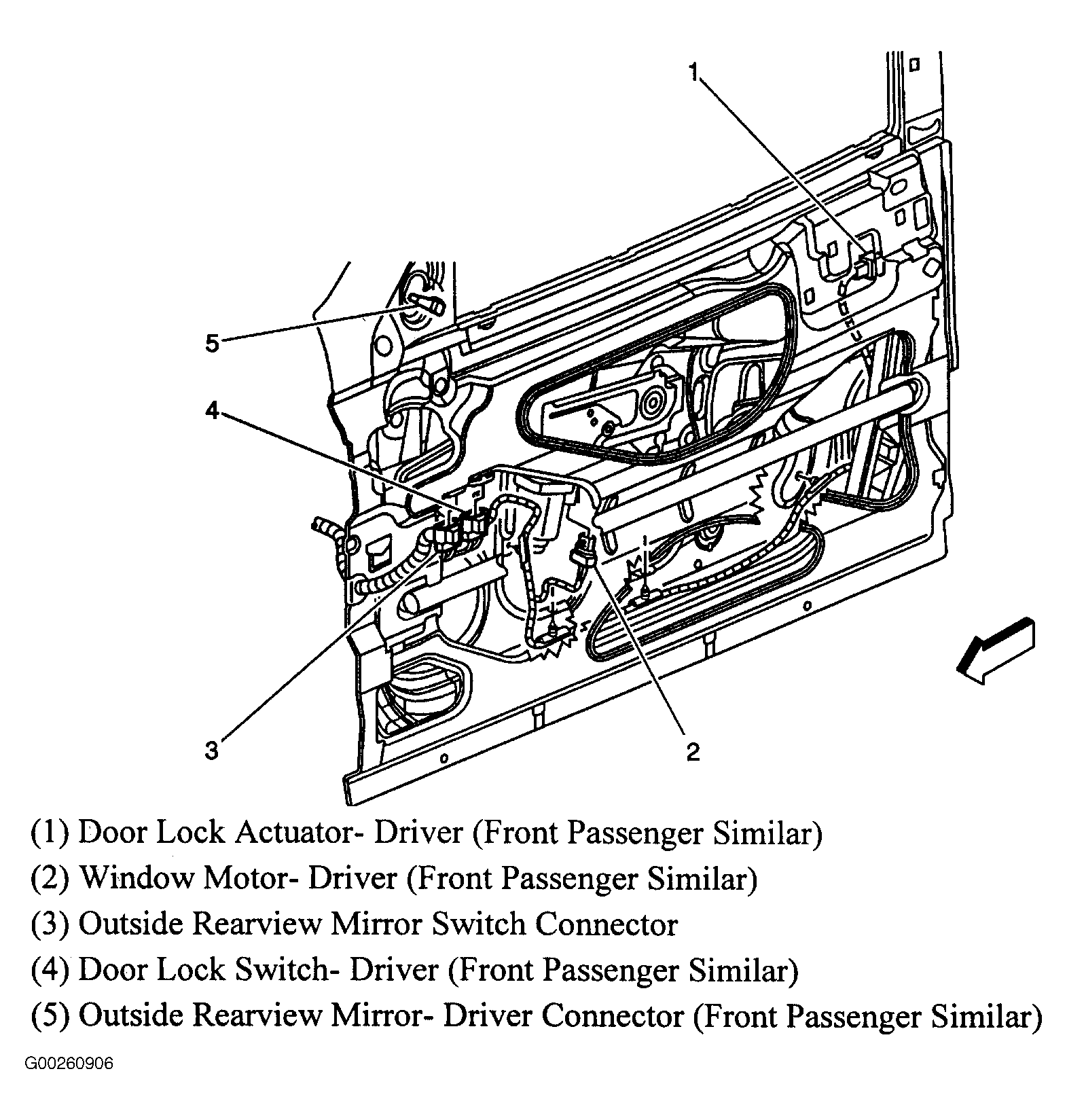

Fig 36: Driver Door
Courtesy of GENERAL MOTORS CORP.

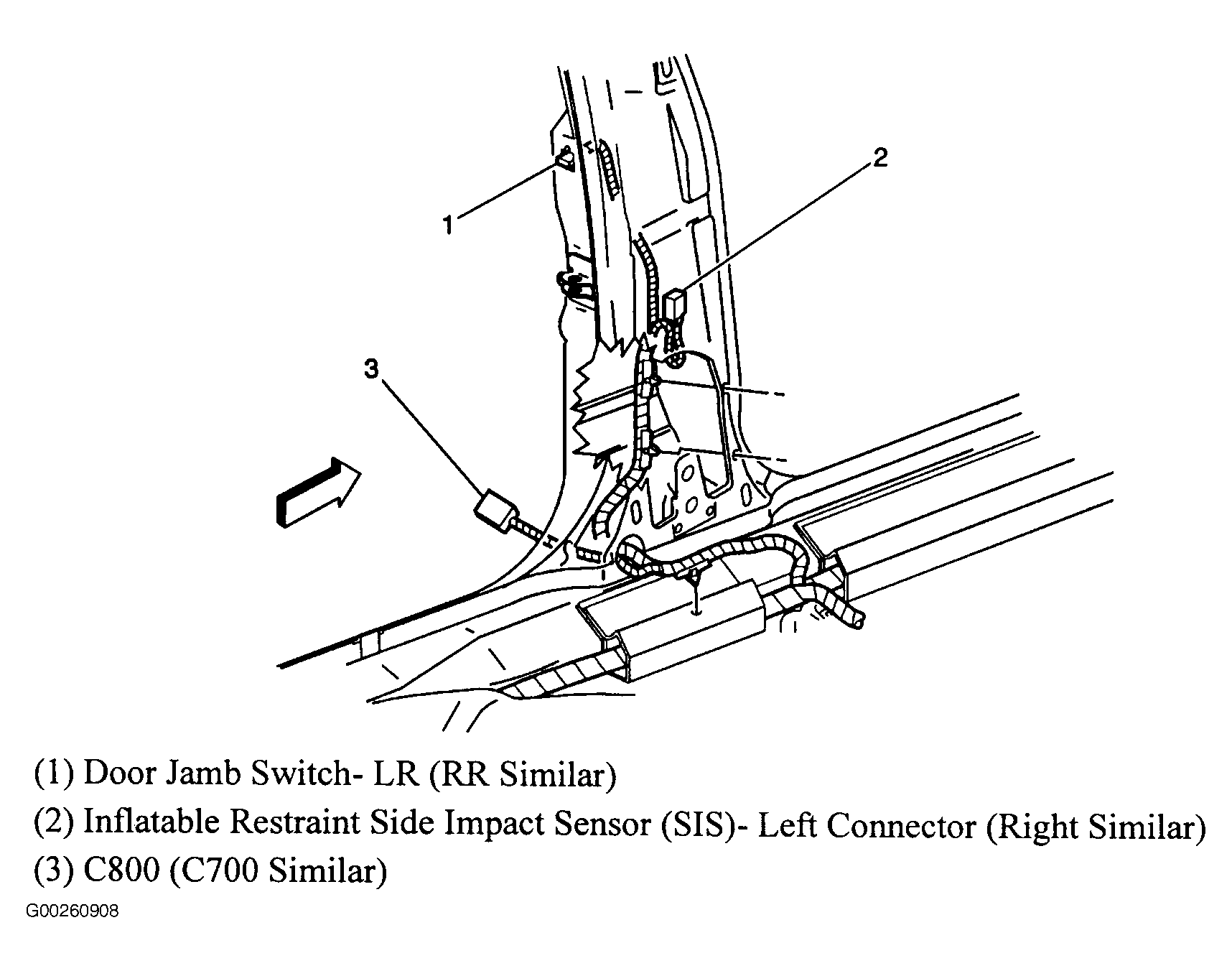

Fig 37: Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.

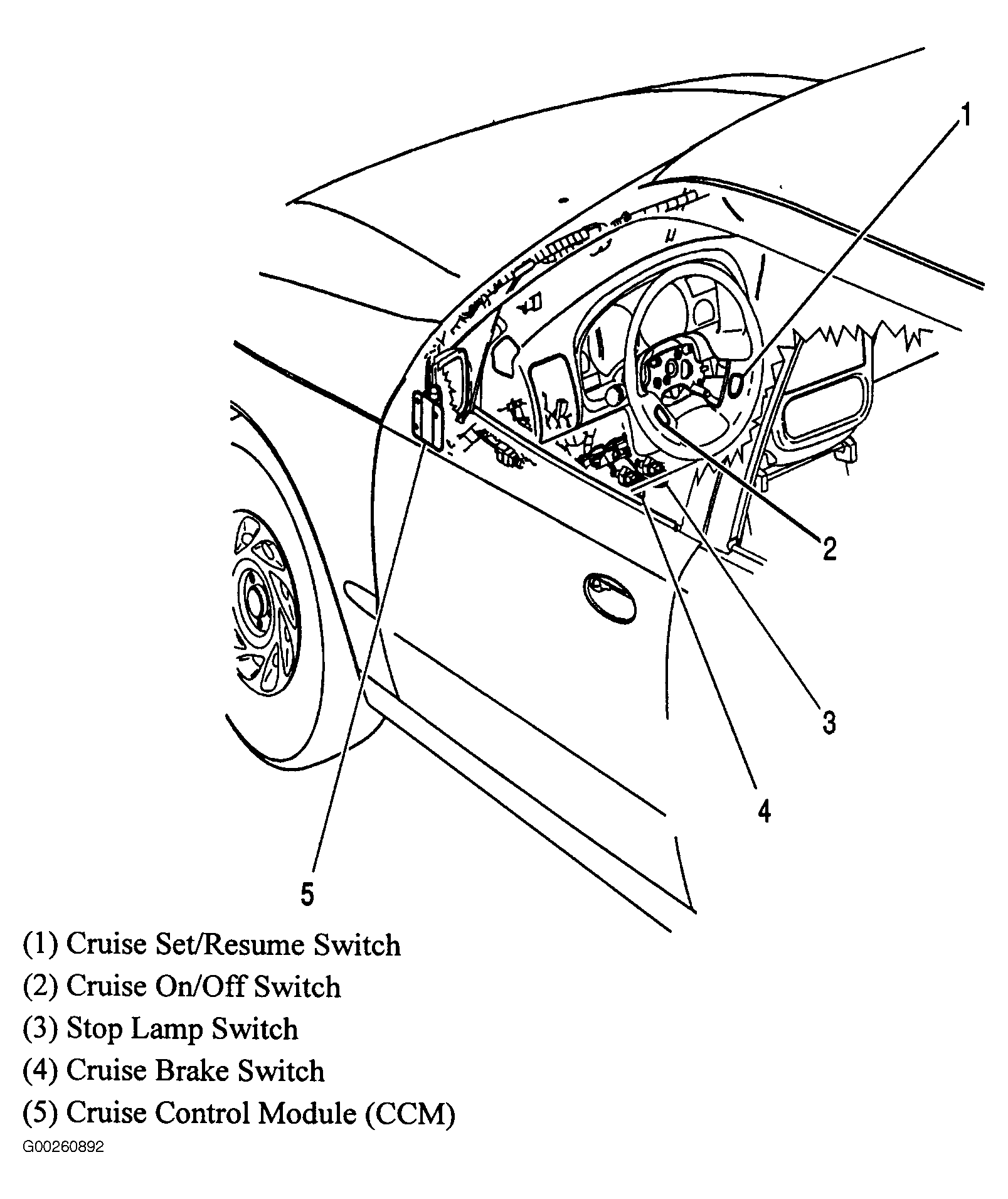

Fig 38: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

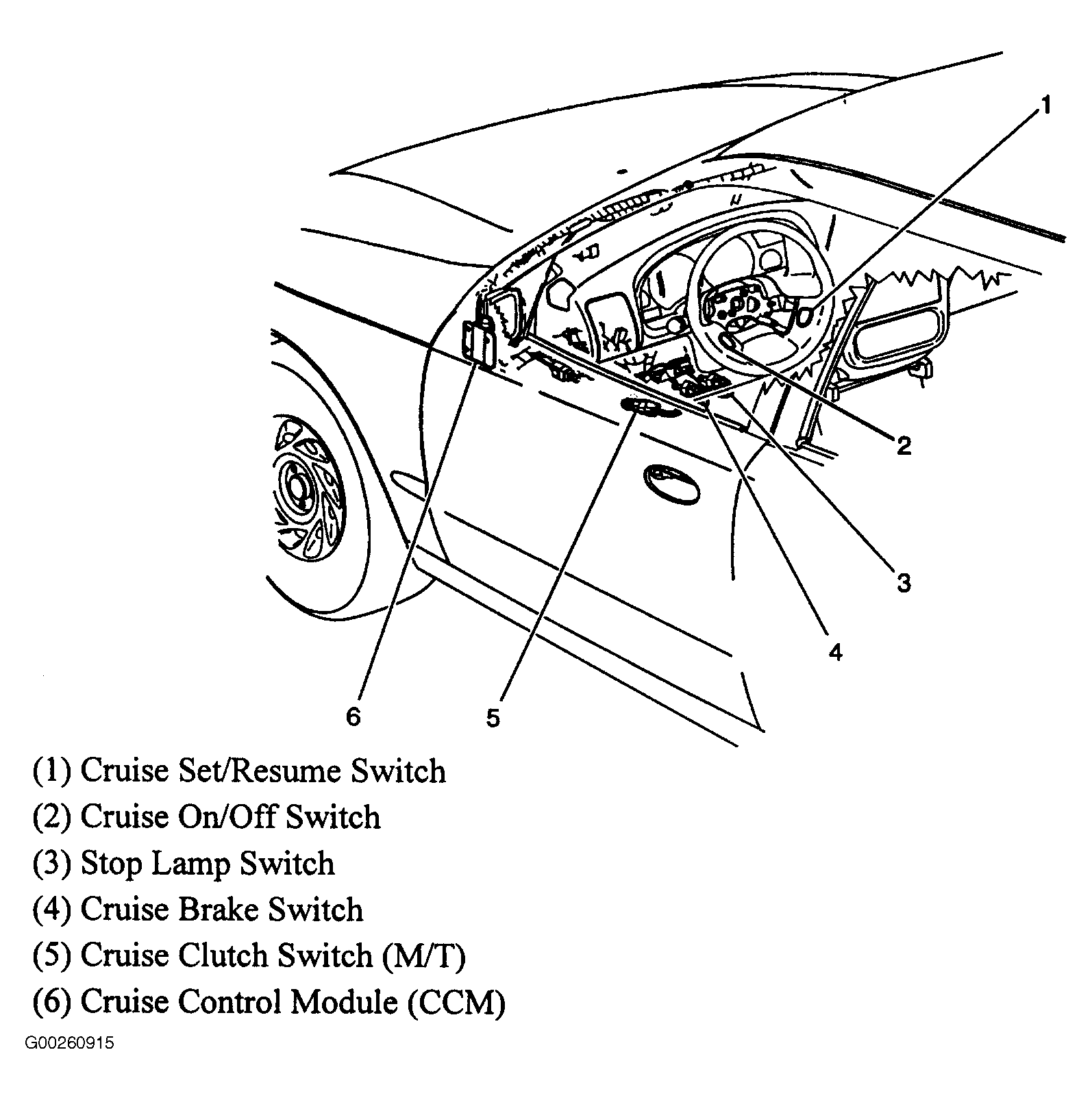

Fig 39: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 40: Left & Right Rear Corners Of Vehicle (Wagon)
Courtesy of GENERAL MOTORS CORP.

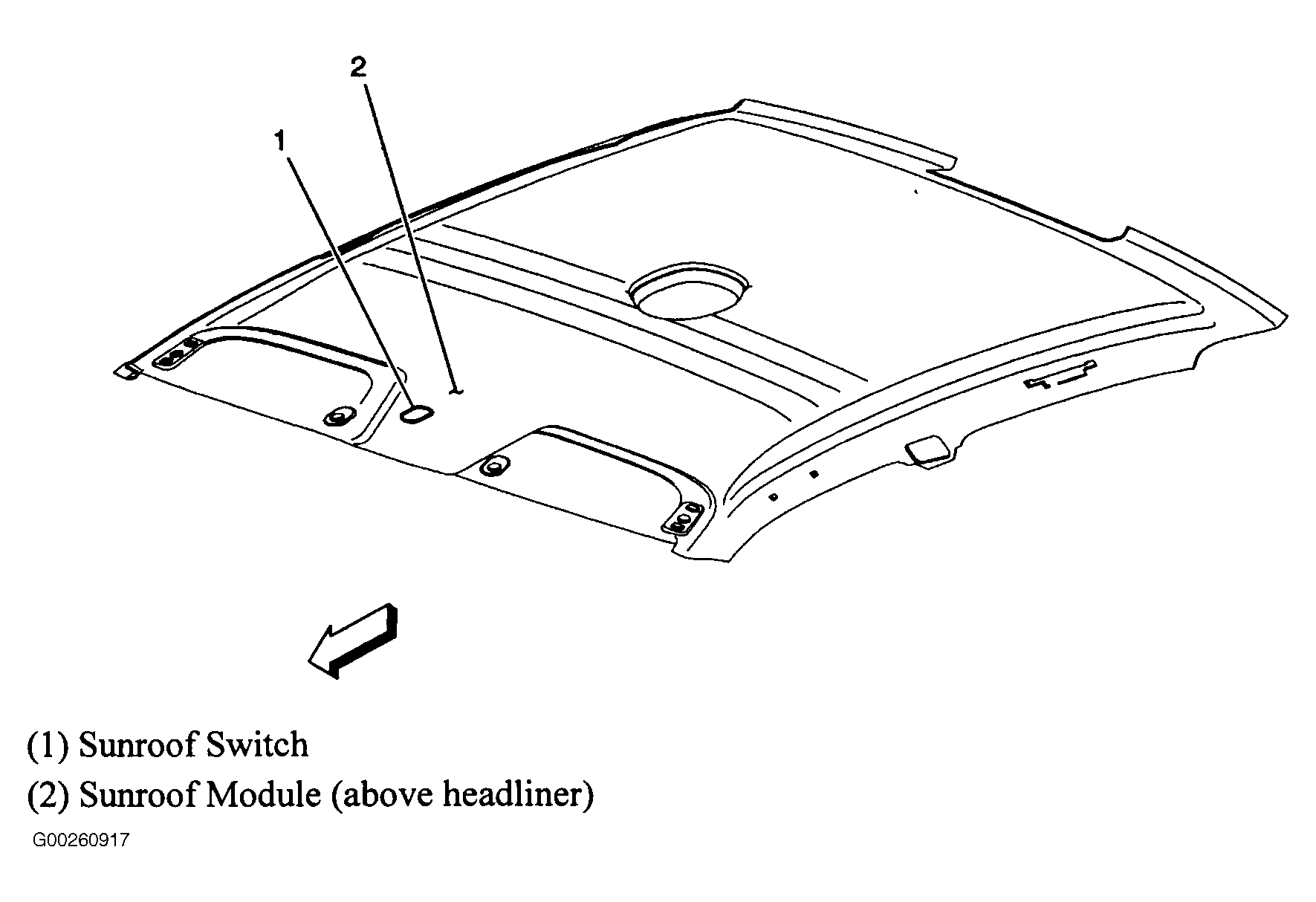

Fig 41: Front Of Roof
Courtesy of GENERAL MOTORS CORP.

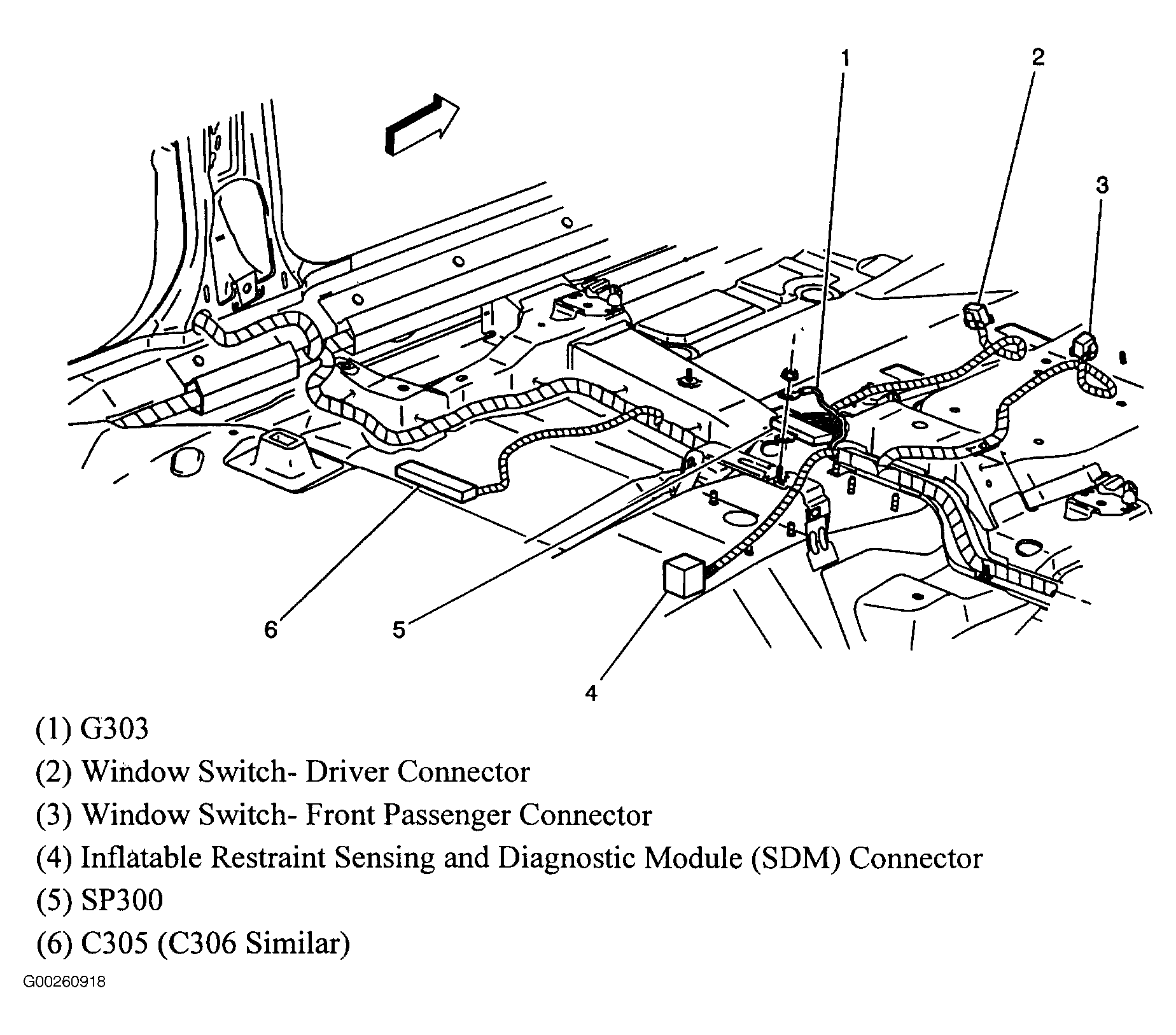

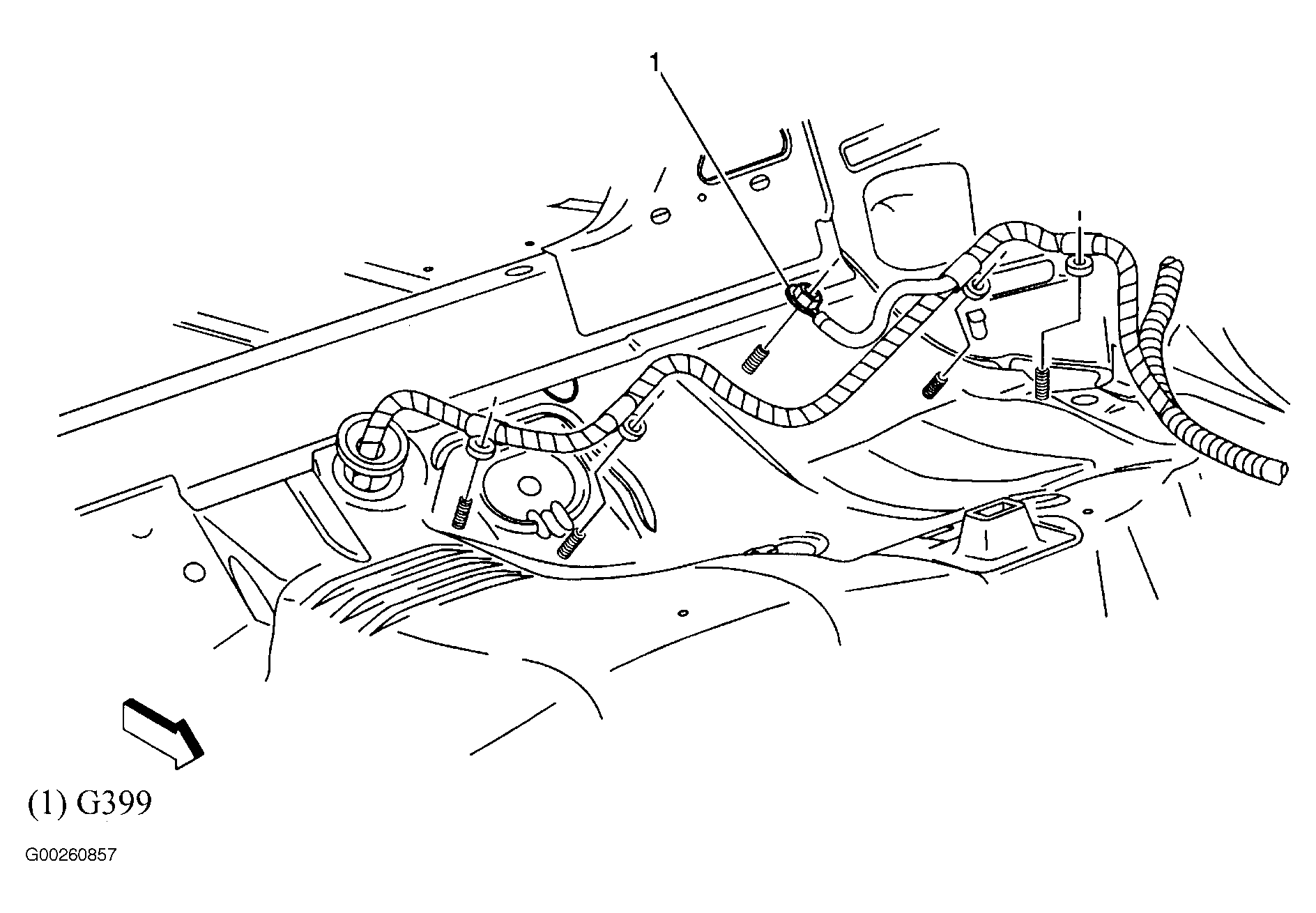

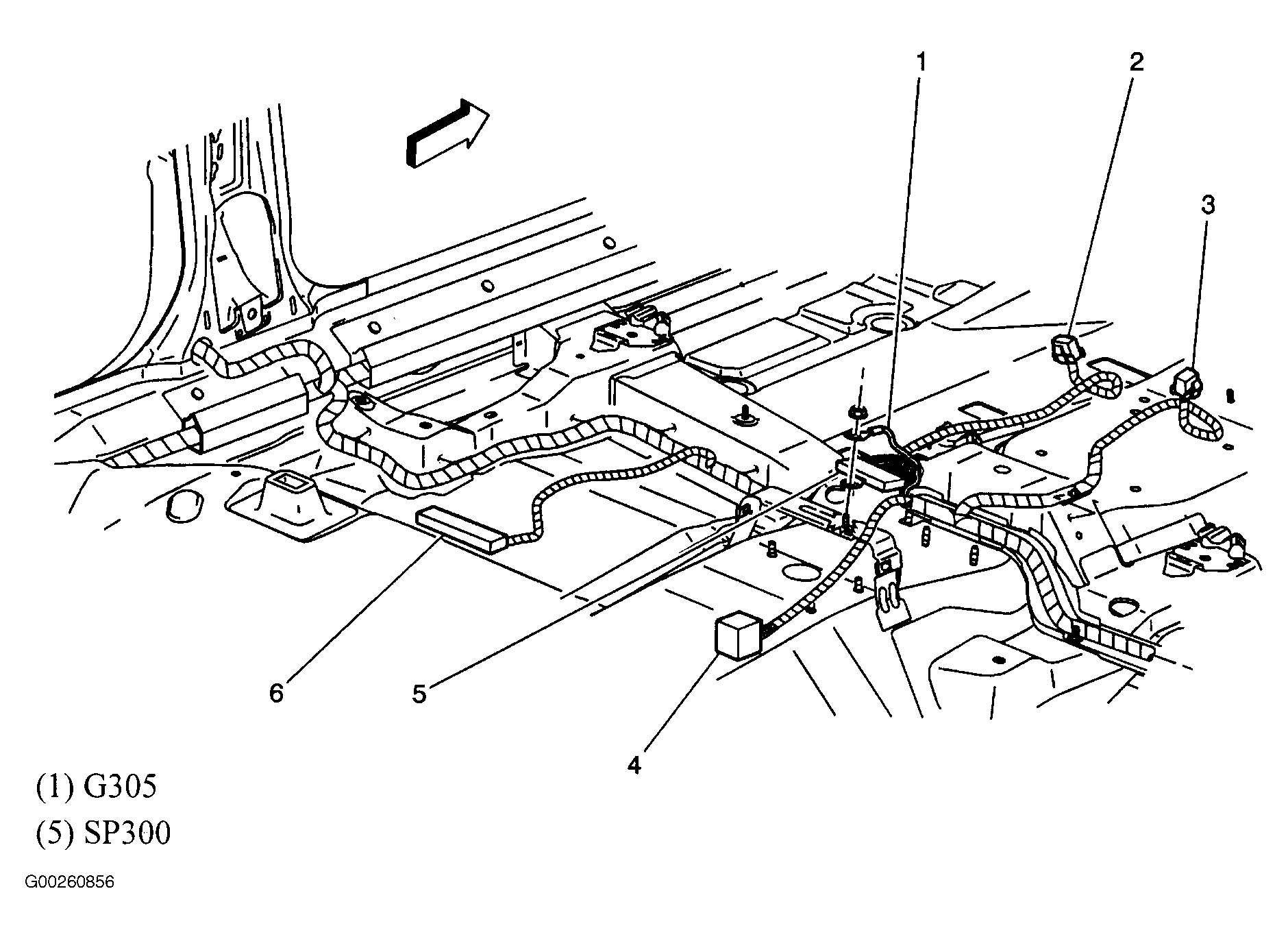

Fig 42: Center Of Passenger Compartment Floor
Courtesy of GENERAL MOTORS CORP.
Fig 43: Front Of Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 44: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

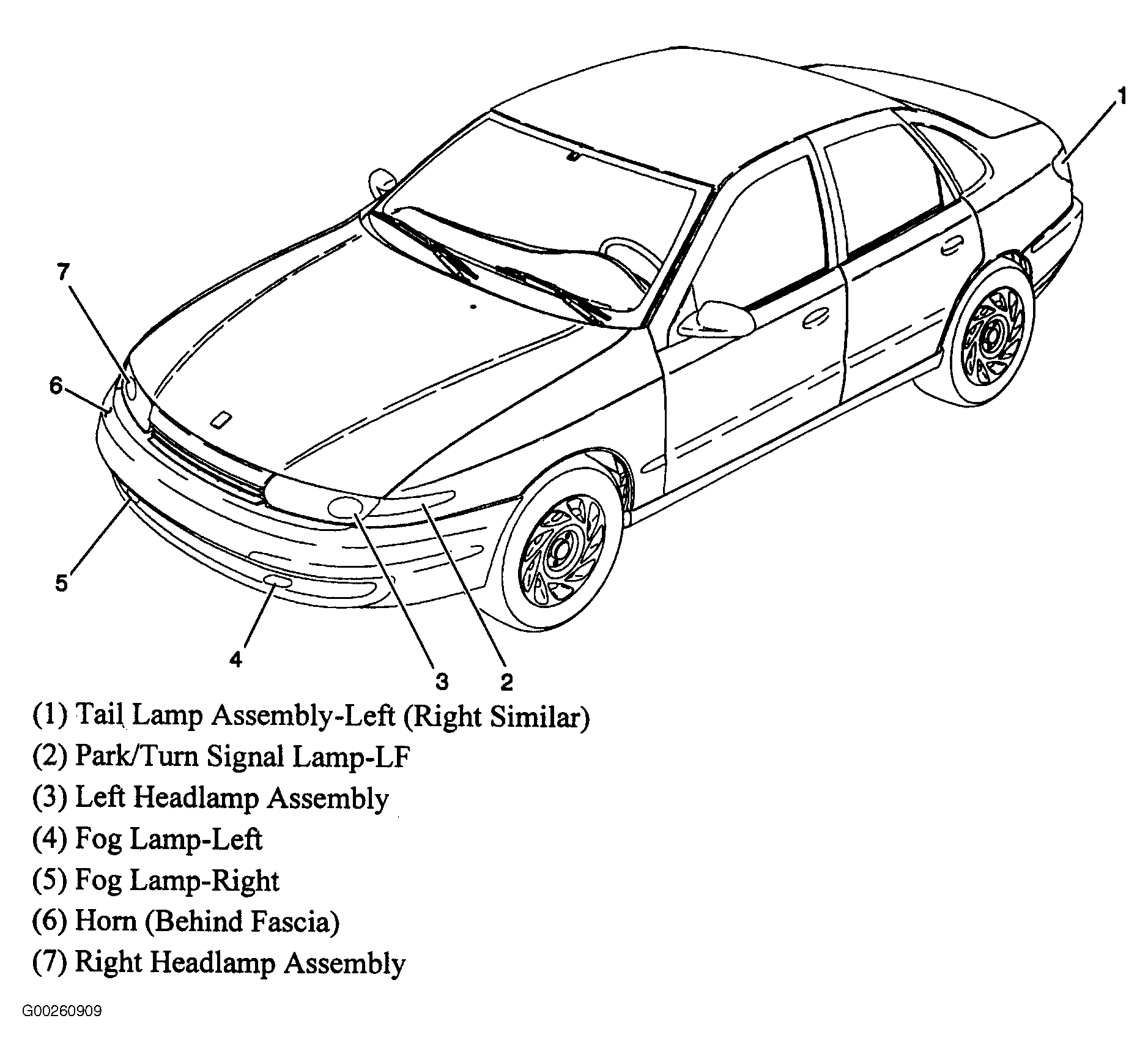

Fig 45: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

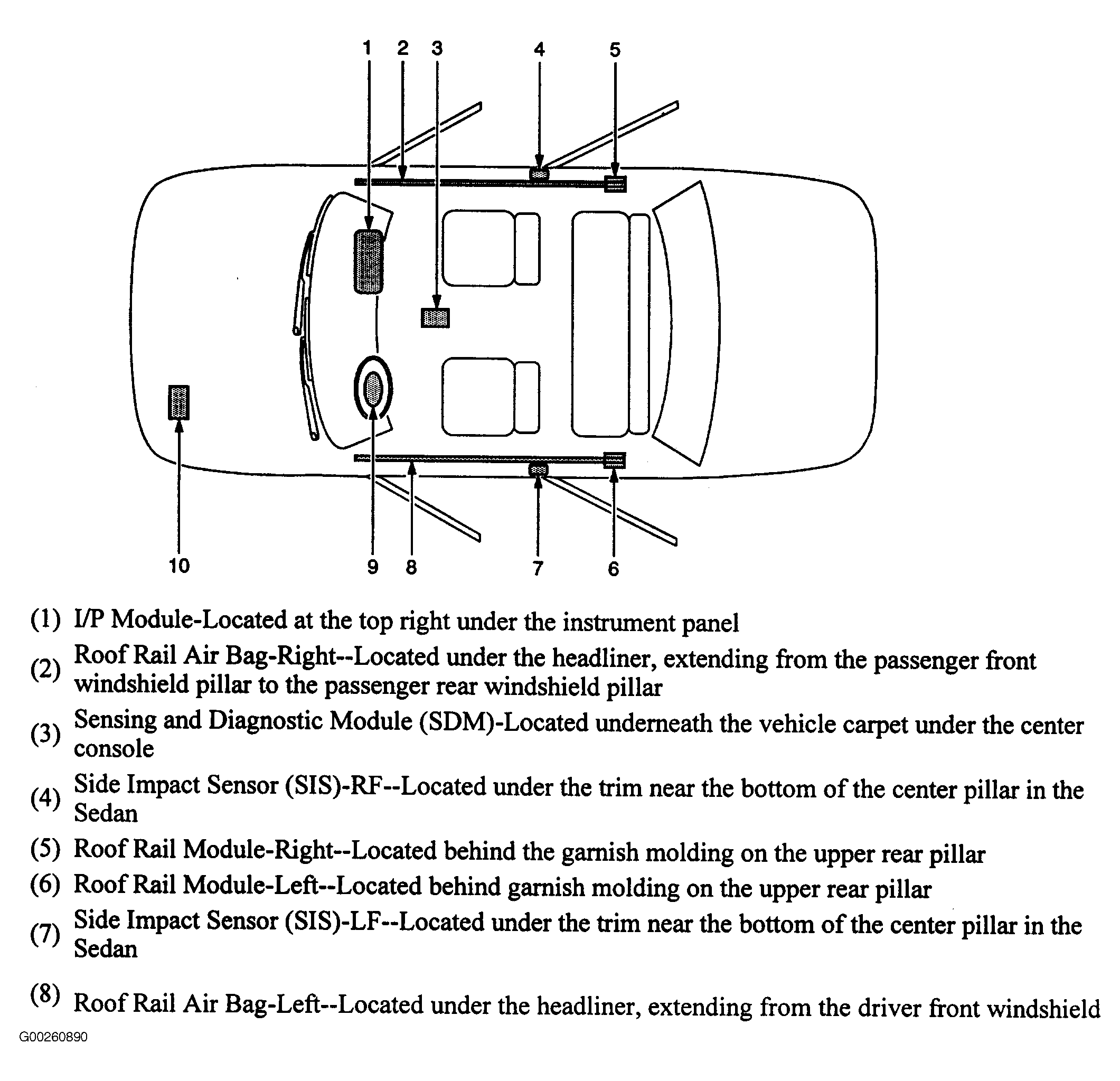

Fig 46: SIR Zone Identification Views
Courtesy of GENERAL MOTORS CORP.

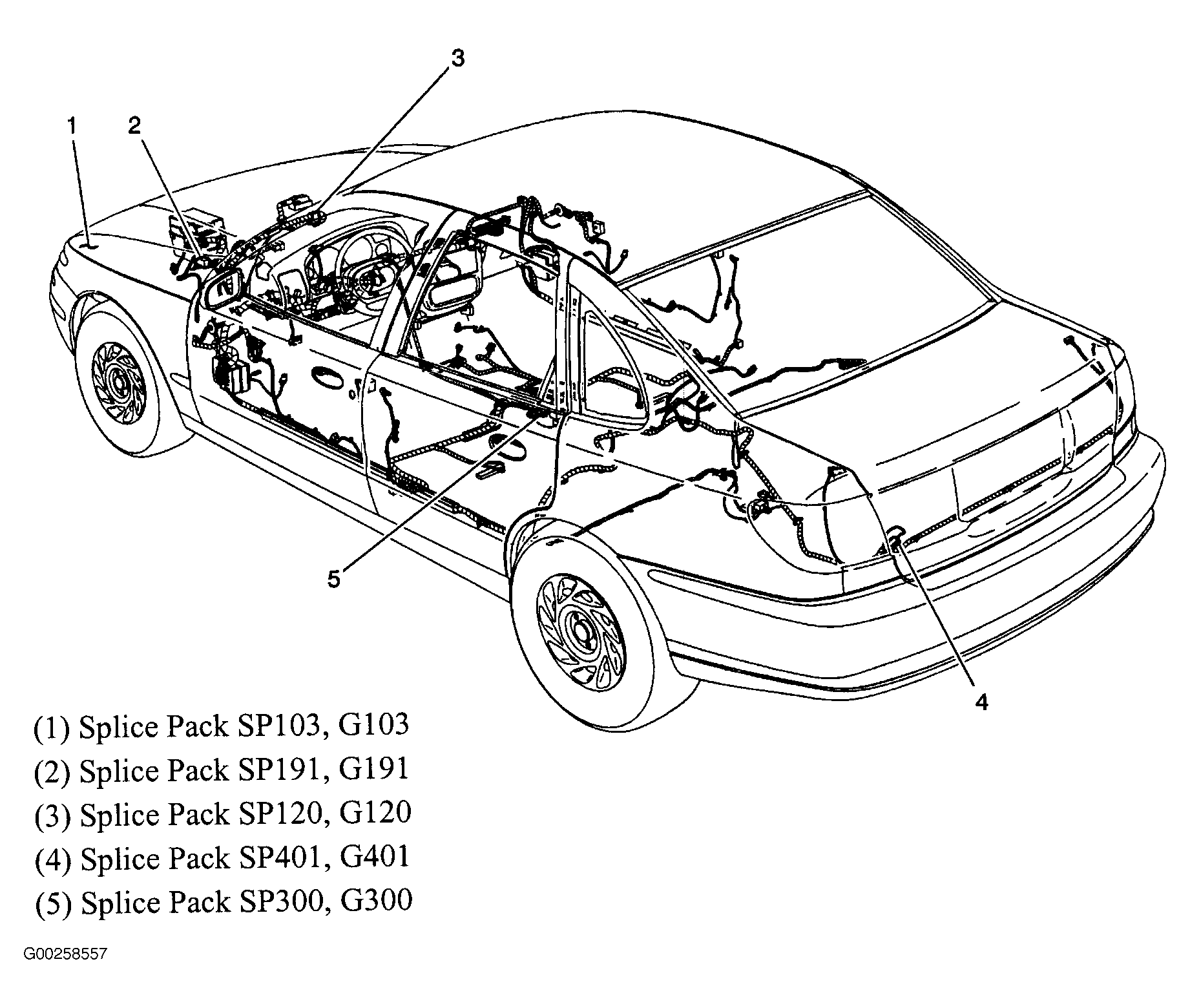

Fig 47: Splice Pack/Ground Locations
Courtesy of GENERAL MOTORS CORP.
Fig 48: Right Rear Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 49: Lower Left Rear Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 50: Top Left Front Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 51: Right Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
