Installation Procedure

WARNING: This page is about a different car, the 2005 Saturn Ion Red Line, 2005 Saturn Ion 3, 2005 Saturn Ion 2, and 2005 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Position the VSS bracket to the intermediate drive shaft bracket, and install the intermediate drive shaft bracket-to-engine block bolts, beginning with the upper bolt.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

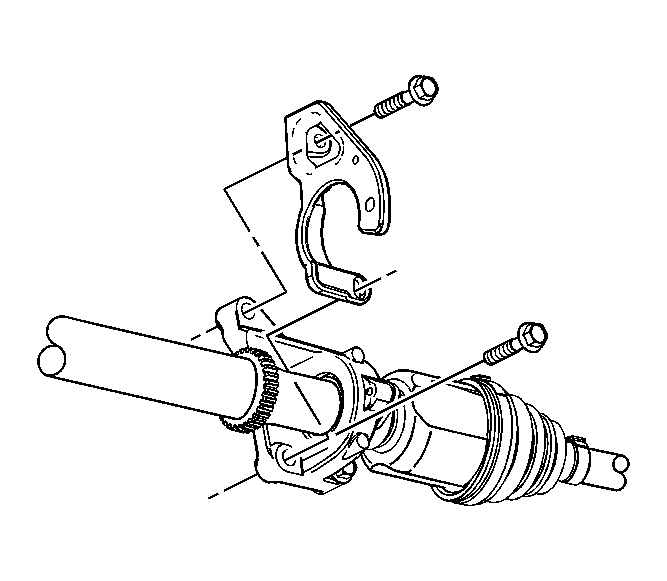

    2. Fig 1: View Of VSS Bracket
    GM1394765Courtesy of GENERAL MOTORS CORP.
  2. Position the VSS to the VSS bracket. Ensure that the VSS locating pin fits securely in the locating hole on the bracket.
  3. Install the vehicle speed sensor retaining bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

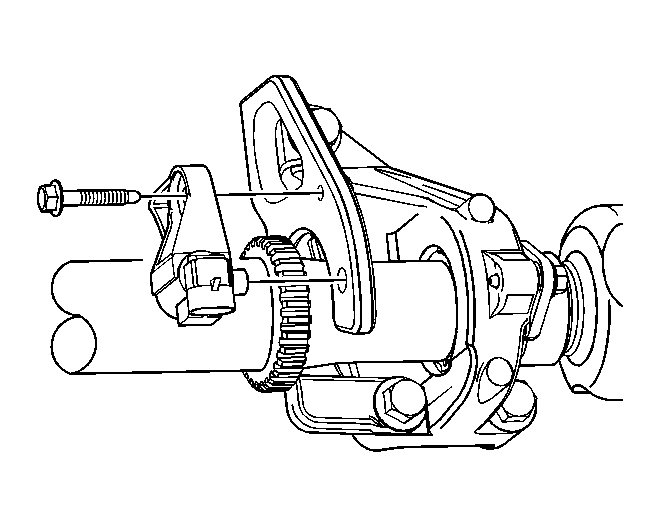

    4. Fig 2: View Of VSS
    GM1394764Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector to the VSS.
  5. Lower the vehicle.
