DTC P0502: Notes

WARNING: This page is about a different car, the 2005 Saturn Ion Red Line. However, it is still accessible from the selected car via links, so may be relevant.

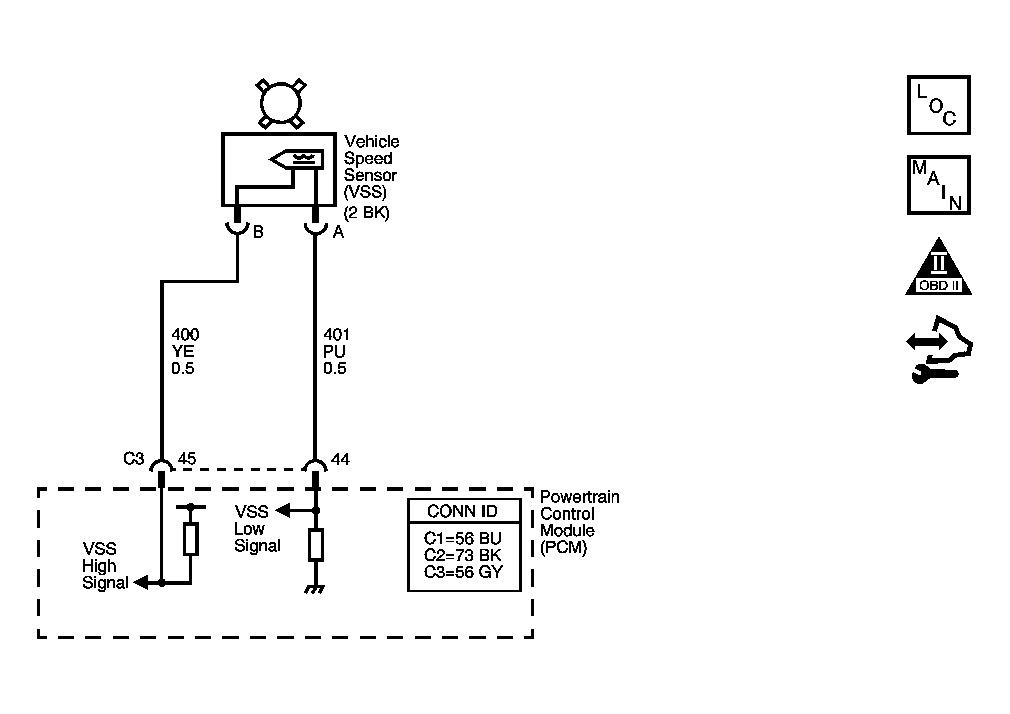

Fig 1: DTC P0502 Circuit
GM1428900Courtesy of GENERAL MOTORS CORP.
