Removal Procedure

WARNING: This page is about a different car, the 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement in Engine Controls- 2.2L (L61).
  2. Support the engine with a hydraulic floor jack. Use a piece of wood between the jack and the oil pan.

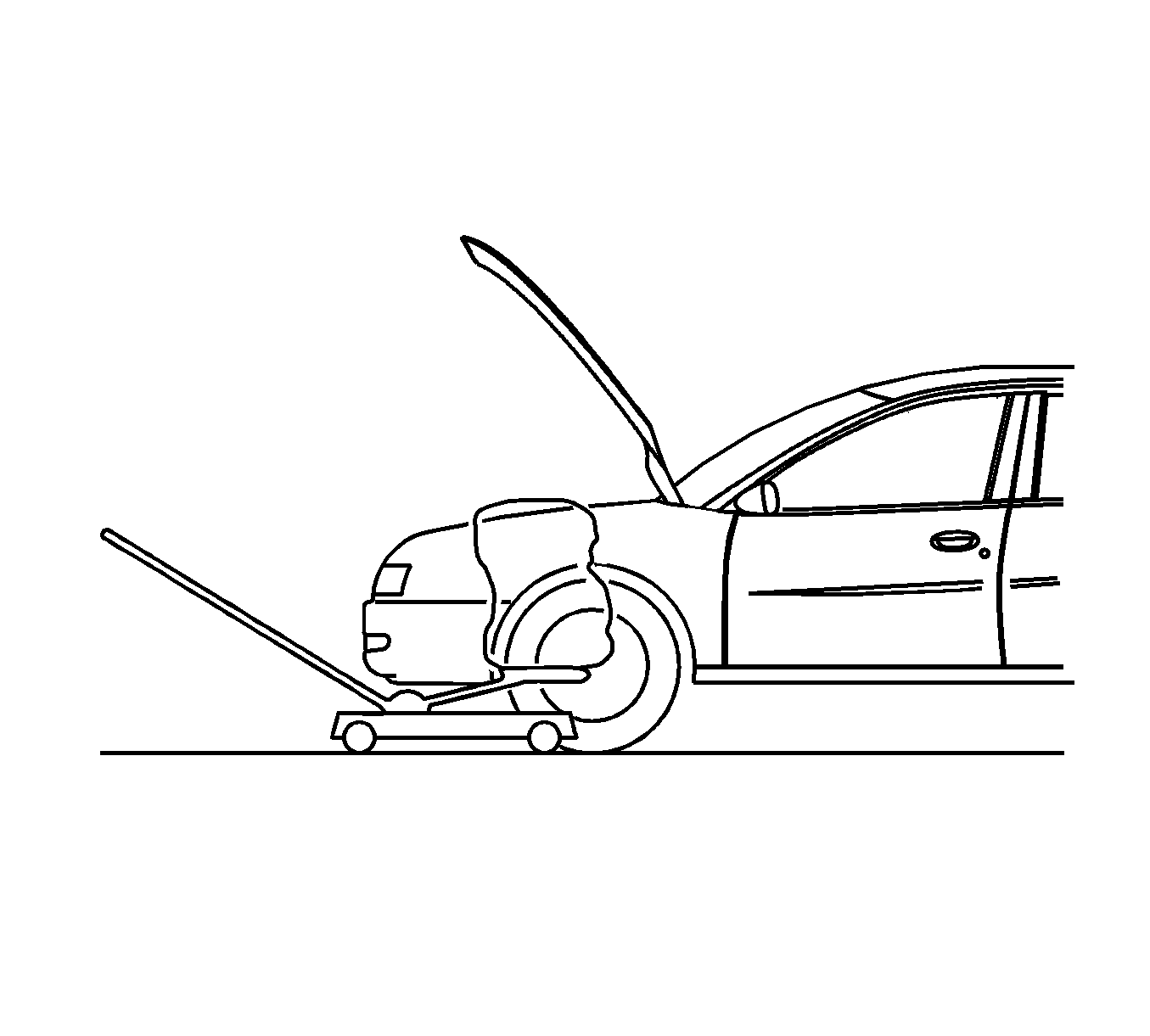

    3. Fig 1: Supporting Engine/Transmission With Hydraulic Floor Jack
    GM851552Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine mount to intermediate bracket bolts.
    4. Fig 2: View Of Engine Mount To Intermediate Bracket Bolts
    GM851553Courtesy of GENERAL MOTORS CORP.
  4. Remove the engine mount to midrail nuts.
  5. Remove the engine mount from the engine compartment.
    6. Fig 3: View Of Engine Mount
    GM851555Courtesy of GENERAL MOTORS CORP.
