Installation Procedure

WARNING: This page is about a different car, the 2005 Saturn Ion 3, 2005 Saturn Ion 2, and 2005 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the flywheel.

    Tighten:  Tighten the flywheel bolts to 53 N.m (39 lb ft) plus 25 degrees.

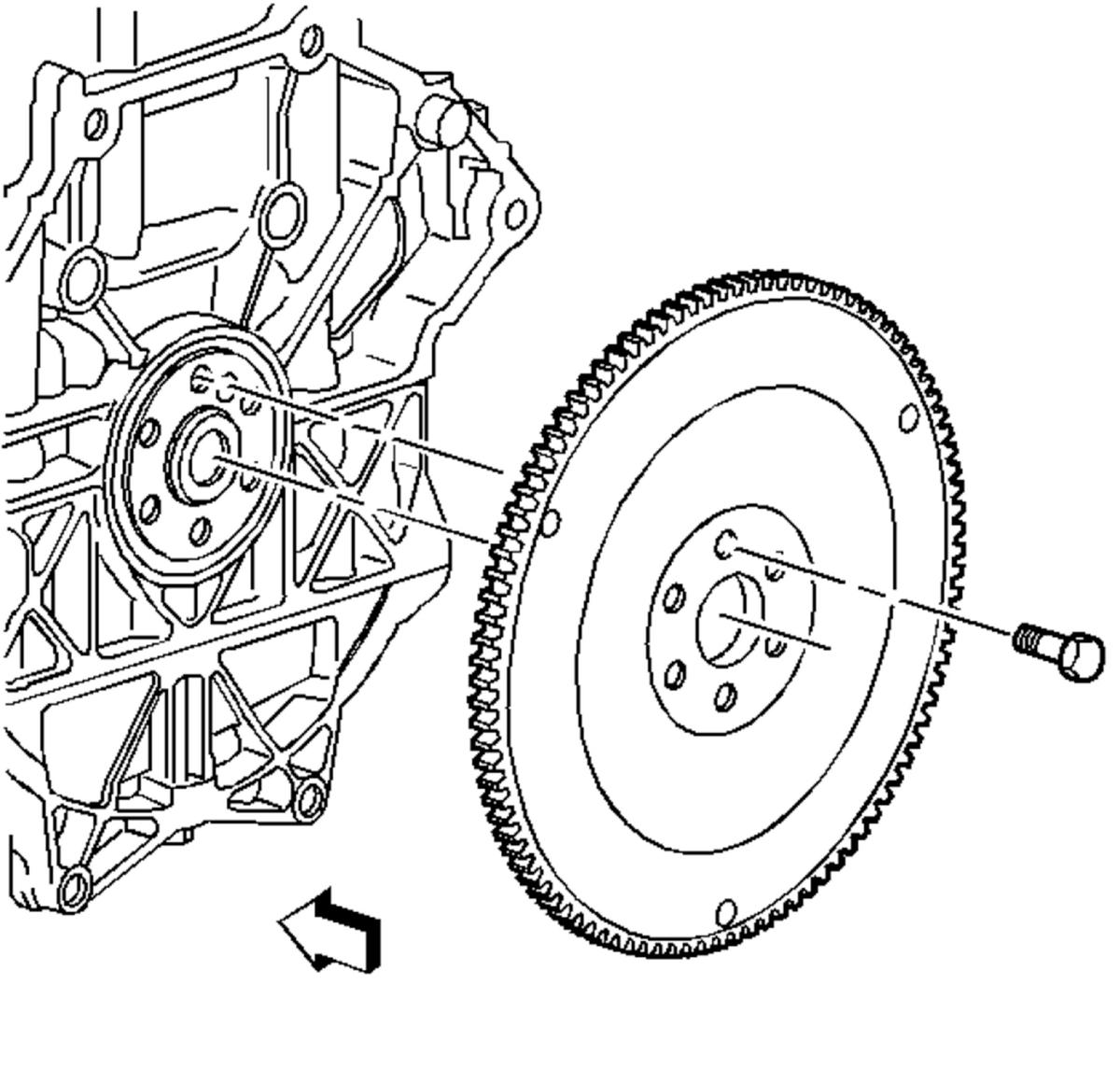

    2. Fig 1: View Of Flywheel
    GM412119Courtesy of GENERAL MOTORS CORP.
  2. Install the transmission. Refer to Transmission Replacement or to Transmission Replacement in Transmission/Transaxle.
