Manual Mirror Replacement
WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

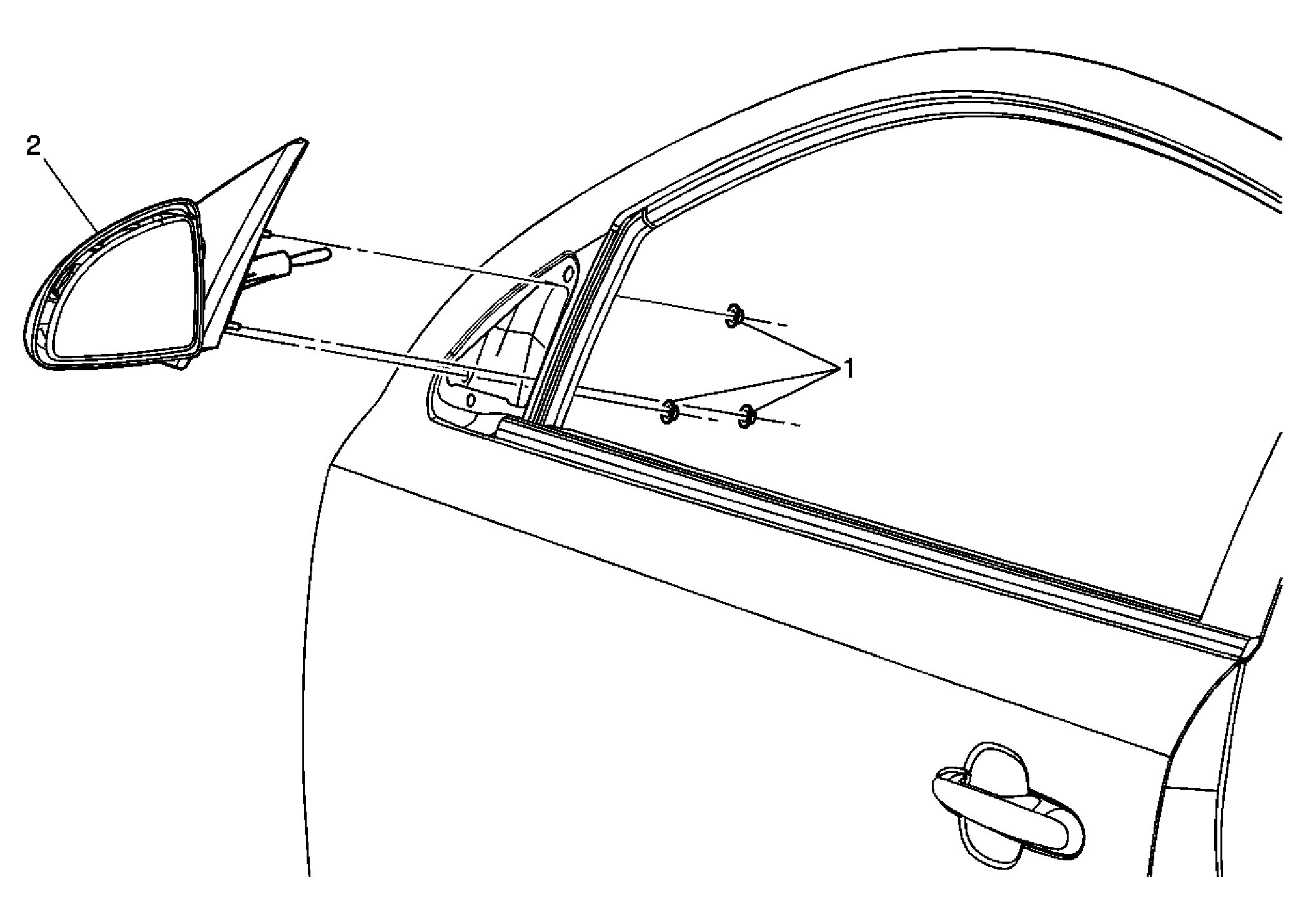

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the interior trim panel upper extension. Refer to Upper Extension Trim Panel Replacement . |
|
| 1 | Mirror Outside Rearview Nuts (Qty: 3)
NOTE:
Refer to Fastener Notice
.
Tighten: 10 N.m (89 lb in) |
| 2 | Outside Rearview Mirror Assembly |
