Engine Splash Shield Replacement

WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

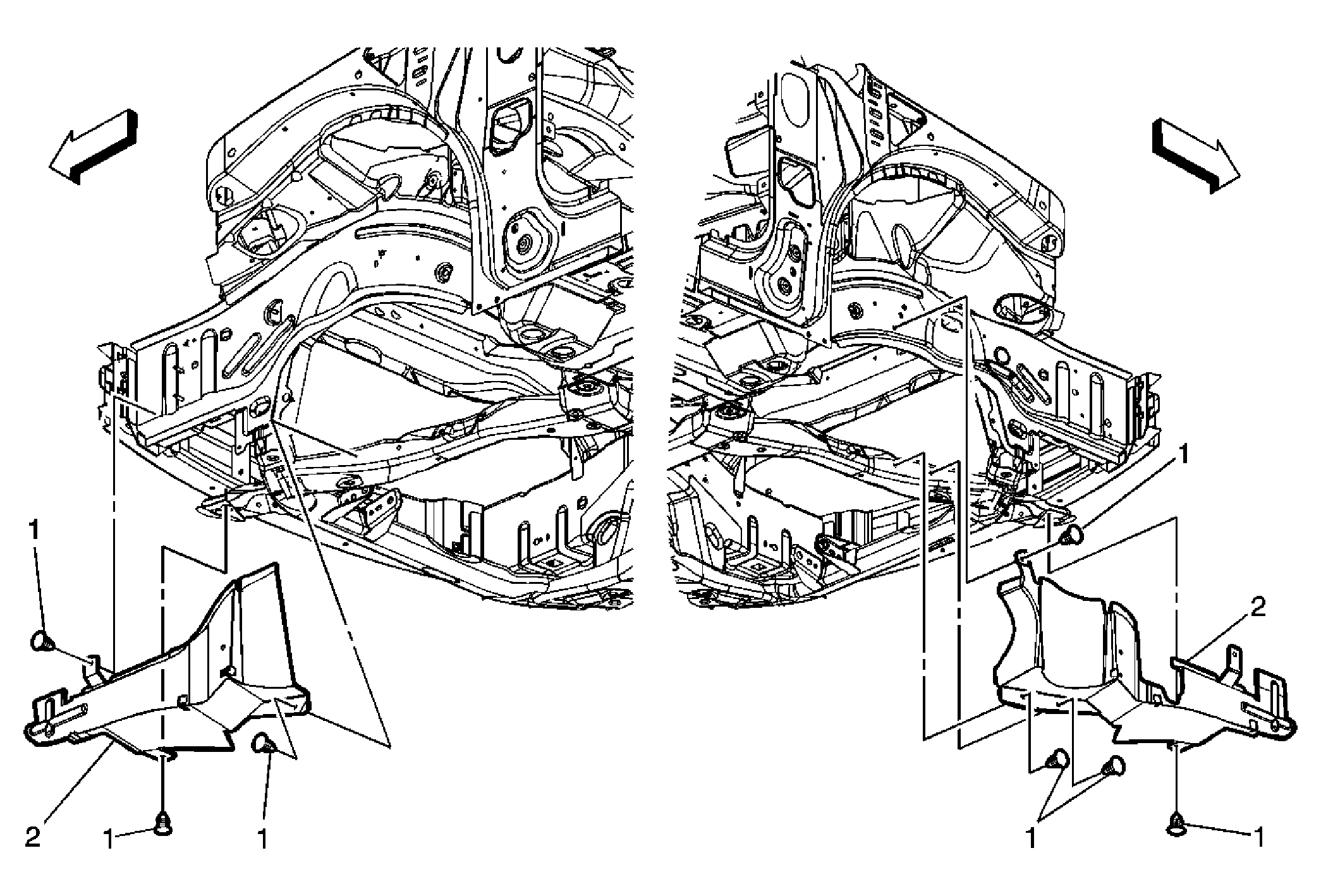

Fig 1: View Of Engine Splash Shield & Fasteners

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Lift and support vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
1	Engine Splash Shield Retainer (Qty: 3) Procedure Remove all splash shield push-in retainers except the one hidden by the inner fender. Remove the front 3 inner fasteners and reposition to access the hidden fastener.
2	Engine Splash Shield

Callout

Component Name

Preliminary Procedures

Lift and support vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .

Engine Splash Shield Retainer (Qty: 3)

Procedure

Remove all splash shield push-in retainers except the one hidden by the inner fender.
Remove the front 3 inner fasteners and reposition to access the hidden fastener.

Engine Splash Shield
