Speaker Replacement-Rear Compartment
WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
Speaker Replacement-Rear Compartment

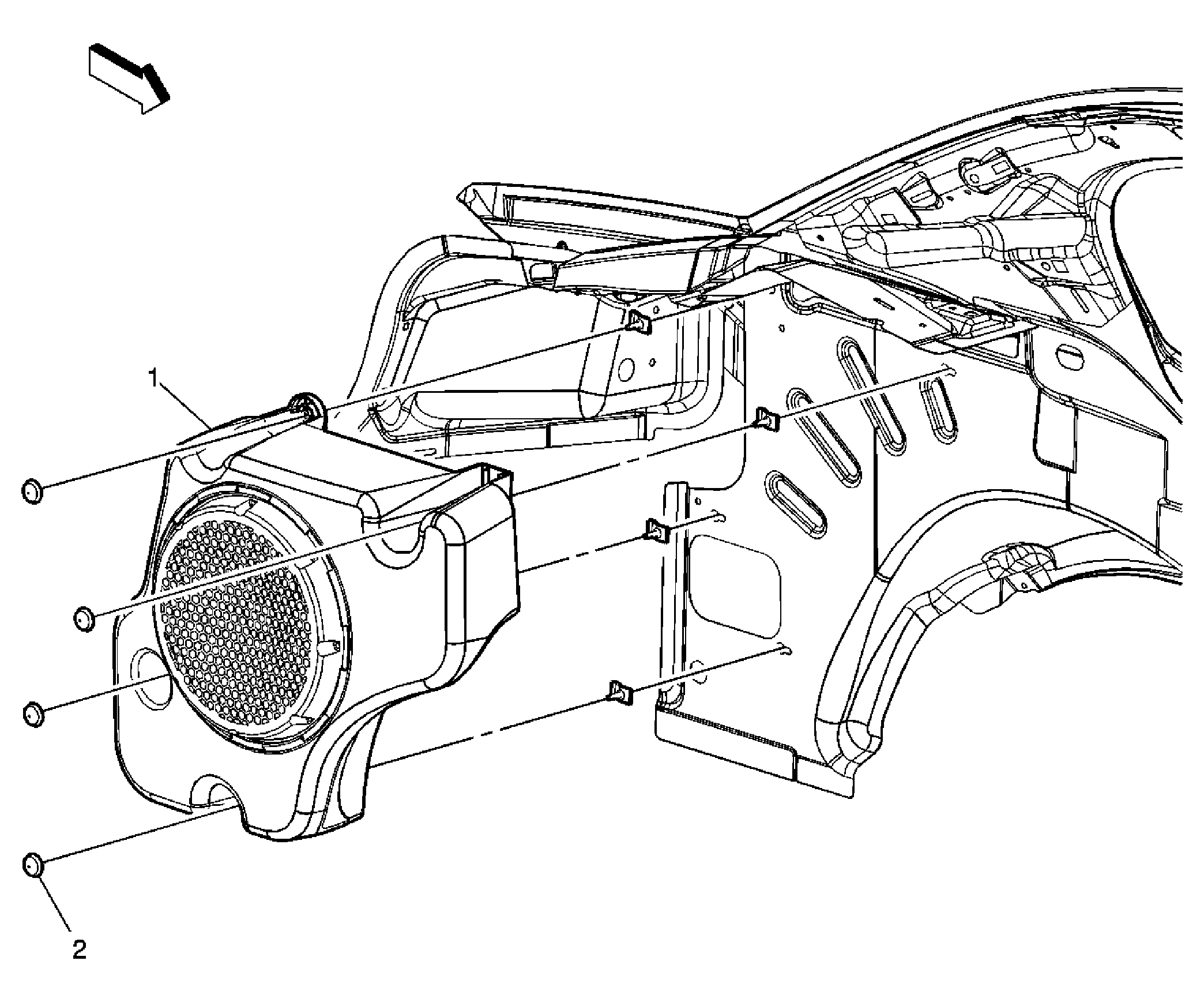

| Callout | Component Name |
|---|---|
| 1 | Rear Compartment Speaker Assembly Tip: Disconnect the electrical connectors. |
| 2 | Rear Compartment Speaker Assembly Nut
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
