Backup Lamp Bulb Replacement

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

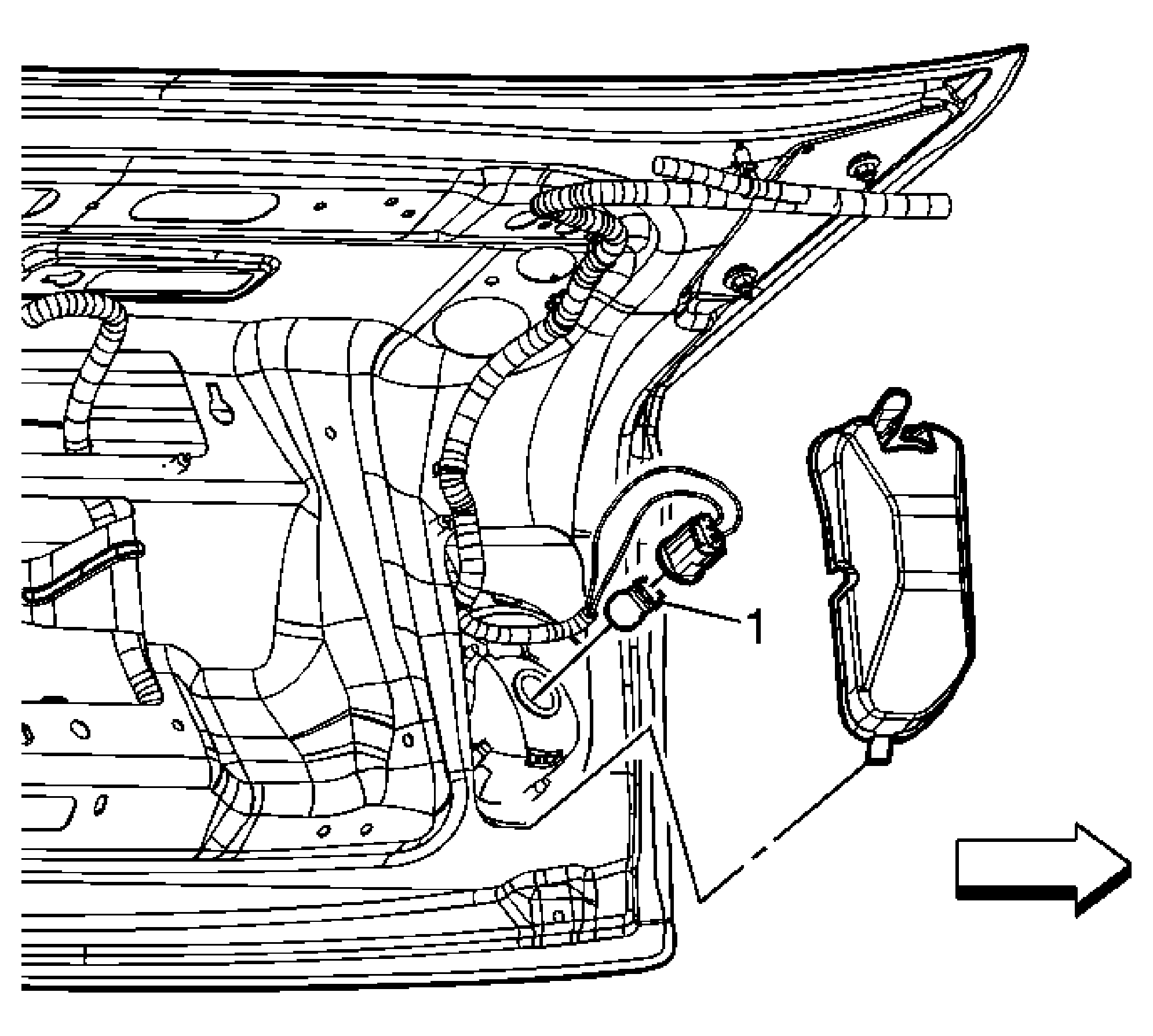

Fig 1: Backup Lamp Bulb Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Open the rear compartment lid. Remove the back up lamp cover. Turn the bulb socket counter-clockwise and remove from the lamp housing.
1	Back Up Lamp Socket Bulb Tip: Rotate counter-clockwise, the bulb from the lamp socket.
