Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Ion Red Line, 2007 Saturn Ion 3, and 2007 Saturn Ion 2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place a drain pan under the driver side of the vehicle.
  2. Remove the air cleaner intake duct. Refer to Air Cleaner Inlet Duct Replacement for the 2.4L engine.
  3. Remove the underhood electrical center. Refer to Underhood Electrical Center or Junction Block Bracket Replacement .
  4. Using SA9111E  , reposition the radiator outlet hose clamp at the engine. See Special Tools .

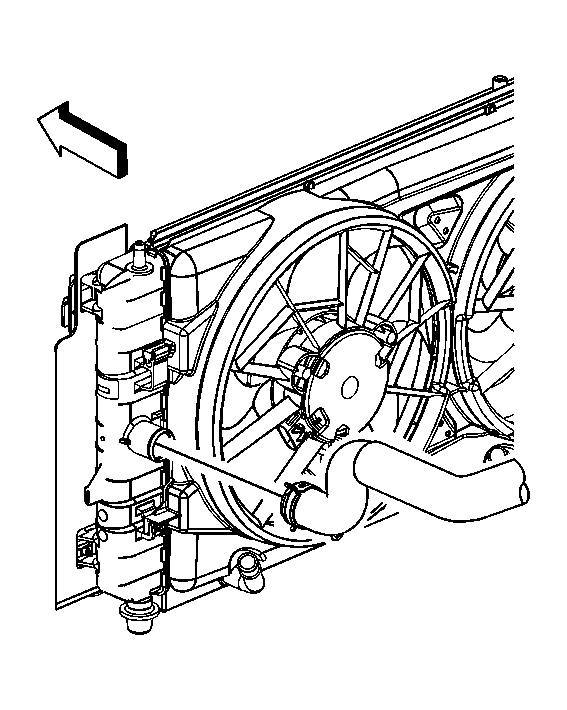

    5. Fig 1: View Of Radiator Outlet Hose & Radiator - 2.0L
    GM1380620Courtesy of GENERAL MOTORS CORP.
  5. Remove the radiator outlet hose from the engine.

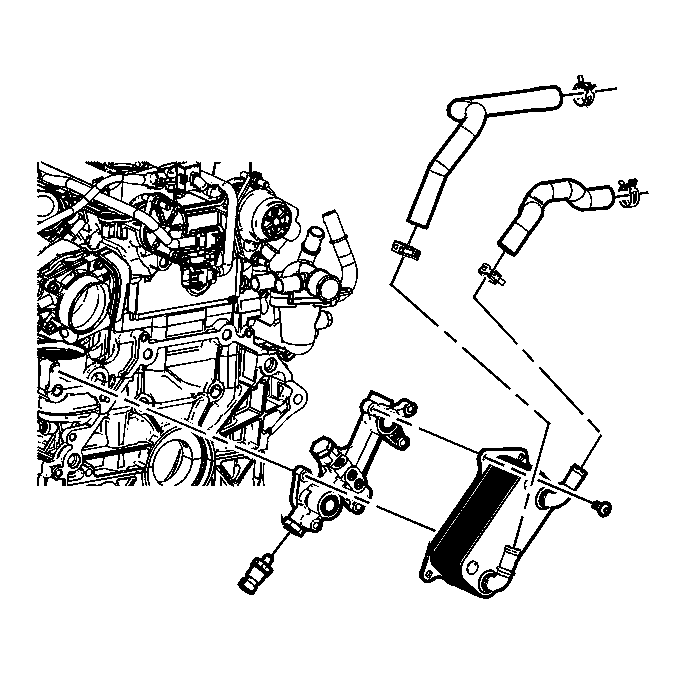

    6. Fig 2: View Of Oil Cooler & Components
    GM1339280Courtesy of GENERAL MOTORS CORP.
  6. Remove the oil cooler hoses from the oil cooler.
  7. Remove the oil cooler hoses from the thermostat housing.
