Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Ion Red Line, 2007 Saturn Ion 3, and 2007 Saturn Ion 2. However, it is still accessible from the selected car via links, so may be relevant.

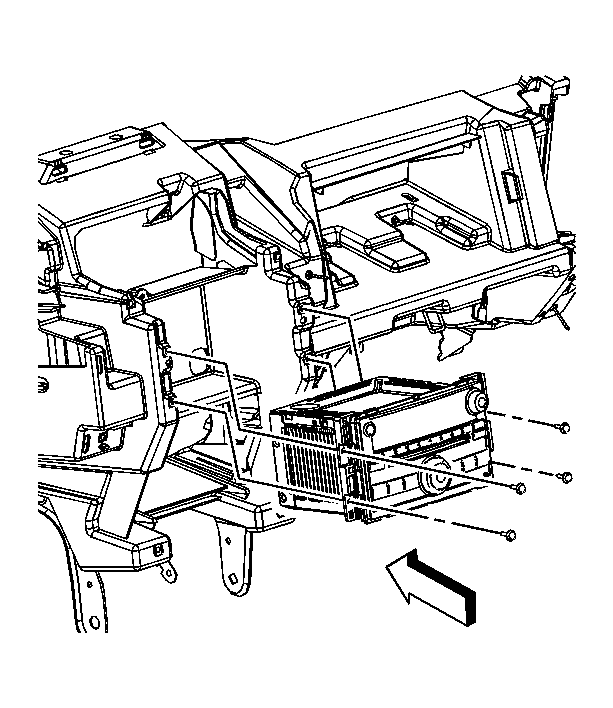

Fig 1: View Of radio

Courtesy of GENERAL MOTORS CORP.

Place the radio in the vehicle and connect the radio electrical connectors.

NOTE: Refer to Fastener Notice .

Push the radio into position and install the screws.
Tighten: Tighten the screws to 2.5 N.m (22 lb in).
Connect the electrical connectors to the accessory trim plate.

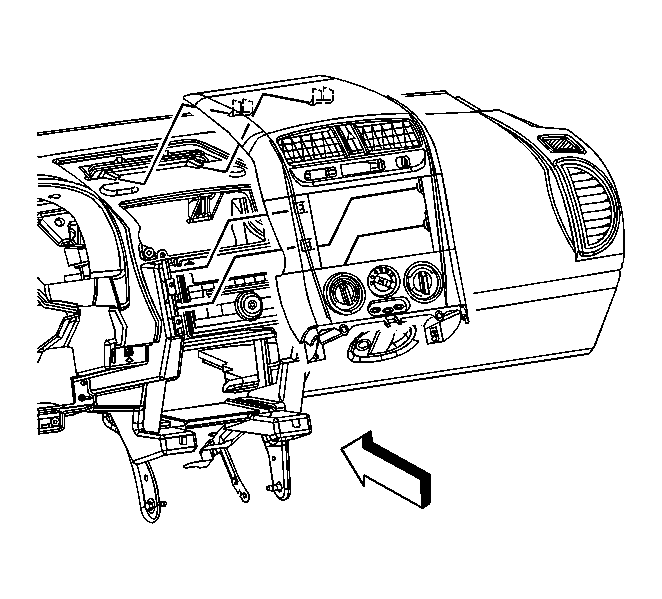

Fig 2: View Of accessory trim plate

Courtesy of GENERAL MOTORS CORP.

Align the retaining fasteners with the instrument panel.
Push on the outer edge of the accessory trim plate in order to secure the retaining fasteners.
Set up the radio. Refer to Control Module References .
