Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Ion Red Line, 2007 Saturn Ion 3, and 2007 Saturn Ion 2. However, it is still accessible from the selected car via links, so may be relevant.

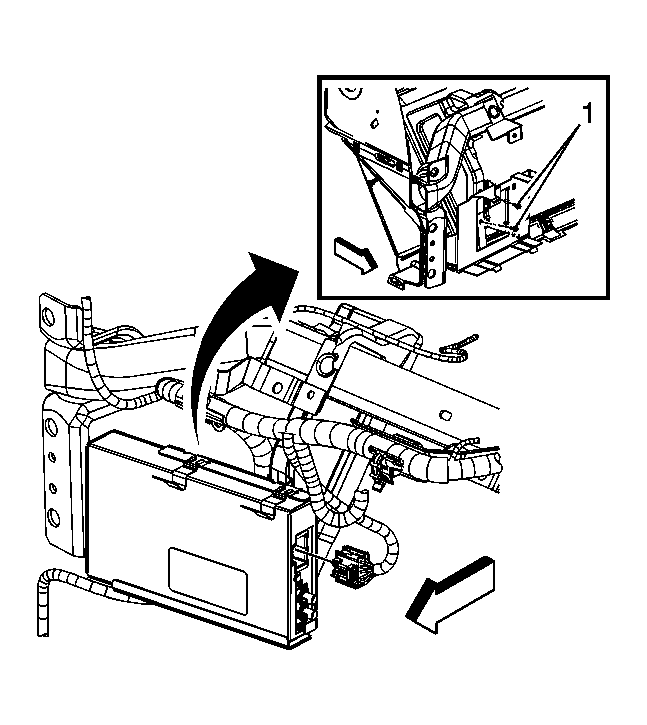

    Fig 1: View Of Digital Radio Receiver & Wire Connector
    GM854856Courtesy of GENERAL MOTORS CORP.
  1. Install the receiver to the bracket assembly.
  2. Connect the coaxial cables.
  3. Connect the wire connector (1).
  4. Install the rear compartment trim panel. Refer to Rear Compartment Trim Panel Replacement .
  5. Perform the setup procedure for the digital radio receiver. Refer to Control Module References for programming and setup information.
