Installation Procedure

  1. Install the cluster lamp.

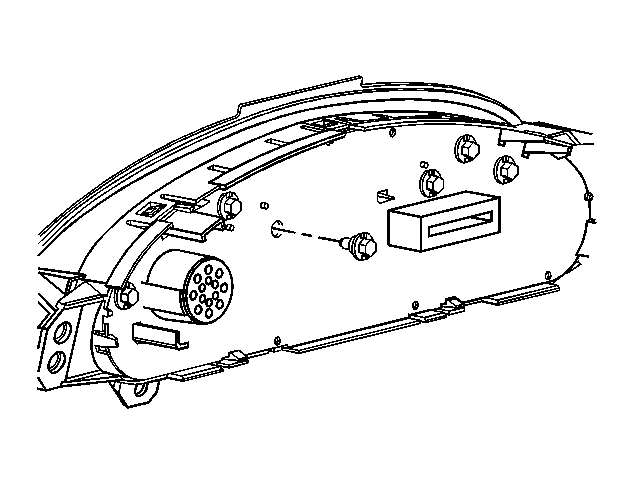

    2. Fig 1: View Of Cluster Lamp
    GM877778Courtesy of GENERAL MOTORS CORP.
  2. Install the instrument panel cluster. Refer to Instrument Panel Cluster (IPC) Replacement .
