Installation Procedure

  1. Position the generator on the engine.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the generator bolts.

    Tighten:  Tighten the generator bolts to 25 N.m (18 lb ft).

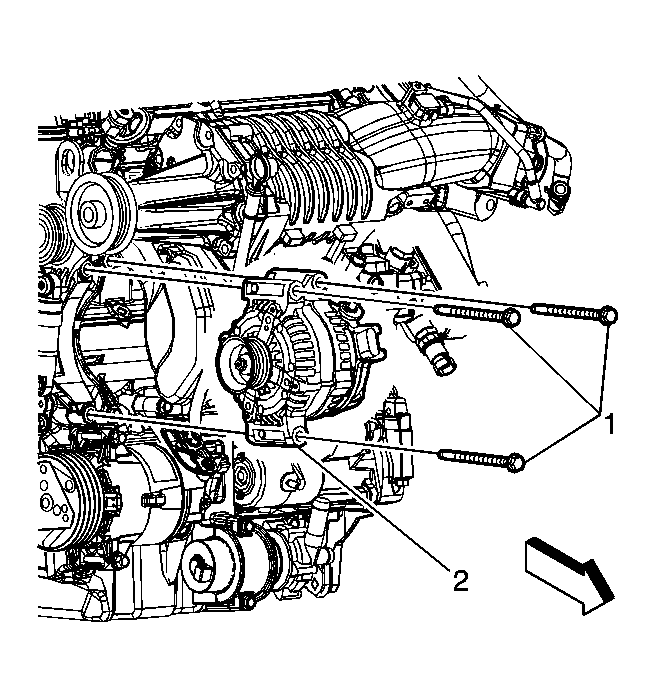

    3. Fig 1: View Of Generator
    GM1381708Courtesy of GENERAL MOTORS CORP.
  3. Connect the positive battery harness to the generator battery terminal.

    Tighten:  Tighten the generator terminal nut to 20 N.m (15 lb ft).

  4. Connect the generator harness connectors.
  5. Install the supercharger. Refer to Supercharger Replacement in Engine Mechanical - 2.0L (LSJ).
  6. Install the drive belt. Refer to Drive Belt Replacement in Engine Mechanical - 2.0L (LSJ).
  7. Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
