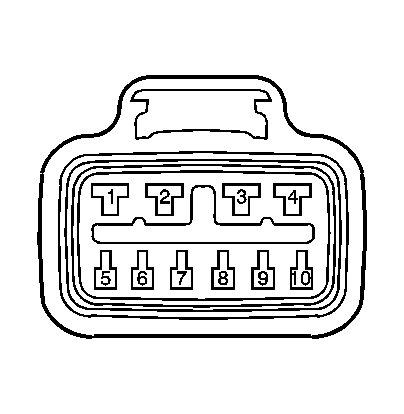

Transmission Park/Neutral Position Switch Assembly Connector End View, Wiring Harness Side
Transmission Park/Neutral Position Switch Assembly Connector End View, Wiring Harness Side
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | - | - | Not Used |
| 2 | L-GN | 24 | Backup Lamp Supply Voltage |
| 3 | YE | 575 | Starter Solenoid Crank Voltage |
| 4 | PK | 239 | Crank Voltage |
| 5 | GY | 773 | Transmission Range Switch Signal C |
| 6 | YE | 772 | Transmission Range Switch Signal B |
| 7 | - | - | Not Used |
| 8 | WH | 776 | Transmission Range Switch Signal P |
| 9 | PK | 1039 | Ignition 1 Voltage |
| 10 | TN/WH | 771 | Transmission Range Switch Signal A |
