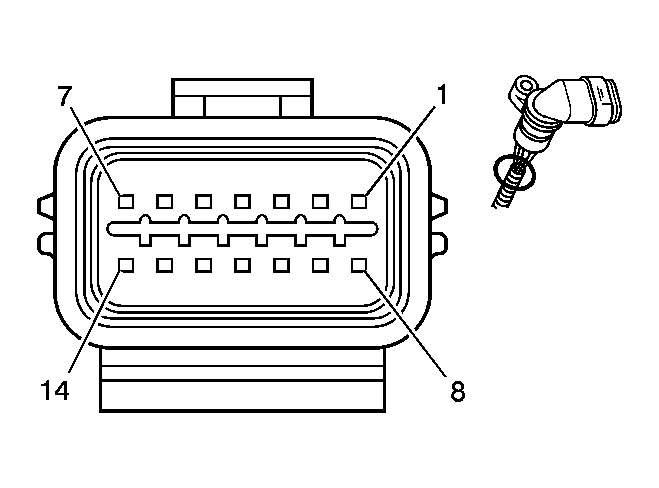

Transmission Inline Connector End View, Transmission Side

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		7236-1459-40 Conn 14M (GY)
Pin	Wire Color	Circuit No.	Function
1	OG/BK	586	Transmission Fluid Temperature Sensor Low Reference
2	GY	5508	Shift Pressure Control Solenoid Valve Low Control
3	D-BU	5509	TCC Pressure Control Solenoid Valve Low Control
4	PU/WH	5510	Line Pressure Control Solenoid Valve Low Control
5	-	-	Not Used
6	YE/BK	2879	Shift Solenoid Valve 4 High Control
7	YE/BK	1223	Shift Solenoid Valve 2 High Control
8	TN/WH	585	Transmission Fluid Temperature Sensor Signal
9	WH	2880	Shift Pressure Control Solenoid Valve High Control
10	D-GN	5511	TCC Pressure Control Solenoid Valve High Control
11	WH	1994	Line Pressure Control Solenoid Valve High Control
12	OG/WH	2527	Shift Solenoid Valve 5 High Control
13	PU	898	Shift Solenoid Valve 3 High Control
14	L-GN	1222	Shift Solenoid Valve 1 High Control
