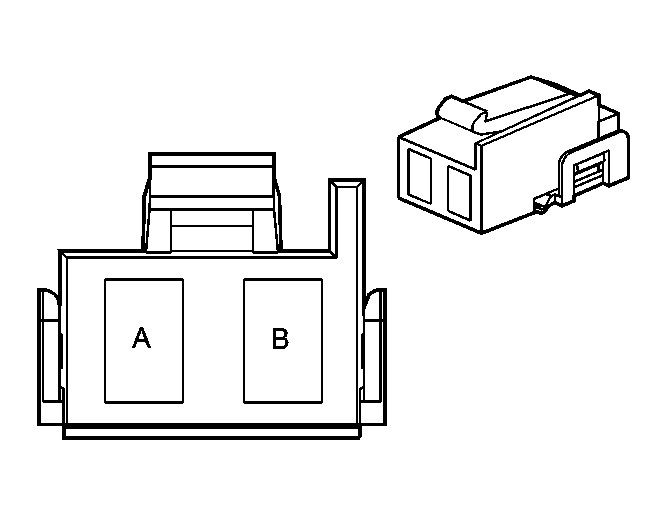

Brake Stop Lamp Switch Harness 2-way Connector End View
Brake Stop Lamp Switch Harness 2-way Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
Connector Part
Information |
- 12033701
- CONN 2F M/P 480 (GY)
|
| Cavity |
Wire Color |
Circuit No. |
Function |
| A |
OG |
140 |
Battery Positive Voltage |
| B |
L-BU |
20 |
Stop Lamp Switch Signal |
