Power Door Systems Component Views

Fig 1: Driver Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Outside Rearview Mirror
2	LF Door Tweeter Speaker (UZ6)
3	Driver Door Jamb Switch
4	Instrument Panel (I/P) Dimmer Switch
5	Fog Lamp Switch (T37)
6	Rear Compartment Lid Release Switch
7	LF Door Speaker
8	Outside Rearview Mirror Switch (DG7)
9	Window Switch - Driver (A31)
10	Door Lock Switch - Driver (AU3)

Fig 2: Front Passenger Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio
2	Passenger Door Jamb Switch
3	RF Door Tweeter Speaker (UZ6)
4	Radio Antenna
5	Passenger Outside Rearview Mirror
6	Front Passenger Door Lock Switch (AU3)
7	Front Passenger Window Switch (A31)
8	RF Door Speaker

Fig 3: Right Front Door (AU3) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch - Front Passenger, Driver Similar

Fig 4: RR Door (Sedan) Component View

Courtesy of GENERAL MOTORS CORP.

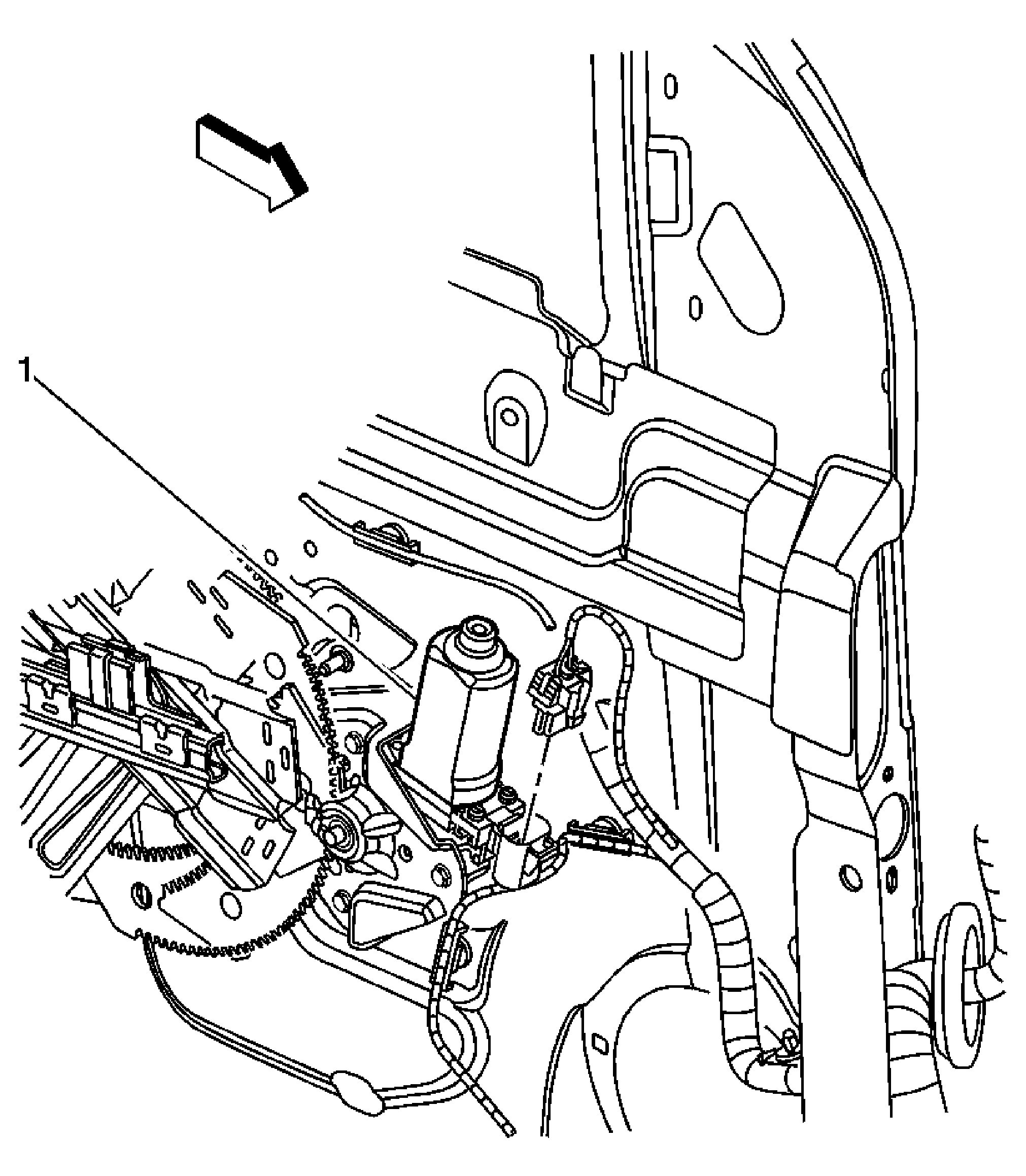

Fig 5: Left Front Door (A31) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Motor - LF, RF Similar

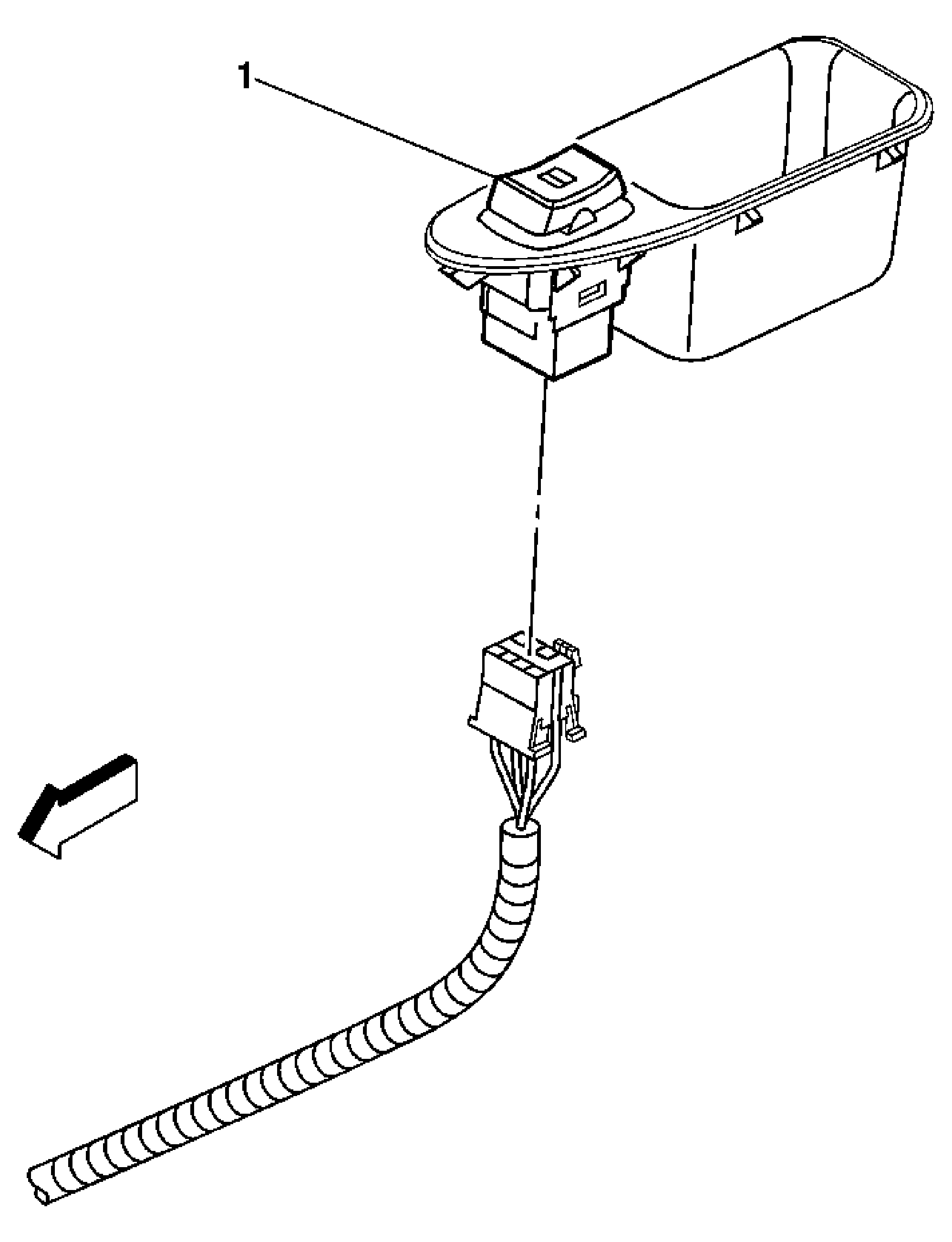

Fig 6: Side Door Window Switch (A31) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - RR (LR - Similar)
