Installation Procedure

WARNING: This page is about a different car, the 2004 Saturn Ion Red Line. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the intermediate bracket to the engine.
  2. Hand tighten the engine mount intermediate bracket bolts in the following locations:
    • The long bolts in the forward and front lower holes
    • The short bolt in the rear upper hole
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Tighten the intermediate bracket bolts.

    Tighten:  Tighten the bolts to 100 N.m (74 lb ft).

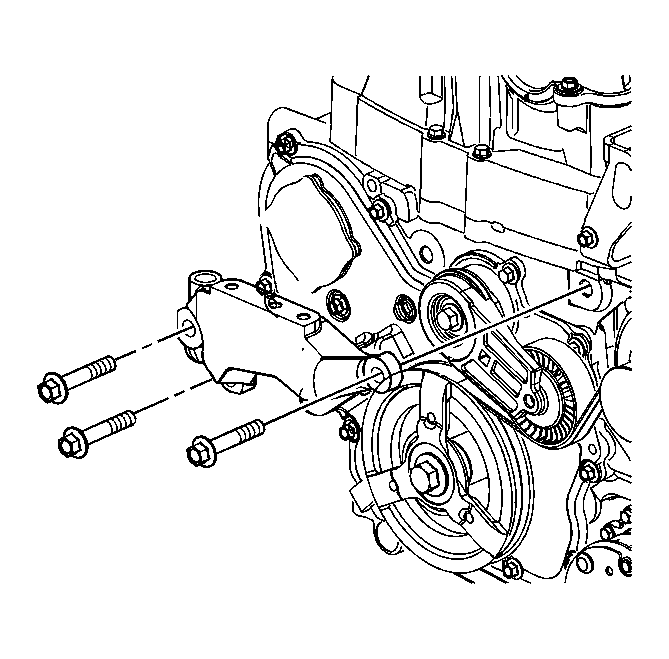

    4. Fig 1: View Of Intermediate Bracket
    GM851554Courtesy of GENERAL MOTORS CORP.
  4. Install the engine mount. Refer toEngine Mount Replacement .
