Connector Identification

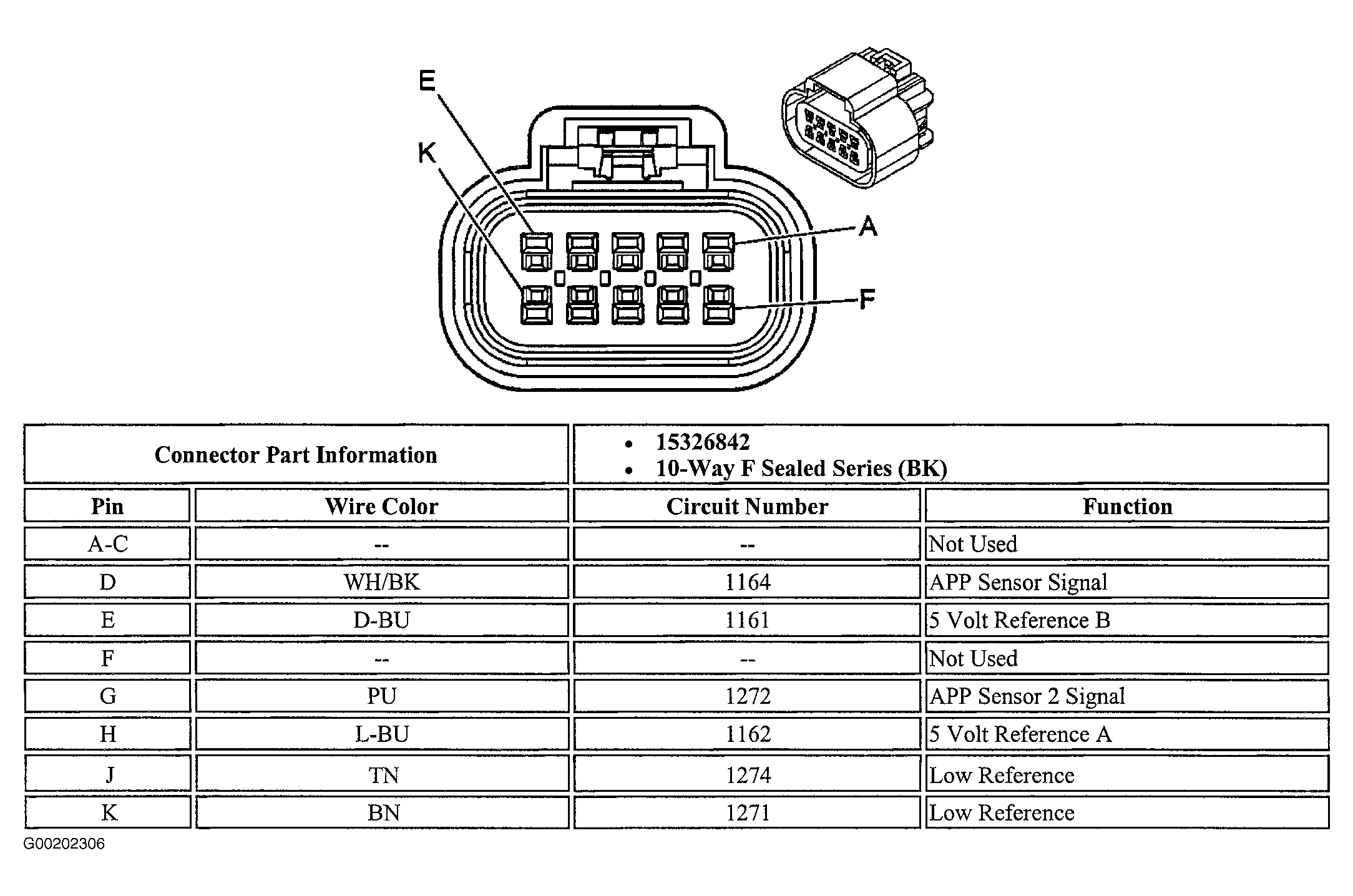

Fig 1: Identifying Accelerator Pedal Position Sensor Connector Terminals

G00202306

Courtesy of GENERAL MOTORS CORP.

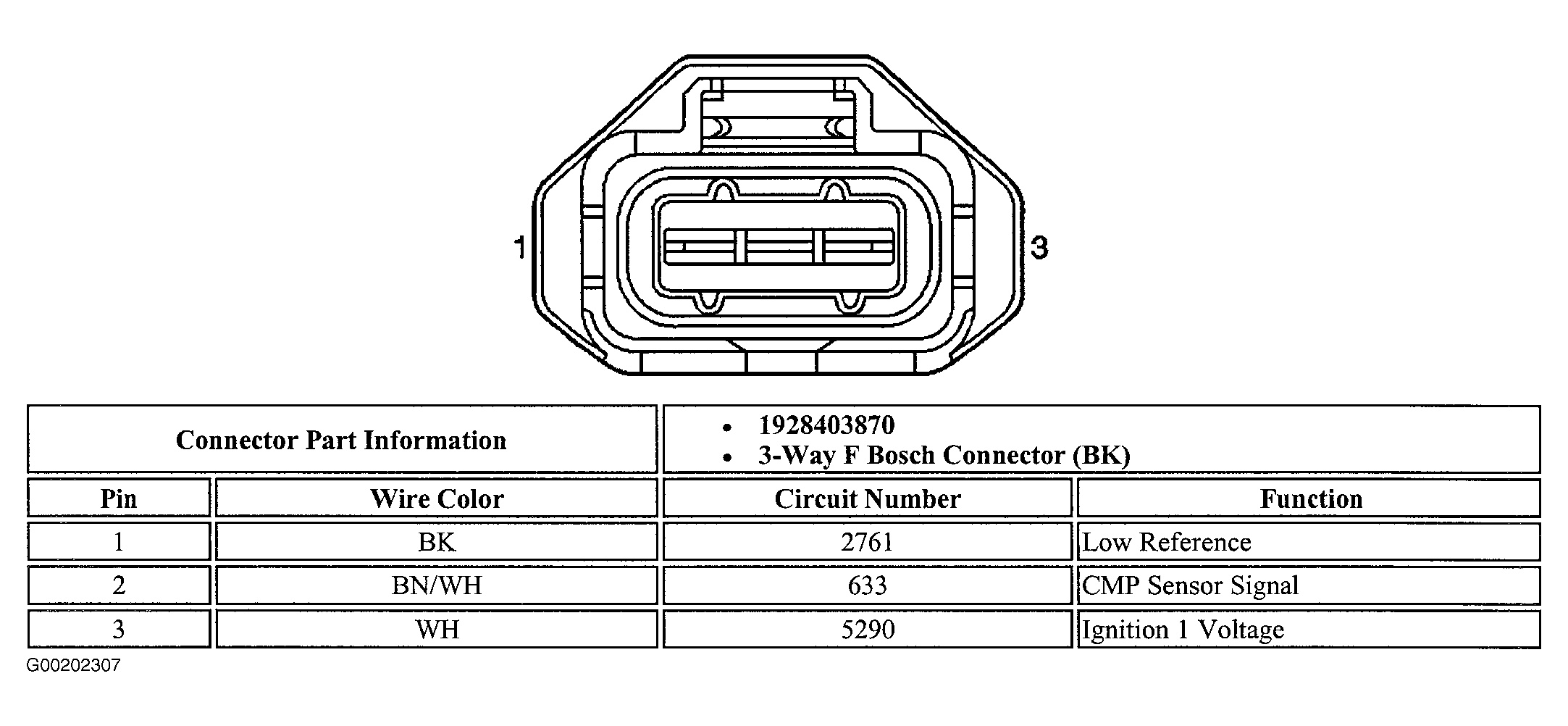

Fig 2: Identifying Camshaft Position Sensor Connector Terminals

G00202307

Courtesy of GENERAL MOTORS CORP.

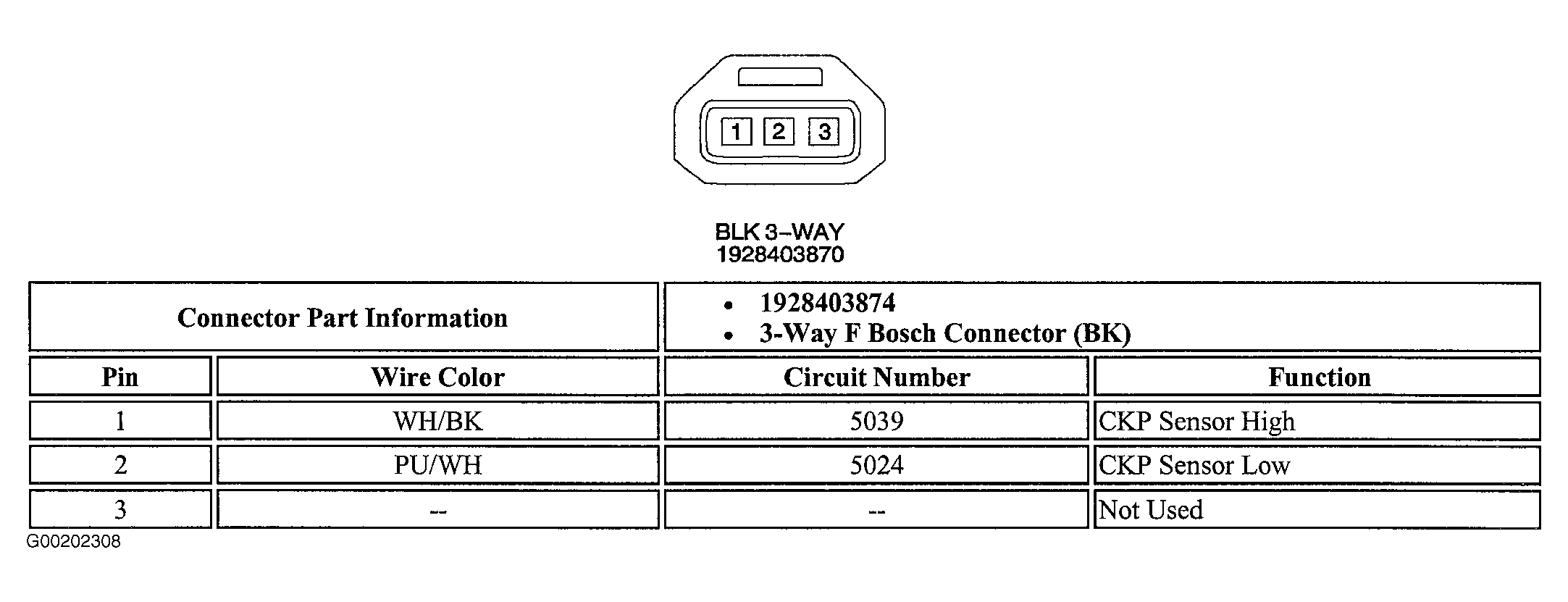

Fig 3: Identifying Crankshaft Position Sensor Connector Terminals

G00202308

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Data Link Connector Terminals

G96D09865

Courtesy of GENERAL MOTORS CORP.

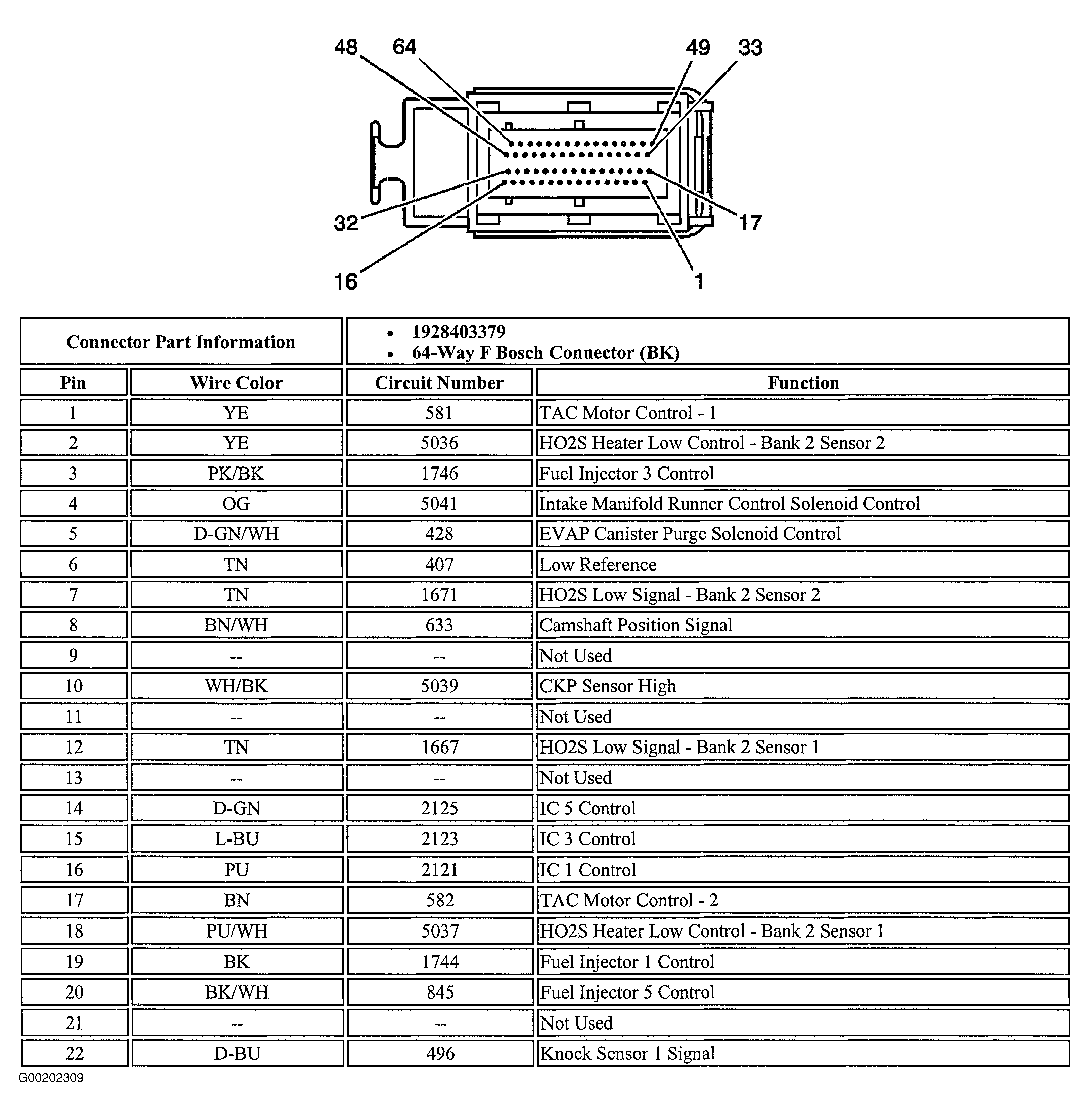

Fig 5: Identifying ECM Connector C1 Terminals (1 Of 2)

G00202309

Courtesy of GENERAL MOTORS CORP.

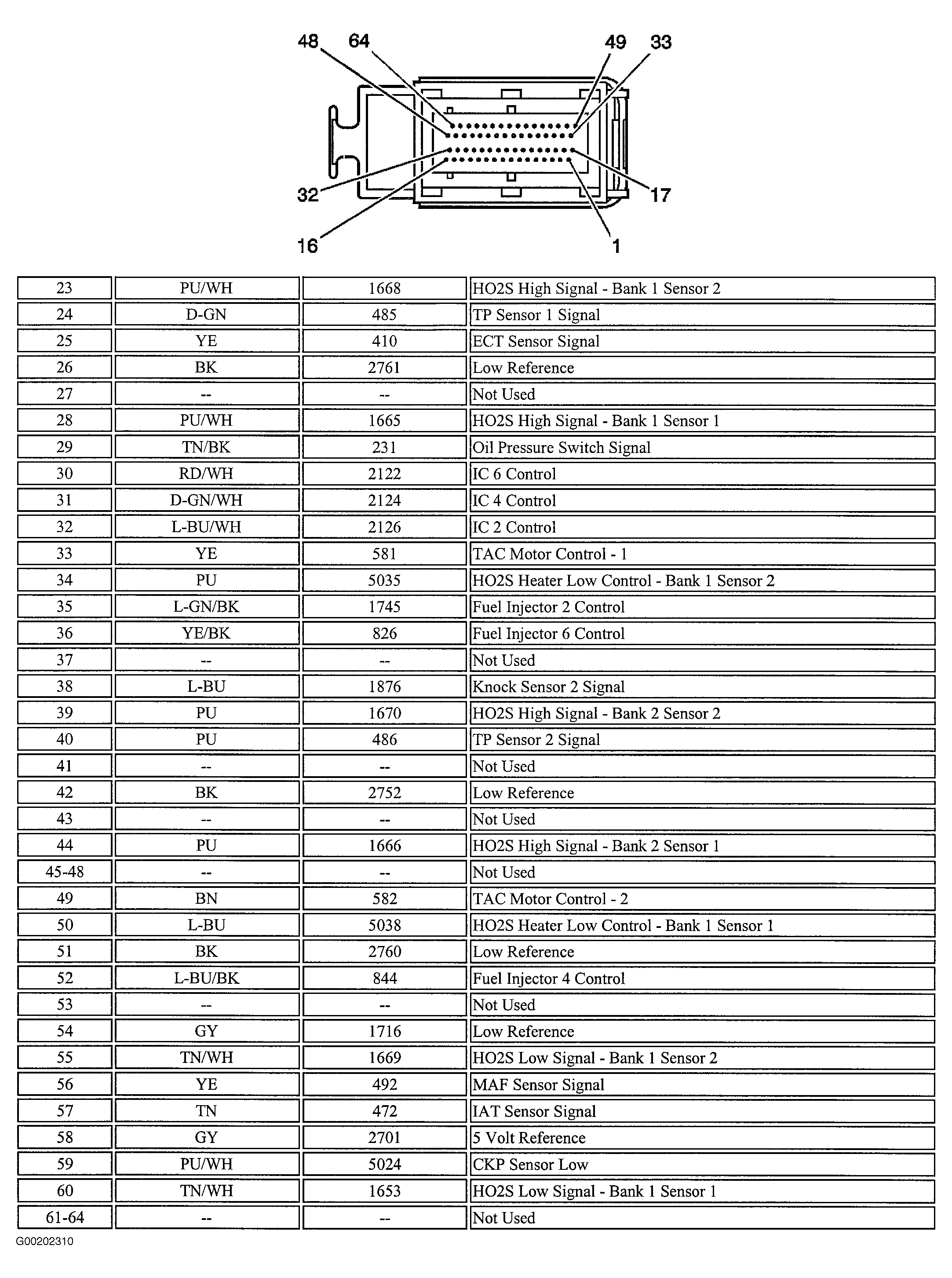

Fig 6: Identifying ECM Connector C1 Terminals (2 Of 2)

G00202310

Courtesy of GENERAL MOTORS CORP.

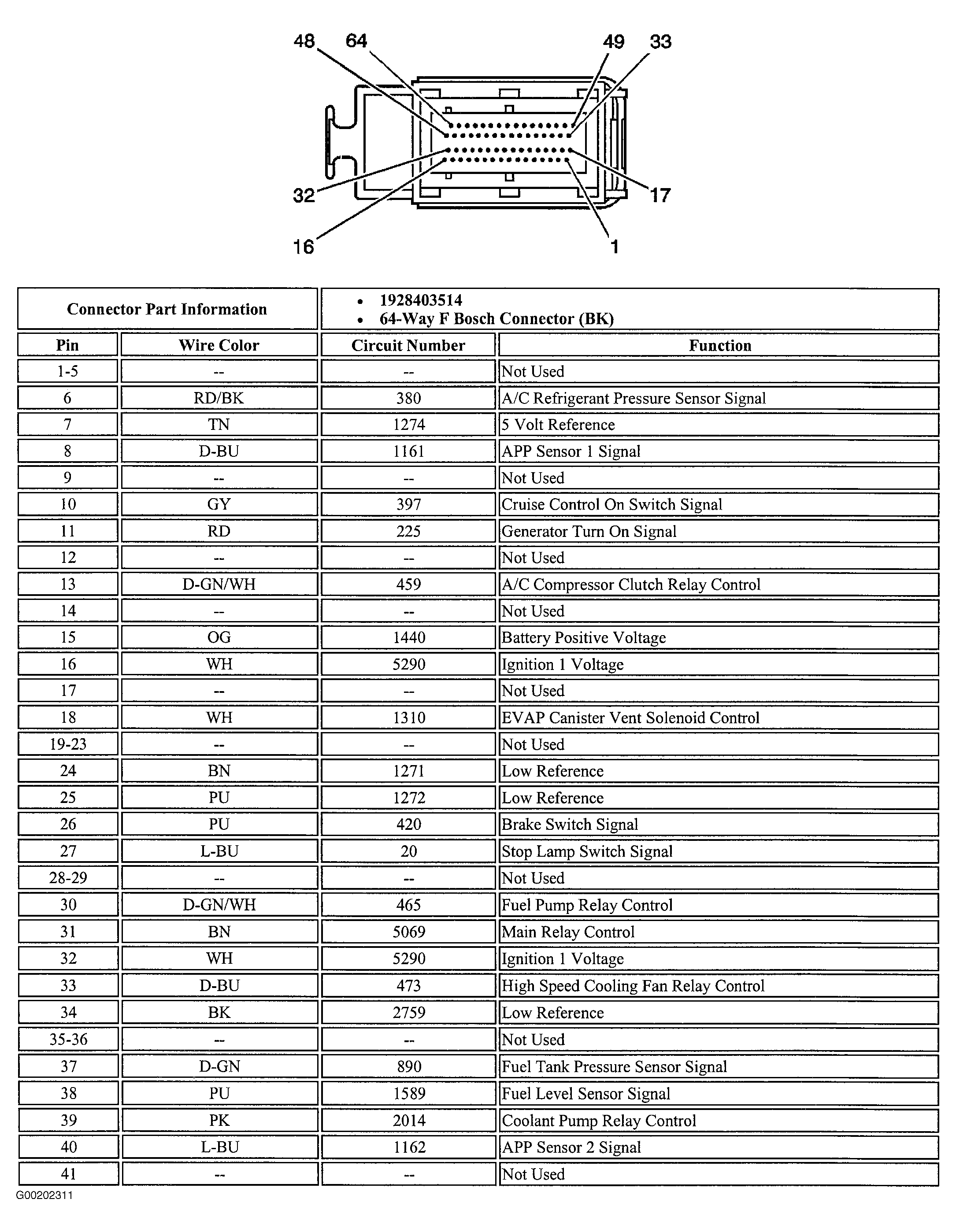

Fig 7: Identifying ECM Connector C2 Terminals (1 Of 2)

G00202311

Courtesy of GENERAL MOTORS CORP.

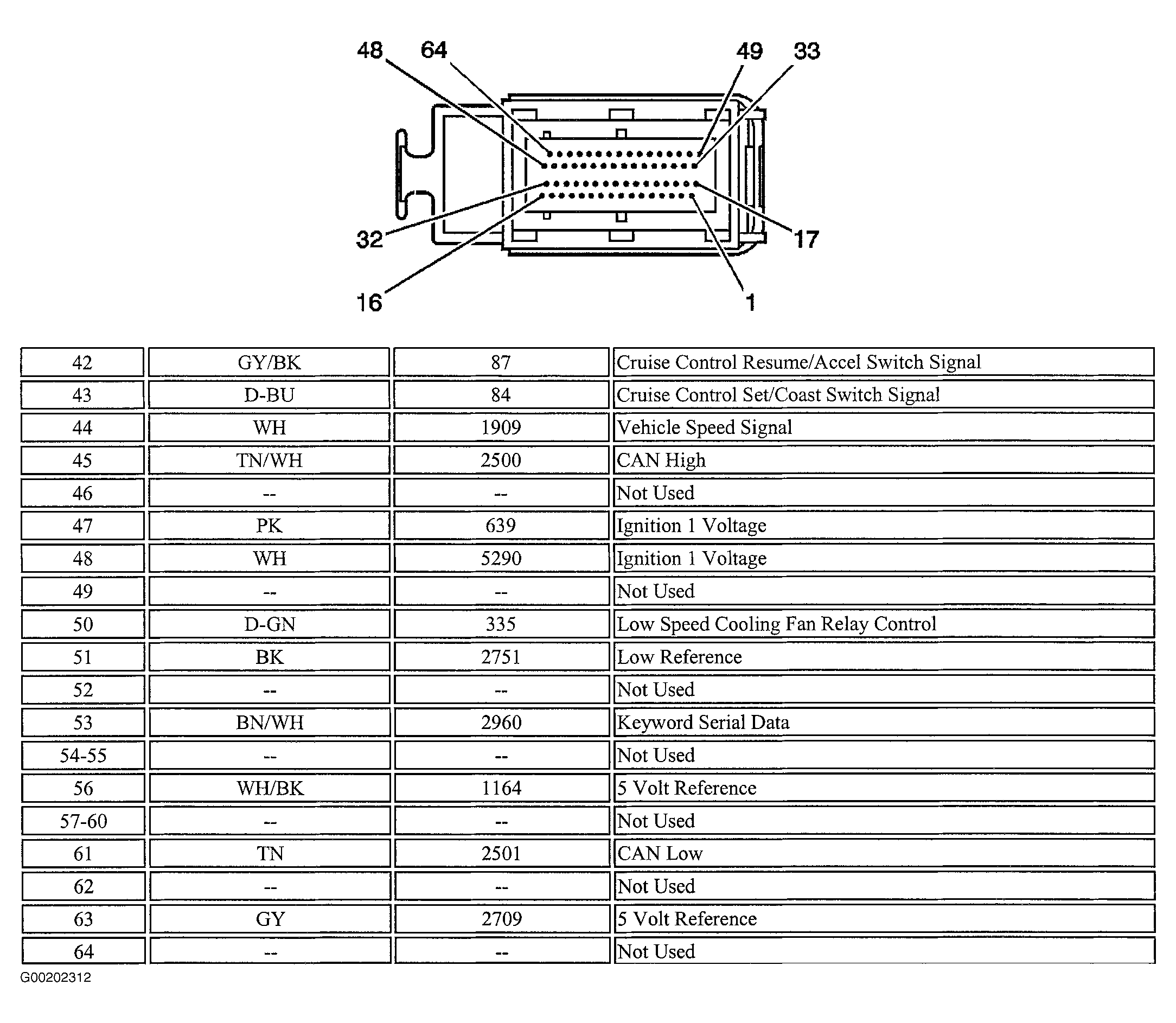

Fig 8: Identifying ECM Connector C2 Terminals (2 Of 2)

G00202312

Courtesy of GENERAL MOTORS CORP.

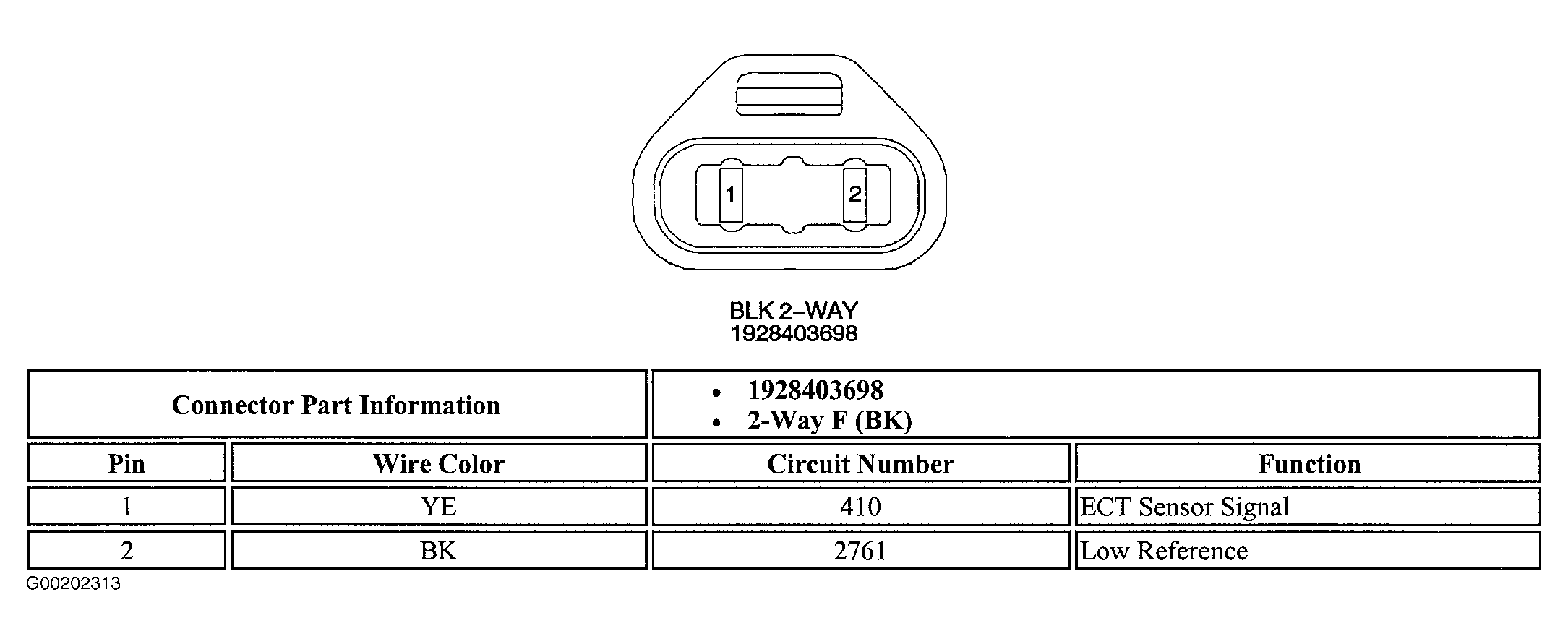

Fig 9: Identifying Engine Coolant Temperature Connector Terminals

G00202313

Courtesy of GENERAL MOTORS CORP.

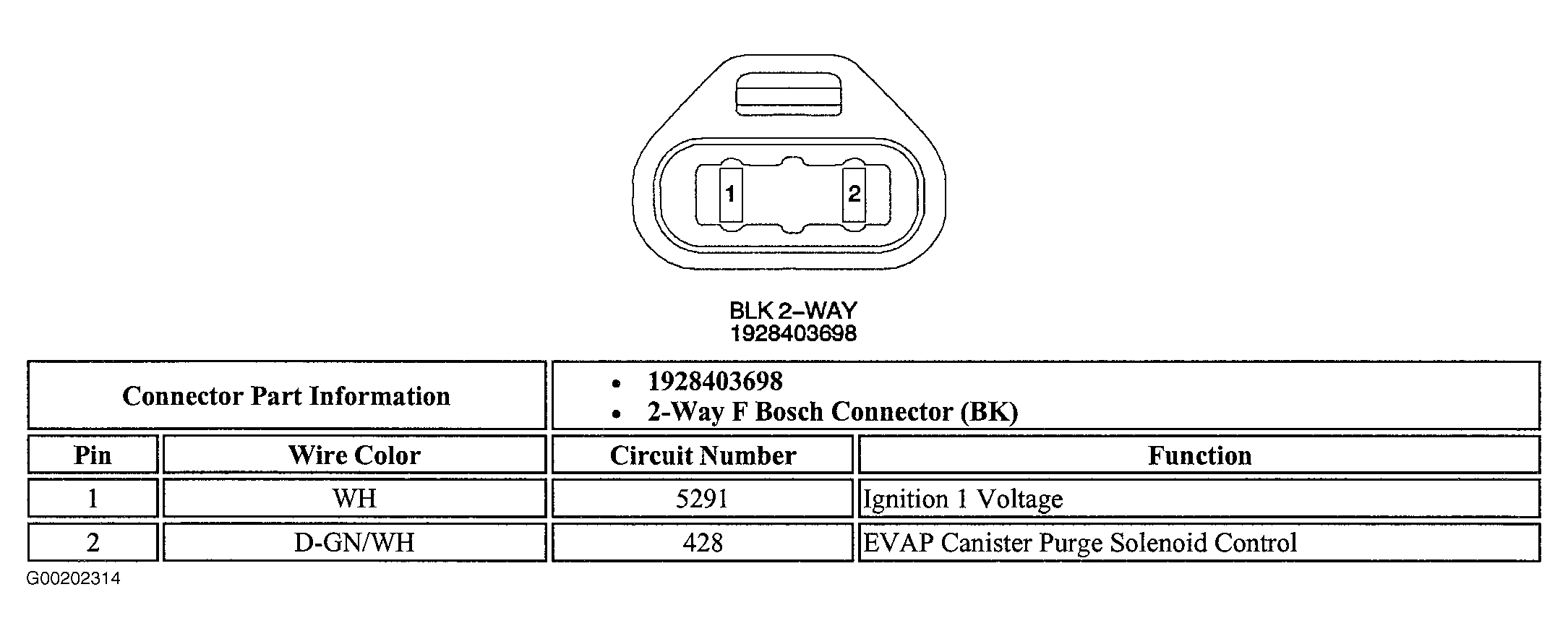

Fig 10: Identifying EVAP Canister Purge Solenoid Connector Terminals

G00202314

Courtesy of GENERAL MOTORS CORP.

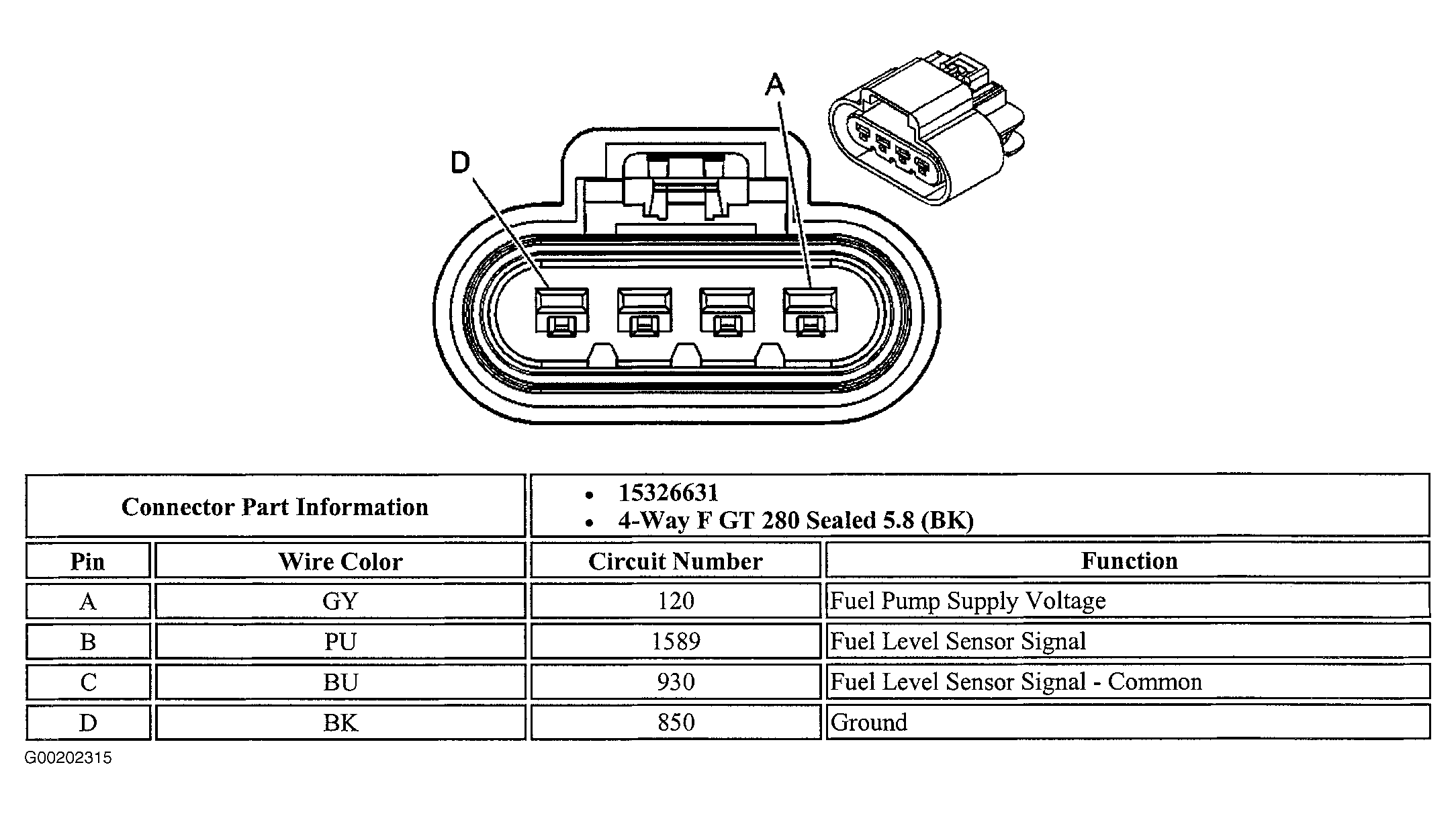

Fig 11: Identifying Fuel Pump & Sender Assembly Connector Terminals (Primary)

G00202315

Courtesy of GENERAL MOTORS CORP.

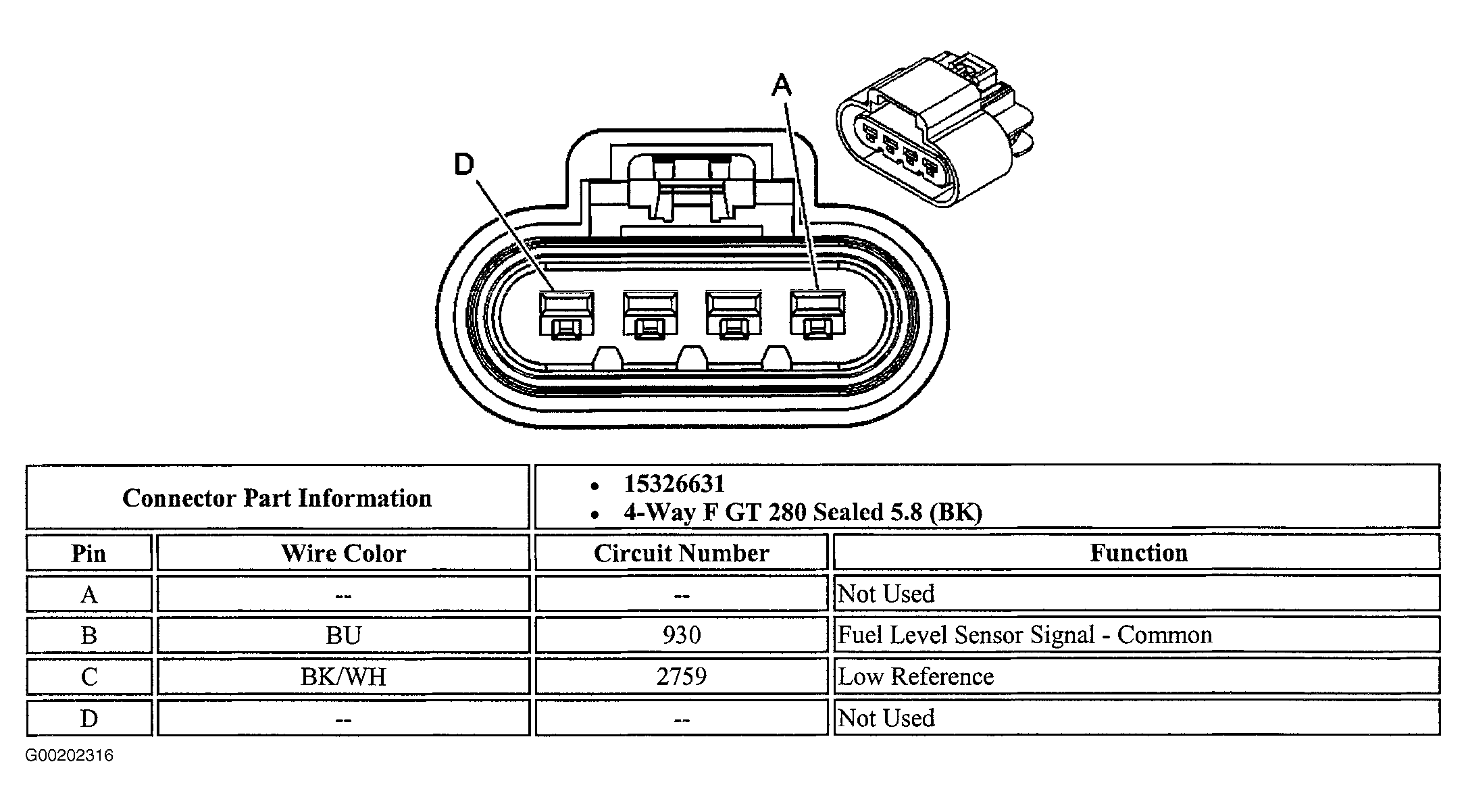

Fig 12: Identifying Fuel Pump & Sender Assembly Connector Terminals (Secondary)

G00202316

Courtesy of GENERAL MOTORS CORP.

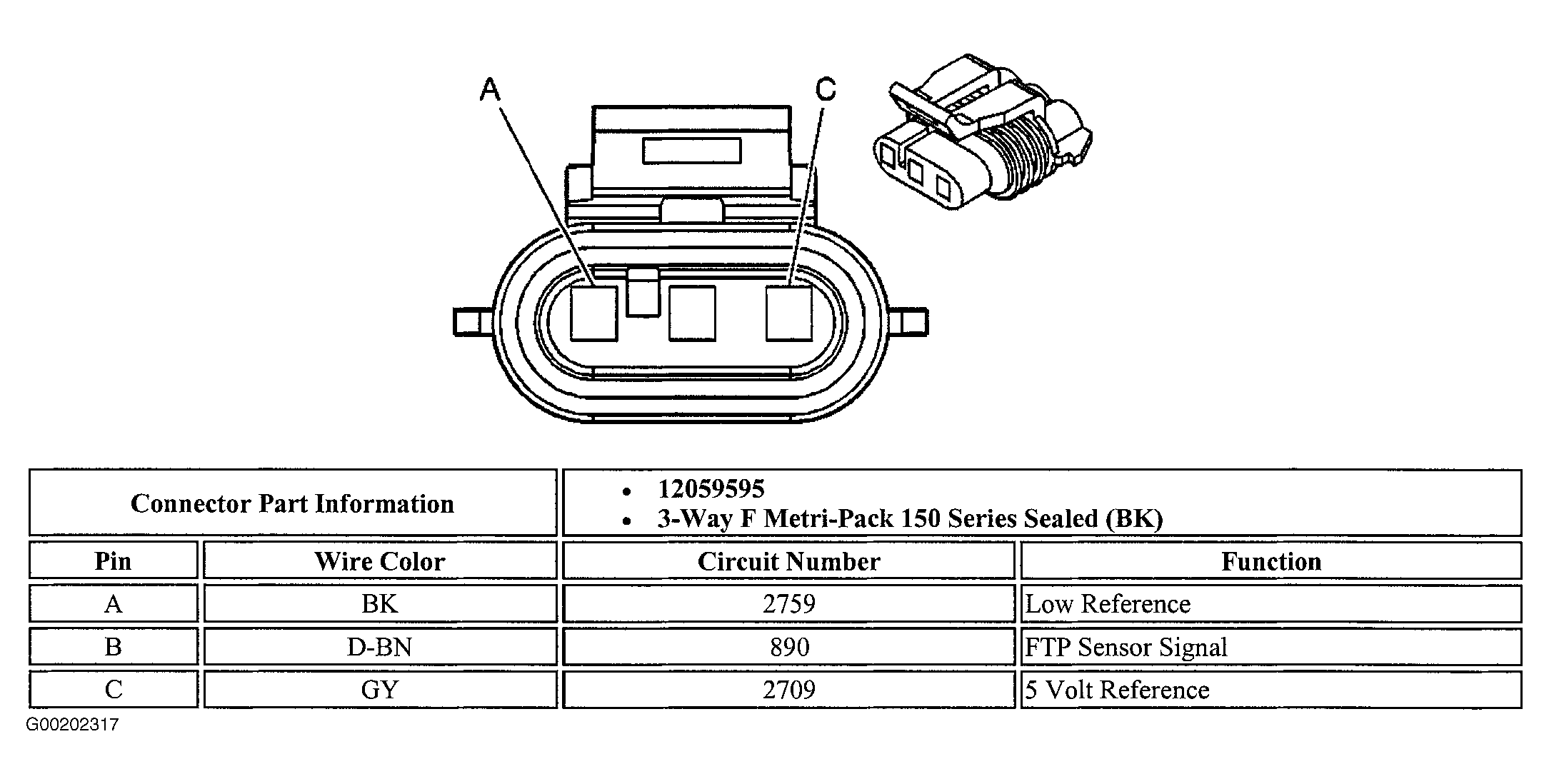

Fig 13: Identifying Fuel Tank Pressure Sensor Connector Terminals

G00202317

Courtesy of GENERAL MOTORS CORP.

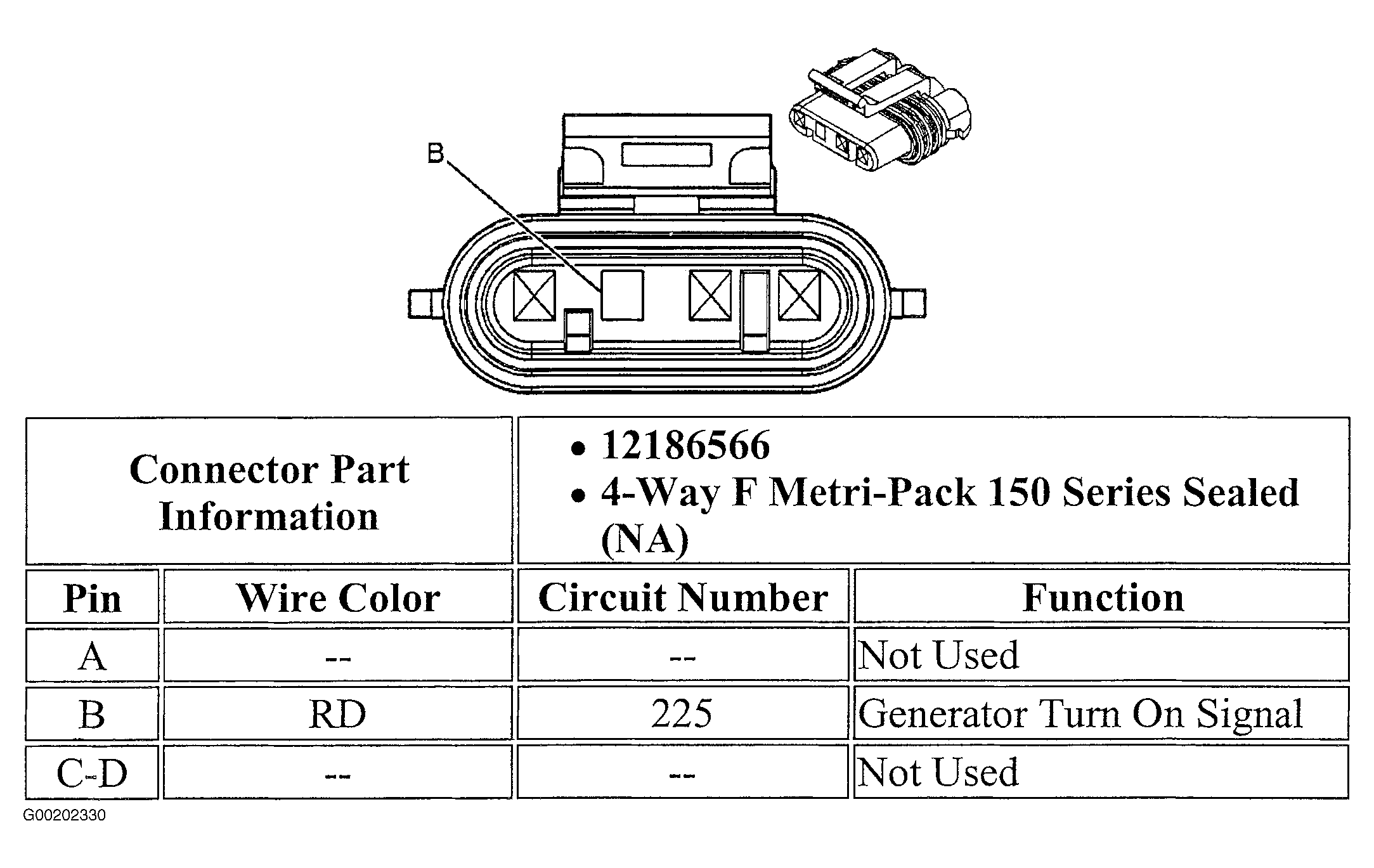

Fig 14: Identifying Generator Connector Terminals

G00202330

Courtesy of GENERAL MOTORS CORP.

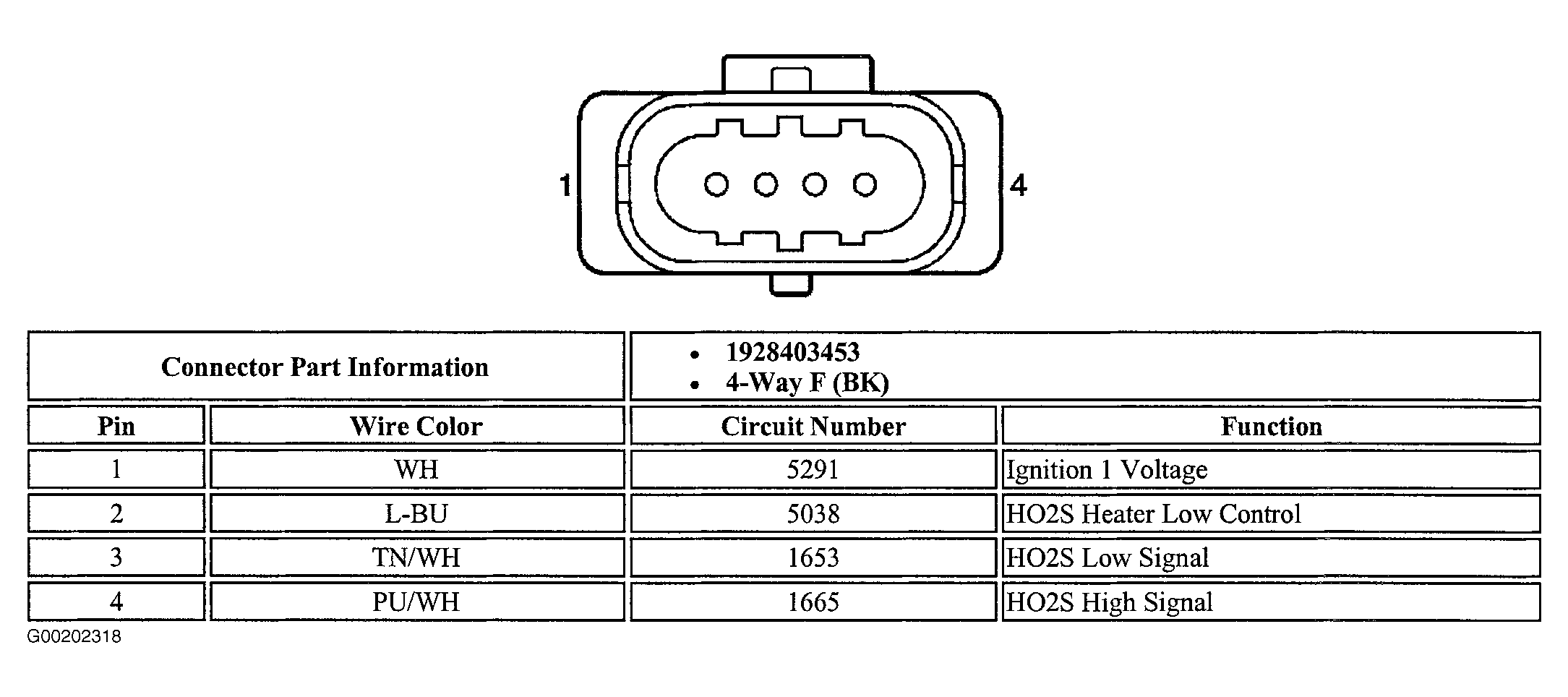

Fig 15: Identifying HO2S Bank 1; Sensor 1 Connector Terminals

G00202318

Courtesy of GENERAL MOTORS CORP.

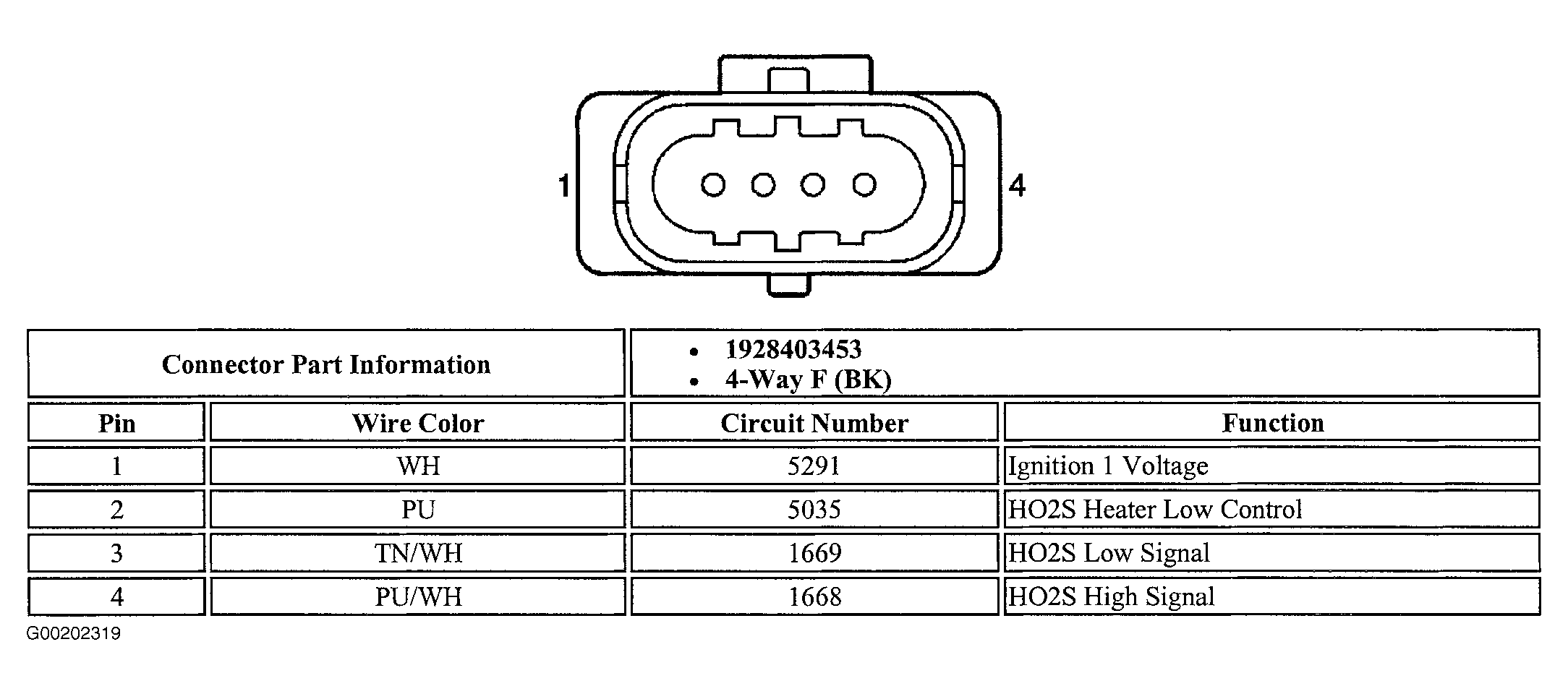

Fig 16: Identifying HO2S Bank 1; Sensor 2 Connector Terminals

G00202319

Courtesy of GENERAL MOTORS CORP.

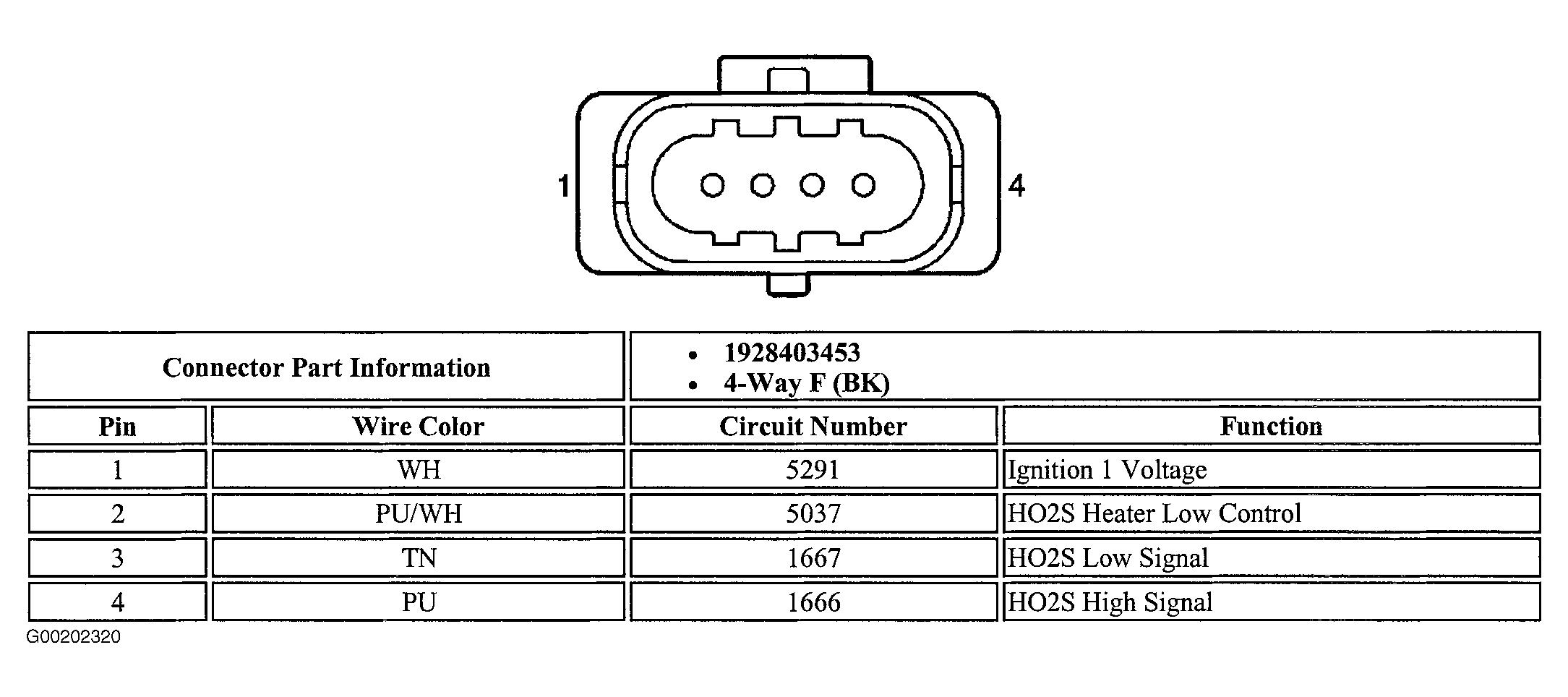

Fig 17: Identifying HO2S Bank 2; Sensor 1 Connector Terminals

G00202320

Courtesy of GENERAL MOTORS CORP.

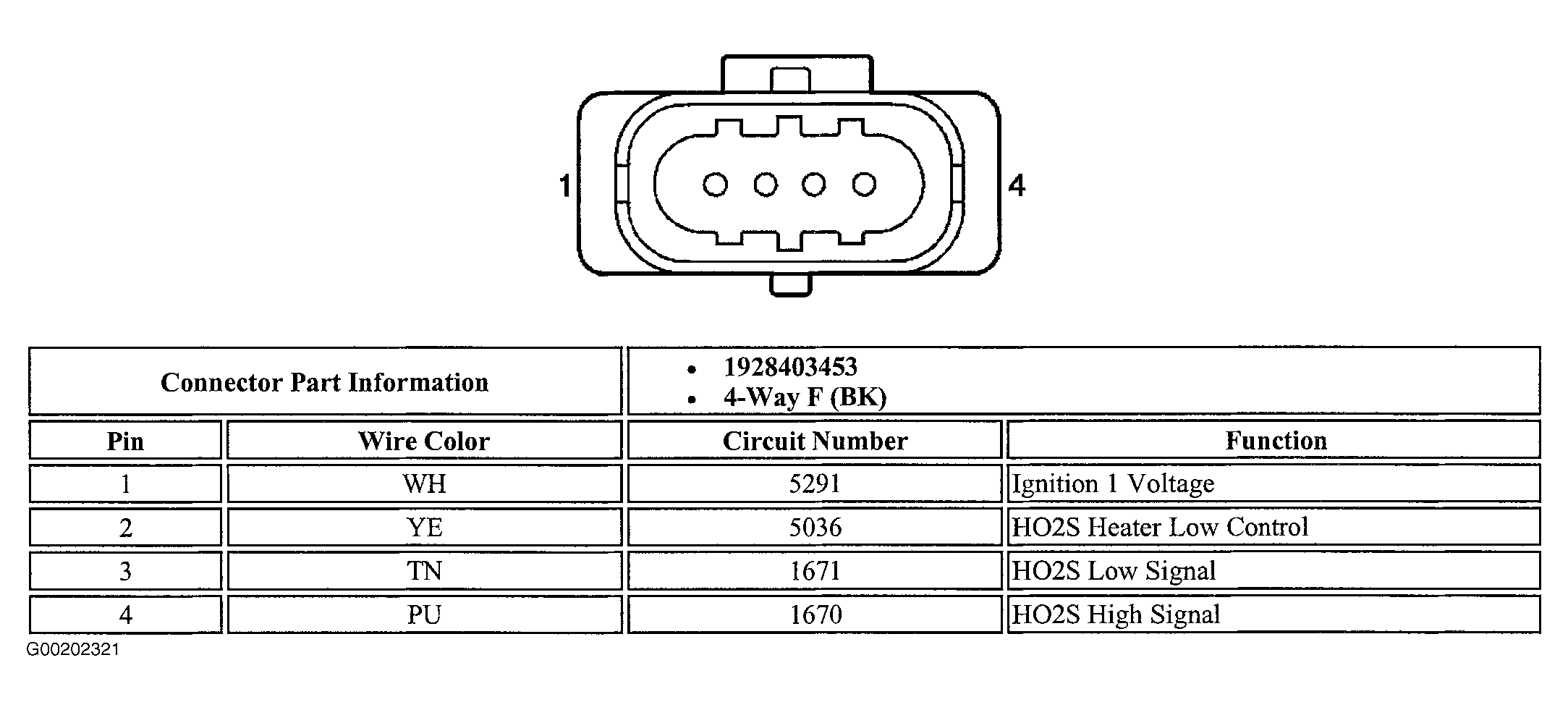

Fig 18: Identifying HO2S Bank 2; Sensor 2 Connector Terminals

G00202321

Courtesy of GENERAL MOTORS CORP.

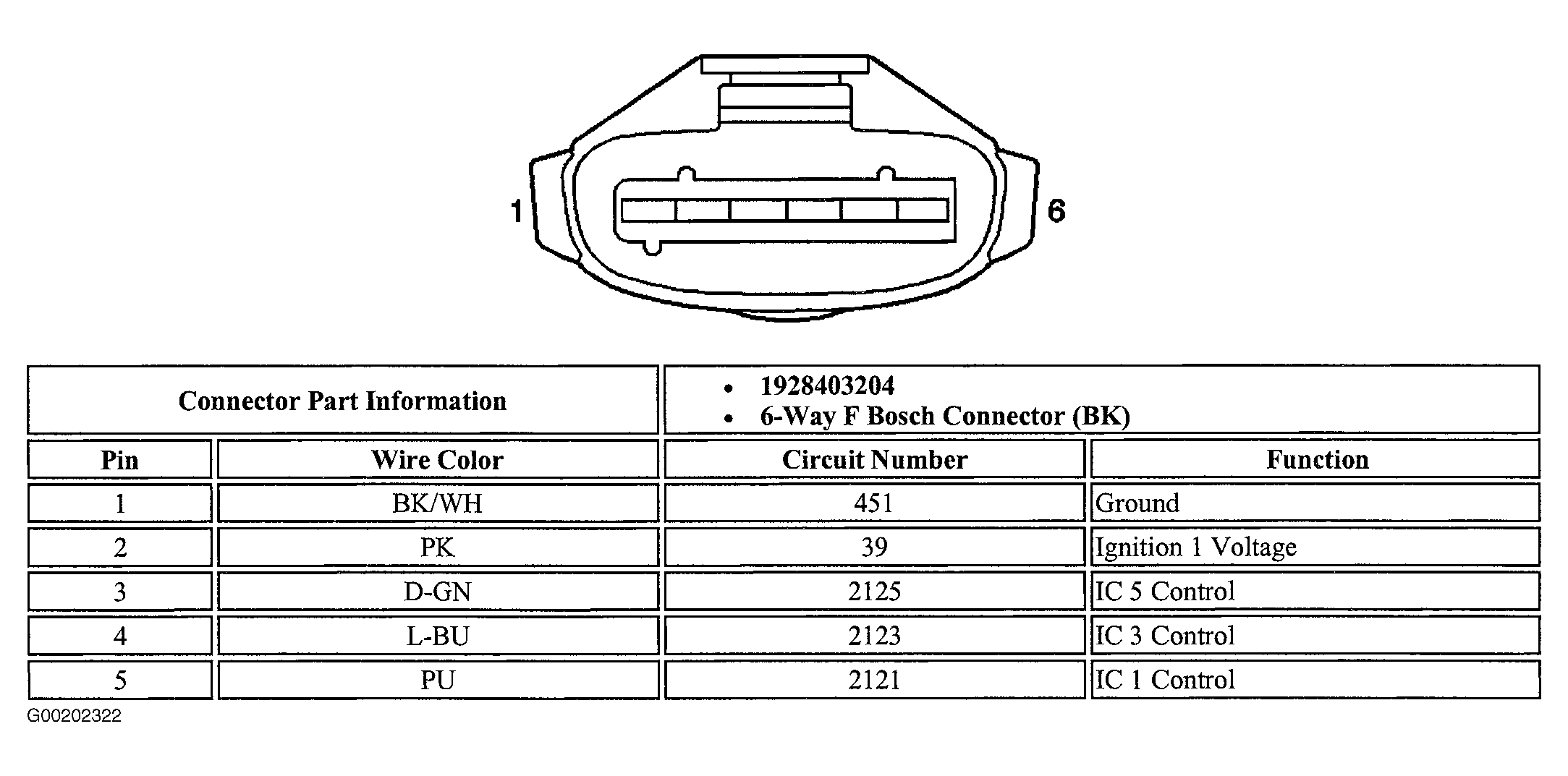

Fig 19: Identifying Ignition Module (Cyl. No. 1, 3 & 5) Connector Terminals

G00202322

Courtesy of GENERAL MOTORS CORP.

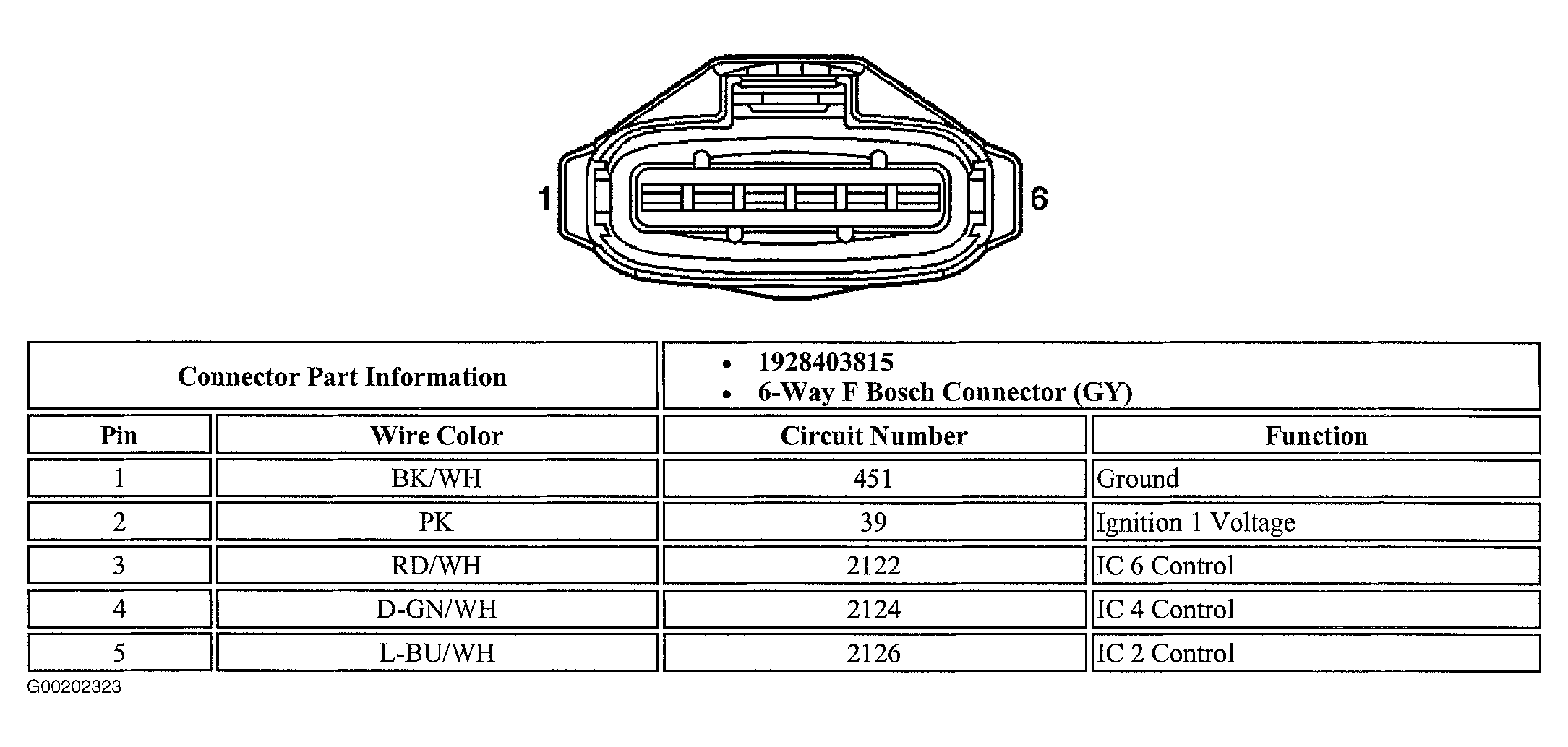

Fig 20: Identifying Ignition Module (Cyl. No. 2, 4 & 6) Connector Terminals

G00202323

Courtesy of GENERAL MOTORS CORP.

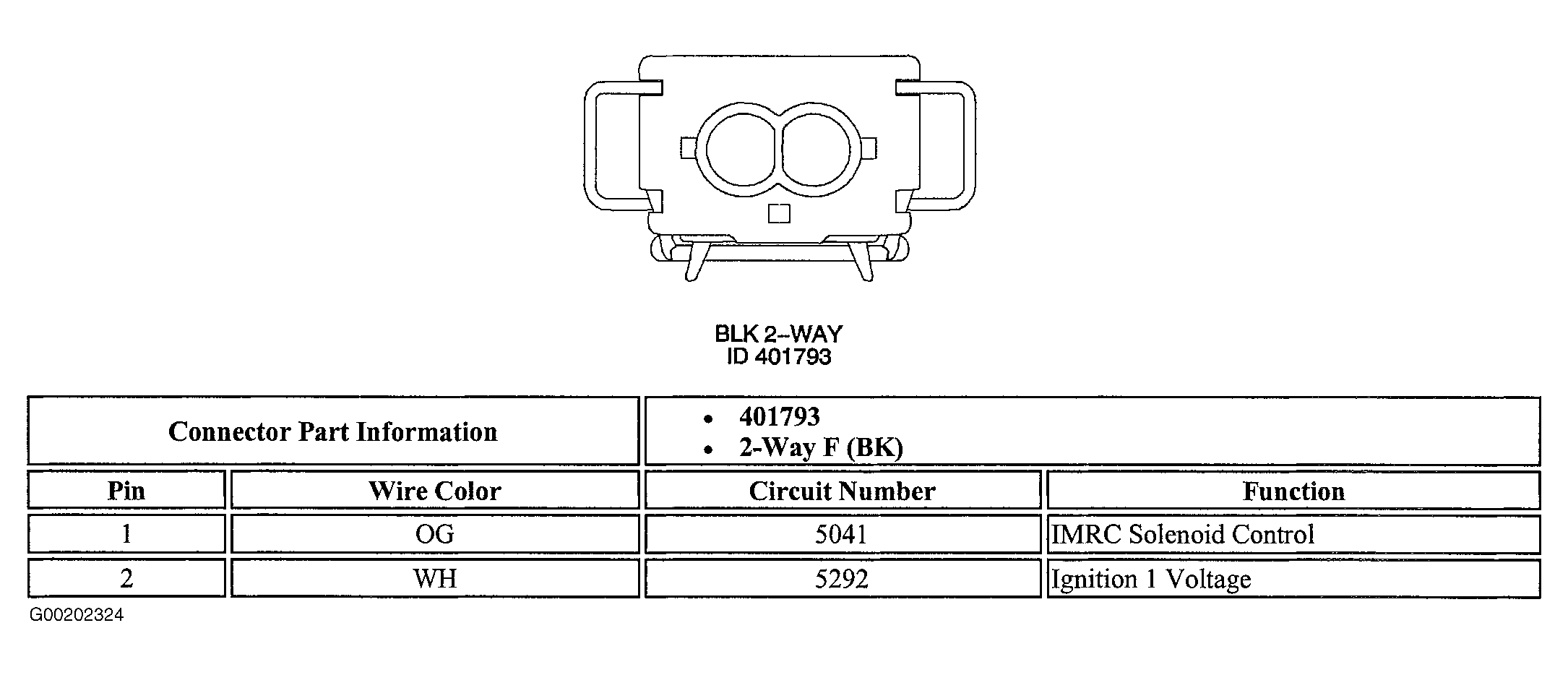

Fig 21: Identifying Intake Manifold Runner Control Solenoid Connector Terminals

G00202324

Courtesy of GENERAL MOTORS CORP.

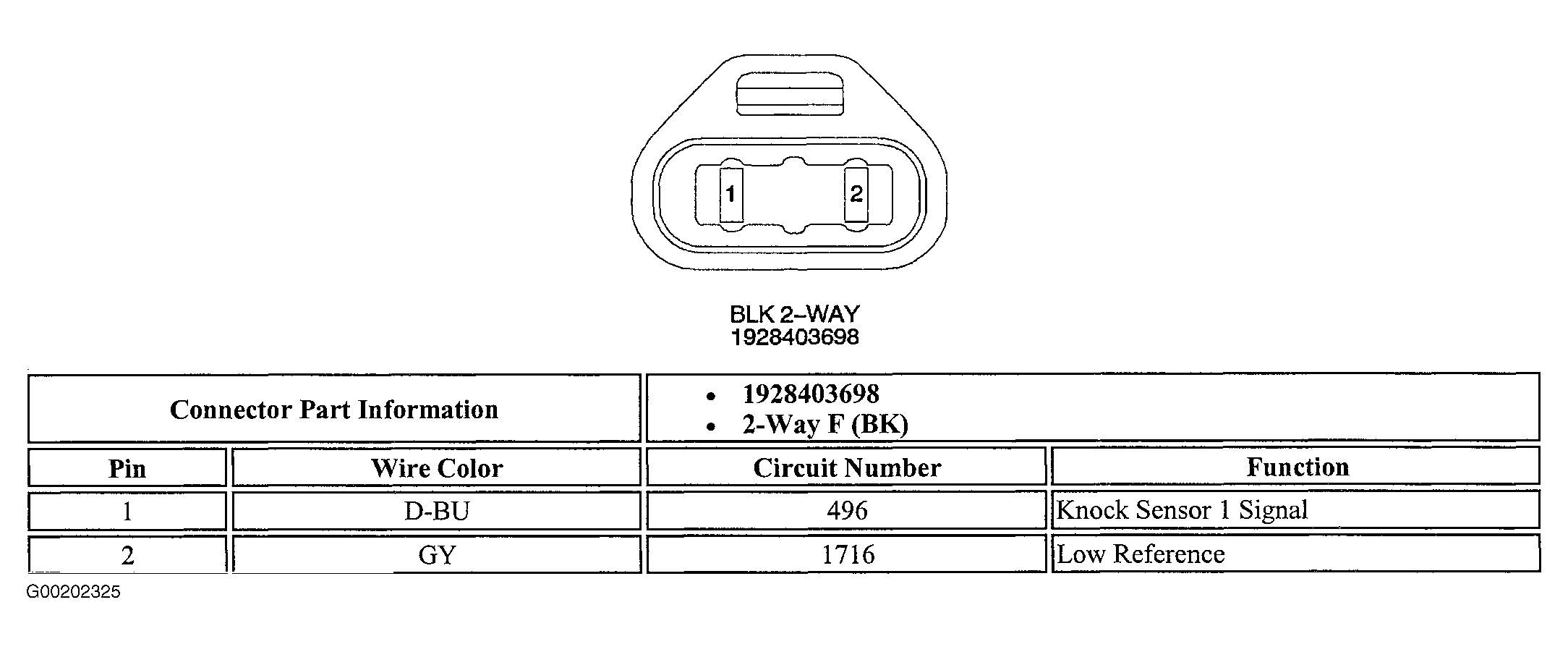

Fig 22: Identifying Knock Sensor 1 Connector Terminals

G00202325

Courtesy of GENERAL MOTORS CORP.

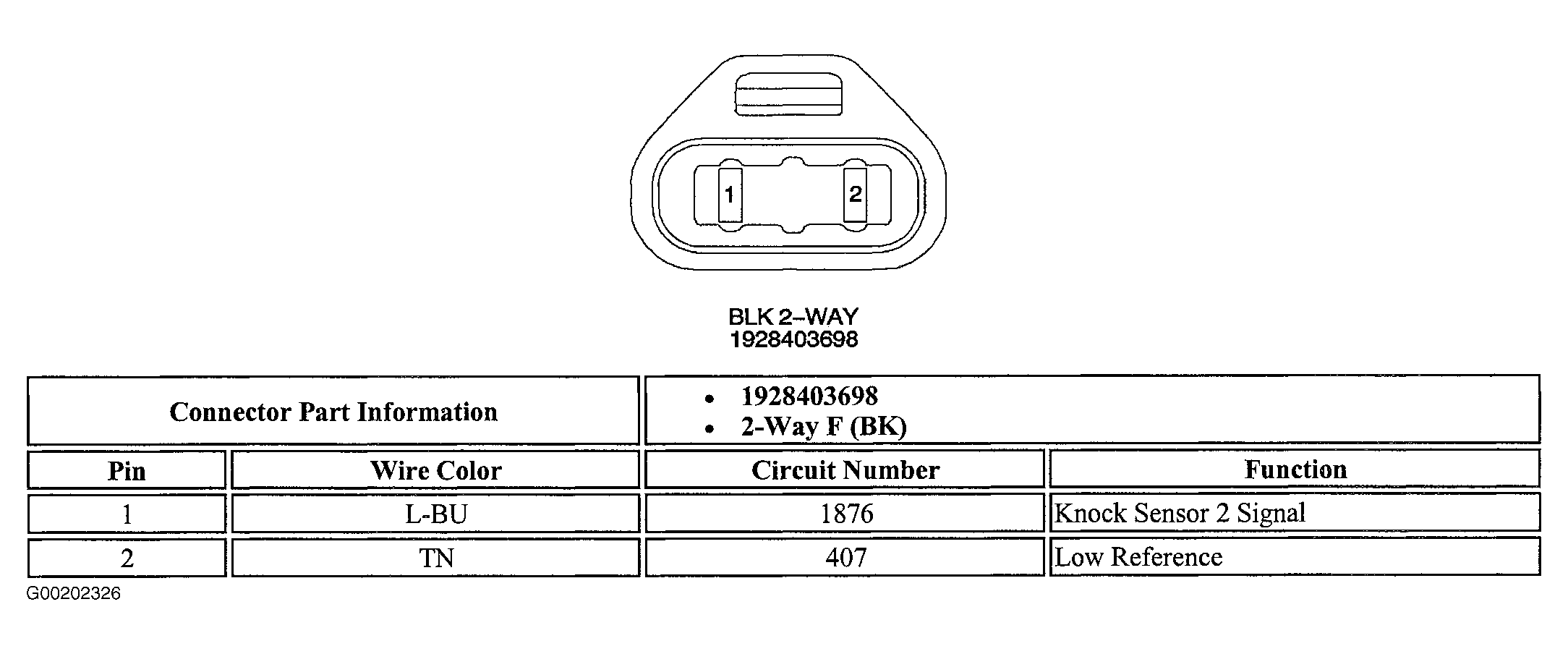

Fig 23: Identifying Knock Sensor 2 Connector Terminals

G00202326

Courtesy of GENERAL MOTORS CORP.

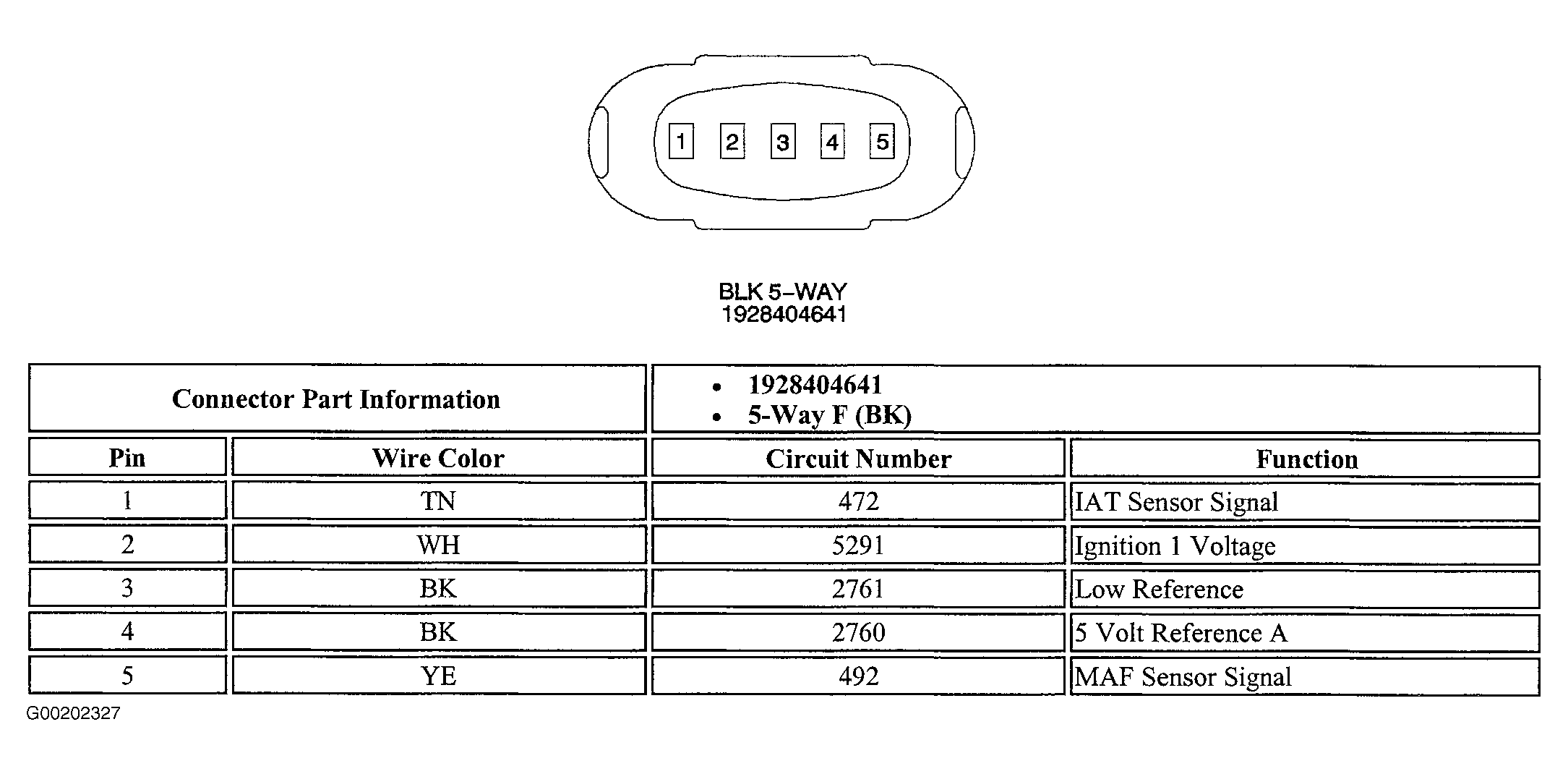

Fig 24: Identifying Mass Airflow Sensor Connector Terminals

G00202327

Courtesy of GENERAL MOTORS CORP.

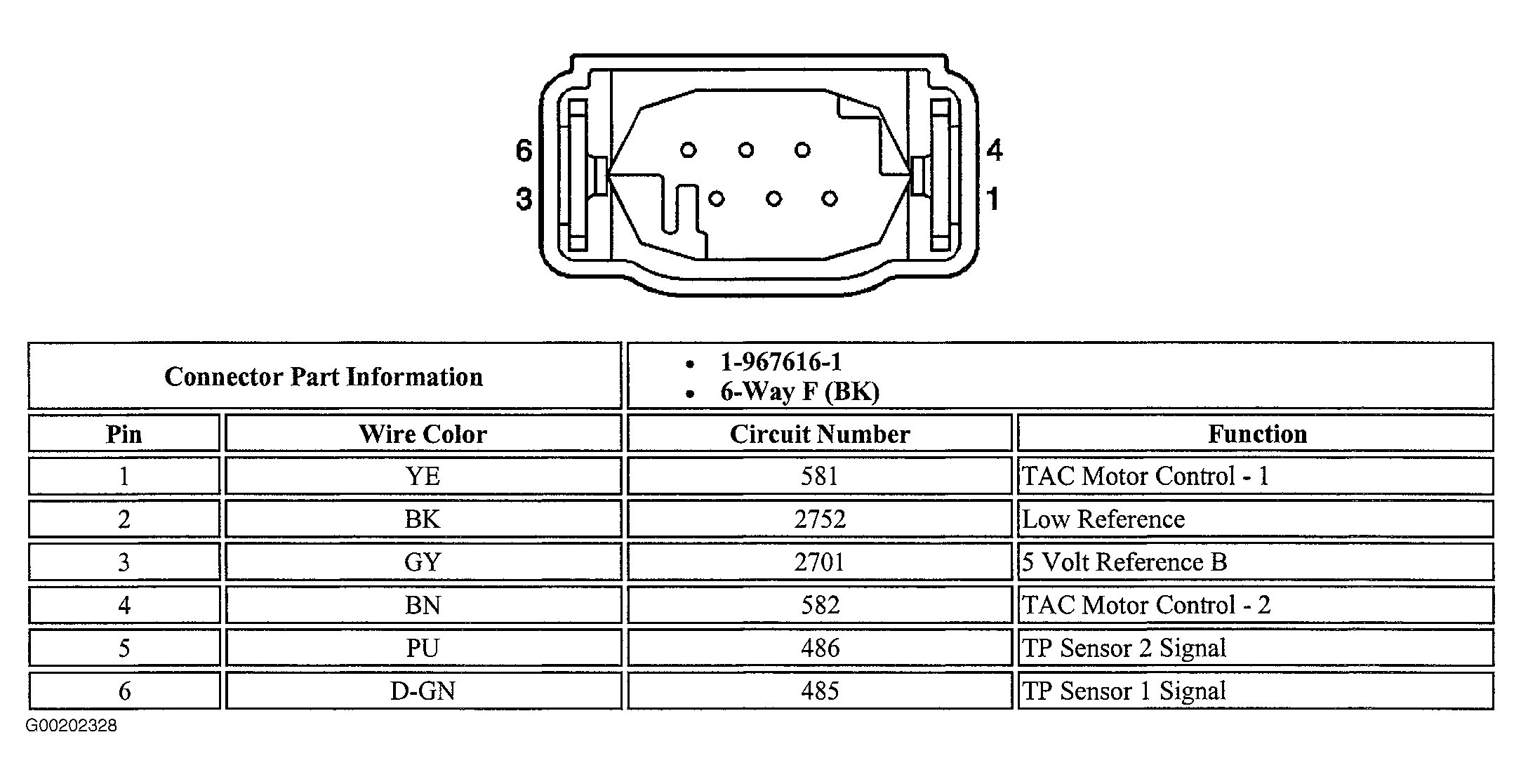

Fig 25: Identifying Throttle Actuator Control Module Connector Terminals

G00202328

Courtesy of GENERAL MOTORS CORP.

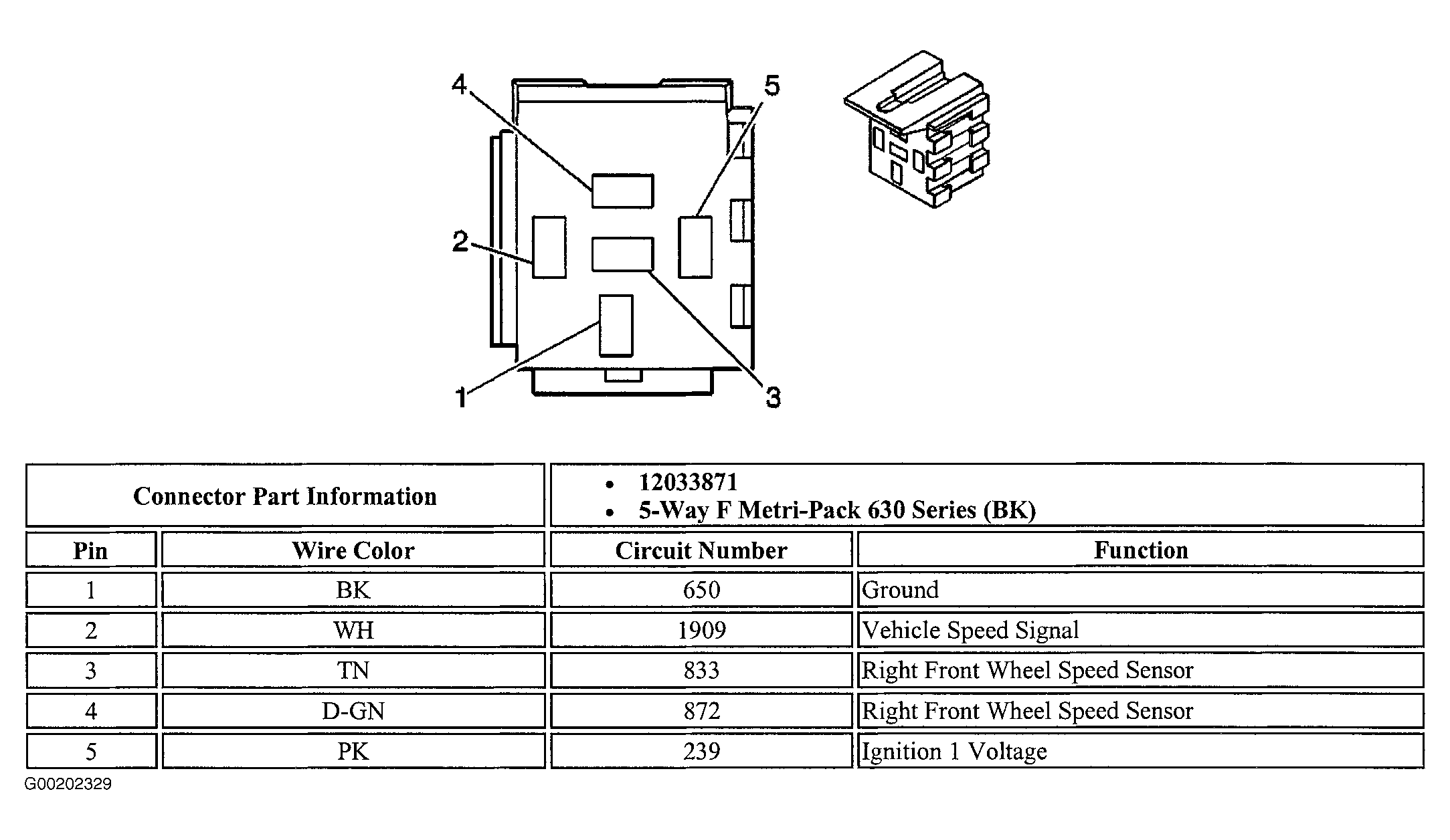

Fig 26: Identifying Wheel Signal Conditioner Module Connector Terminals (Vehicles Without ABS Only)

G00202329

Courtesy of GENERAL MOTORS CORP.
