Checking Fluid Levels

Raise and suitably support vehicle. Remove fill plug (1). See Fig 1 . Fluid should be even with fill plug hole. Add appropriate fluid as necessary. See RECOMMENDED FLUIDS  . Install fill plug and tighten to specification. See TORQUE SPECIFICATIONS  . Lower vehicle.

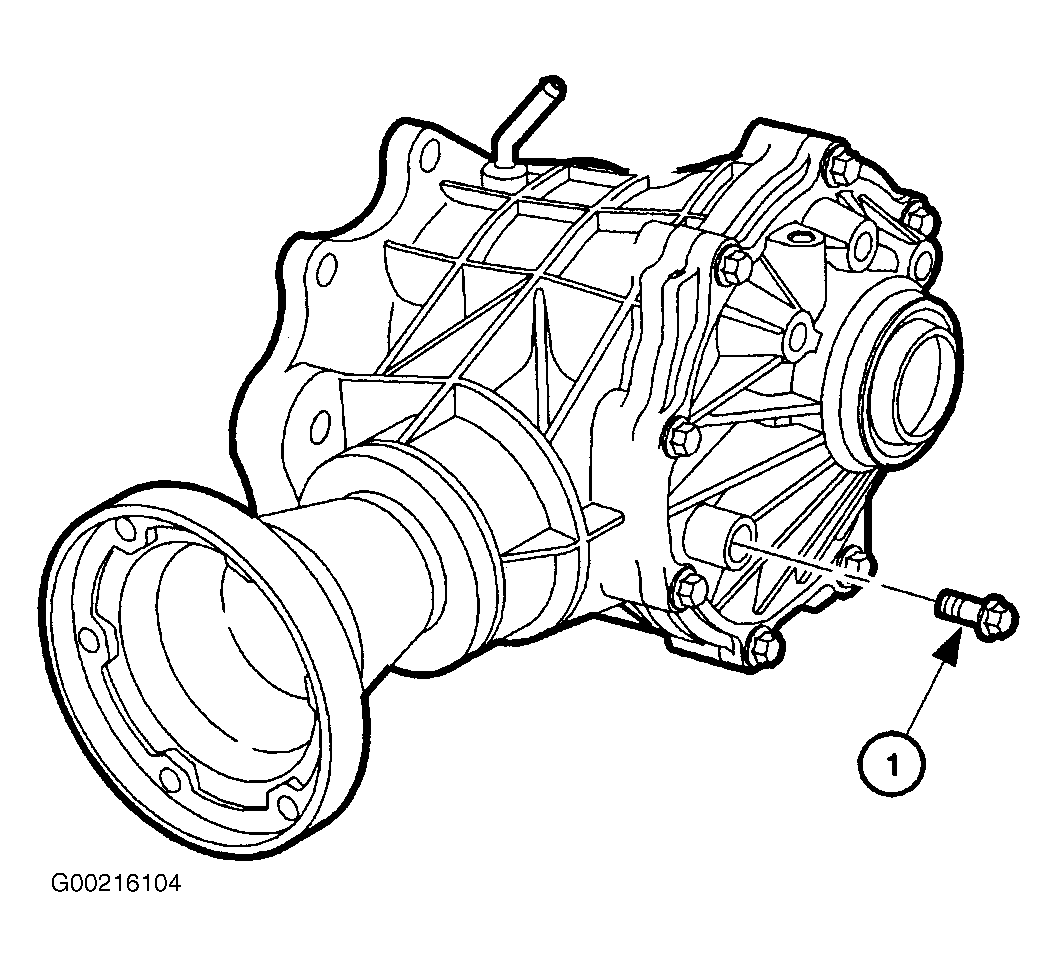

Fig 1: Identifying Power Transfer Unit Fill Plug

Courtesy of GENERAL MOTORS CORP.
