Engine Controls - Self-Diagnostics - 2.2L
>>
Component Locations
Component Locations

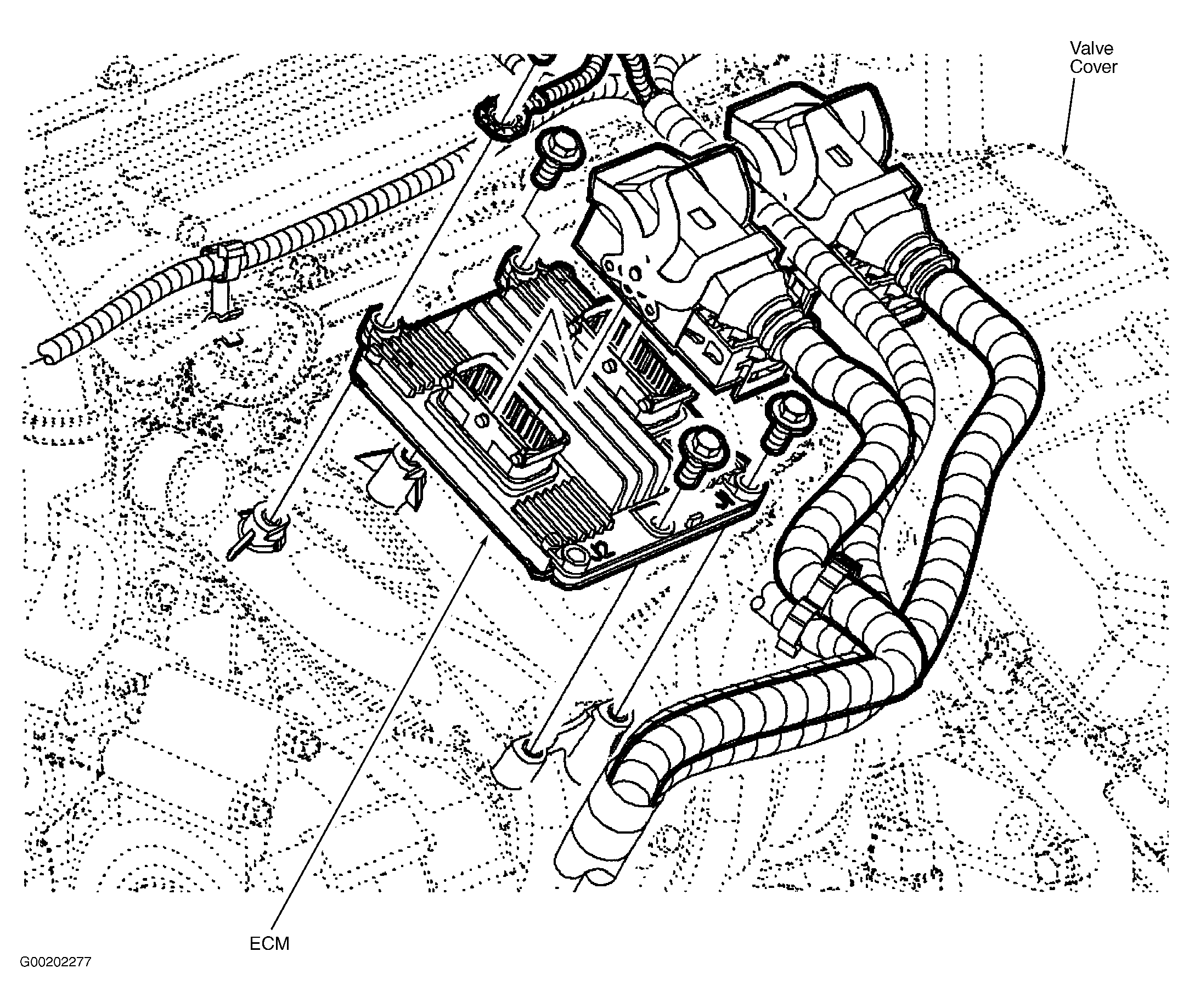

Fig 1: Locating Engine Control Module
Courtesy of GENERAL MOTORS CORP.

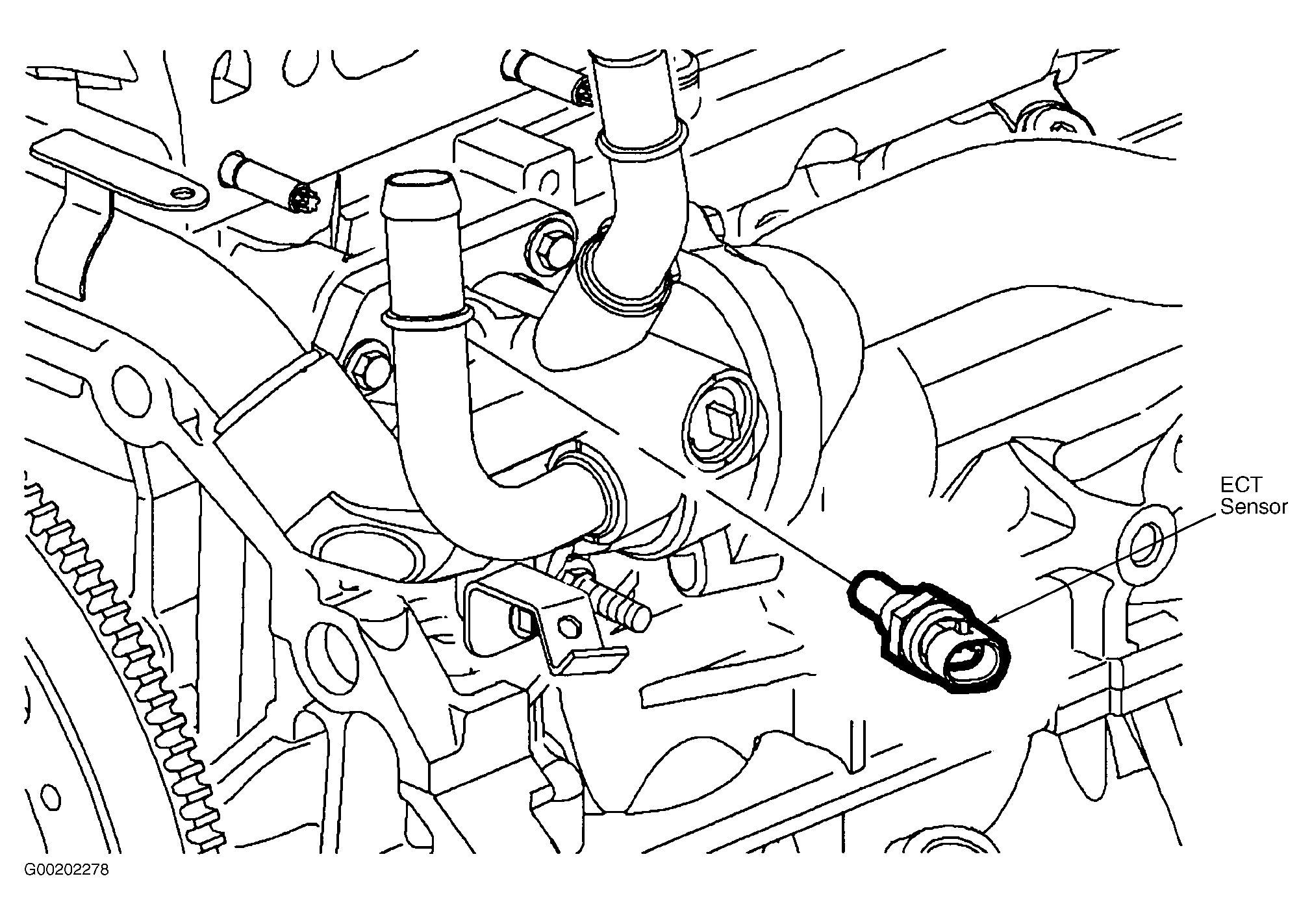

Fig 2: Locating Engine Coolant Temperature Sensor
Courtesy of GENERAL MOTORS CORP.

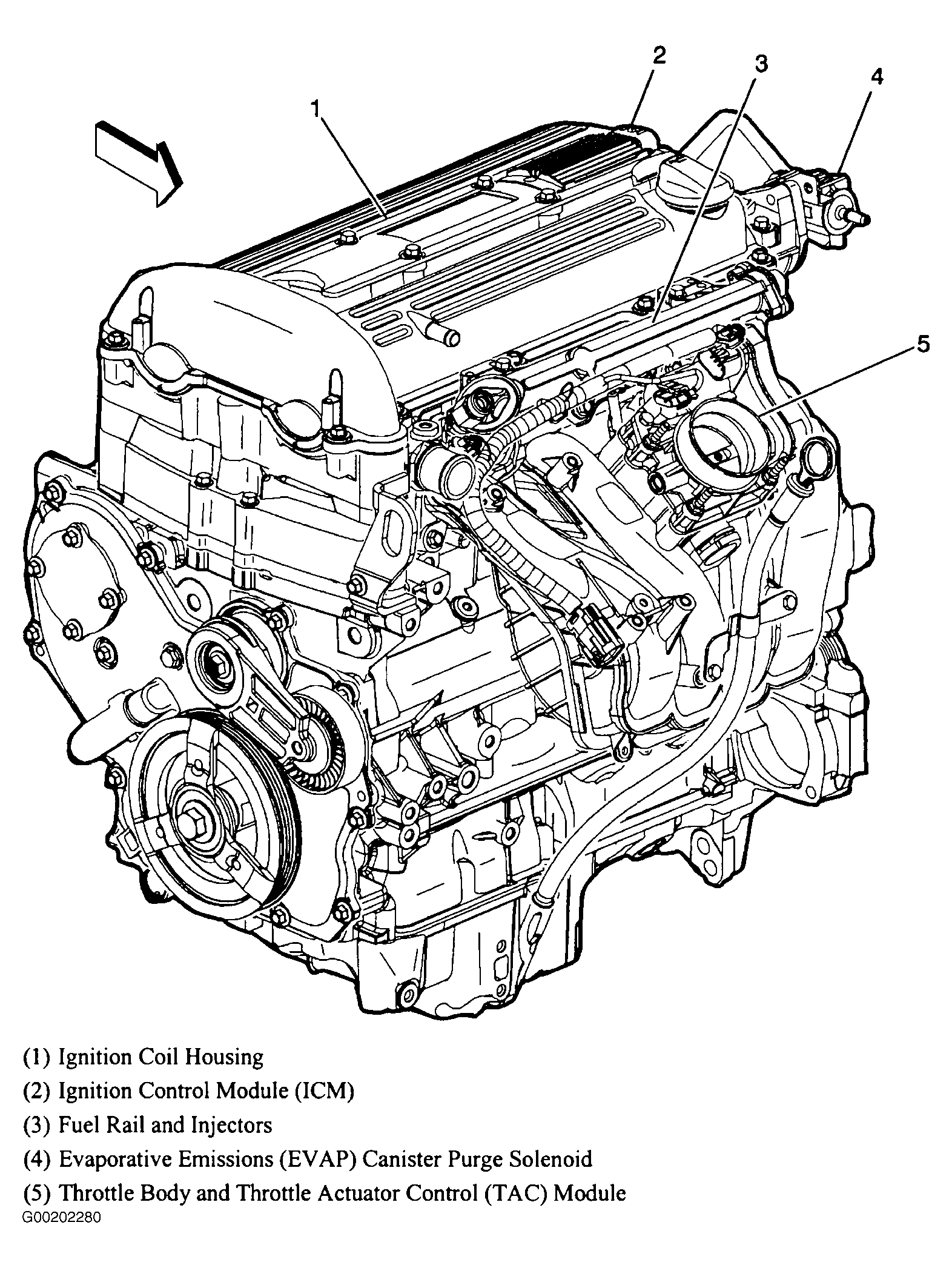

Fig 3: Locating Engine Control Components (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

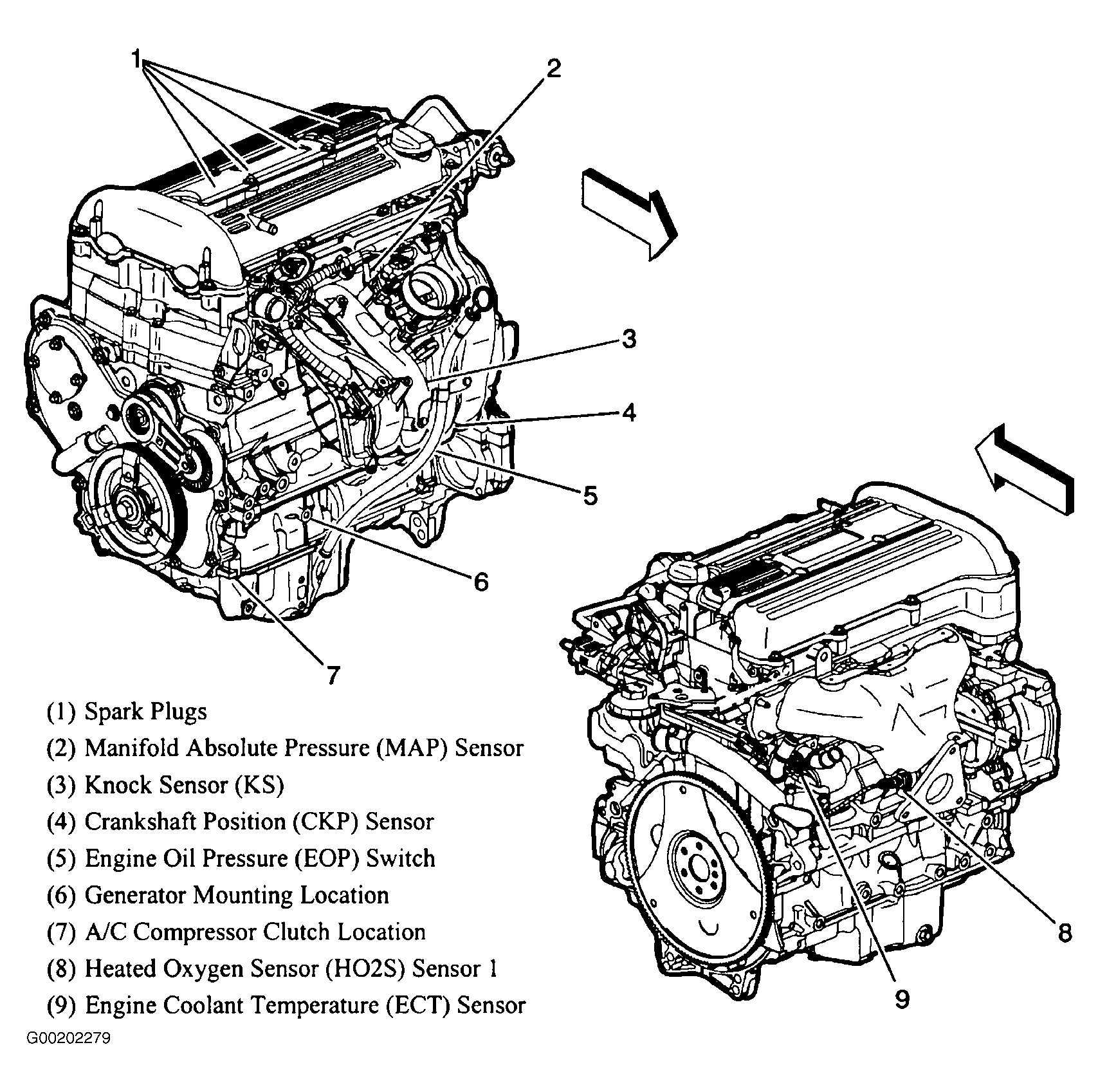

Fig 4: Locating Engine Control Components (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

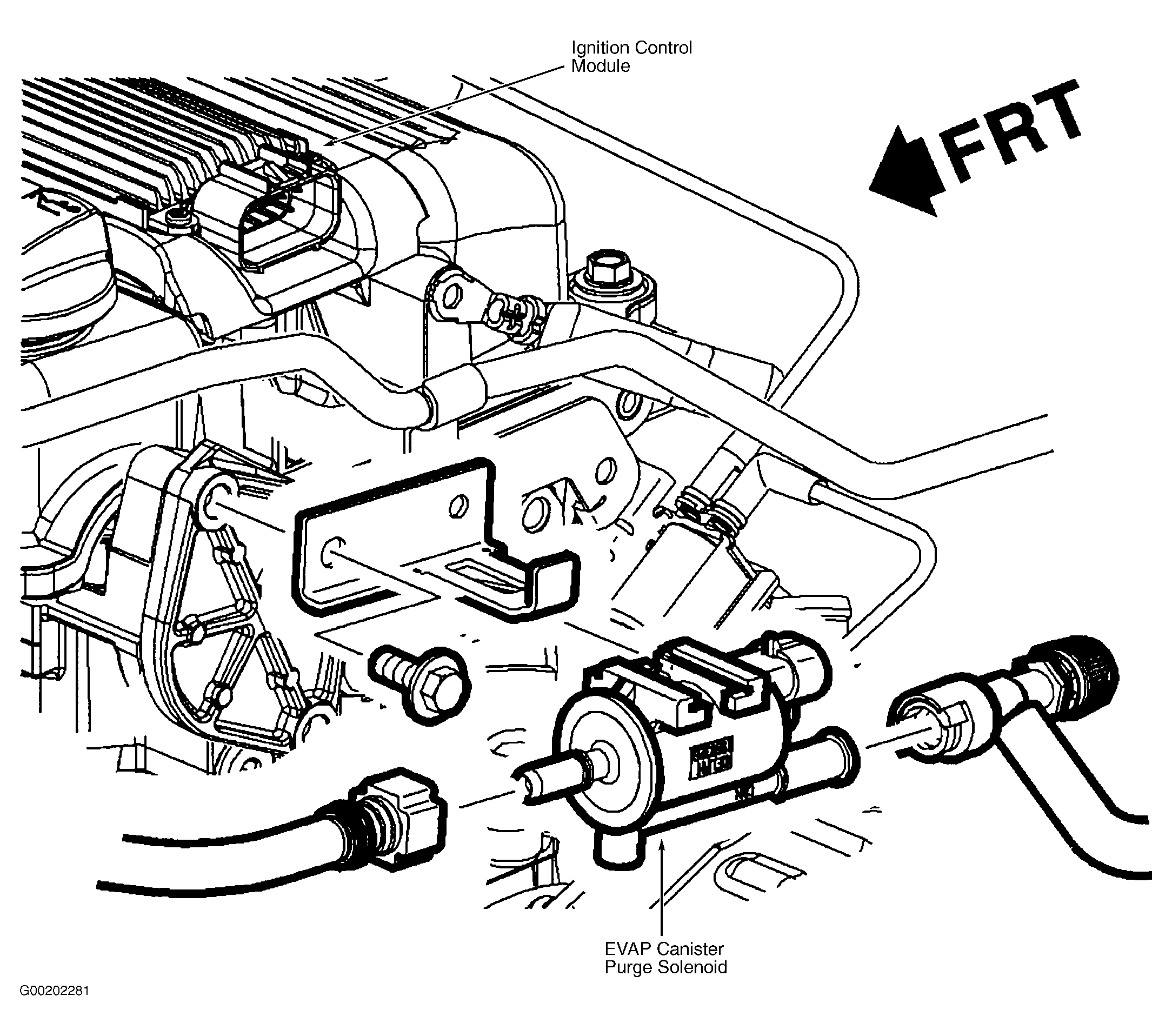

Fig 5: Locating EVAP Canister Purge Solenoid
Courtesy of GENERAL MOTORS CORP.

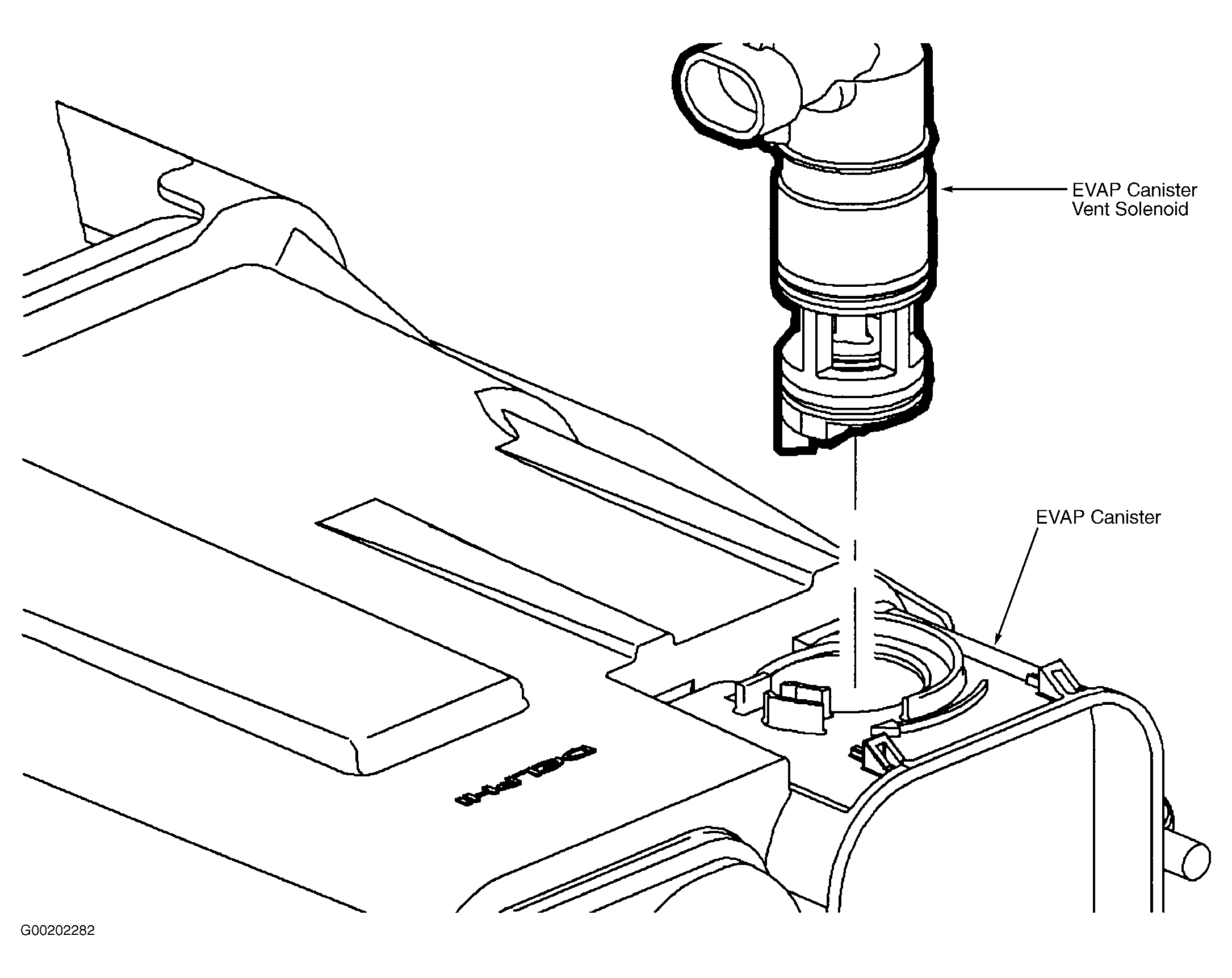

Fig 6: Locating EVAP Canister Vent Solenoid
Courtesy of GENERAL MOTORS CORP.
