Removal Procedure

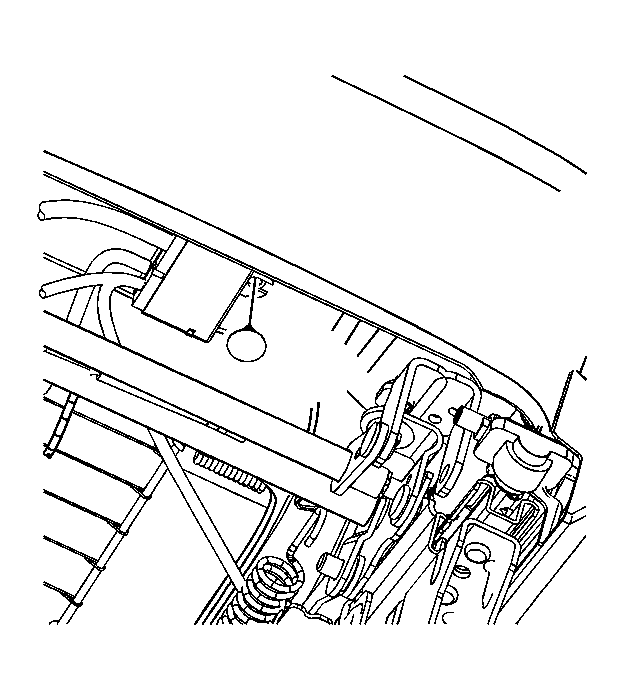

    Fig 1: Front Heated Seat Control Module
    GM1334488Courtesy of GENERAL MOTORS CORP.
  1. Remove the heated seat module retainer.

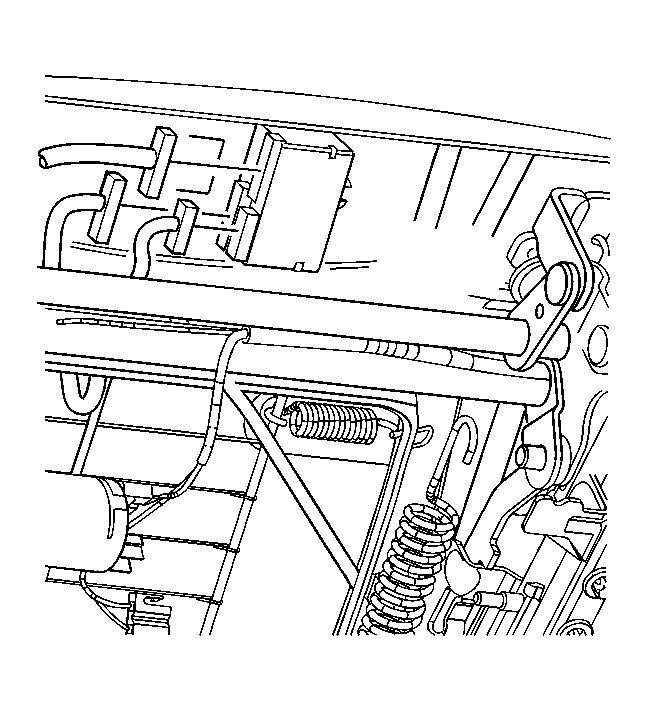

    2. Fig 2: Disconnecting Electrical Connectors From Heated Seat Module
    GM1334483Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connectors from the heated seat module.

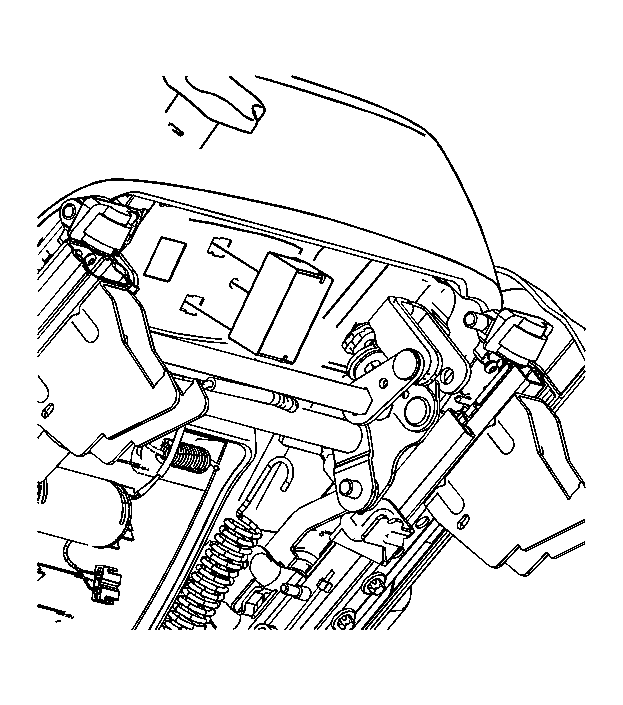

    3. Fig 3: Seat Module
    GM1334494Courtesy of GENERAL MOTORS CORP.
  3. Remove the module.
