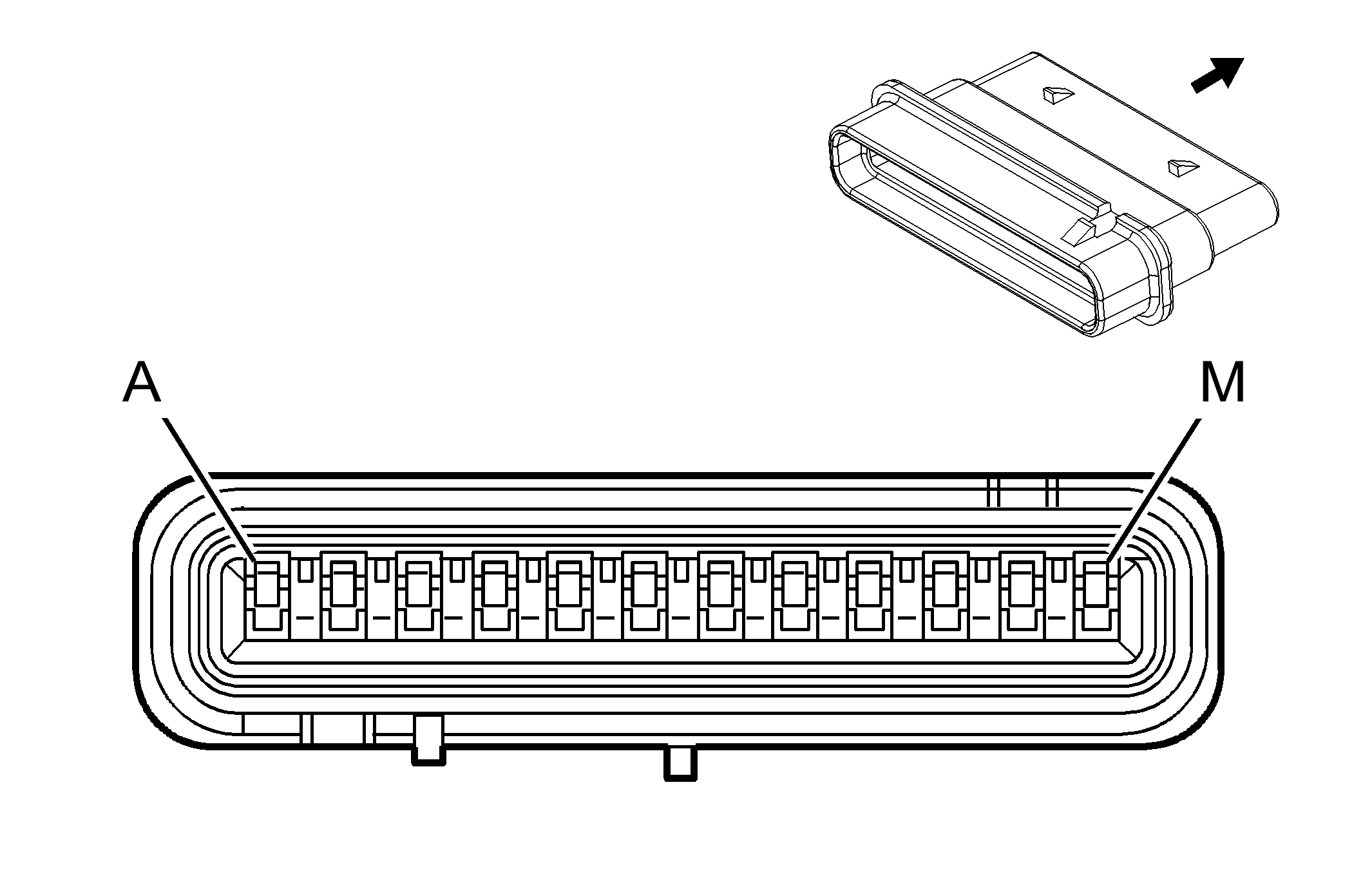

Splice Pack Connector End View SP105
Splice Pack SP105
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 12191900
- 12-Way F Metri-Pack 280 Splice Saver (BK)
|
| Pin |
Wire Color |
Circuit Number |
Function |
| A-E |
PU/WH |
652 |
Low Reference |
| F |
- |
- |
Not Used |
| G-H |
PU/WH |
652 |
Low Reference |
| J-M |
- |
- |
Not Used |
