DTC C0241: Notes

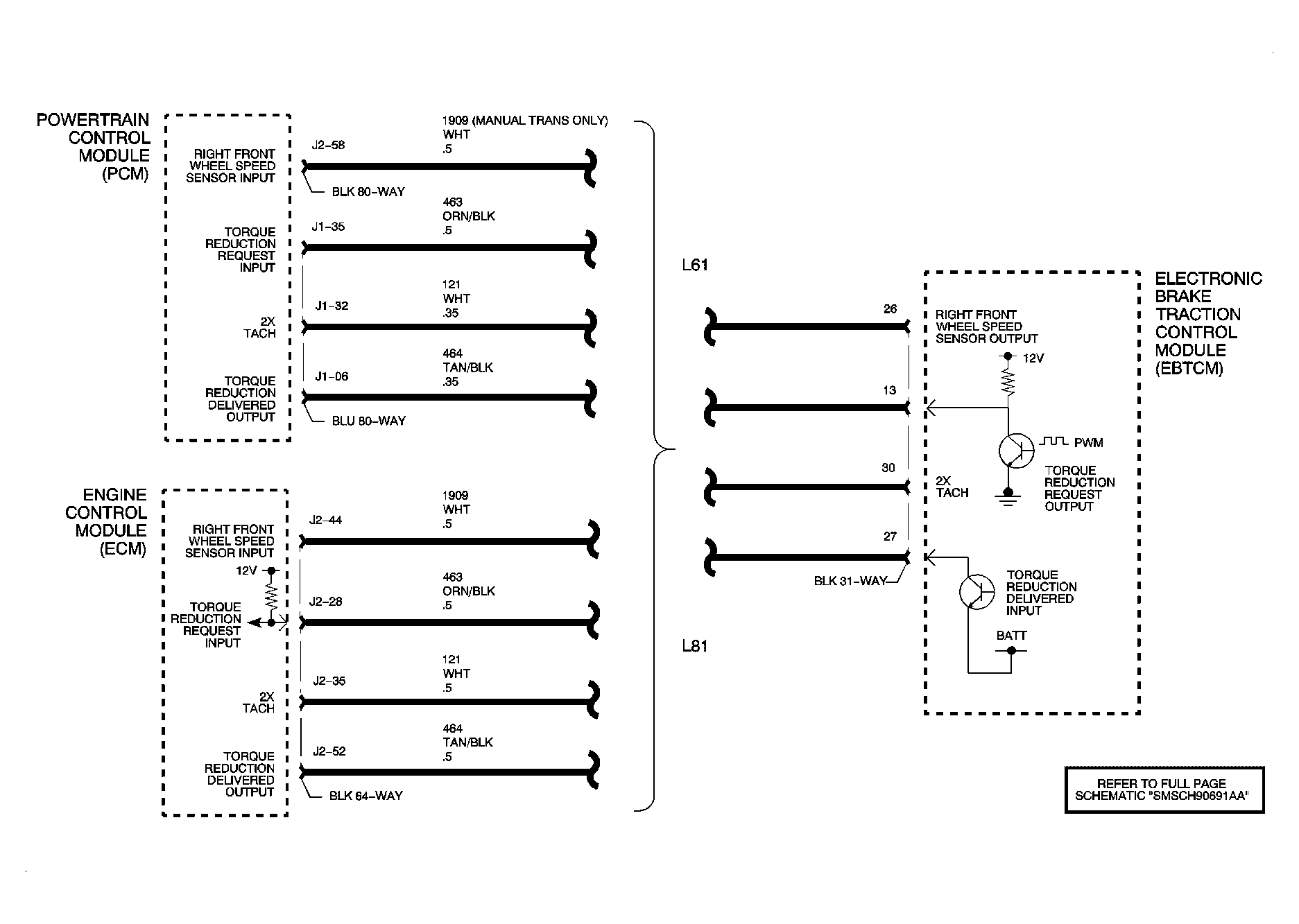

Fig 1: Powertrain Control Module/Engine Control Module (PCM/ECM)-To-EBTCM Wiring Schematic

GM896162

Courtesy of GENERAL MOTORS CORP.
