DTC B0827: Notes

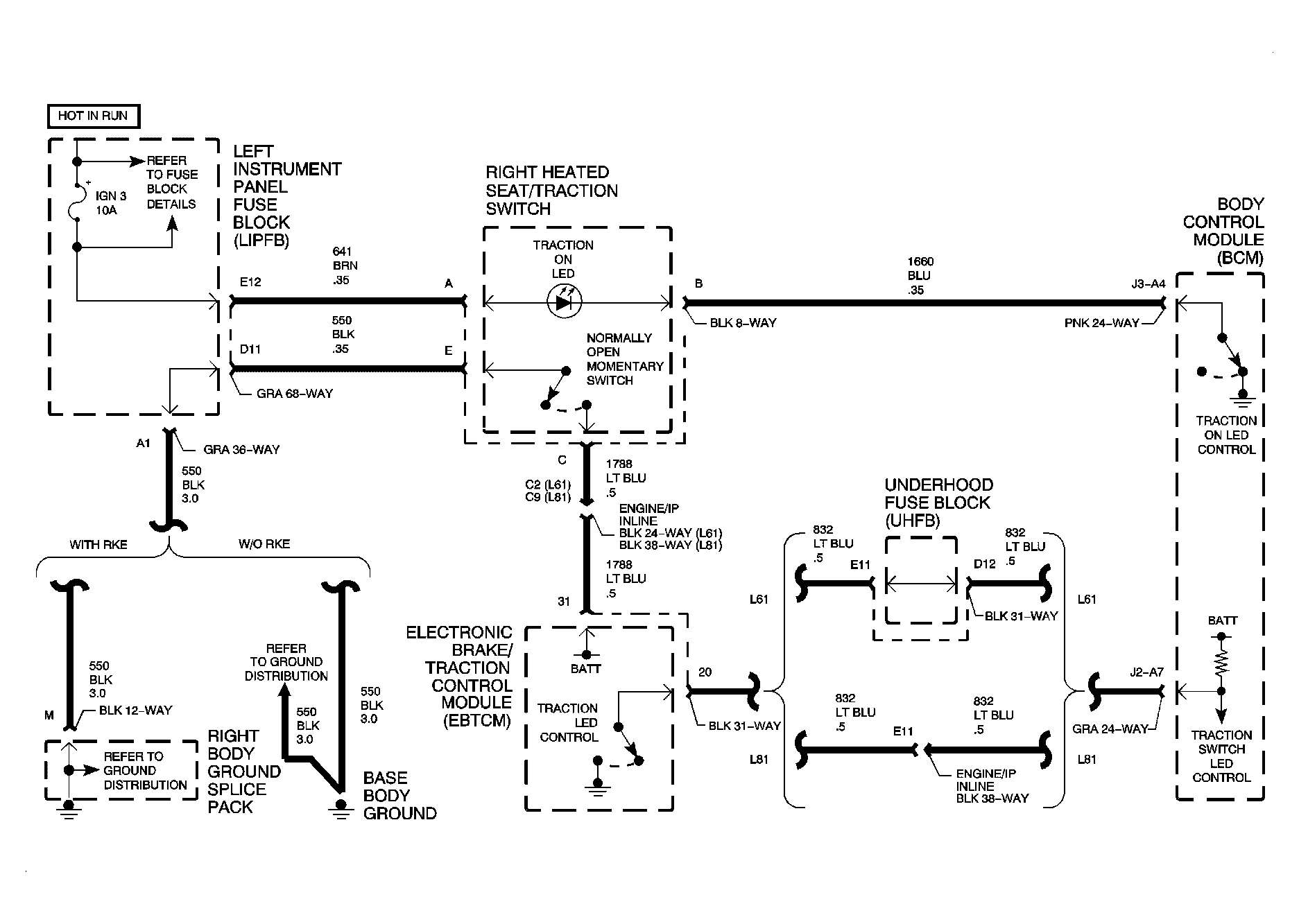

Fig 1: Traction Control Switch Wiring Schematic
GM889908Courtesy of GENERAL MOTORS CORP.
