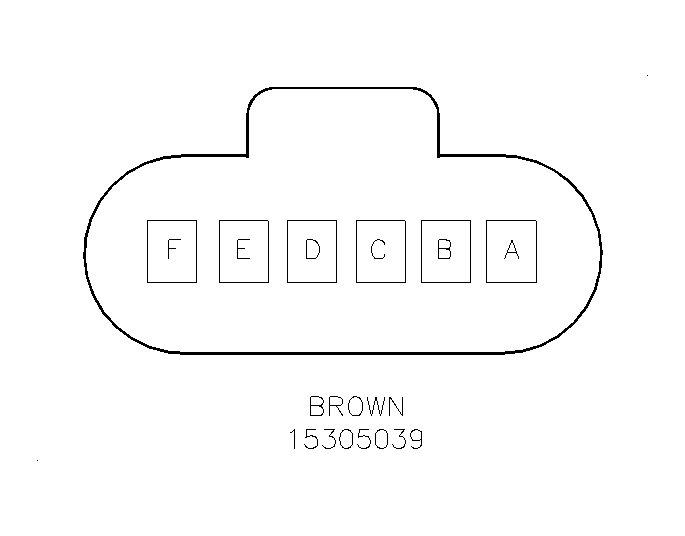

Cooling Fan Control Module Connector End View C1
Cooling Fan Control Module C1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | BK | 150 | Ground |
| B | OG | 532 | Cooling Fan Motor Supply Voltage |
| C | PNK | 839 | Ignition 1 Voltage |
| D | RD (2.2L)/ PU (3.0L) | 202 | Battery Positive Voltage |
| E | OG | 521 | Medium Speed Cooling Fan Motor Supply Voltage |
| F | - | - | Not Used |
