Wiper/Washer System Component Views

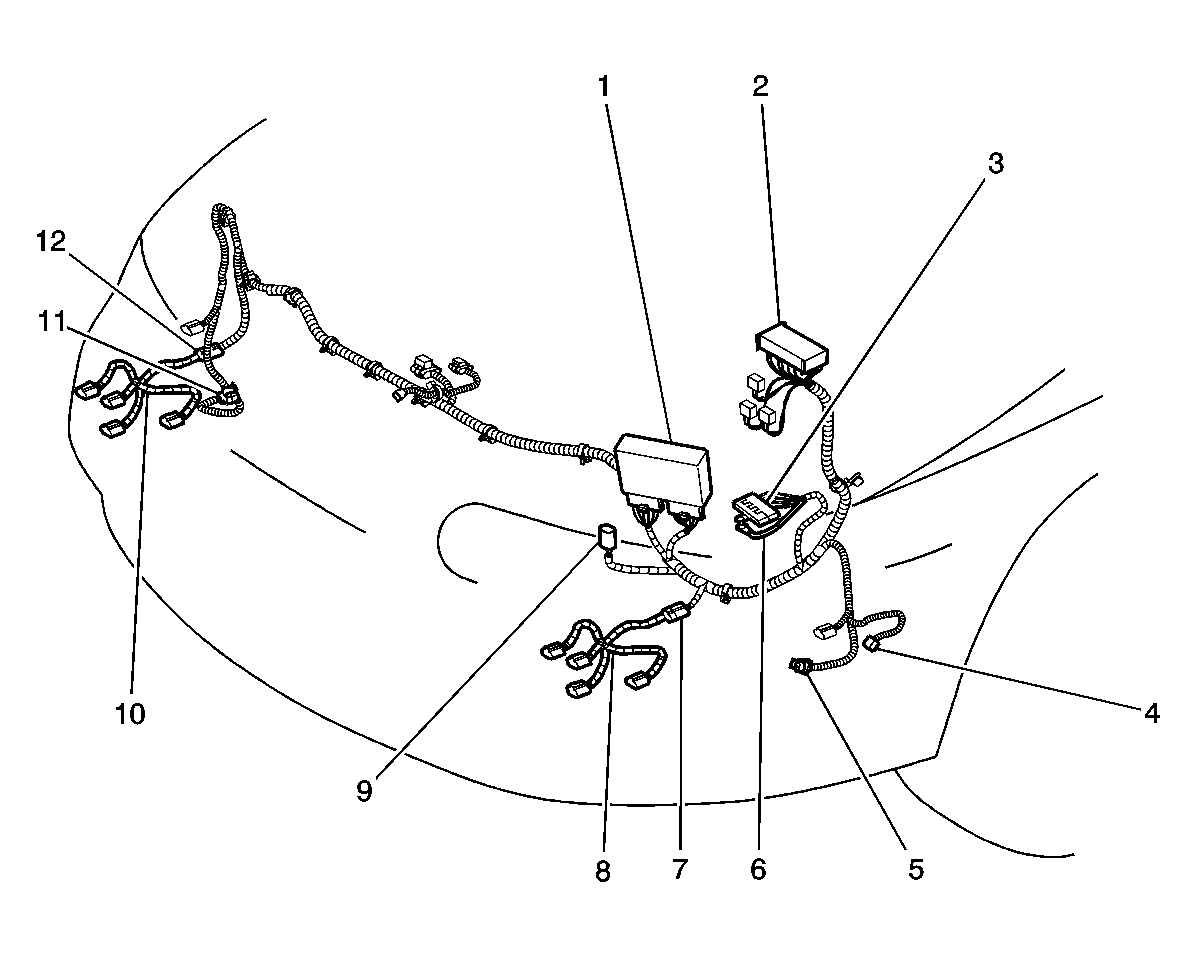

| Callout | Component Name |
|---|---|
| 1 | Cooling Fan Control Module |
| 2 | Fuse Block - Underhood |
| 3 | SP103 |
| 4 | Windshield Washer Fluid Level Switch Connector |
| 5 | Windshield Washer Fluid Pump Connector |
| 6 | G105 |
| 7 | C103 |
| 8 | Left Headlamp Harness |
| 9 | Ambient Air Temperature Sensor Connector |
| 10 | Right Headlamp Harness |
| 11 | Horn Connector |
| 12 | C102 |

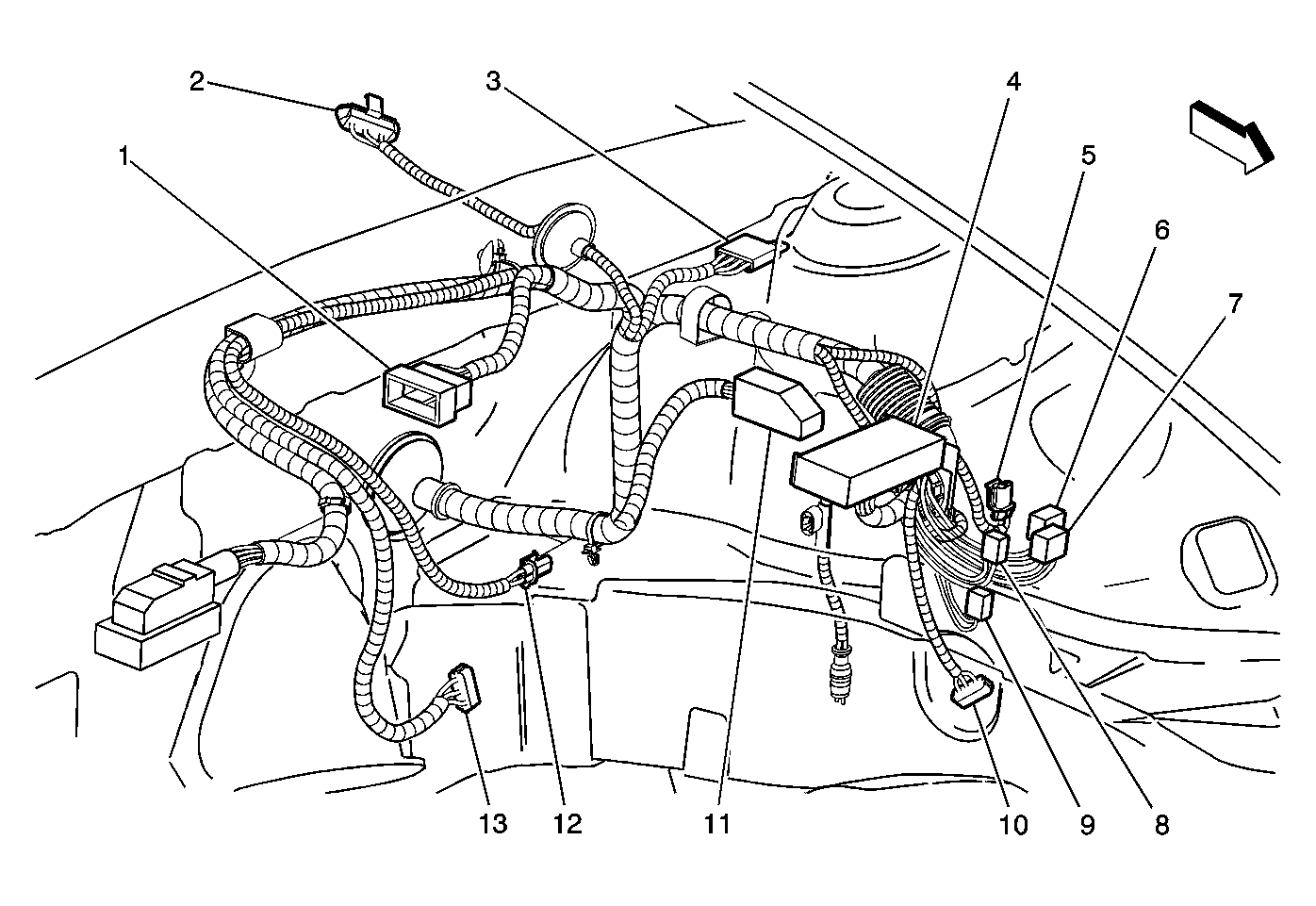

| Callout | Component Name |
|---|---|
| 1 | Cruise Control Module (CCM) |
| 2 | Windshield Wiper Motor Connector |
| 3 | SP191 |
| 4 | Fuse Block - Underhood |
| 5 | Coolant Level Switch |
| 6 | Cooling Fan Control Module C1 |
| 7 | Cooling Fan Control Module C2 |
| 8 | Daytime Running Lamp (DRL) Resistor |
| 9 | Windshield Washer Fluid Level Switch |
| 10 | G103 (SP103) |
| 11 | Electronic Brake Control Module (EBCM) |
| 12 | Brake Fluid Level Switch |
| 13 | C199 |

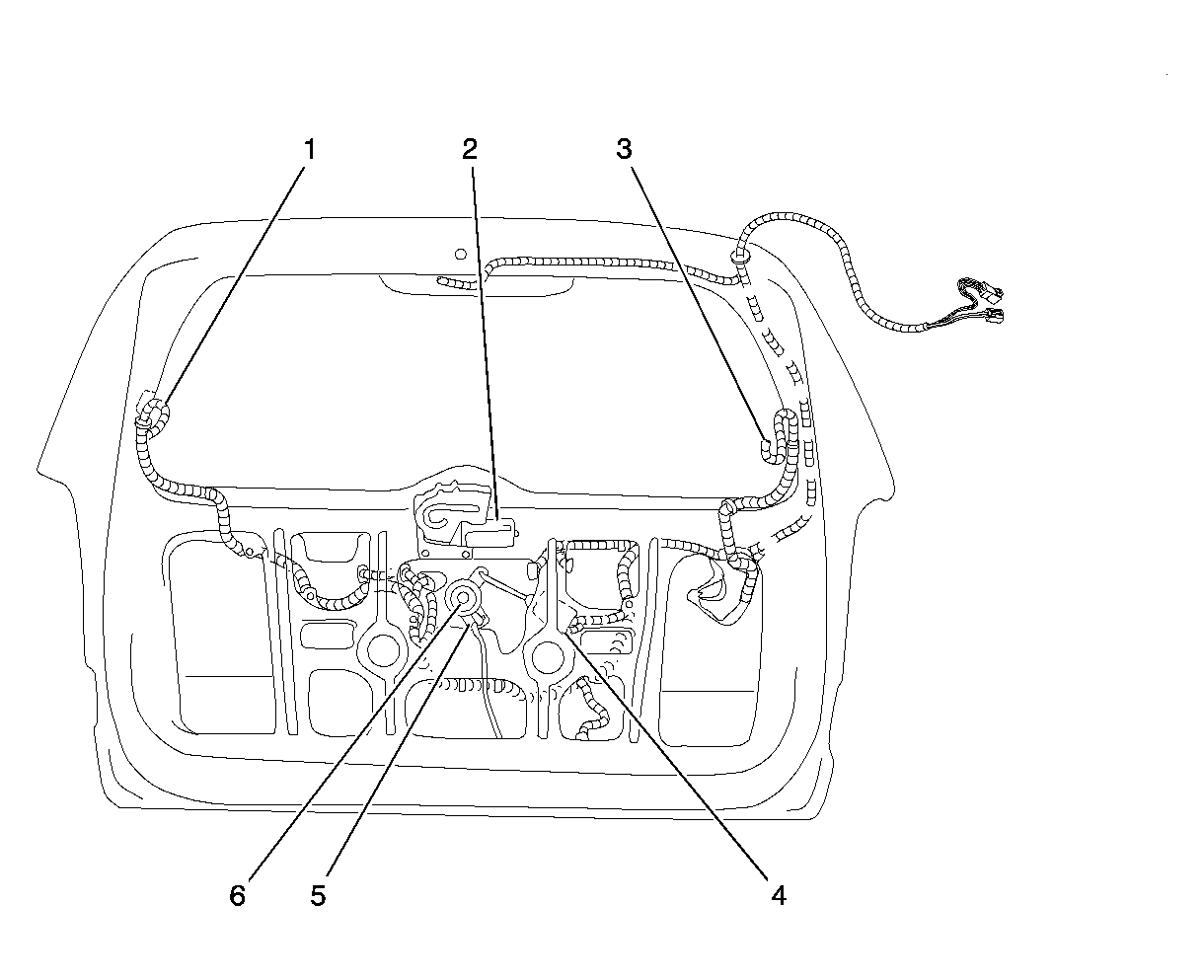

| Callout | Component Name |
|---|---|
| 1 | Rear Window Defogger Grid C2 |
| 2 | Wiper Motor- Rear |
| 3 | Rear Window Defogger Grid C1 |
| 4 | Liftgate Release Actuator |
| 5 | Liftgate Ajar Switch |
| 6 | Liftgate Key Cylinder |

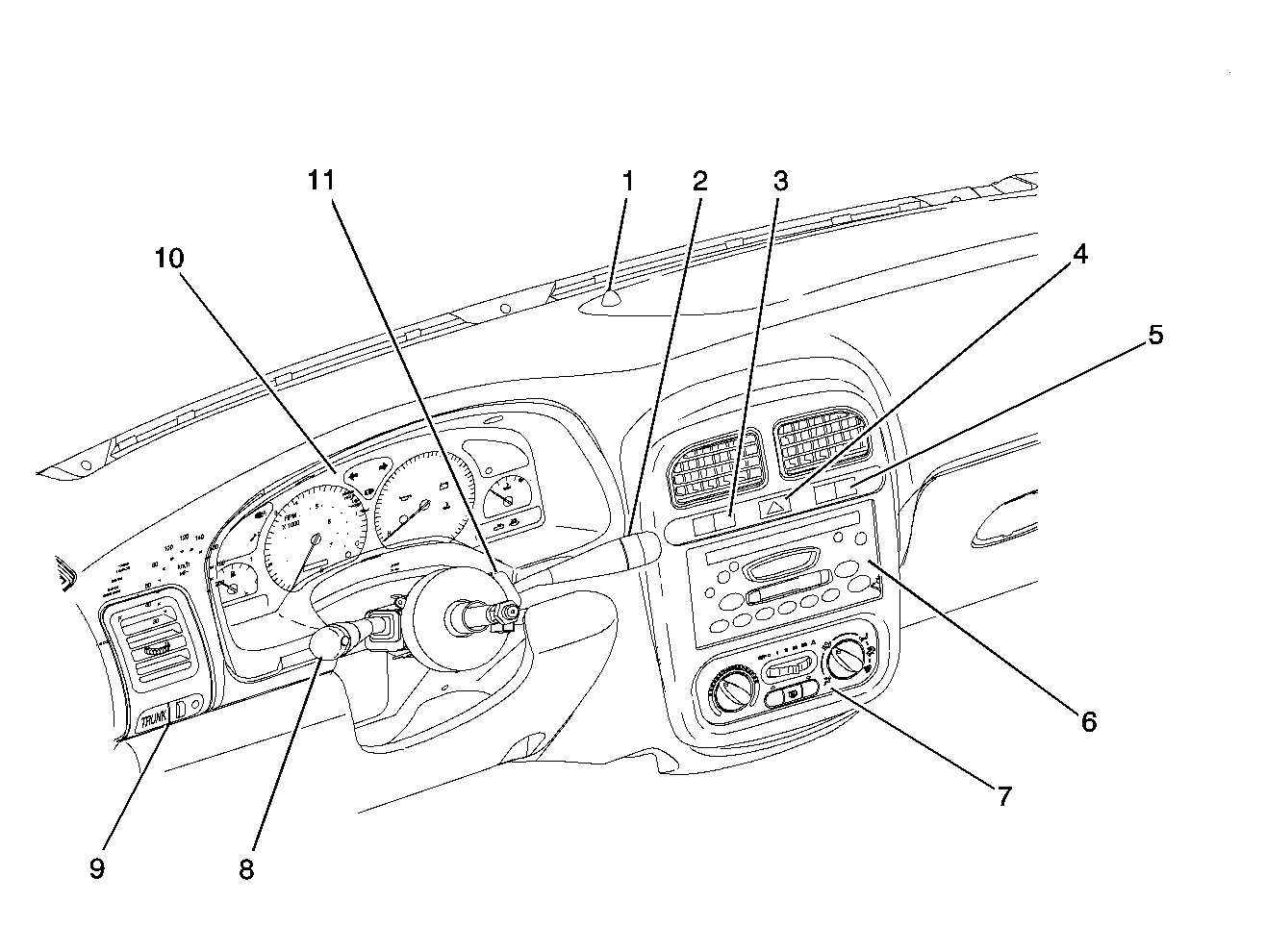

| Callout | Component Name |
|---|---|
| 1 | Ambient Light Sensor |
| 2 | Windshield Wiper/Washer Switch |
| 3 | Left Heated Seat/Fog Lamp Switch |
| 4 | Hazard Switch |
| 5 | Right Heated Seat/Traction Switch |
| 6 | Radio |
| 7 | HVAC Control Module |
| 8 | Headlamp/Turn Signal Switch |
| 9 | Dimmer/Rear Compartment Lid Release Switch |
| 10 | Instrument Panel Cluster (IPC) |
| 11 | Ignition Lock Cylinder Solenoid |
