Home >> Saturn >> 2003 >> L300 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics >> Diagnostic Tests >> DTC P0446: EVAP Vent System Performance >> Diagnostic Procedure

Diagnostic Procedure

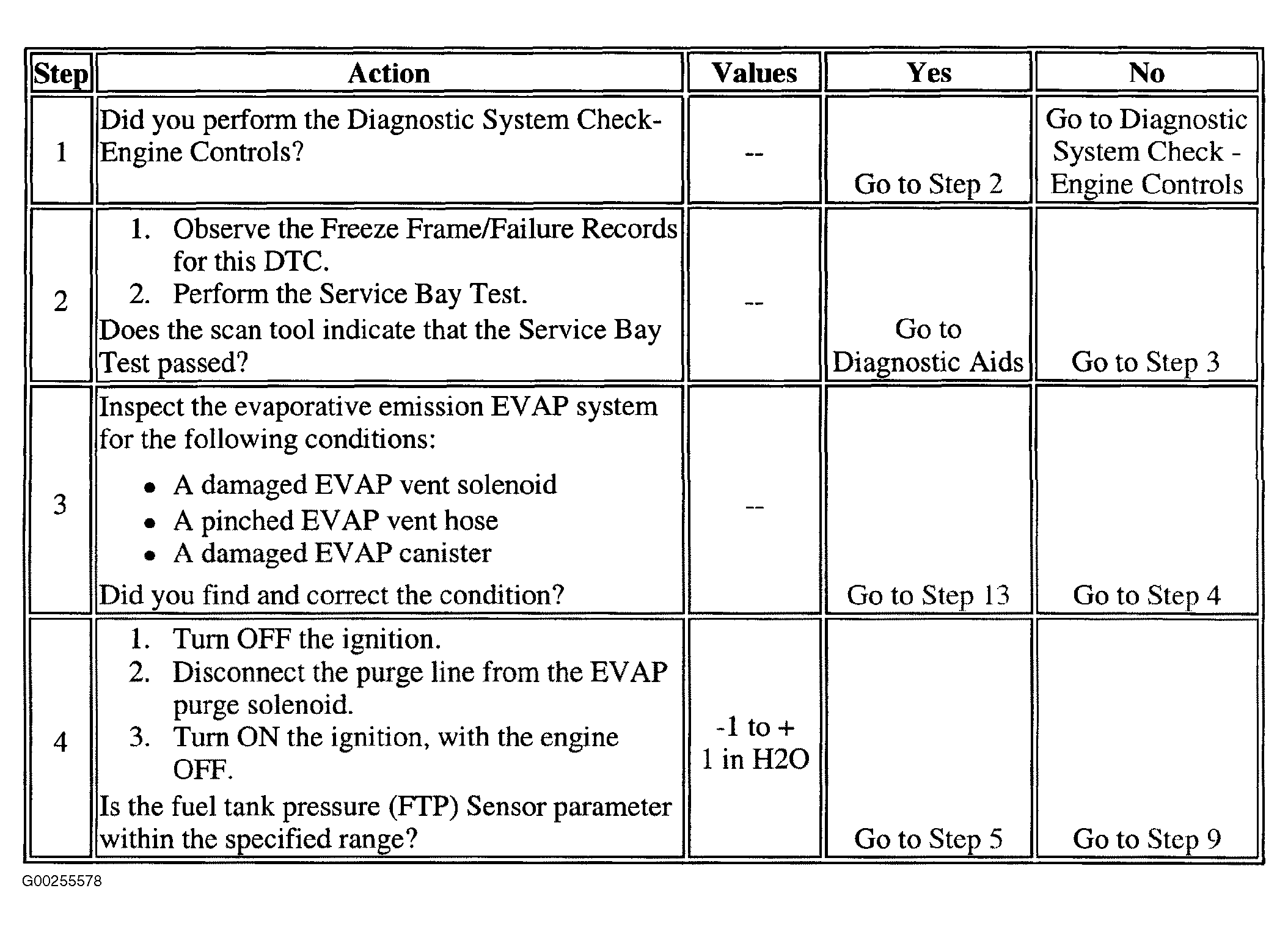

Fig 1: DTC P0446: EVAP Vent System Performance (Steps 1-4)
G00255578Courtesy of GENERAL MOTORS CORP.

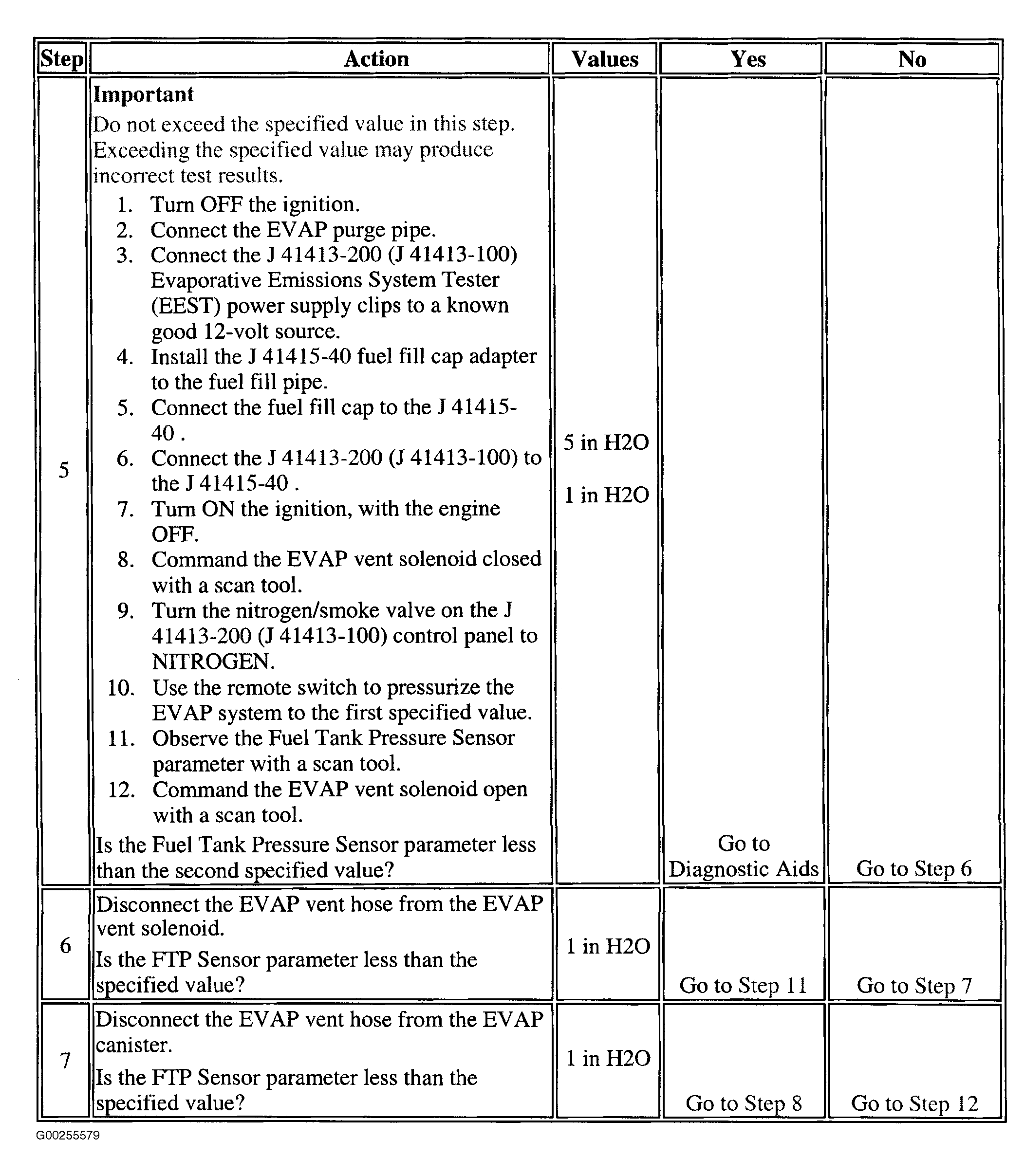

Fig 2: DTC P0446: EVAP Vent System Performance (Steps 5-7)
G00255579Courtesy of GENERAL MOTORS CORP.

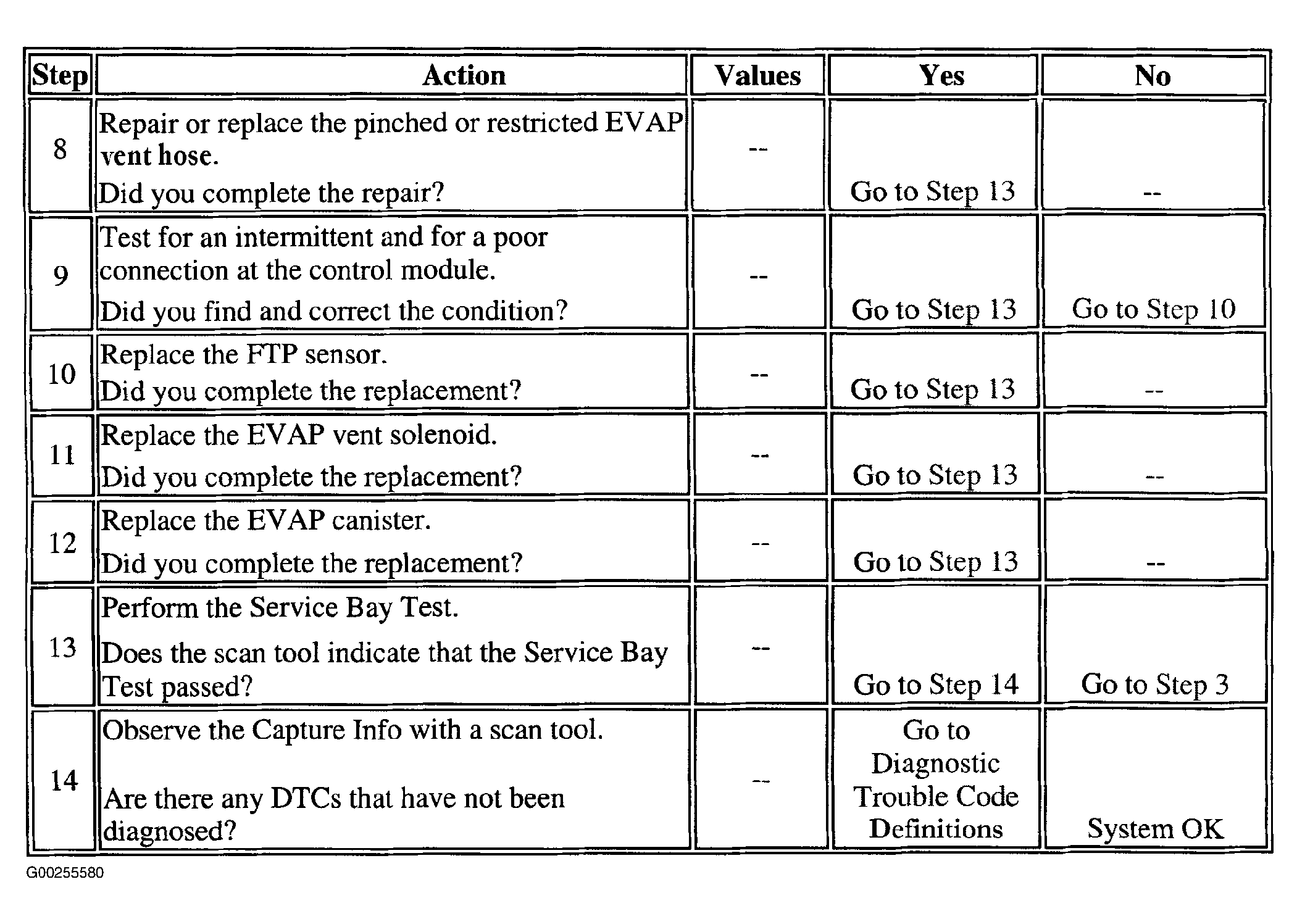

Fig 3: DTC P0446: EVAP Vent System Performance (Steps 8-14)
G00255580Courtesy of GENERAL MOTORS CORP.
