Installation Procedure

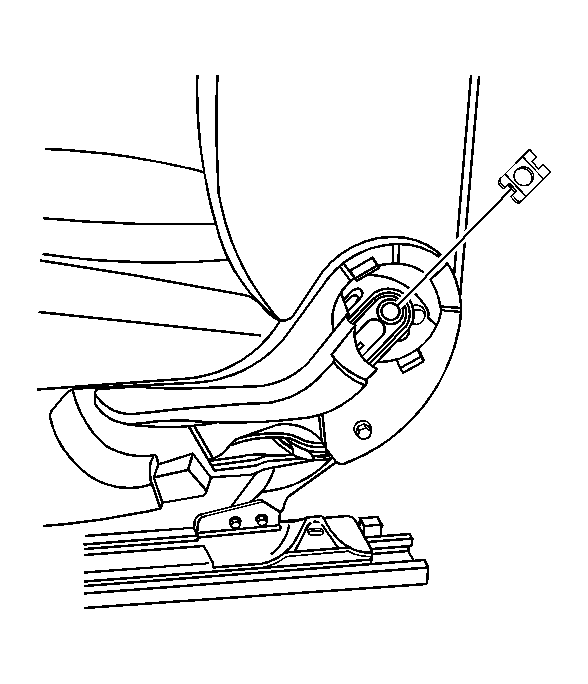

    Fig 1: Removing & Installing Recliner Handle Retainer
    GM1199363Courtesy of GENERAL MOTORS CORP.
  1. Install the recliner handle.
  2. Install the retainer to the recliner handle.
    3. Fig 2: Installing Front Seat Shoulder Belt
    GM896651Courtesy of GENERAL MOTORS CORP.
  3. Install the recliner trim panel.
