Installation Procedure

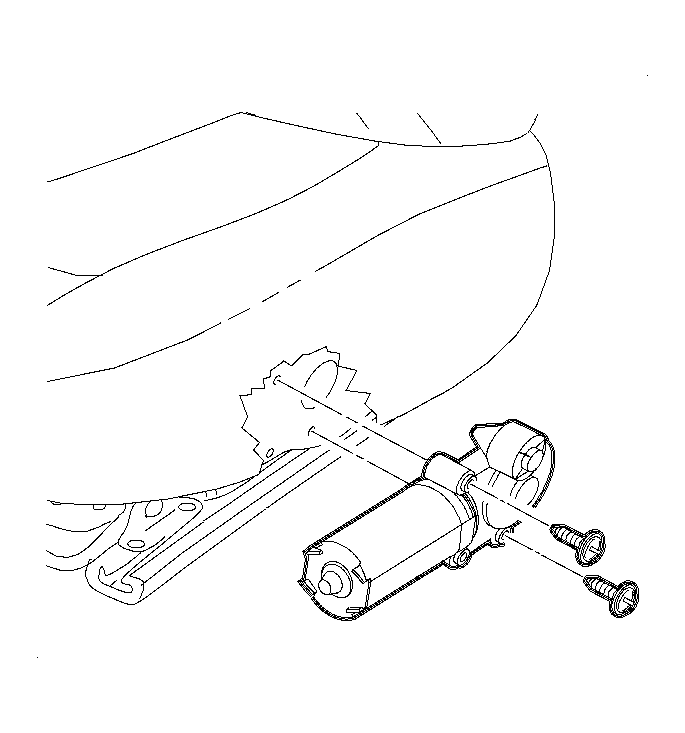

    Fig 1: Removing & Installing Power Seat Height Adjuster Motor
    GM897056Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connection to the seat height adjuster motor.
  2. Position the seat height adjuster motor to the seat adjuster while pushing on the seat cushion to align the motor gears to the seat adjuster.
    3. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the fasteners.

    Tighten:  Tighten the power seat height adjuster motor-to-seat adjuster fasteners to 2.5 N.m (22 lb in).

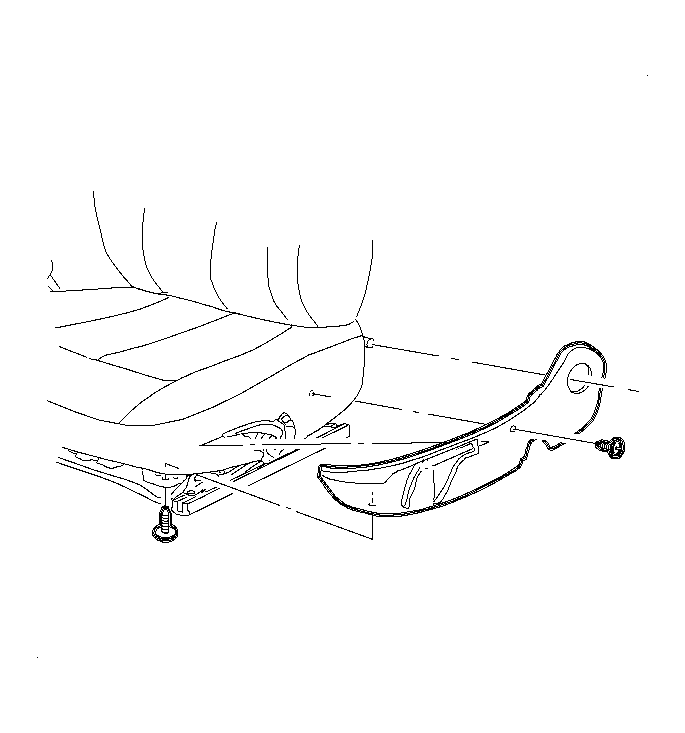

    4. Fig 2: Removing & Installing Recliner Finish Panel
    GM897009Courtesy of GENERAL MOTORS CORP.
  4. Install the outer valance with the fasteners.
