Installation Procedure

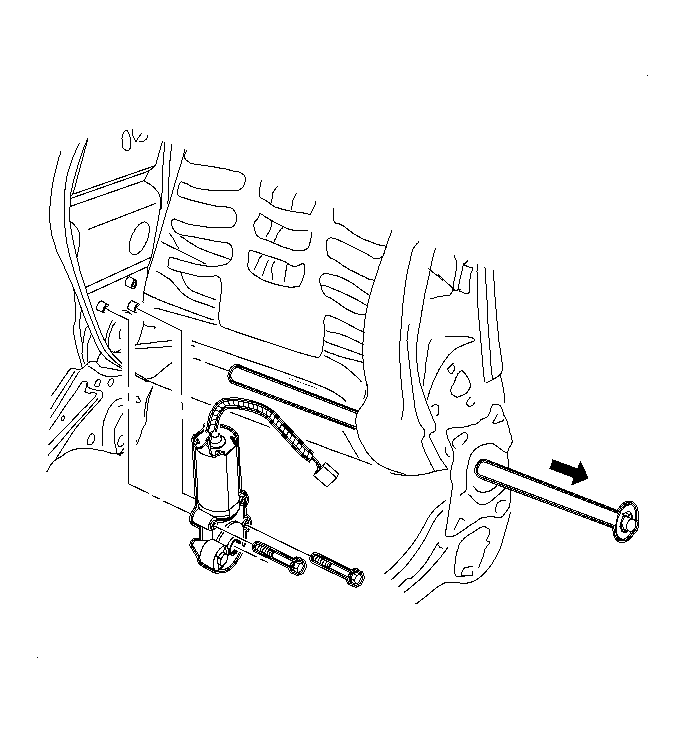

    Fig 1: Removing & Installing Actuator Shaft & Recliner Actuator Motor
    GM897014Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the recliner actuator motor and the fasteners.

    Tighten:  Tighten the fasteners to 6 N.m (53 lb in).

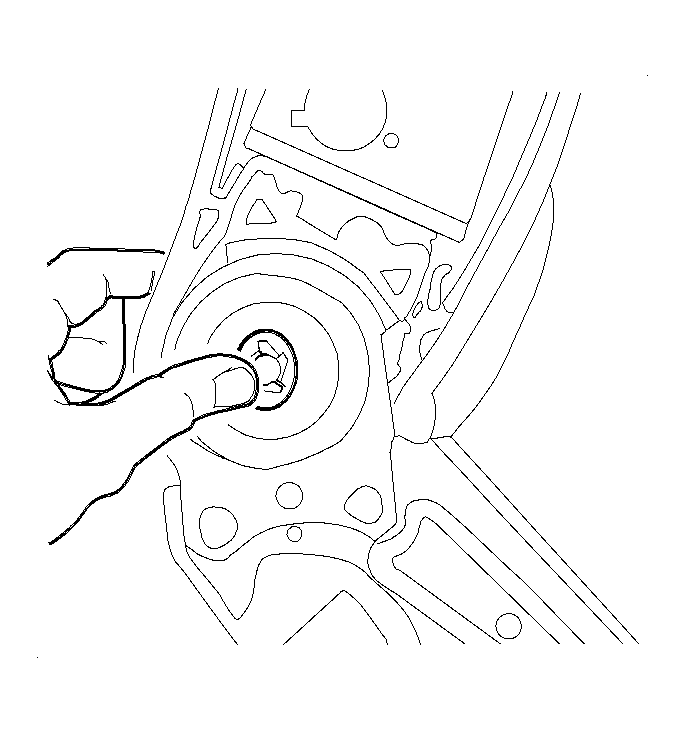

    2. Fig 2: Installing Recliner Actuator Shaft Pal Nut
    GM897061Courtesy of GENERAL MOTORS CORP.
  2. Install the actuator shaft to the seat back recliner and secure with the pal nut.

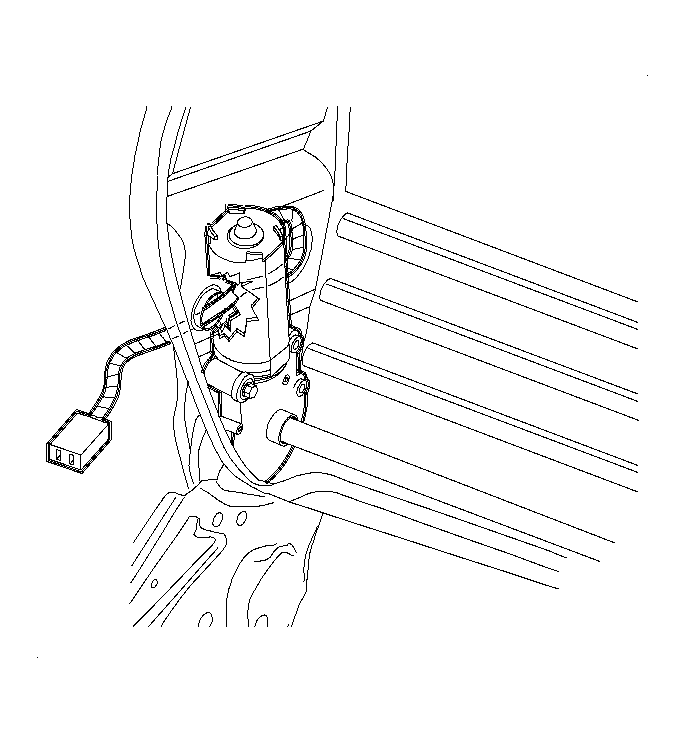

    3. Fig 3: Actuator Motor-To-Seat Back Power Recliner Electrical Connector
    GM897801Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connections to the actuator motor on the seat back power recliner.
  4. Install the seat back pad and cover. Refer to Seat Back Cover and Pad Replacement - Front .
    5. Fig 4: Removing/Installing Front Seat
    GM896861Courtesy of GENERAL MOTORS CORP.
  5. Install the front seat. Refer to Seat Replacement - Front Bucket .
