Installation Procedure

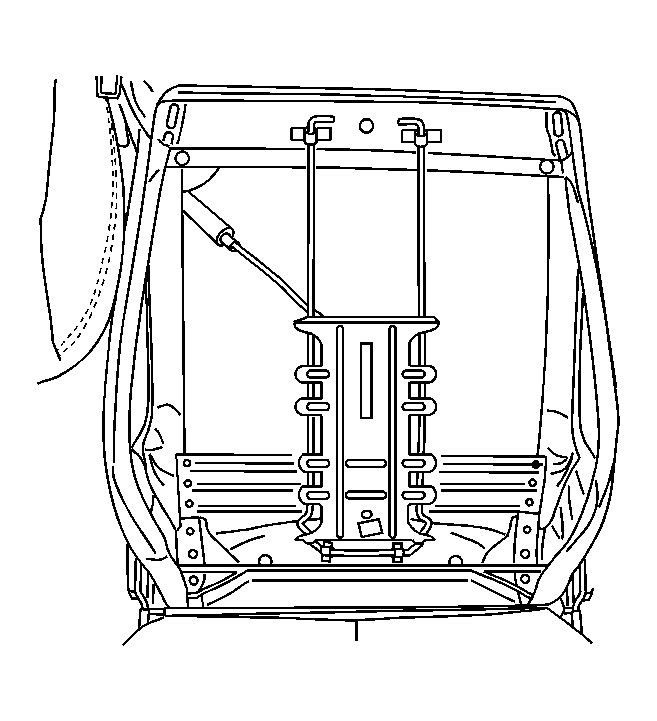

    Fig 1: Removing & Installing Lumbar Assembly
    GM1199331Courtesy of GENERAL MOTORS CORP.
  1. Install the lumbar assembly to the frame. Snap the wire retainers into place.

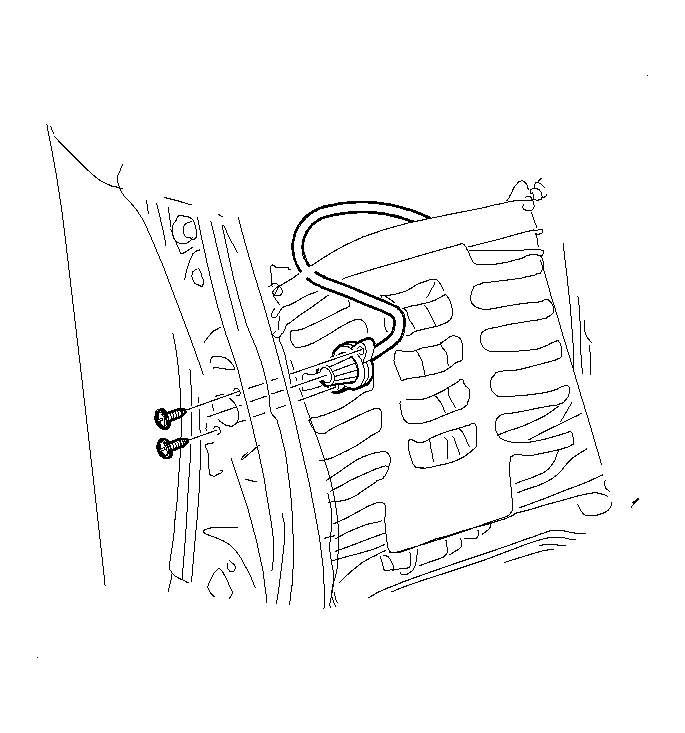

    2. Fig 2: Removing & Installing Lumbar Actuator Cable Screws
    GM897949Courtesy of GENERAL MOTORS CORP.
  2. Route the lumbar actuator cable and the actuator to the seat back frame.
    3. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the lumbar actuator with the fasteners.

    Tighten:  Tighten the fasteners to 3 N.m (27 lb in).

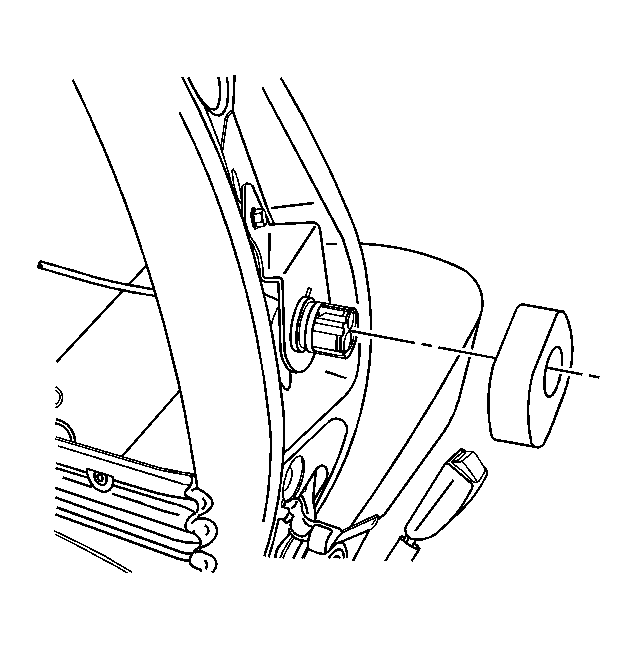

    4. Fig 3: Removing & Installing Lumbar Knob Spacer
    GM1199360Courtesy of GENERAL MOTORS CORP.
  4. Install the lumbar knob spacer.
  5. Install the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Front .
    6. Fig 4: Removing/Installing Front Seat
    GM896861Courtesy of GENERAL MOTORS CORP.
  6. Install the front seat assembly. Refer to Seat Replacement - Front Bucket .
