Installation Procedure

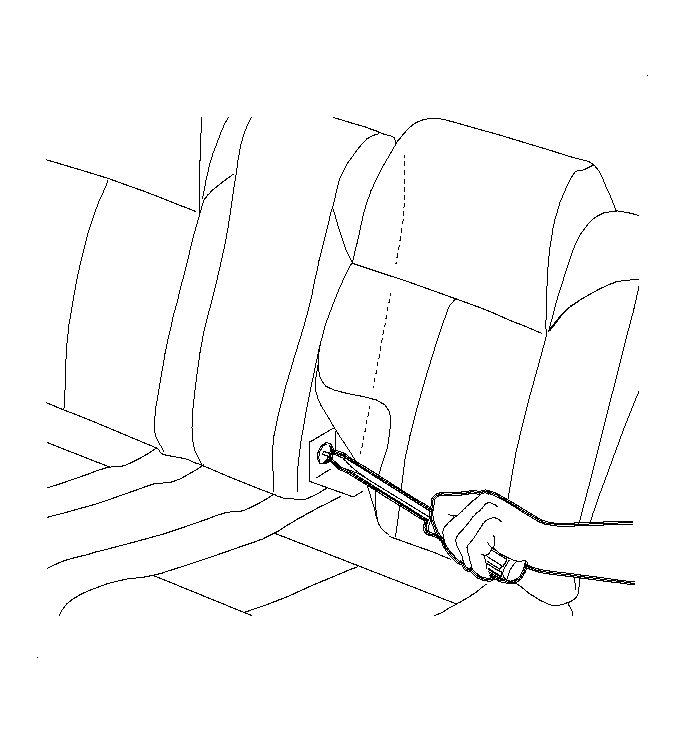

    Fig 1: Locating Center Arm Rest Fasteners
    GM897889Courtesy of GENERAL MOTORS CORP.
  1. Position the center arm rest to the rear seat back.
  2. Compress the seat back foam to expose the center arm rest bracket.
    3. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the seat center arm rest and secure the arm rest with the fasteners.

    Tighten:  Tighten the fasteners to 5 N.m (44 lb in).

  4. Remove the temporary protective tape from the seat back.
