Diagnostic Procedure

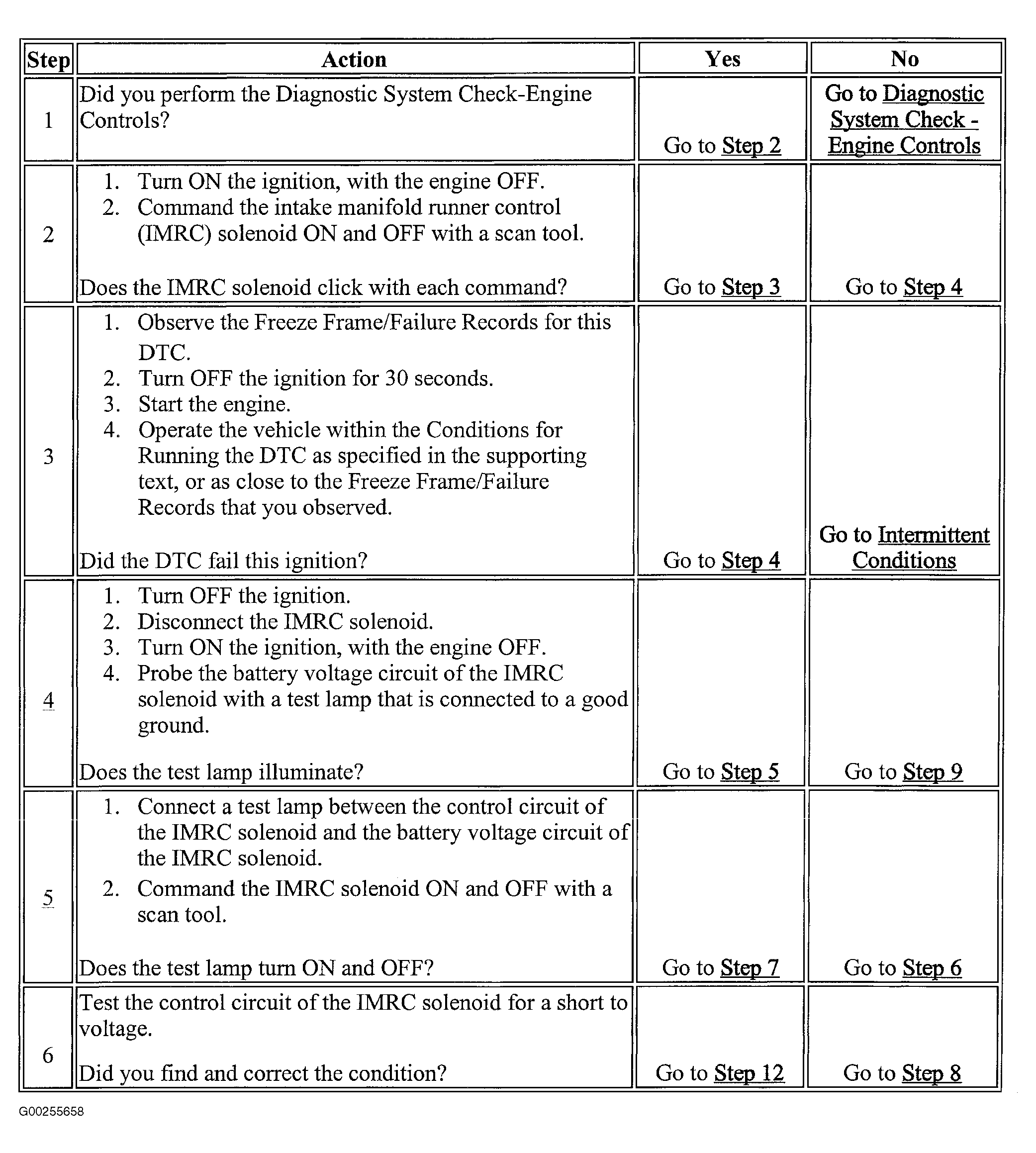

Fig 1: DTC P2008: Intake Manifold Runner Control (IMRC) Solenoid Control Circuit (Steps 1-6)
G00255658Courtesy of GENERAL MOTORS CORP.

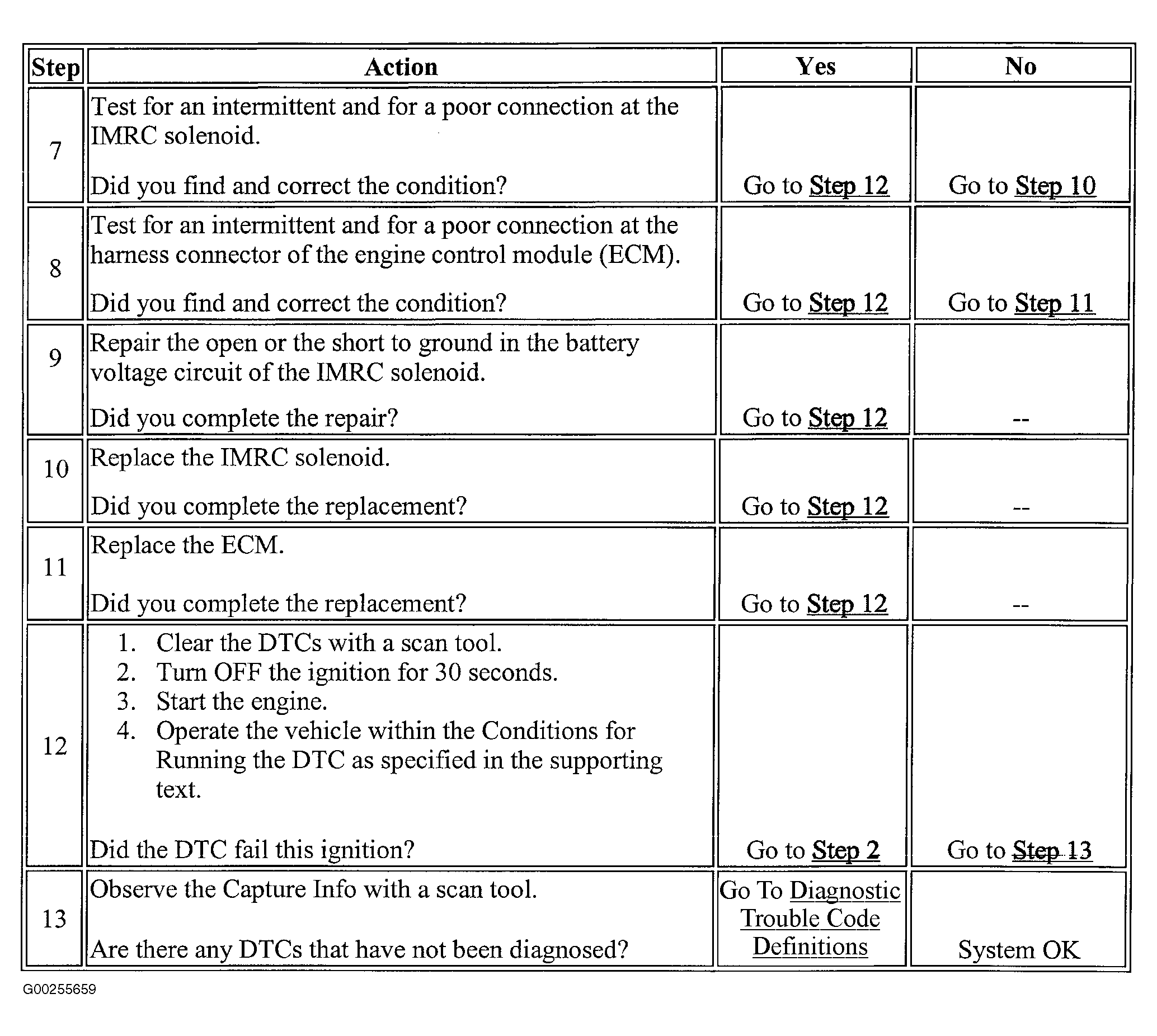

Fig 2: DTC P2008: Intake Manifold Runner Control (IMRC) Solenoid Control Circuit (Steps 7-13)
G00255659Courtesy of GENERAL MOTORS CORP.
