Home >> Saturn >> 2003 >> L200 Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transmission Servicing >> Removal & Installation >> Shift Control Boot >> Removal

Shift Control Boot: Removal

  1. Pull up on the control lever boot to disengage from the console.
  2. Cut the plastic tie strap that secures the boot to the shift lever. See Fig 1 .
  3. Remove the control lever boot.

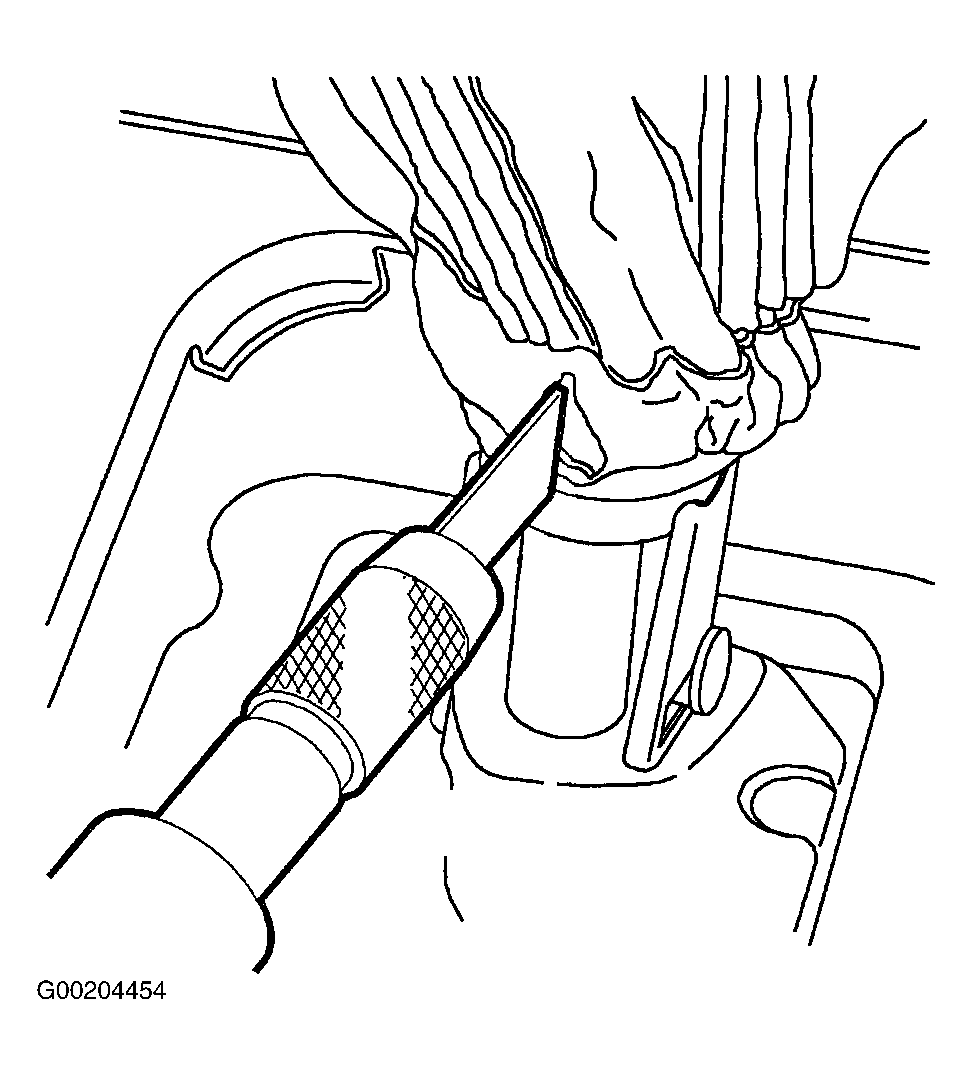

Fig 1: Removing Shift Control Boot
G00204454Courtesy of GENERAL MOTORS CORP.
