Shift Control Boot: Installation

  1. Install the boot assembly to the lever so the plastic tie strap is in the groove on the lever. See Fig 1 .
  2. Pull the tie strap tight with pliers.
  3. Pull the control lever boot down and snap the boot into the console opening.

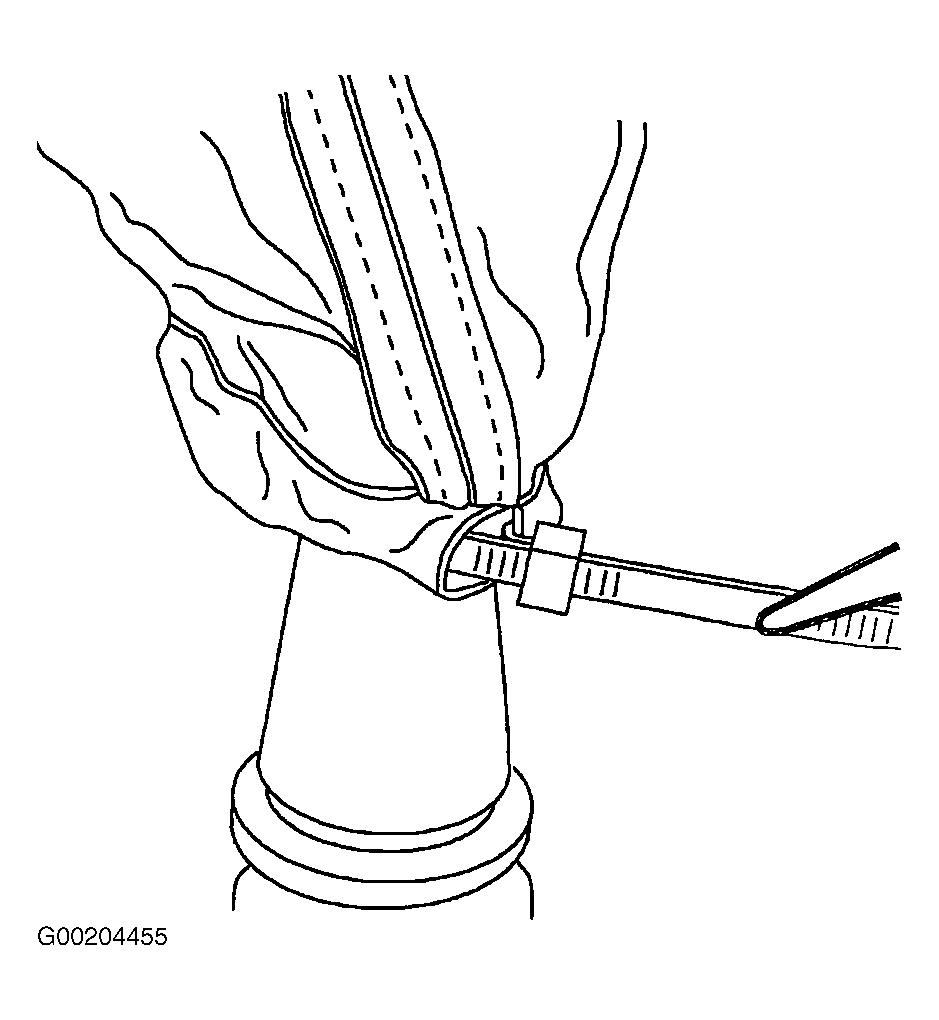

Fig 1: Installing Shift Control Boot
G00204455Courtesy of GENERAL MOTORS CORP.
