Installation Procedure

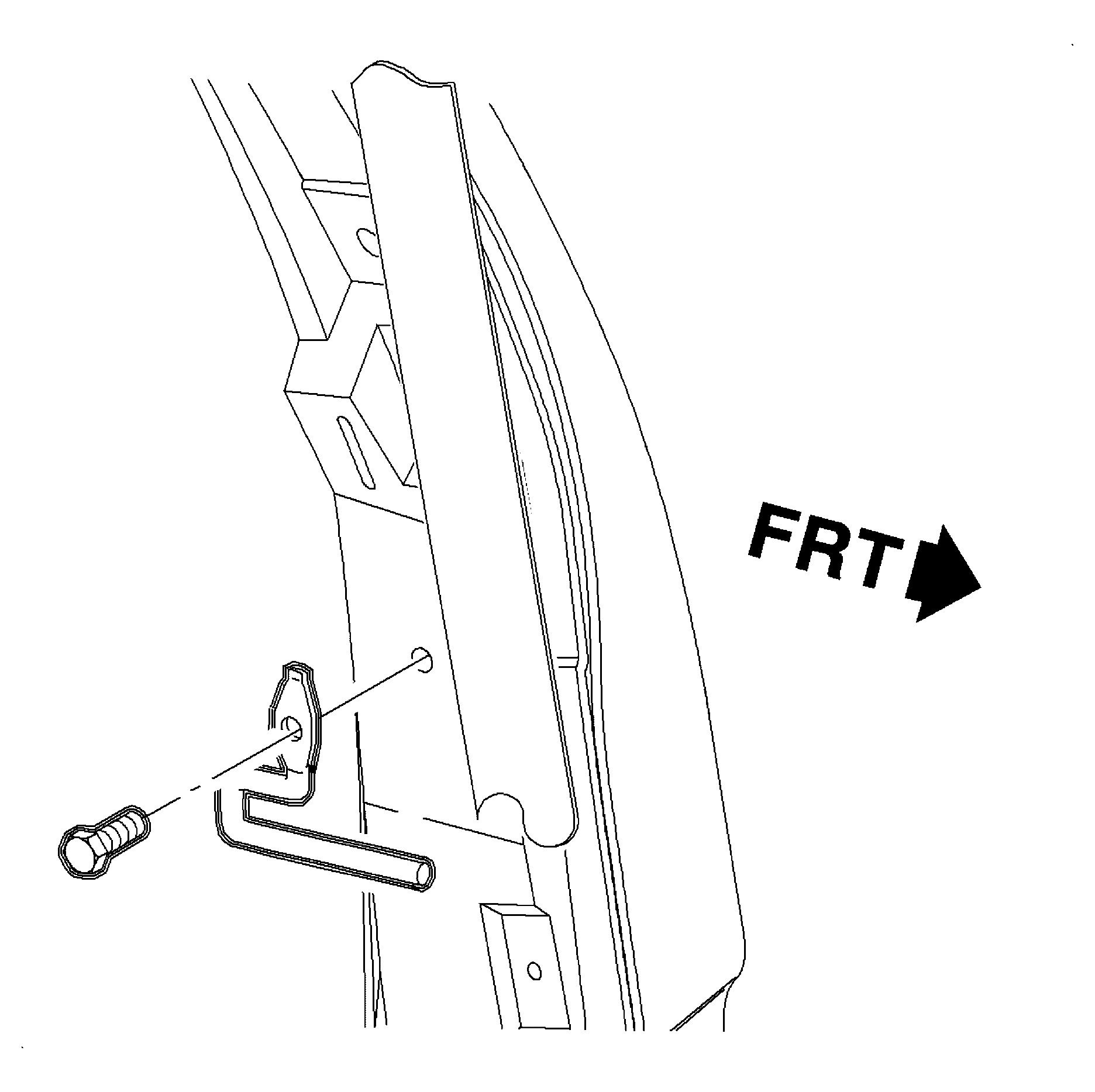

Fig 1: Removing & Installing Front Seat Belt Guide

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTIC in Cautions and Notices.

Install the safety belt guide and fastener.
Tighten: Tighten the fastener to 1.5 N.m (13 lb in).

Fig 2: Identifying Front Shoulder Belt Guide Routing

Courtesy of GENERAL MOTORS CORP.

Fig 3: Removing & Installing Center Pillar Upper & Lower Trim Moldings

Courtesy of GENERAL MOTORS CORP.

Attach the center pillar molding assemblies to the vehicle by firmly by pushing at the clip locations.
Install the center pillar molding fastener and plug.
Tighten: Tighten the fastener to 10 N.m (89 lb in).

Fig 4: Locating Front Shoulder Belt Retractor Fastener Access Plug

Courtesy of GENERAL MOTORS CORP.

Install the retractor fastener.
Tighten: Tighten the fastener to 35 N.m (26 lb ft).
Install the retractor plug.

Fig 5: Removing & Installing Front Shoulder Belt Height Adjuster Fasteners

Courtesy of GENERAL MOTORS CORP.

Install the height adjuster fasteners.
Tighten: Tighten the fasteners to 35 N.m (26 lb ft).

Fig 6: Removing & Installing Center Pillar Outside Weatherstrip

Courtesy of GENERAL MOTORS CORP.

Install the center pillar outside weatherstrip.
Install the carpet retainer. Refer to Carpet Retainer Replacement in Interior Trim.

Fig 7: Proper Installation Of Door Weatherstrip At Center Pillar Molding

Courtesy of GENERAL MOTORS CORP.

Using a flat-bladed tool, install the weatherstrip over the center pillar lower molding and the rocker panel molding
Test the shoulder belt to ensure the proper operation.
