Power Distribution Schematics

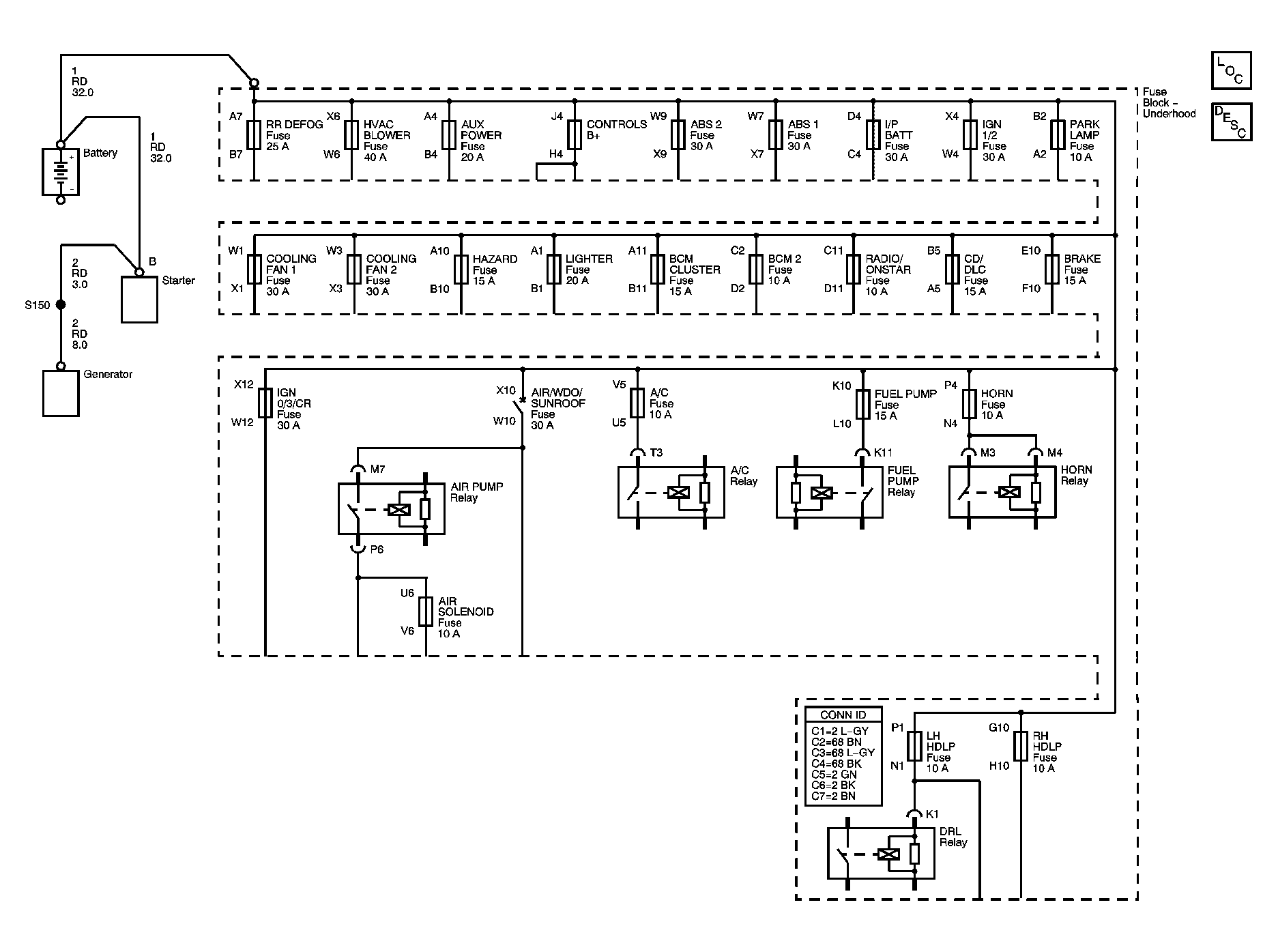

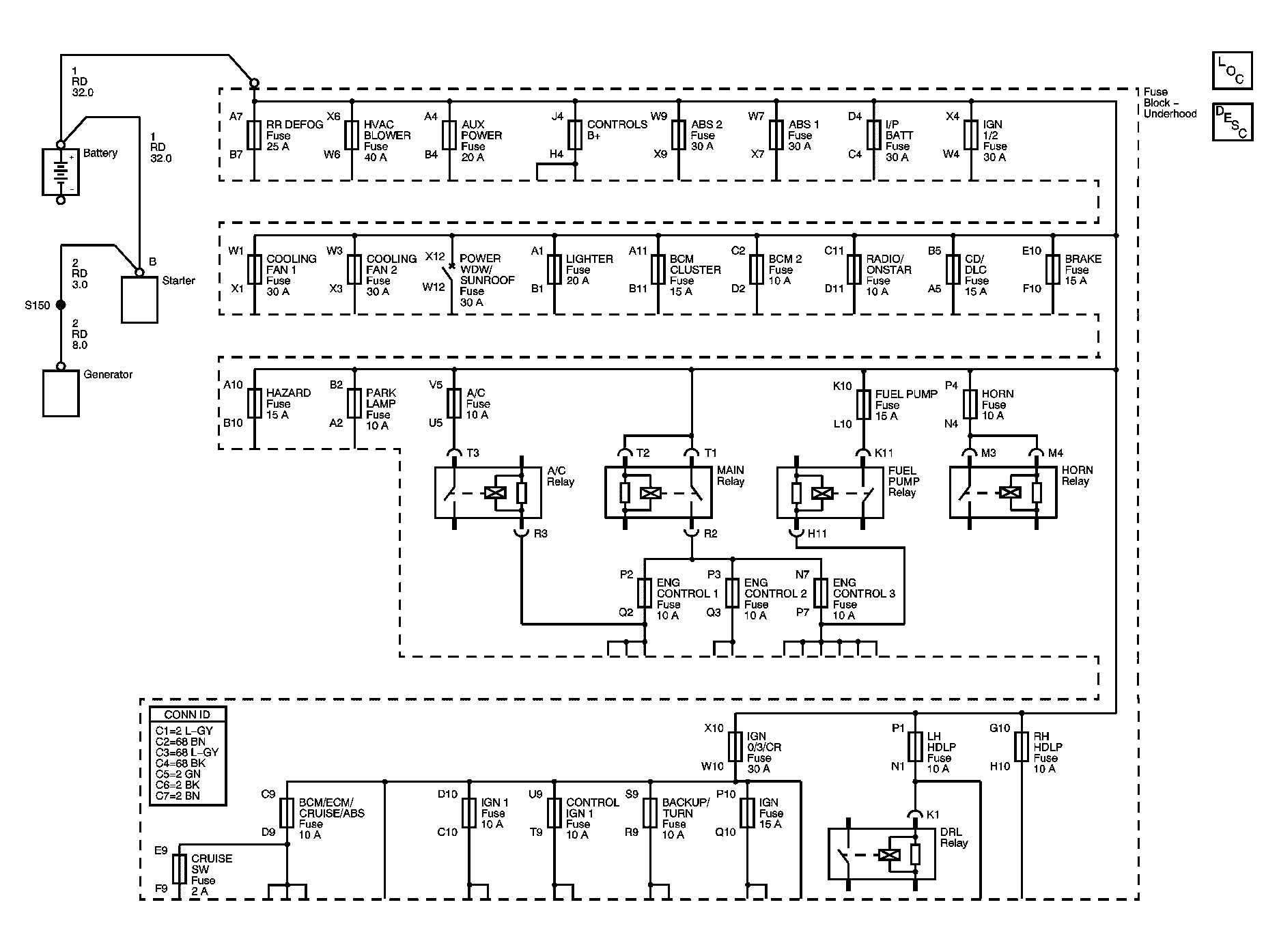

Fig 1: Underhood Fuse Block Bus Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Underhood Fuse Block Bus (L61) Schematic

Courtesy of GENERAL MOTORS CORP.

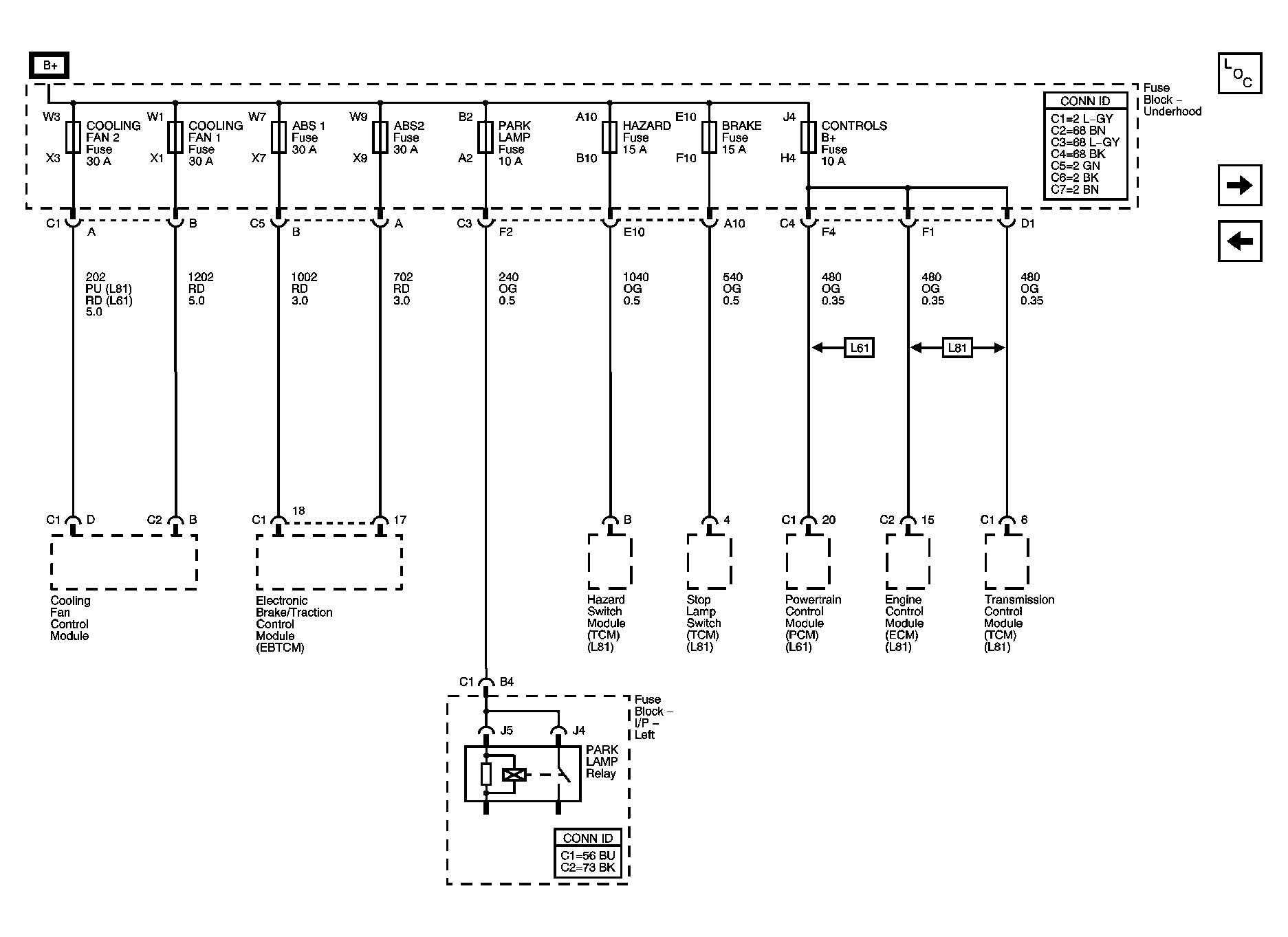

Fig 3: Underhood Fuse Block - Cooling Fan2, Cooling Fan1, ABS1, ABS2, Park Lamp, Hazard, Brake and Controls B+ Schematic

Courtesy of GENERAL MOTORS CORP.

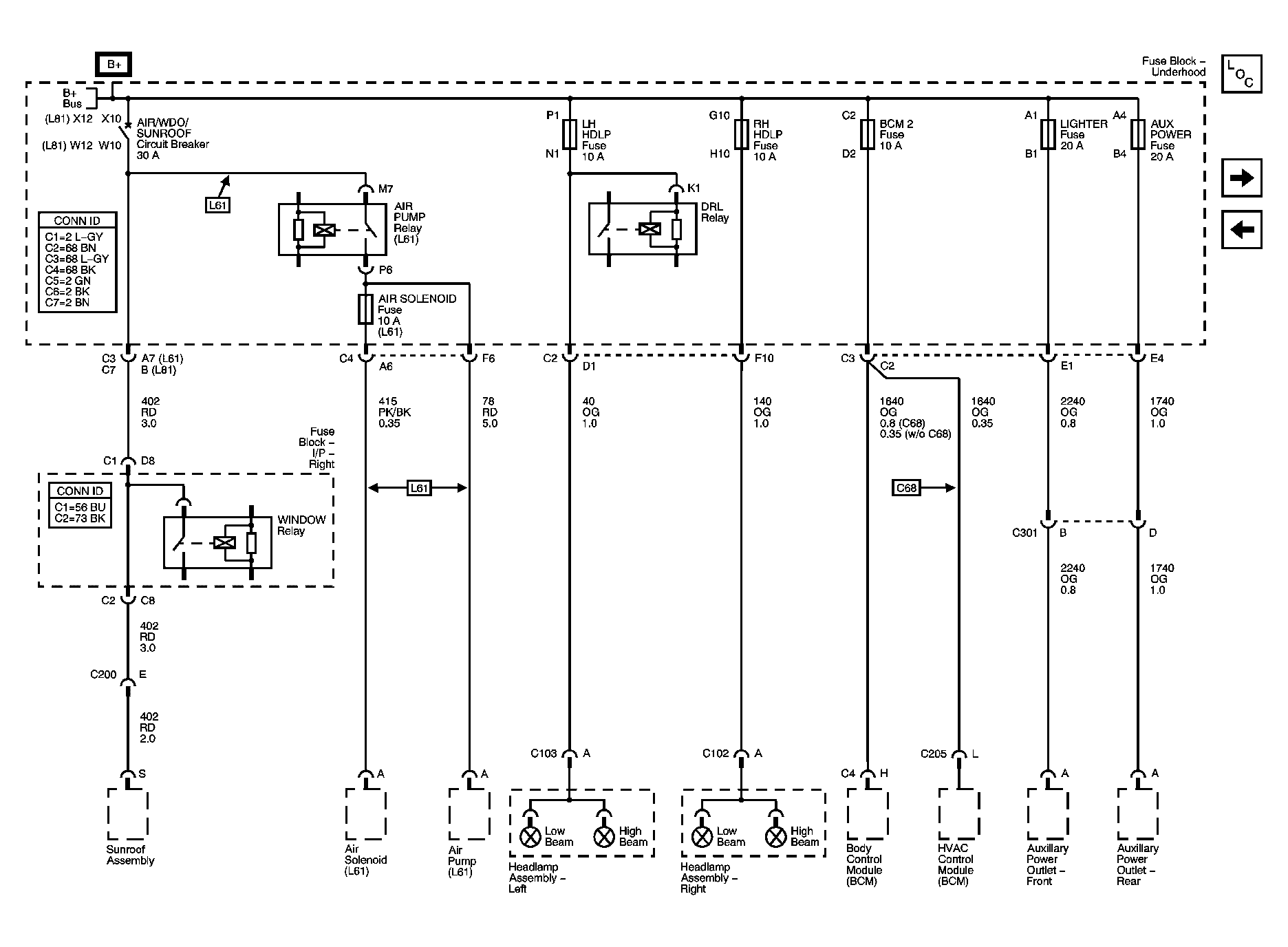

Fig 4: Underhood Fuse Block - Air/Wdo/Sunroof, Air Solenoid, LH HDLP, RH HDLP, BCM2, Lighter and Aux Power Schematic

Courtesy of GENERAL MOTORS CORP.

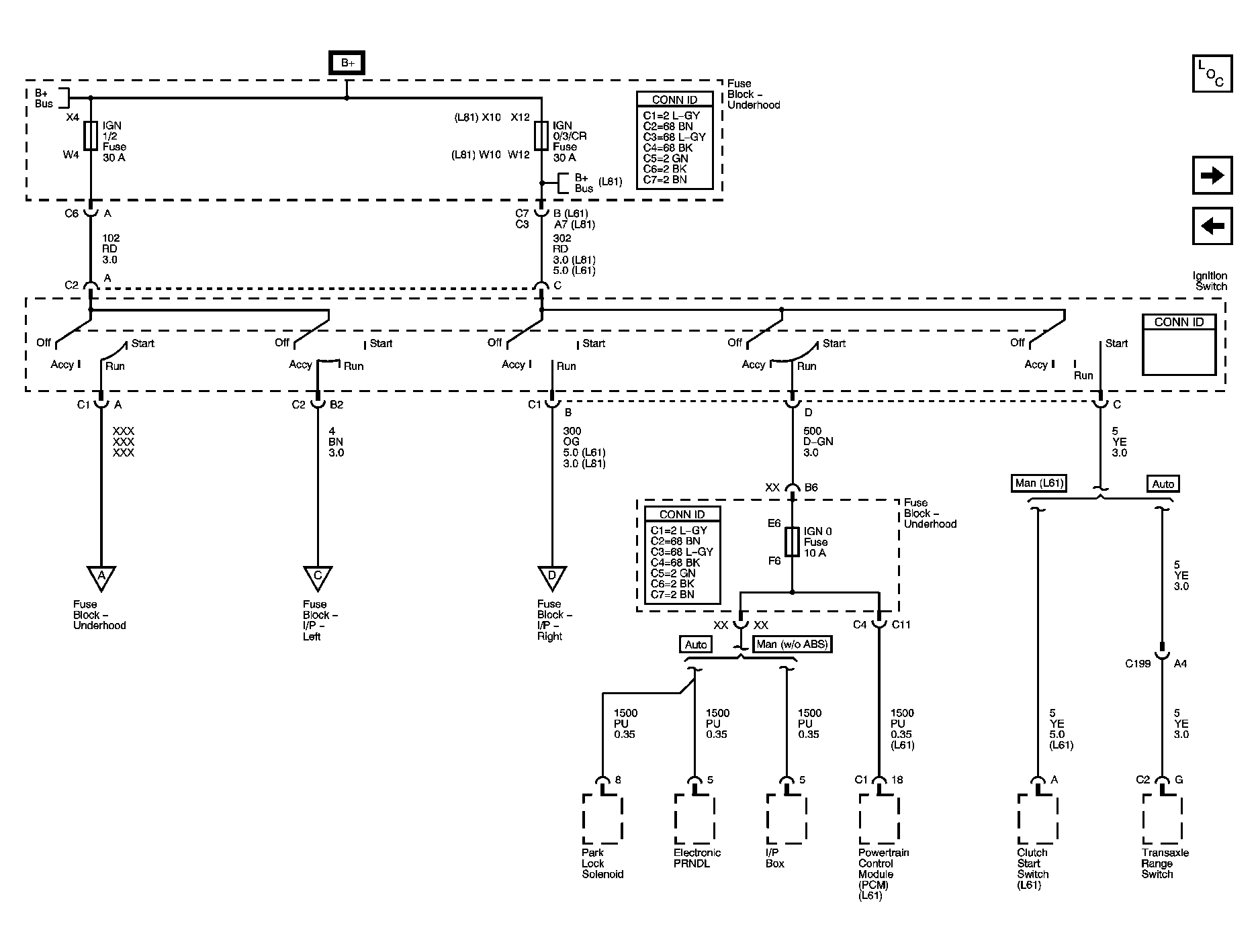

Fig 5: Underhood Fuse Block - IGN1/2, IGN0 and IGN0/3/CR. Ignition Switch Schematic

Courtesy of GENERAL MOTORS CORP.

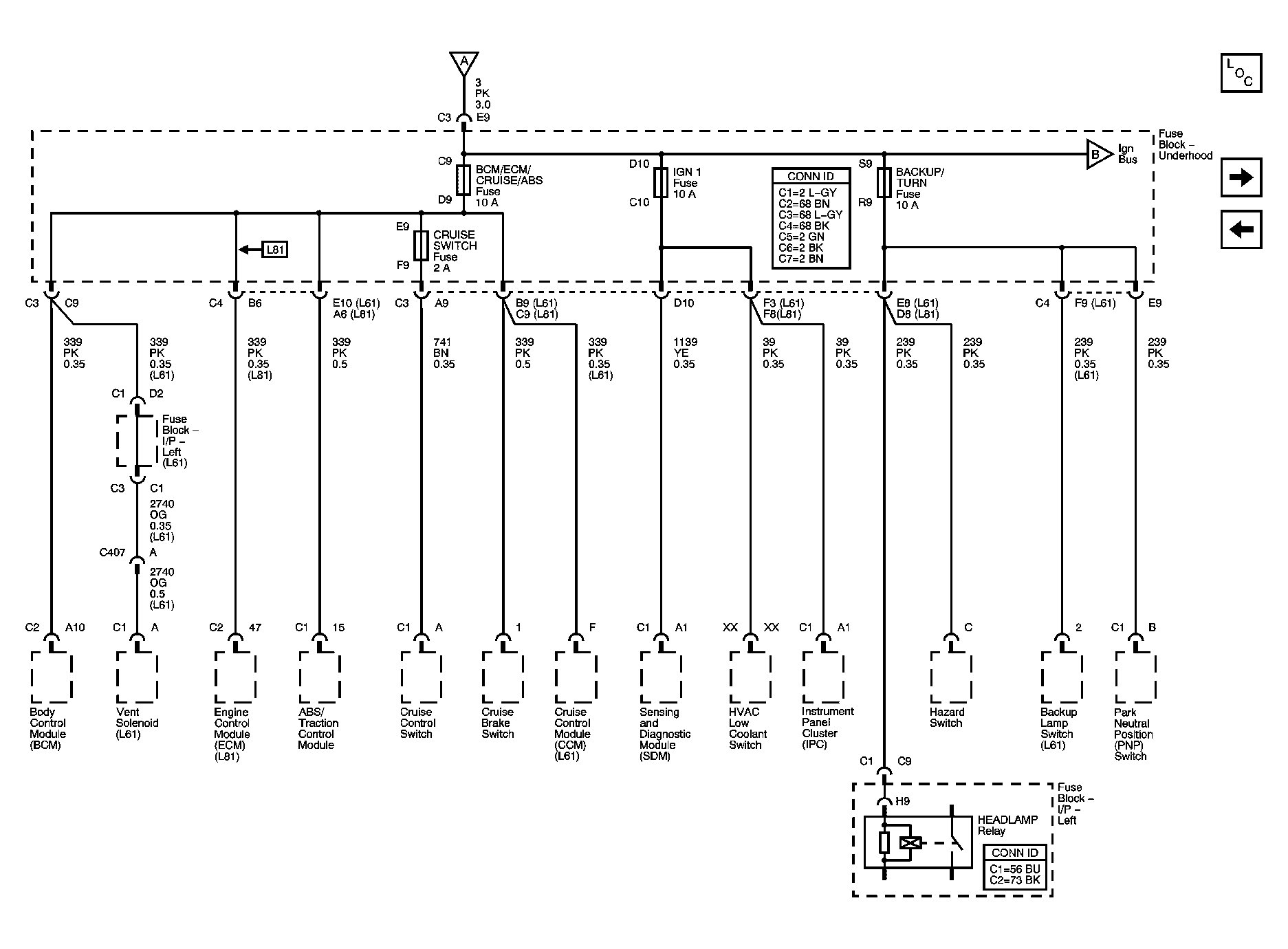

Fig 6: Underhood Fuse Block - BCM/ECM/Cruise/ABS, Cruise Switch, IGN1 and Backup/Turn Schematic

Courtesy of GENERAL MOTORS CORP.

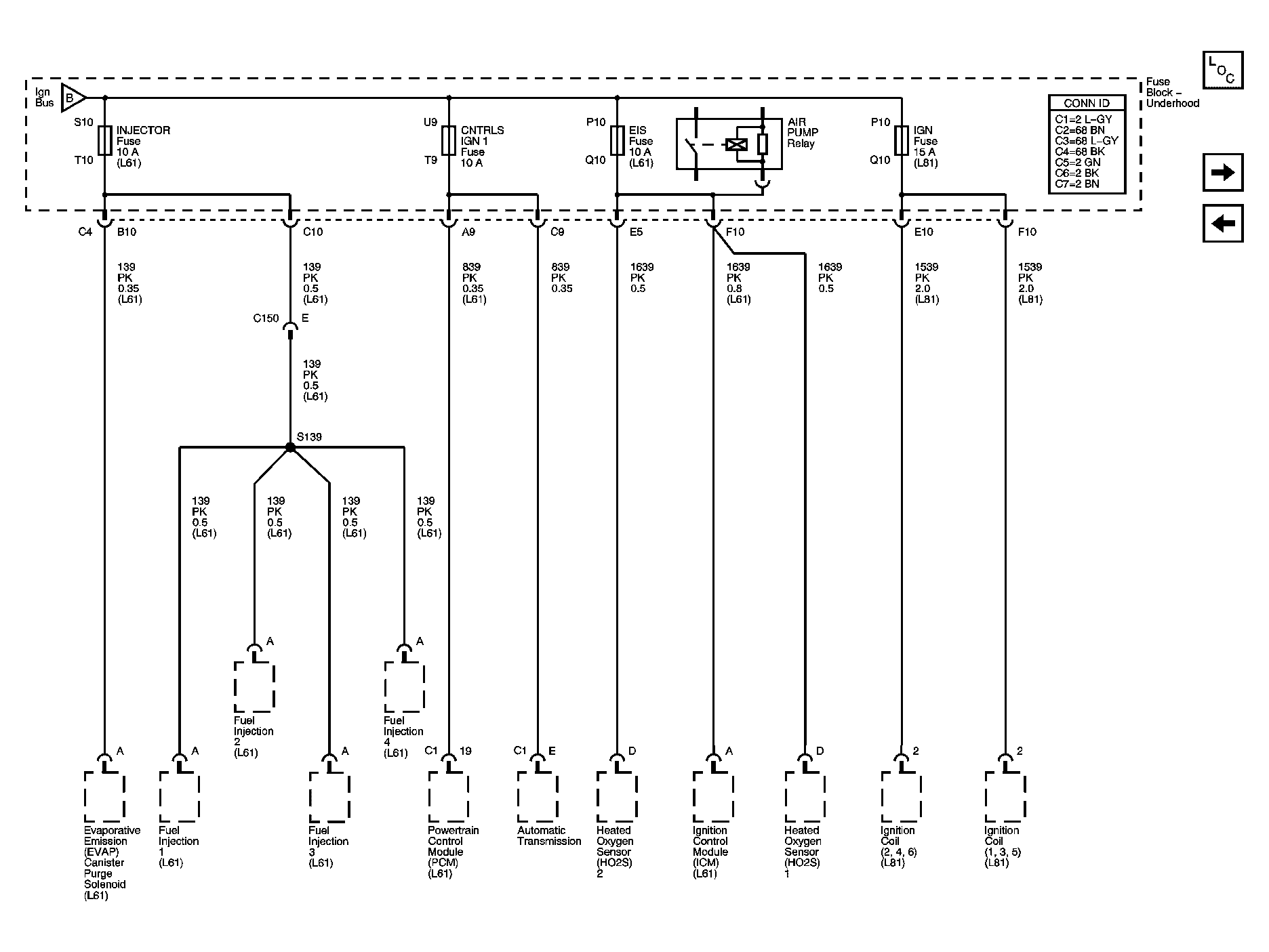

Fig 7: Underhood Fuse Block - Injector, Controls IGN1, EIS and IGN Schematic

Courtesy of GENERAL MOTORS CORP.

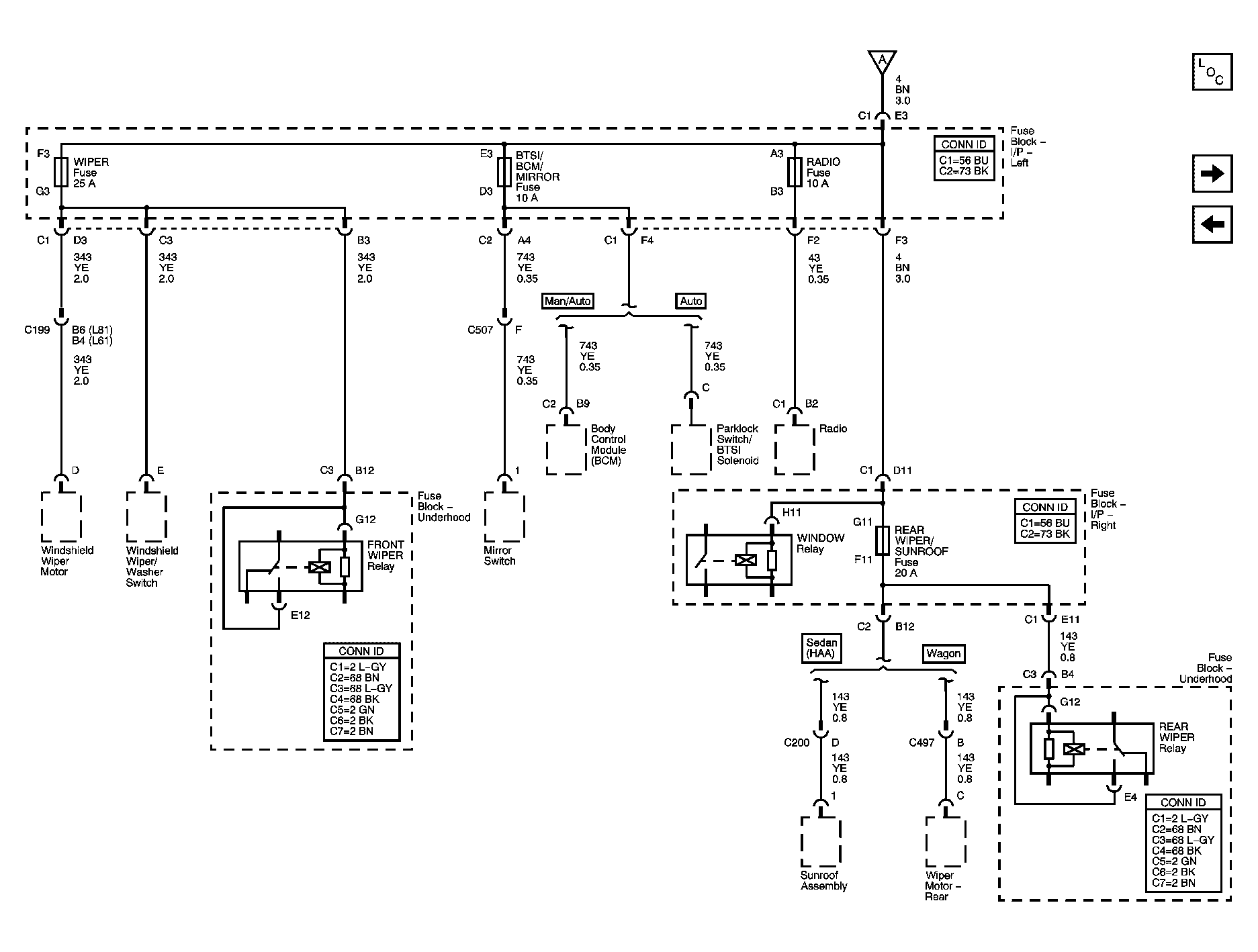

Fig 8: Underhood Fuse Block - Right I/P : Rear Wiper/Sunroof; Left I/P Fuse Block - Wiper, BTSI/BCM/Mirror and Radio Schematic

Courtesy of GENERAL MOTORS CORP.

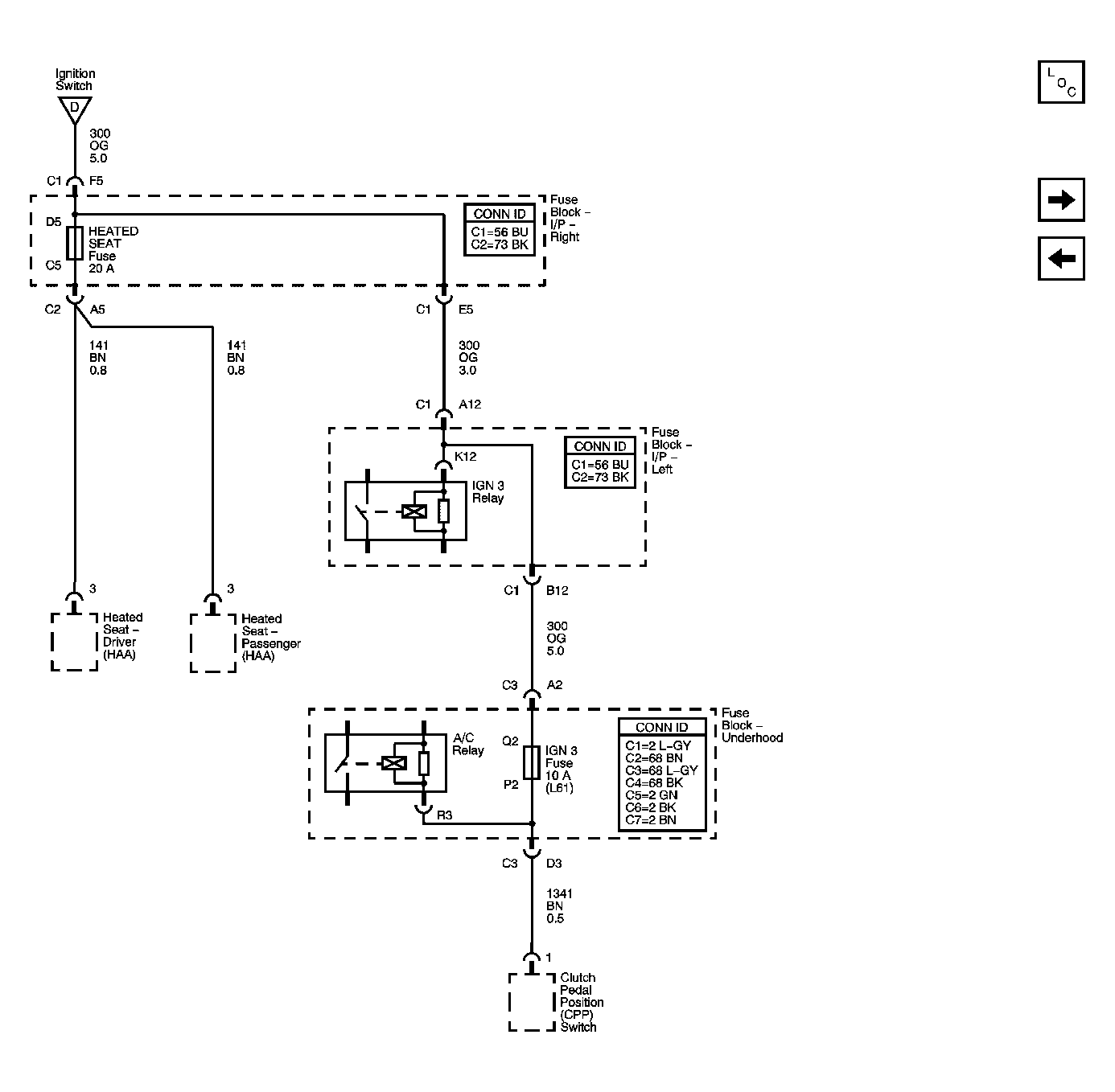

Fig 9: Underhood Fuse Block - IGN3; Right I/P Fuse Block - Heated Seat Schematic

Courtesy of GENERAL MOTORS CORP.

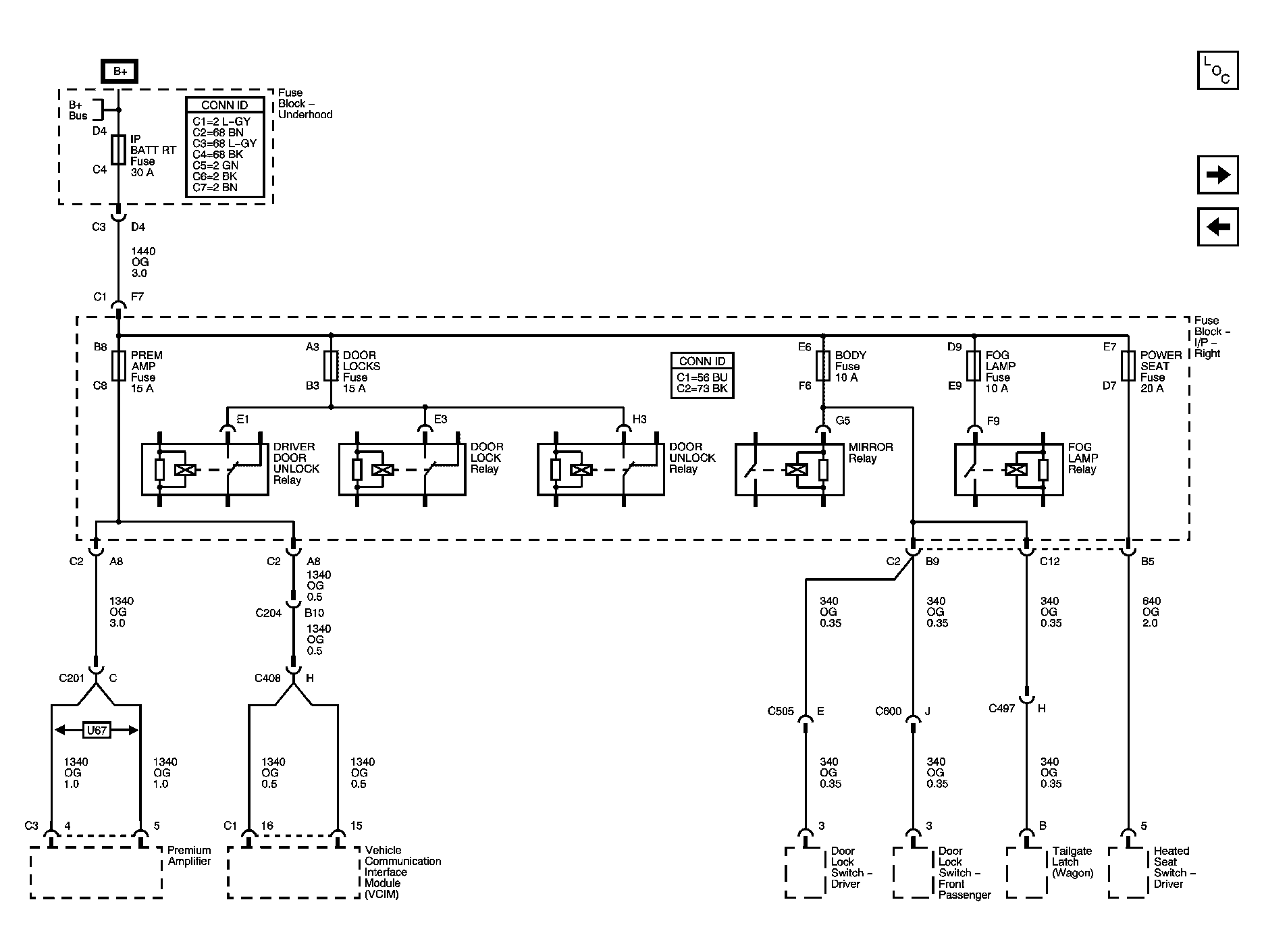

Fig 10: Underhood Fuse Block - I/P BATT RT; Right I/P Fuse Block - Pre-amp, Door Locks, Body and Fog Lamp Schematic

Courtesy of GENERAL MOTORS CORP.

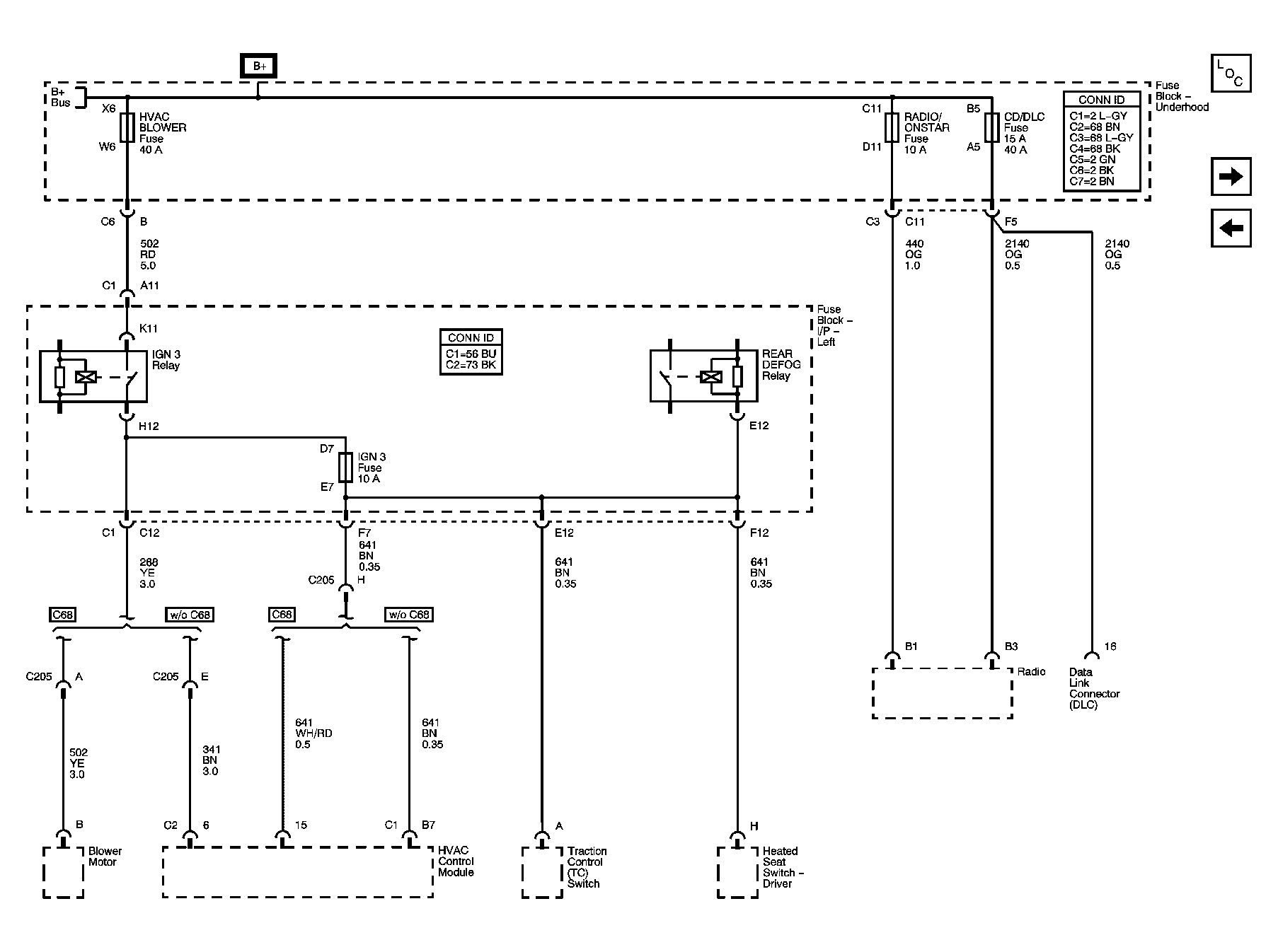

Fig 11: Underhood Fuse Block - HVAC Blower, Radio/Onstar and CD/DLC; Left I/P Fuse Block - IGN3 Schematic

Courtesy of GENERAL MOTORS CORP.

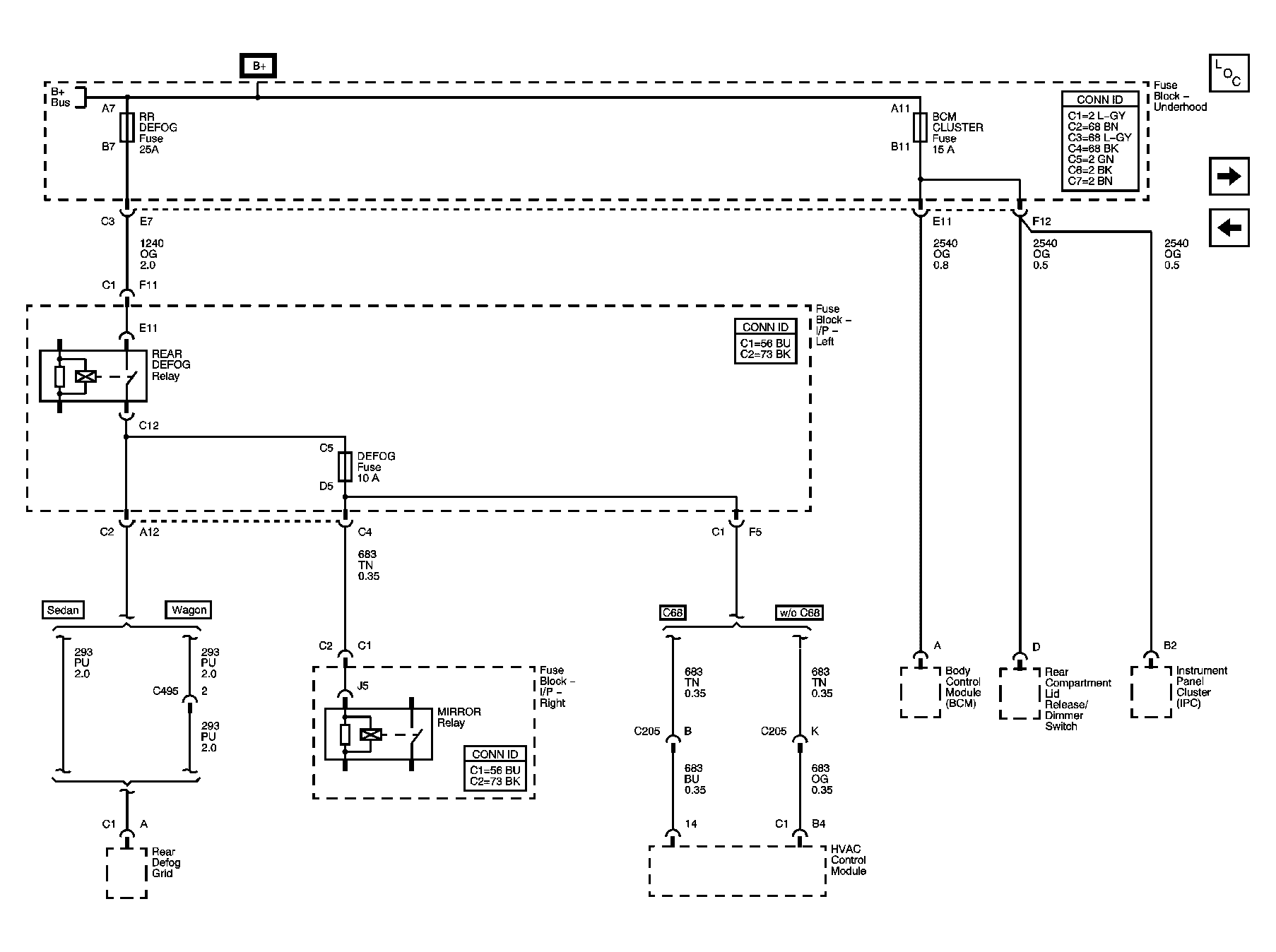

Fig 12: Underhood Fuse Block - RR Defog and BCM Cluster; Left I/P Fuse Block - Defog Schematic

Courtesy of GENERAL MOTORS CORP.

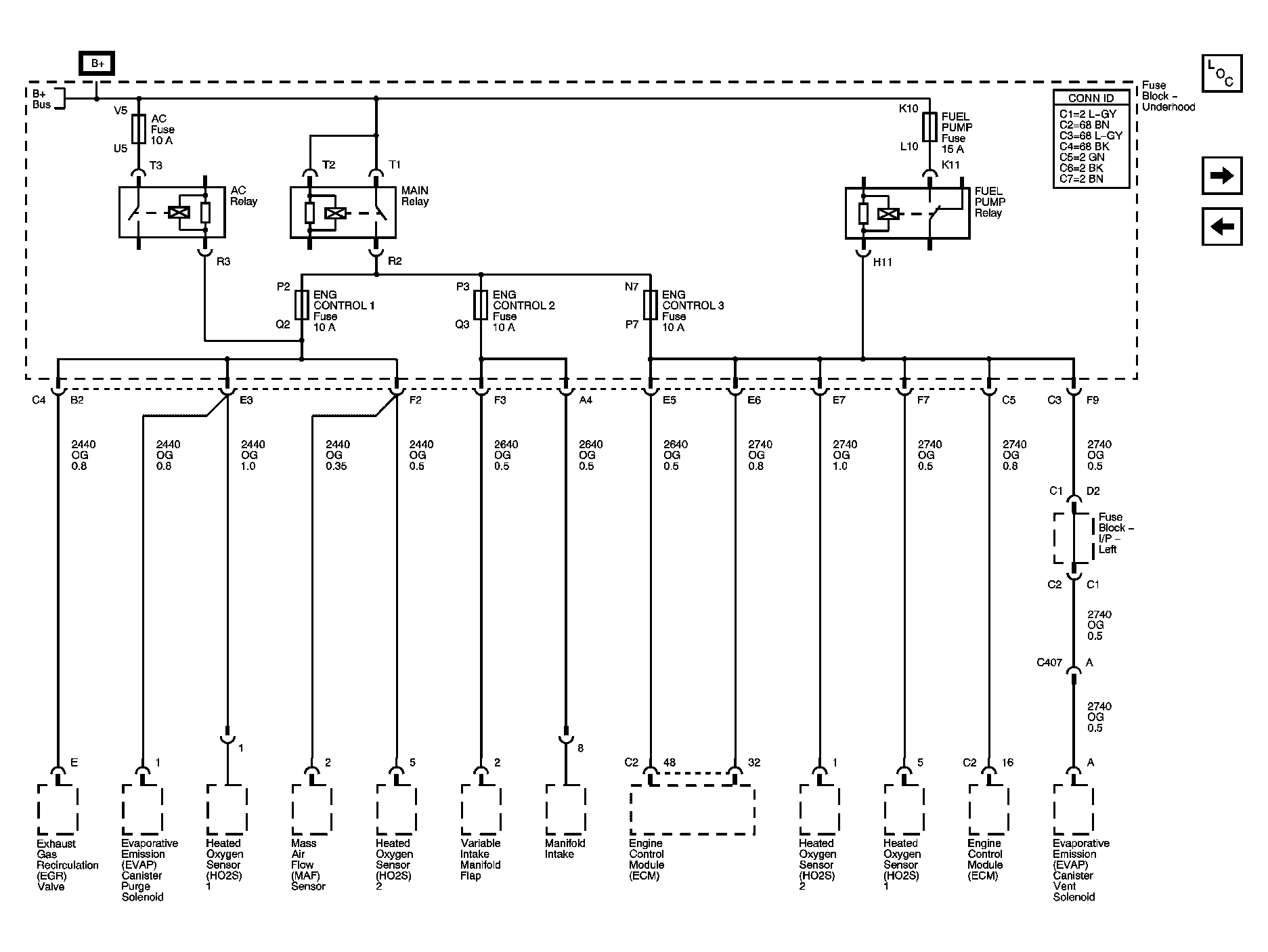

Fig 13: Underhood Fuse Block - AC, Fuel Pump, ENG Control 1, ENG Control 2 and ENG Control 3 Schematic

Courtesy of GENERAL MOTORS CORP.

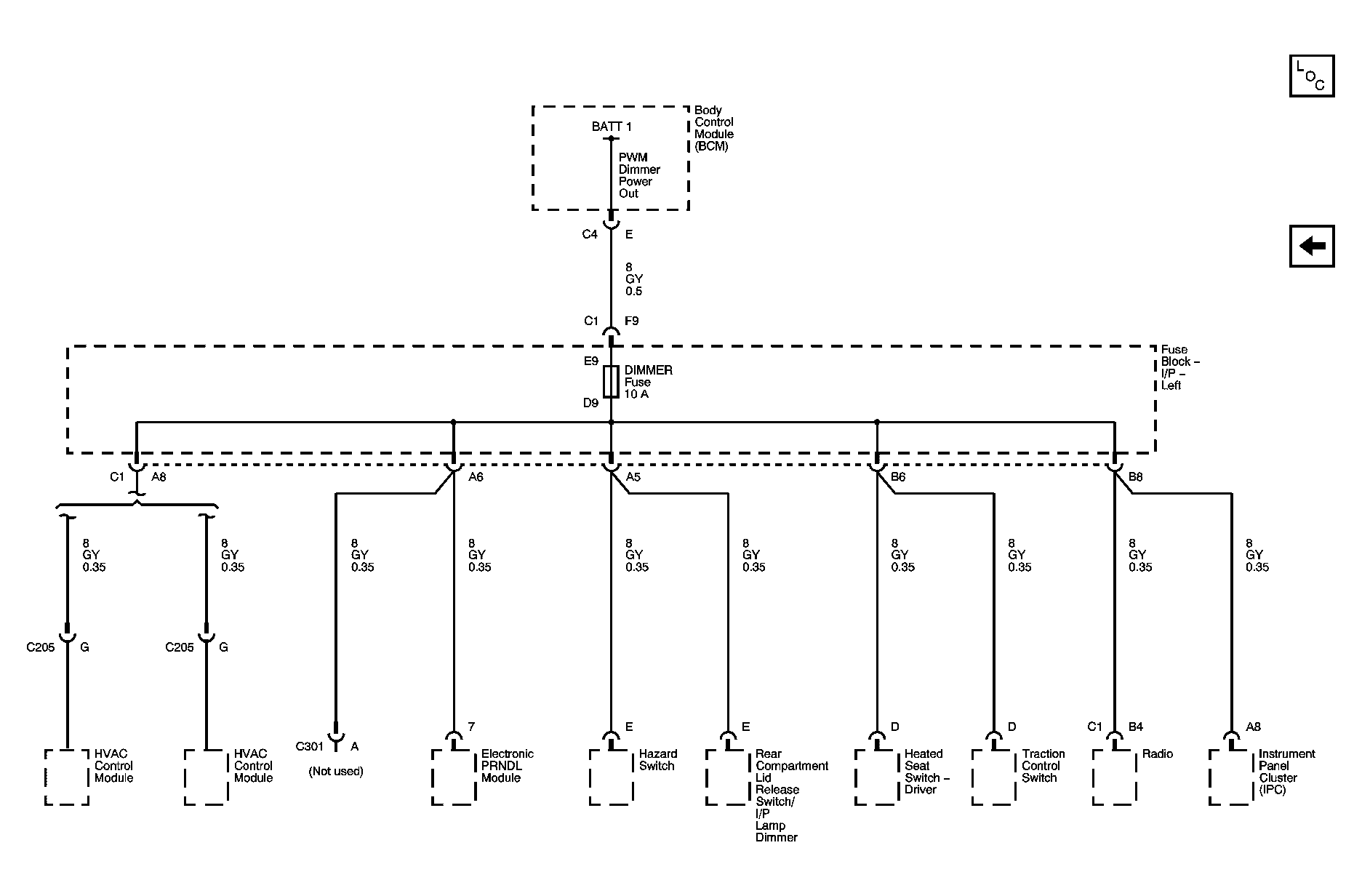

Fig 14: Fuse Block - Left I/P : Dimmer Schematic

Courtesy of GENERAL MOTORS CORP.
