Harness Routing Views

Fig 1: Forward Lamp Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cooling Fan Control Module
2	Fuse Block - Underhood
3	SP103
4	Windshield Washer Fluid Level Switch Connector
5	Windshield Washer Fluid Pump Connector
6	G105
7	C103
8	Left Headlamp Harness
9	Ambient Air Temperature Sensor Connector
10	Right Headlamp Harness
11	Horn Connector
12	C102

Fig 2: LR of the Engine Components (3.0L) Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C150
2	Intake Manifold Runner Control (IMRC) Solenoid

Fig 3: Front of the Transmission Components Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C100 (3.0L)
2	G113
3	G110 (3.0L)

Fig 4: LR Corner of the Engine Compartment Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cruise Control Module (CCM)
2	Windshield Wiper Motor Connector
3	SP191
4	Fuse Block - Underhood
5	Coolant Level Switch
6	Cooling Fan Control Module C1
7	Cooling Fan Control Module C2
8	Daytime Running Lamp (DRL) Resistor
9	Windshield Washer Fluid Level Switch
10	G103 (SP103)
11	Electronic Brake Control Module (EBCM)
12	Brake Fluid Level Switch
13	C199

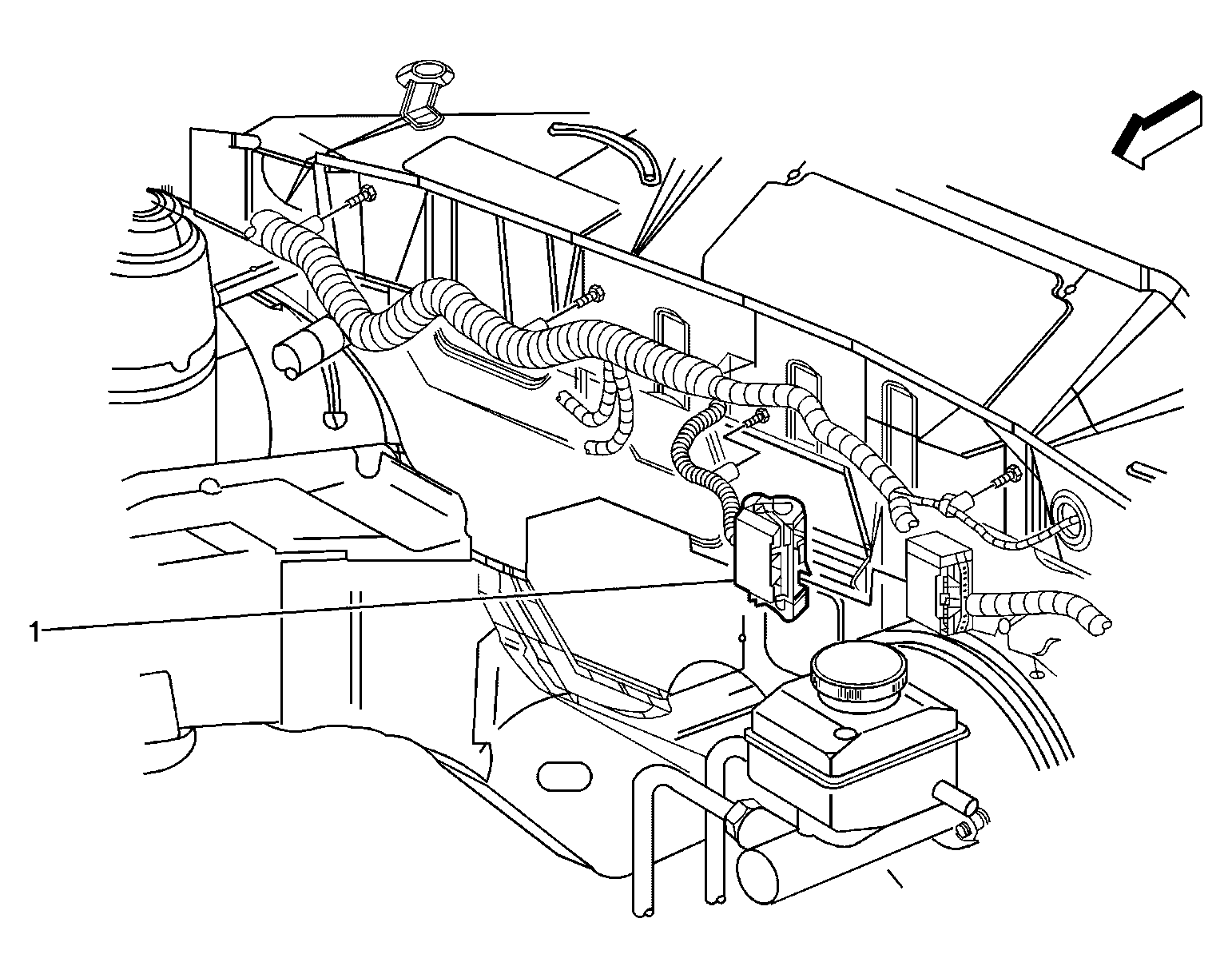

Fig 5: Rear of the Engine Compartment Components Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C199

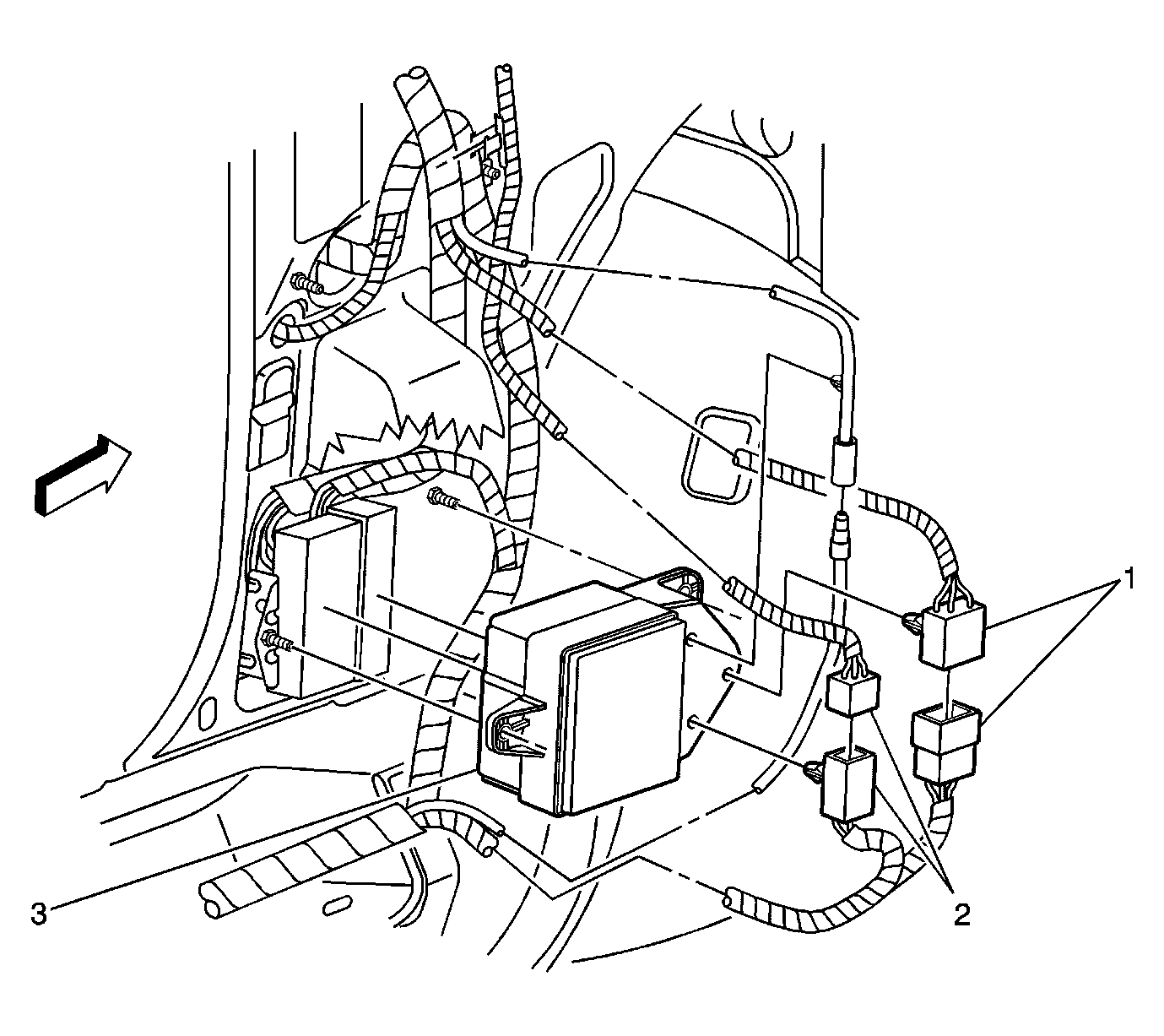

Fig 6: Lower Left Side of the I/P Components Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C207
2	C220
3	Fuse Block - I/P-Left

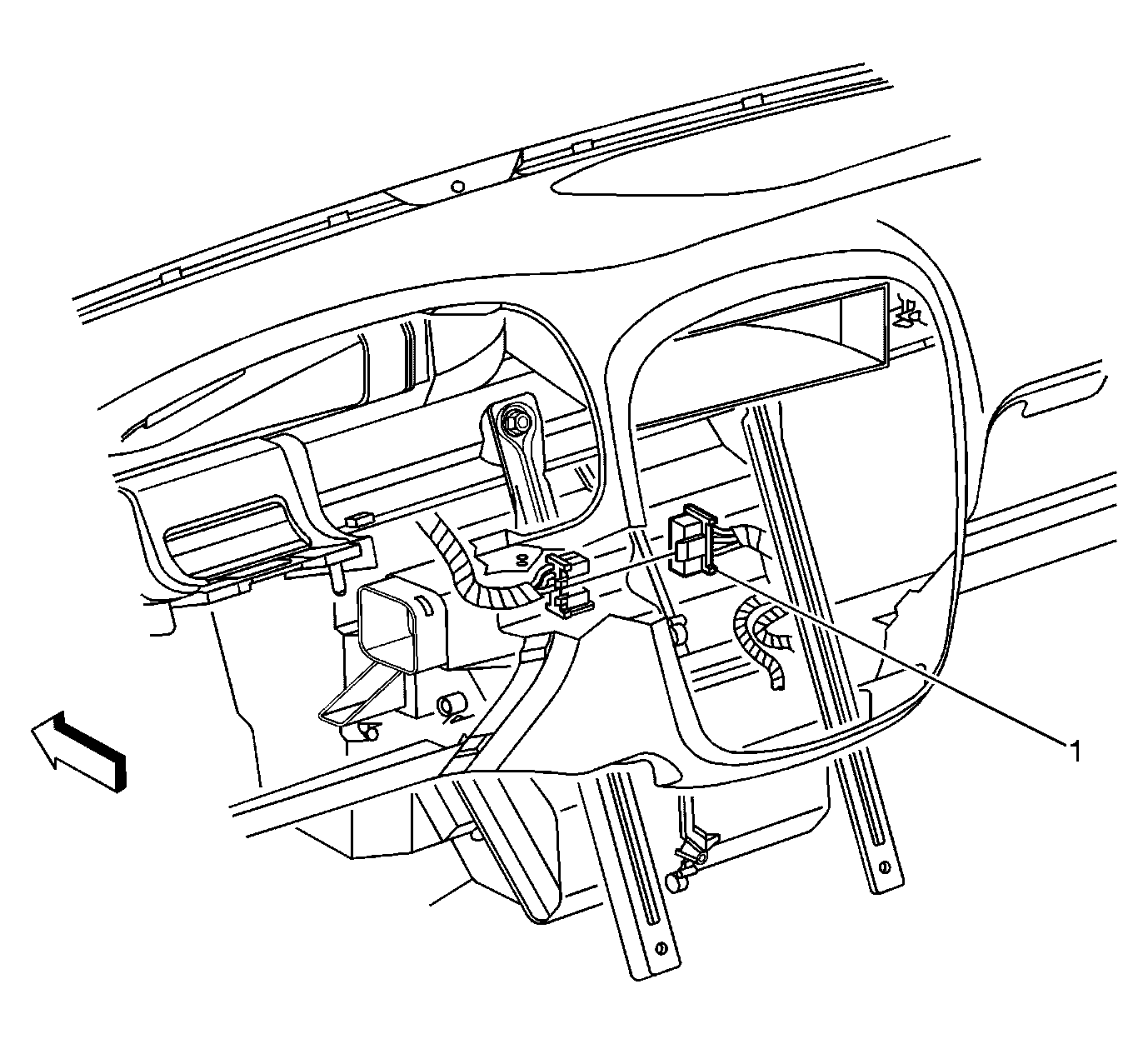

Fig 7: Center of the I/P Components Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C205

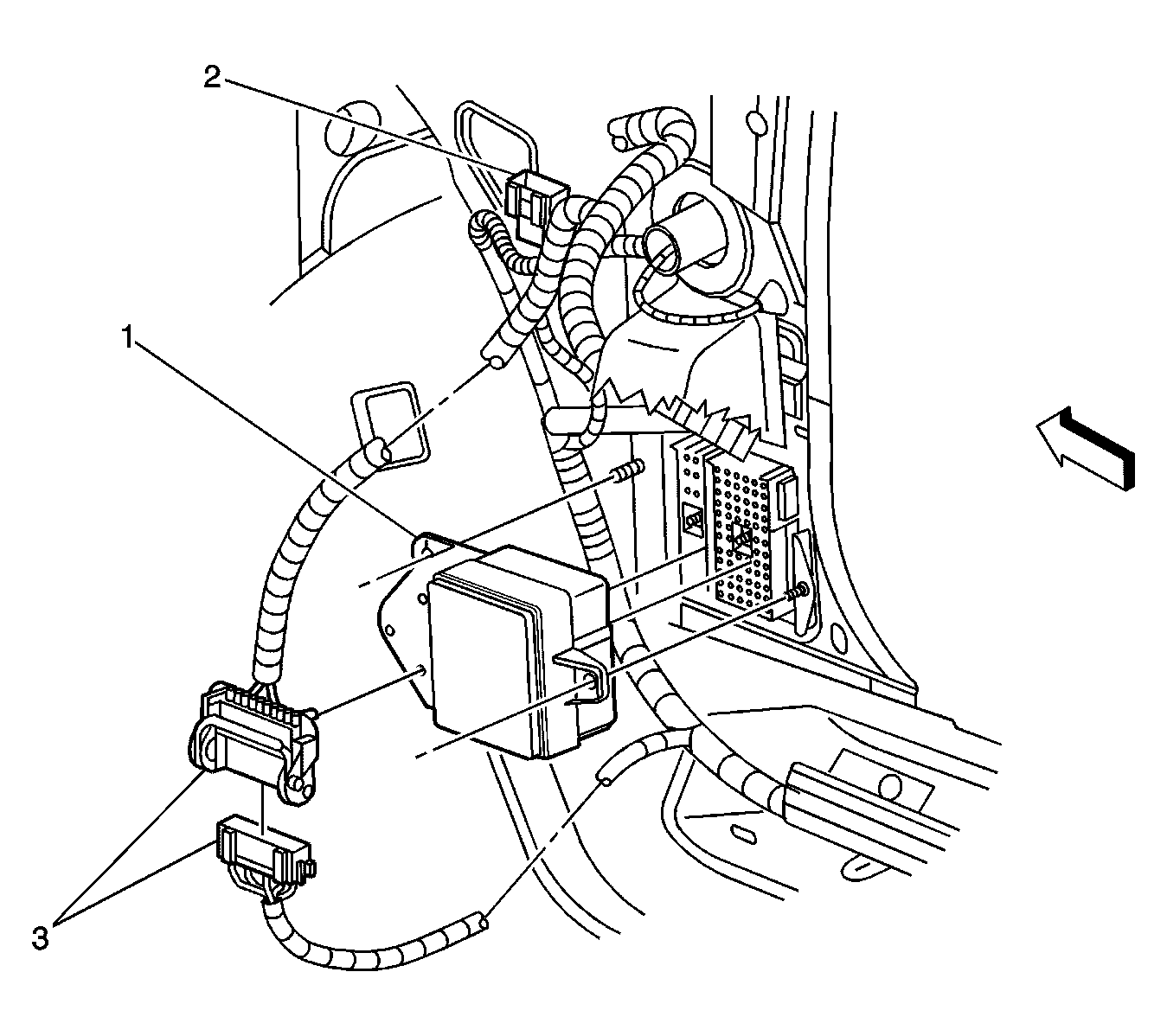

Fig 8: Right Side of the I/P Components Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block- I/P- Right
2	C204
3	C200

Fig 9: Center Console Components Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Console Harness
2	C301
3	Auxiliary Power Outlet Connector
4	Park Brake Switch Connector
5	Inflatable Restraint Sensing and Diagnostic Module (SDM)
6	Automatic Transmission Shift Lock Actuator Connector
7	Electronic PRNDL Module Connector
8	Cigar Lighter Connector

Fig 10: Center of Passenger Compartment Floor Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G303
2	Window Switch - Driver Connector
3	Window Switch - Front Passenger Connector
4	Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
5	SP300
6	C305 (C306 Similar)

Fig 11: Left Side of the Passenger Compartment Components Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch - LR - RR Similar
2	Inflatable Restraint Side Impact Sensor (SIS) - Left Connector - Right Similar)
3	C800 - C700 Similar

Fig 12: LR Rear Compartment Components (Sedan) Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C498
2	SP401

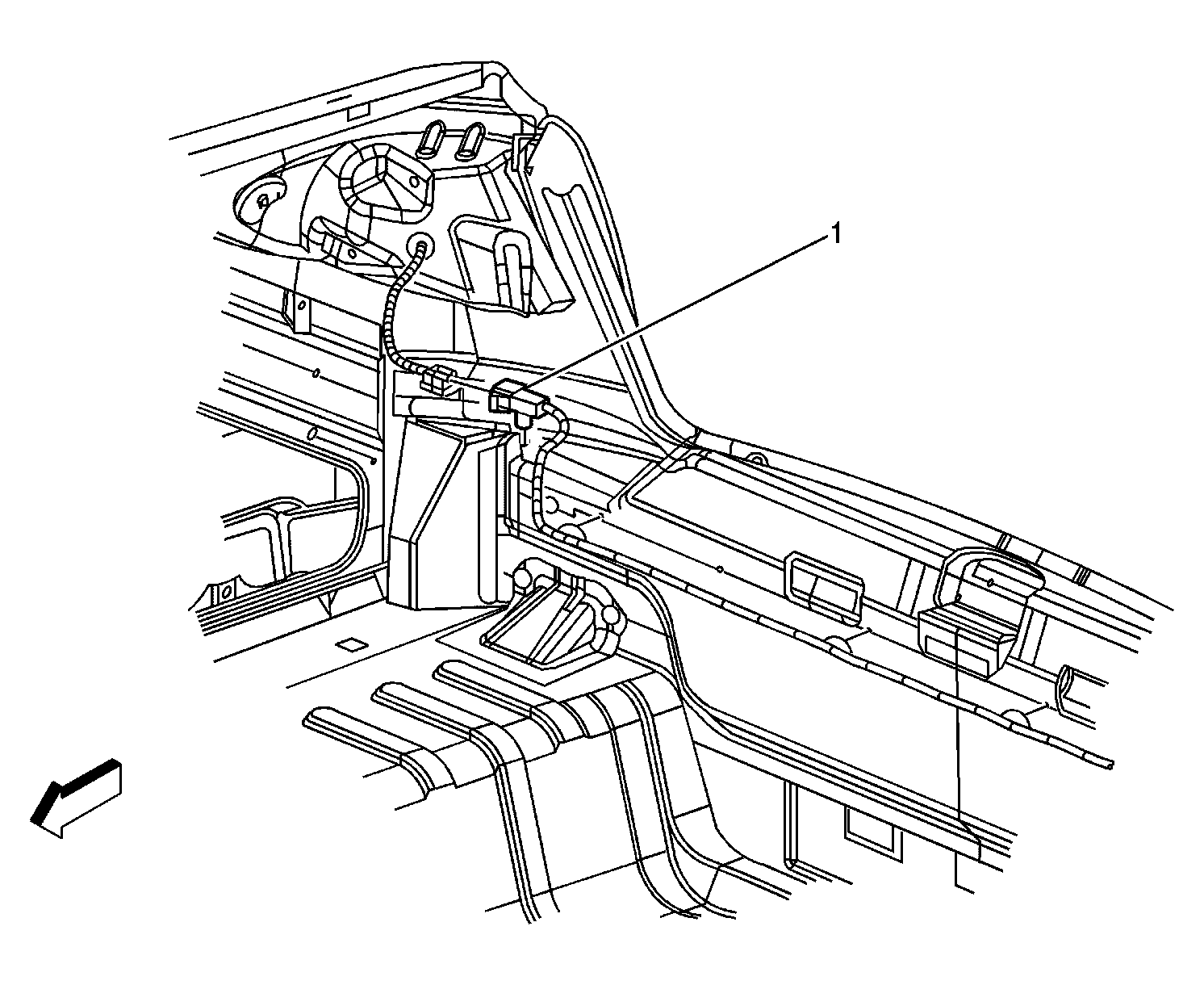

Fig 13: RR Rear Compartment Components (Sedan) Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C499

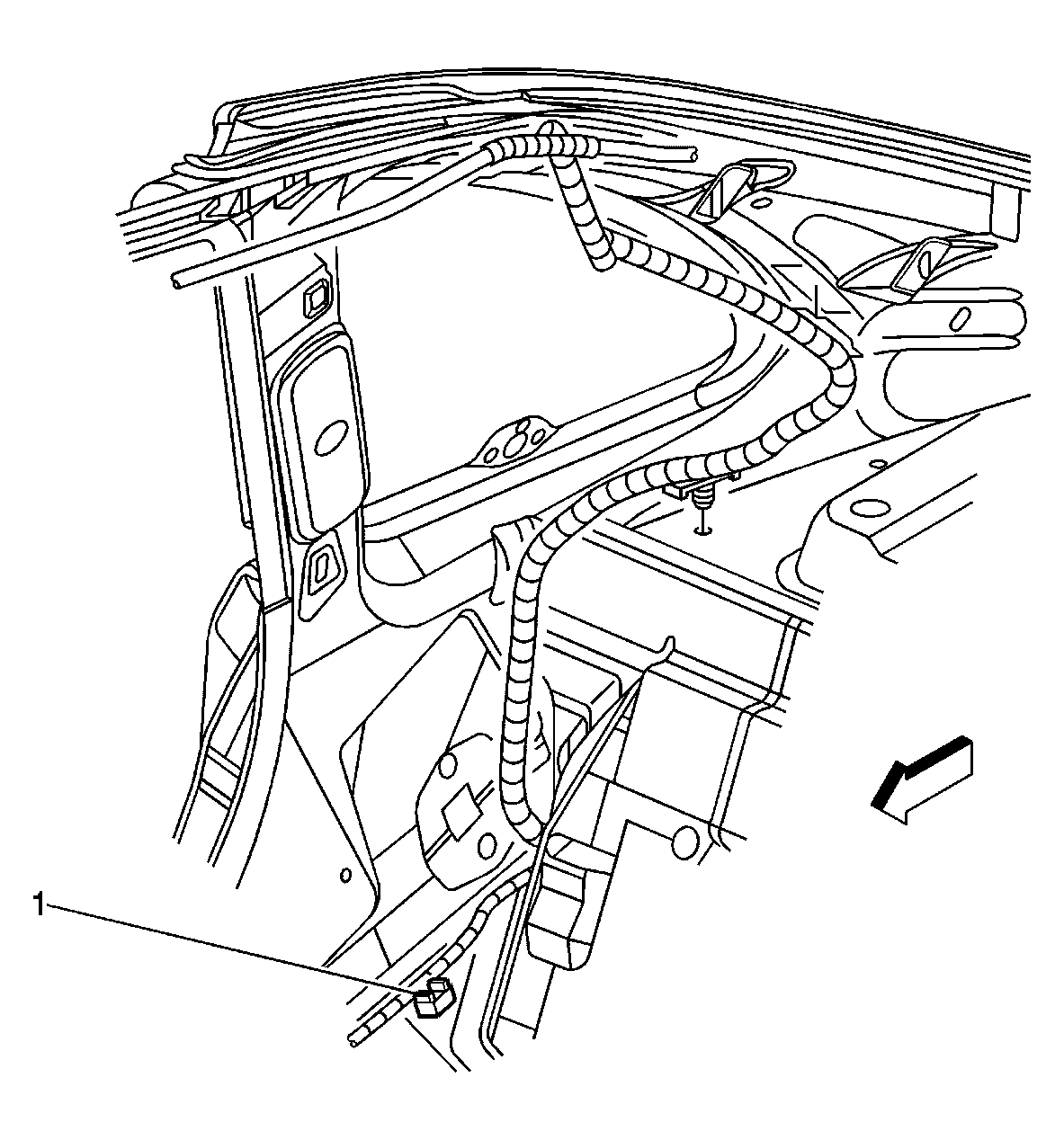

Fig 14: RR of Passenger Compartment Components (Sedan) Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C408

Fig 15: Rear Compartment Components - Wagon Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail Lamp Assembly - Left
2	Inflatable Restraint Side Impact Module - Left Connector
3	Tail Lamp Assembly - Right
4	Inflatable Restraint Side Impact Module - Right Connector
5	C408
6	Speaker - Subwoofer Connector
7	C495
8	C493

Fig 16: Rear Liftgate Components Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C493
2	C495
3	Rear Defogger Grid Connector
4	SP464
5	G464
6	Liftgate Release Actuator
7	Rear Defogger Grid Connector

Fig 17: Door Components Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	SP103
2	Fuse Block - Underhood
3	SP104
4	SP105
5	Fuse Block - I/P - Right
6	Window Motor - Front Passenger
7	Window Switch - RR
8	SP401
9	SP300
10	Window Switch - Front Passenger
11	Window Switch - Driver
12	Cigar Lighter
13	Window Switch - LR
14	Data Link Communication (DLC) Connector
15	Dimmer/Rear Compartment Lid Release Switch
16	Window Motor - Driver
17	Fuse Block - I/P - Left
18	SP191
