Power and Grounding Connector End Views

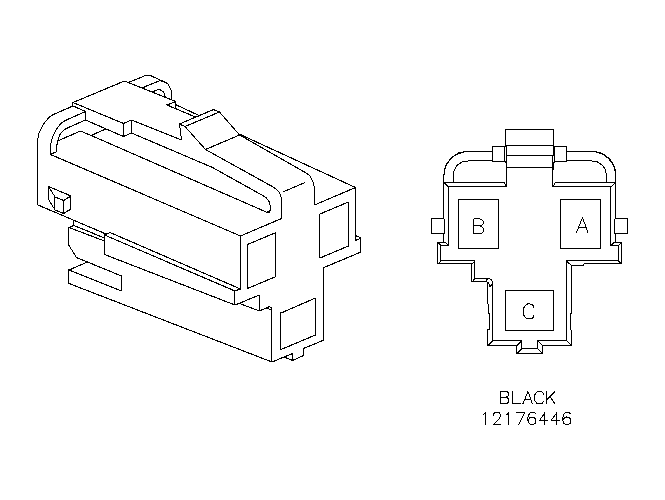

Auxiliary Power Outlet - Rear Console Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | OG | 1740 | Battery Positive Voltage |
| B | -- | -- | Not Used |
| C | BK | 550 | Ground |

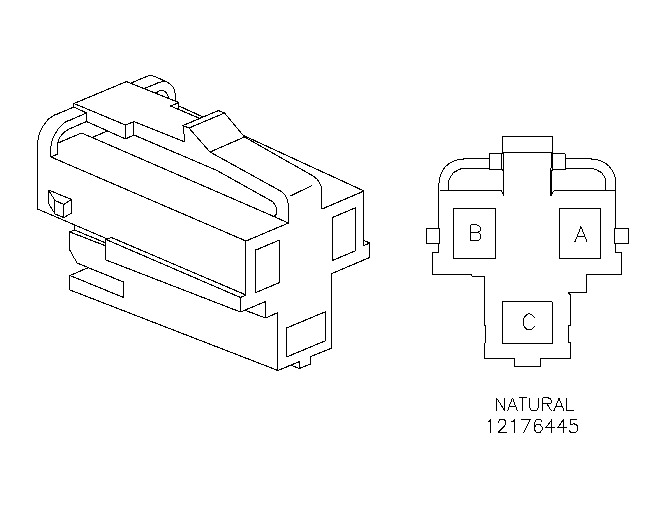

Cigar Lighter - Front Console Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | OG/BK | 2240 | Battery Positive Voltage |
| B | -- | -- | Not Used |
| C | BK/WH | 350 | Ground |
