Power Seat Systems Component Views
| Callout | Component Name |
|---|---|
| 1 | Ambient Light Sensor |
| 2 | Windshield Wiper/Washer Switch |
| 3 | Left Heated Seat/Fog Lamp Switch |
| 4 | Hazard Switch |
| 5 | Right Heated Seat/Traction Switch |
| 6 | Radio |
| 7 | HVAC Control Module |
| 8 | Headlamp/Turn Signal Switch |
| 9 | Dimmer/Rear Compartment Lid Release Switch |
| 10 | Instrument Panel Cluster (IPC) |
| 11 | Ignition Lock Cylinder Solenoid |

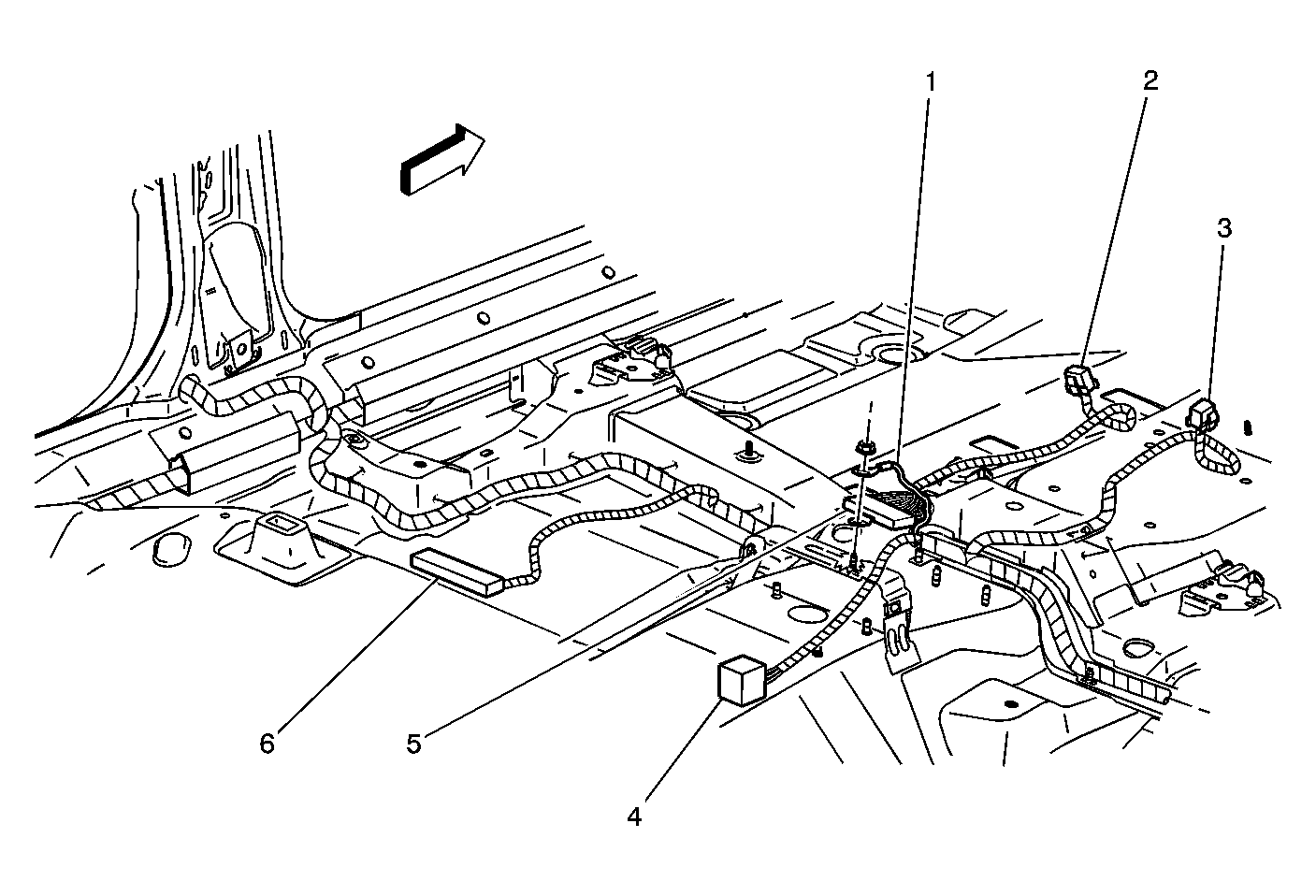

| Callout | Component Name |
|---|---|
| 1 | G303 |
| 2 | Window Switch - Driver Connector |
| 3 | Window Switch - Front Passenger Connector |
| 4 | Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector |
| 5 | SP300 |
| 6 | C305 (C306 Similar) |
