Repair and Diagnosis
>>
Accessories & Equipment
>>
Wiper/Washer Systems
>>
Wiper System And Washer System
>>
Schematic and Routing Diagrams
>>
Wiper/Washer System Schematics
Wiper/Washer System Schematics

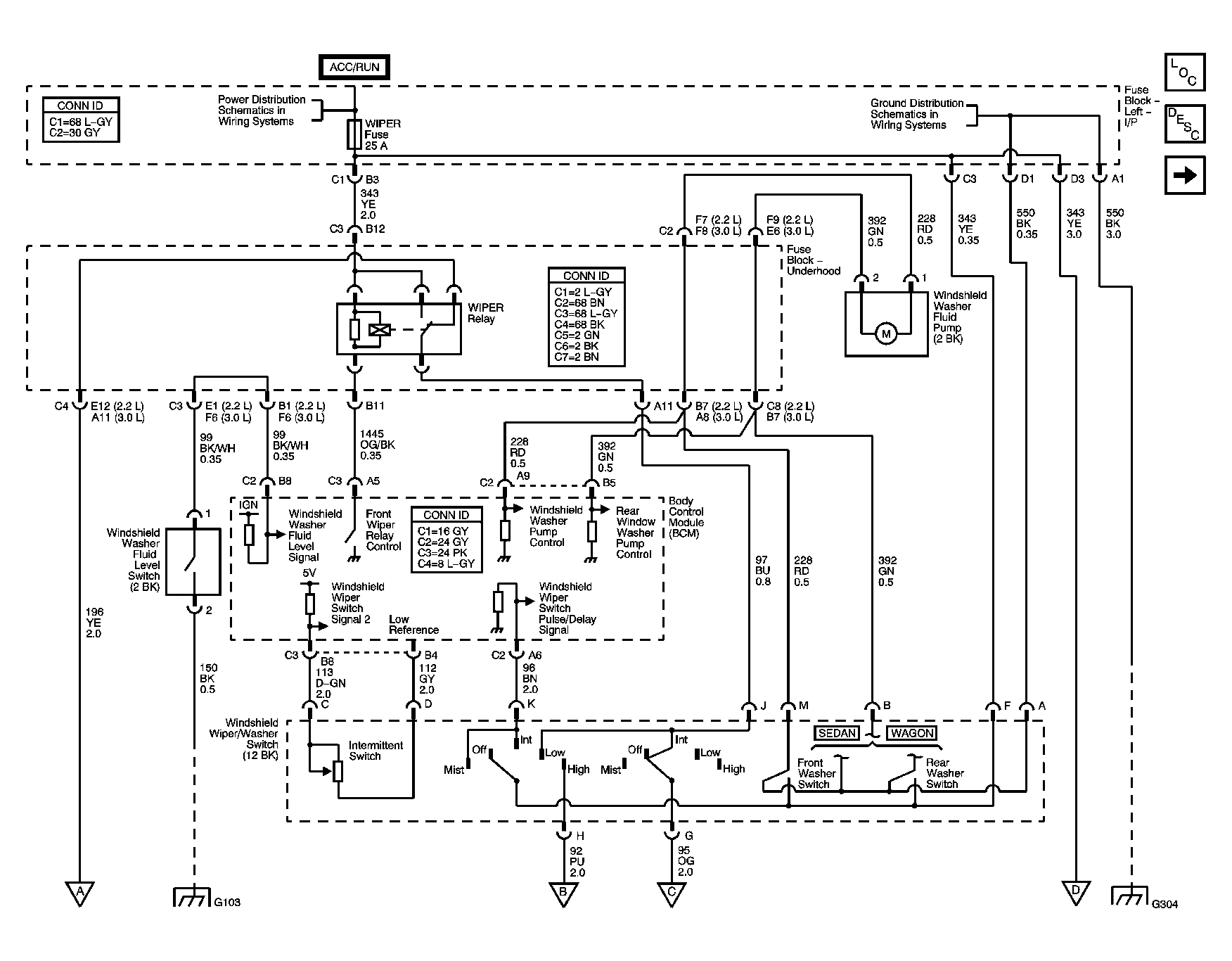

Fig 1: Windshield Wiper/Wiper Switch and Washer Control
Courtesy of GENERAL MOTORS CORP.

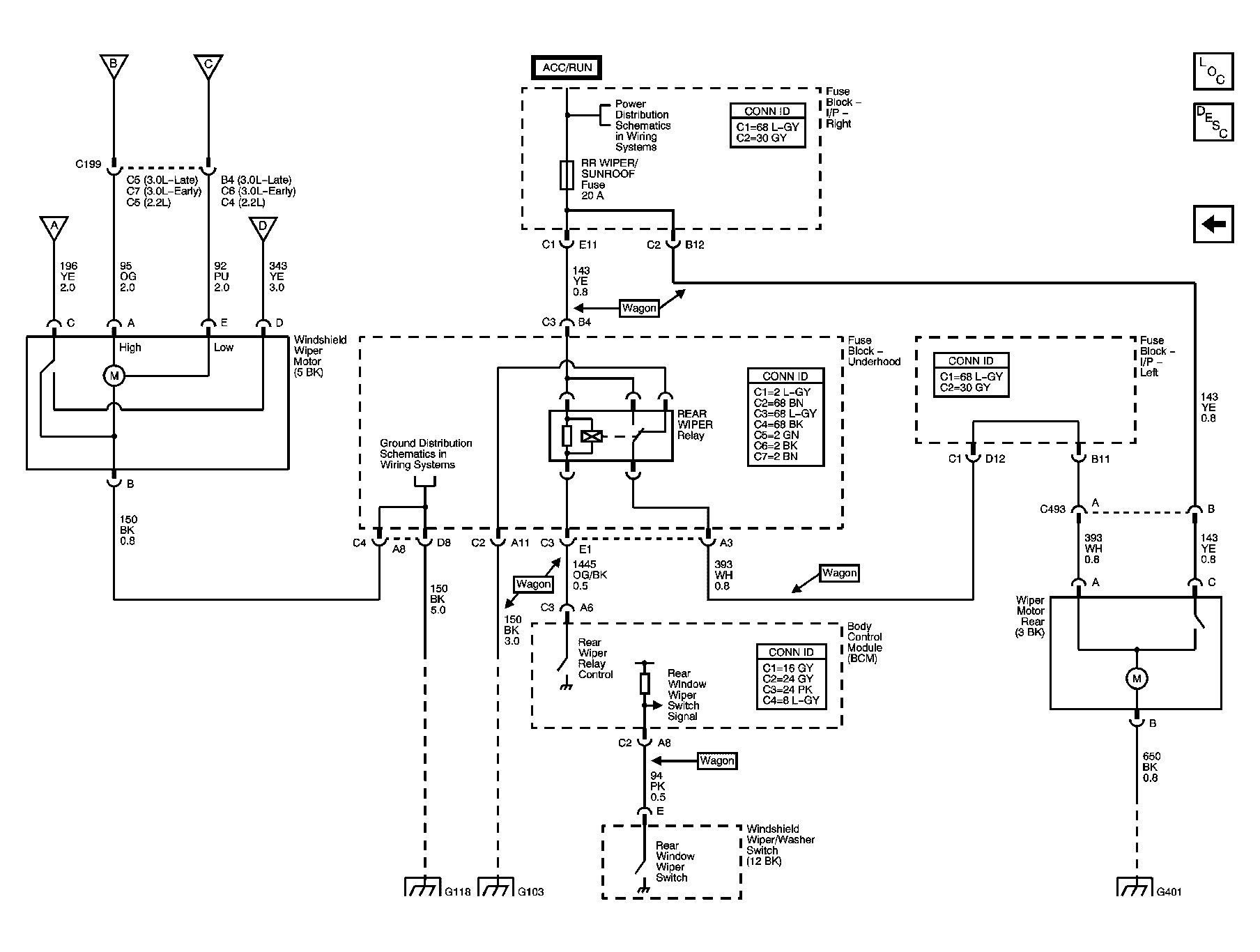

Fig 2: Wiper Motors Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
